GRJ200L-GNANKC (2007)
Toyota Land Cruiser(China)
(0712-1601)

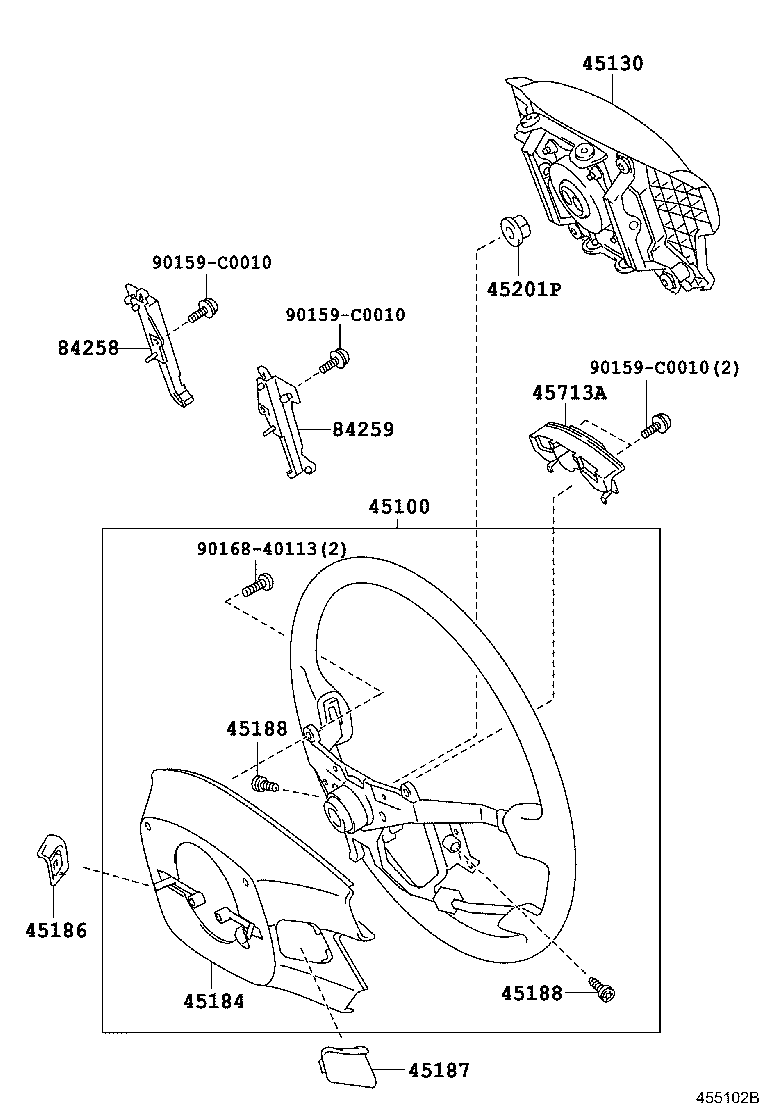

4-SPOKE,URETHANE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-60600E0 |
GRJ200,UZJ200..5FC..GX 4-SPOKE, URETHANE,DK. BROWN,TRIM4# |
1 | ||
| 45100-60600E2 |
GRJ200 4-SPOKE, URETHANE,ORCHID BROWN,TRIM0# |
1 | ||
| 45100-60610E0 |
GRJ200 4-SPOKE, LEATHER,VX(SPECIAL) PACKAGE,DK. BROWN,TRIM4# |
1 | ||
| 45100-60610E1 |
GRJ200 4-SPOKE, LEATHER,VX PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 45100-60600E0 |
GRJ200..5F 4-SPOKE, URETHANE,DK. BROWN,TRIM4# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-60370E0 |
GRJ200..5F DK. BROWN,TRIM4# |
1 | ||
| 45130-60380E0 |
GRJ200 VX(SPECIAL) PACKAGE,DK. BROWN,TRIM4# |
1 | ||
| 45130-60370E0 |
GRJ200,UZJ200..5FC..GX DK. BROWN,TRIM4# |
1 | ||
| 45130-60370E1 |
GRJ200 ORCHID BROWN,TRIM0# |
1 | ||
| 45130-60380E1 |
GRJ200 VX PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-60120E0 |
GRJ200,UZJ200..5FC DK. BROWN,TRIM4# |
1 | ||
| 45184-60120E0 |
GRJ200..5F DK. BROWN,TRIM4# |
1 | ||
| 45184-60121E2 |
GRJ200,URJ202 ORCHID BROWN,TRIM0# |
1 | ||
| 45184-60120E2 |
GRJ200,URJ202 ORCHID BROWN,TRIM0# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-60050E1 |
GRJ200,URJ202 ORCHID BROWN,TRIM0# |
1 | ||
| 45186-60050E0 |
GRJ200,UZJ200..5FC DK. BROWN,TRIM4# |
1 | ||
| 45186-60050E0 |
GRJ200..5F DK. BROWN,TRIM4# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-60020E0 |
GRJ200,UZJ200..5FC DK. BROWN,TRIM4# |
1 | ||
| 45187-60020E0 |
GRJ200..5F DK. BROWN,TRIM4# |
1 | ||
| 45187-60020E2 |
GRJ200,URJ202 ORCHID BROWN,TRIM0# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
GRJ200..5F L=18 |
2 | ||
| 45188-60010 |
GRJ200,URJ202 L=18 |
2 | ||
| 45188-60010 |
GRJ200,UZJ200..5FC L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
GRJ200..5F L=18 |
2 | ||
| 45188-60010 |
GRJ200,URJ202 L=18 |
2 | ||
| 45188-60010 |
GRJ200,UZJ200..5FC L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90178-C0025 |
GRJ200,URJ202 |
1 | ||
| 90179-12071 |
GRJ200,URJ202 |
1 | ||
| 90179-12071 |
GRJ200..5F |
1 | ||
| 90179-12071 |
GRJ200,UZJ200..5FC |
1 | ||
| 90179-12071 |
GRJ200,URJ202 |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| 45713-60040 |
GRJ200,UZJ200..5FC |
1 | ||
| 45713-48130 |
GRJ200,URJ202 |
1 | ||
| 45713-60040 |
GRJ200,URJ202 |
1 | ||
| 45713-60040 |
GRJ200..5F |
1 | ||
| 84258 - COVER, STEERING PAD, RH | ||||
| 84258-60020 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| 84258-60020 |
GRJ200..5F |
1 | ||
| 84258-60020 |
GRJ200 |
1 | ||
| 84259 - COVER, STEERING PAD, LH | ||||
| 84259-60020 |
GRJ200..5F |
1 | ||
| 84259-60020 |
GRJ200 |
1 | ||
| 84259-60020 |
GRJ200,UZJ200..5FC..GX |
1 | ||
| Common parts | ||||
| 90159-C0010 | None epc.PartDetail.None | |||
| 90168-40113 | None epc.PartDetail.None | |||
(0712-1601)

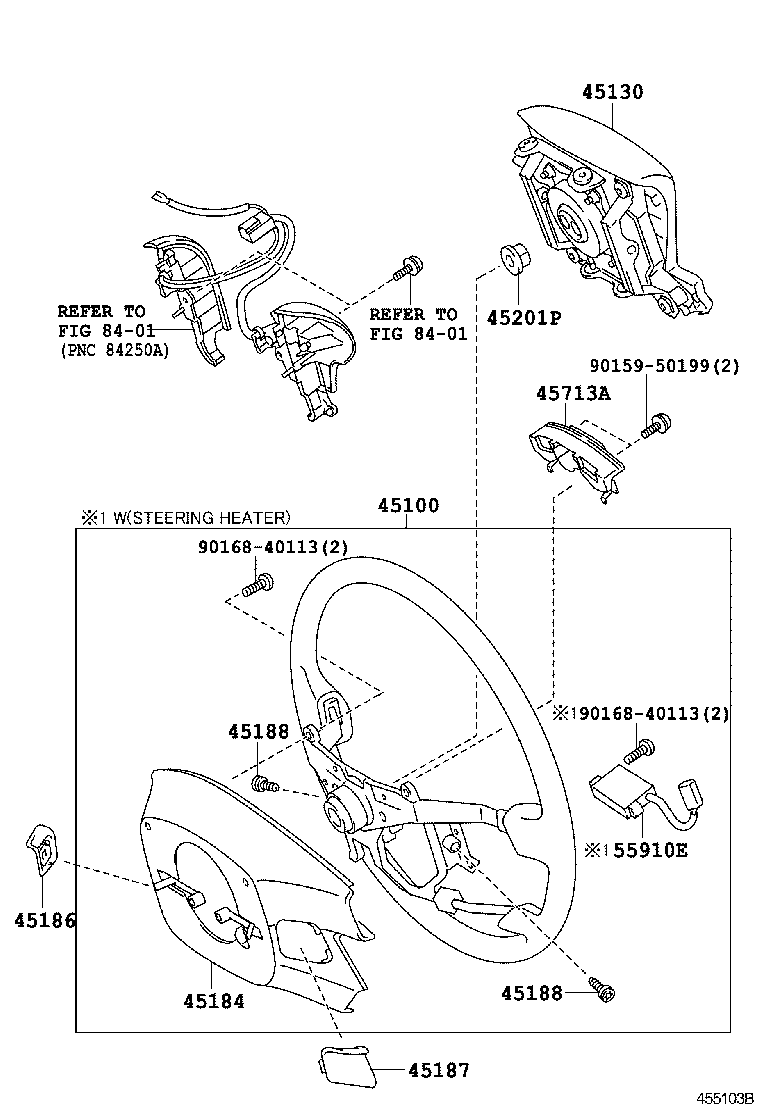

4-SPOKE,LEATHER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-60600E0 |
GRJ200,UZJ200..5FC..GX 4-SPOKE, URETHANE,DK. BROWN,TRIM4# |
1 | ||
| 45100-60600E2 |
GRJ200 4-SPOKE, URETHANE,ORCHID BROWN,TRIM0# |
1 | ||
| 45100-60610E0 |
GRJ200 4-SPOKE, LEATHER,VX(SPECIAL) PACKAGE,DK. BROWN,TRIM4# |
1 | ||
| 45100-60610E1 |
GRJ200 4-SPOKE, LEATHER,VX PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 45100-60600E0 |
GRJ200..5F 4-SPOKE, URETHANE,DK. BROWN,TRIM4# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-60370E0 |
GRJ200..5F DK. BROWN,TRIM4# |
1 | ||
| 45130-60380E0 |
GRJ200 VX(SPECIAL) PACKAGE,DK. BROWN,TRIM4# |
1 | ||
| 45130-60370E0 |
GRJ200,UZJ200..5FC..GX DK. BROWN,TRIM4# |
1 | ||
| 45130-60370E1 |
GRJ200 ORCHID BROWN,TRIM0# |
1 | ||
| 45130-60380E1 |
GRJ200 VX PACKAGE,ORCHID BROWN,TRIM0# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-60120E0 |
GRJ200,UZJ200..5FC DK. BROWN,TRIM4# |
1 | ||
| 45184-60120E0 |
GRJ200..5F DK. BROWN,TRIM4# |
1 | ||
| 45184-60121E2 |
GRJ200,URJ202 ORCHID BROWN,TRIM0# |
1 | ||
| 45184-60120E2 |
GRJ200,URJ202 ORCHID BROWN,TRIM0# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-60050E1 |
GRJ200,URJ202 ORCHID BROWN,TRIM0# |
1 | ||
| 45186-60050E0 |
GRJ200,UZJ200..5FC DK. BROWN,TRIM4# |
1 | ||
| 45186-60050E0 |
GRJ200..5F DK. BROWN,TRIM4# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-60020E0 |
GRJ200,UZJ200..5FC DK. BROWN,TRIM4# |
1 | ||
| 45187-60020E0 |
GRJ200..5F DK. BROWN,TRIM4# |
1 | ||
| 45187-60020E2 |
GRJ200,URJ202 ORCHID BROWN,TRIM0# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
GRJ200..5F L=18 |
2 | ||
| 45188-60010 |
GRJ200,URJ202 L=18 |
2 | ||
| 45188-60010 |
GRJ200,UZJ200..5FC L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
GRJ200..5F L=18 |
2 | ||
| 45188-60010 |
GRJ200,URJ202 L=18 |
2 | ||
| 45188-60010 |
GRJ200,UZJ200..5FC L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90178-C0025 |
GRJ200,URJ202 |
1 | ||
| 90179-12071 |
GRJ200,URJ202 |
1 | ||
| 90179-12071 |
GRJ200..5F |
1 | ||
| 90179-12071 |
GRJ200,UZJ200..5FC |
1 | ||
| 90179-12071 |
GRJ200,URJ202 |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| 45713-60040 |
GRJ200,UZJ200..5FC |
1 | ||
| 45713-48130 |
GRJ200,URJ202 |
1 | ||
| 45713-60040 |
GRJ200,URJ202 |
1 | ||
| 45713-60040 |
GRJ200..5F |
1 | ||
| Common parts | ||||
| 90159-50199 | None epc.PartDetail.None | |||
| 90168-40113 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 8401 | ||||
