MCU28R-BWANKQ (2003)

Toyota Kluger

Production Aug 2003 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

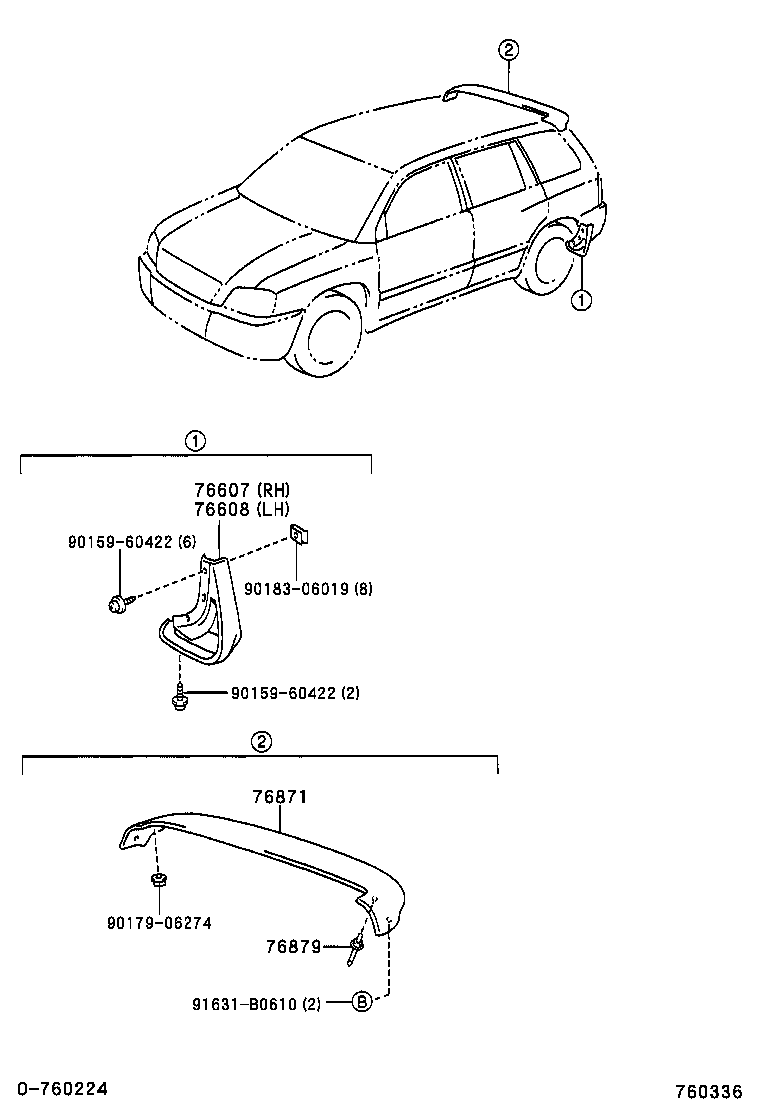

Click highlighted areas on diagram

diagram 76607 76608 76871 76879 9015960422 9015960422 9017906274 9018306019 91631B0610
Part # Description Qty Price
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-48040

MCU28

NO PAINT REQ.

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-48040

MCU28

NO PAINT REQ.

 1
76871 - SPOILER, REAR
76871-48902

MCU28

PAINT REQ.

 1
76879 - CLIP, REAR SPOILER, NO.1
76879-48010

MCU28

 1
Common parts
90159-60422
90179-06274
90183-06019
91631-B0610
