MCU28R-BWANKQ (2003)
Toyota Kluger

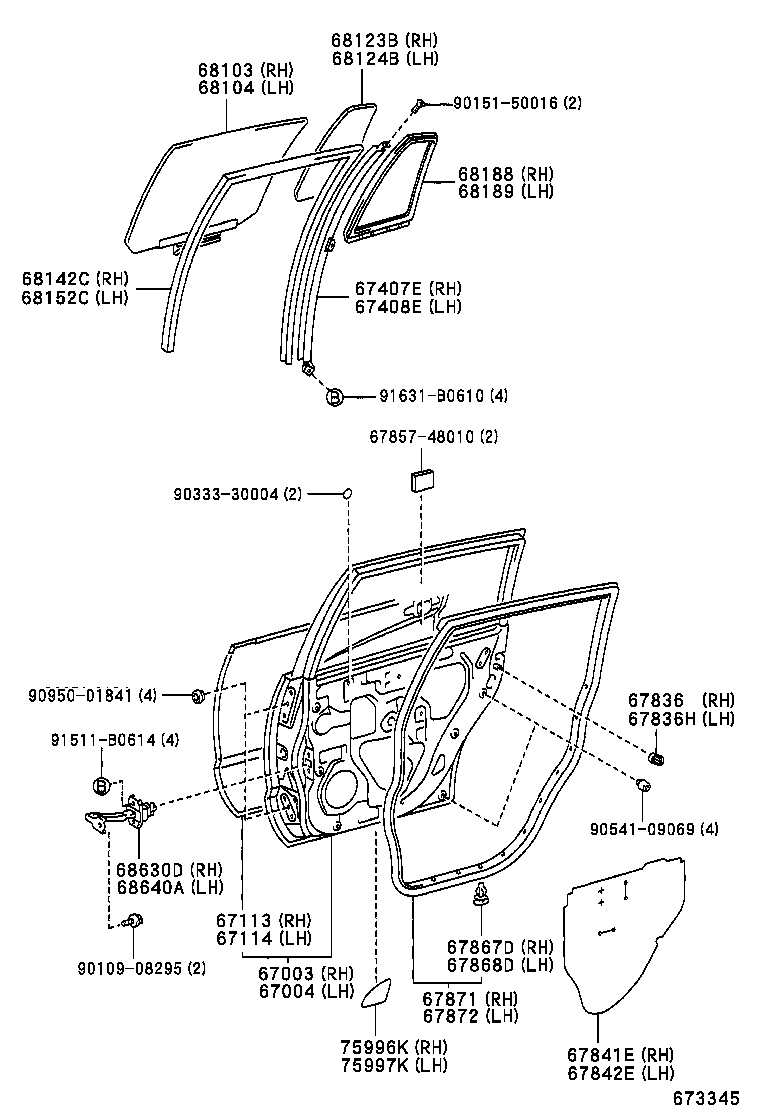

ILLUST NO. 2 OF 2(0308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-48050 |
MCU28 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-48050 |
MCU28 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-48020 |
MCU28 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-48020 |
MCU28 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-48020 |
MCU28 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-48020 |
MCU28 |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
MCU28 |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
MCU28 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-48020 |
MCU28 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-48020 |
MCU28 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
MCU28 |
19 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
MCU28 |
19 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-48020 |
MCU28 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-48020 |
MCU28 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-48070 |
MCU28 *TT,T=3.5,GRAY |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-48070 |
MCU28 *TT,T=3.5,GRAY |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-48070 |
MCU28 *TT,T=3.5,GRAY |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-48070 |
MCU28 *TT,T=3.5,GRAY |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-48020 |
MCU28 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-48020 |
MCU28 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-48020 |
MCU28 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-48020 |
MCU28 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-48020 |
MCU28 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-48010 |
MCU28 |
1 | ||
| 75996K - STRIPE, REAR BODY, RH | ||||
| 75996-48010 |
MCU28 |
1 | ||
| 75997K - STRIPE, REAR BODY, LH | ||||
| 75997-48010 |
MCU28 |
1 | ||
| Common parts | ||||
| 67857-48010 | ||||
| 90109-08295 | ||||
| 90151-50016 | ||||
| 90333-30004 | ||||
| 90541-09069 | ||||
| 90950-01841 | ||||
| 91511-B0614 | ||||
| 91631-B0610 | ||||

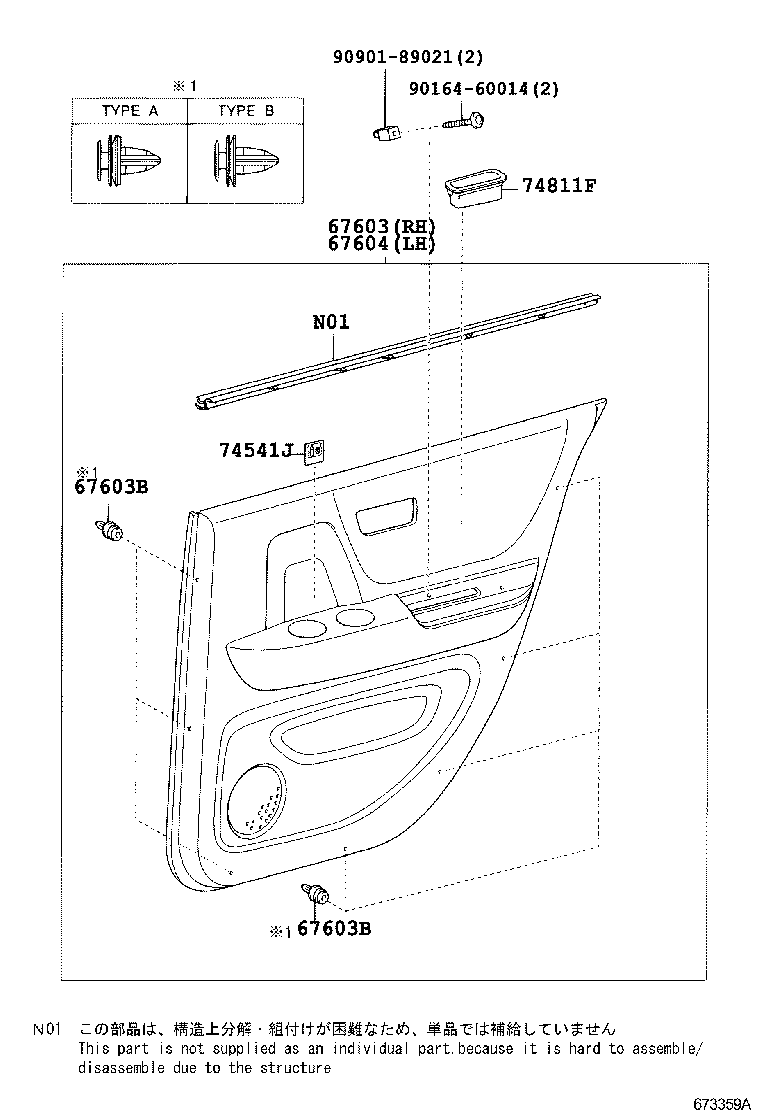

ILLUST NO. 1 OF 2(0308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-48200A2 |
MCU28 LEATHER TRIM,IVORY,TRIM0# |
1 | ||
| 67630-48270B1 |
MCU28 FABRIC TRIM,GRAY,TRIM1# |
1 | ||
| 67630-48270A1 |
MCU28 FABRIC TRIM,IVORY,TRIM0# |
1 | ||
| 67630-48200B1 |
MCU28 LEATHER TRIM,GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
MCU28 TYPE A:REFER TO ILLUSTRATION |
12 | ||
| 90467-10161 |
MCU28 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
MCU28 TYPE A:REFER TO ILLUSTRATION |
12 | ||
| 90467-10161 |
MCU28 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-48200A2 |
MCU28 LEATHER TRIM,IVORY,TRIM0# |
1 | ||
| 67640-48270B1 |
MCU28 FABRIC TRIM,GRAY,TRIM1# |
1 | ||
| 67640-48270A1 |
MCU28 FABRIC TRIM,IVORY,TRIM0# |
1 | ||
| 67640-48200B1 |
MCU28 LEATHER TRIM,GRAY,TRIM1# |
1 | ||
| 74541J - LABEL, BOTTLE HOLDER INFORMATION | ||||
| 74541-48020 |
MCU28 |
2 | ||
| 74811F - HANDLE, DOOR PULL | ||||
| 74811-22010A0 |
MCU28 IVORY,TRIM0# |
2 | ||
| 74811-22010B4 |
MCU28 GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90164-60014 | ||||
| 90901-89021 | ||||
