MCU28R-BRANKQ (2003)

Toyota Kluger

Production Aug 2003 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0308- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

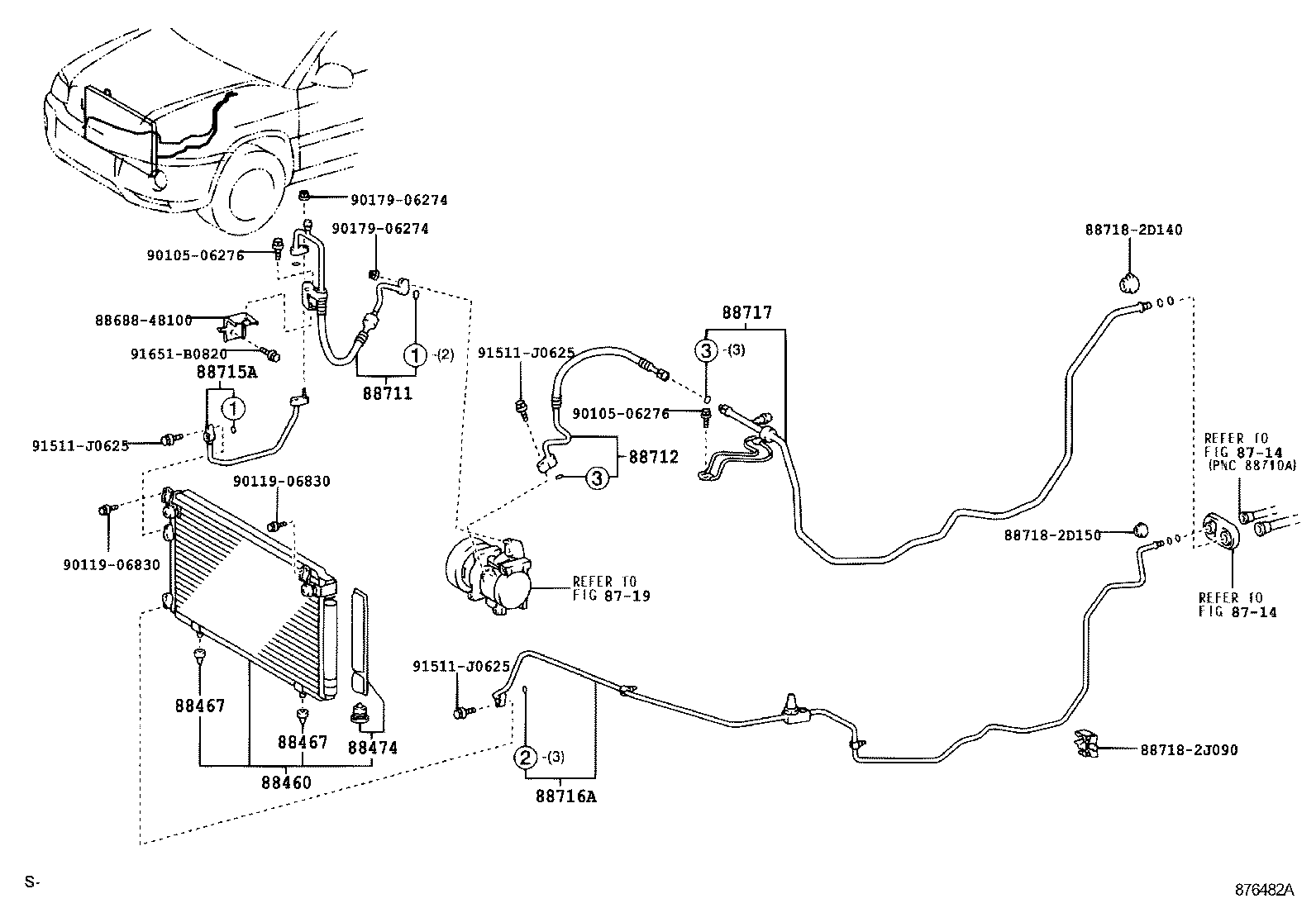

ILLUST NO. 1 OF 2(0308- )

Click highlighted areas on diagram

diagram 8714 8714 8719 88460 88467 88467 88474 8868848100 88711 88712 88715A 88716A 88717 887182D140 887182D150 887182J090 9010506276 9010506276 9011906830 9011906830 9017906274 9017906274 91511J0625 91511J0625 91511J0625 91651B0820
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-48020

MCU28

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28040

MCU28

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28040

MCU28

 2
88474 - DRYER, COOLER
88474-47010

MCU28

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-48050

MCU28

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-48050

MCU28

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88705-48030

MCU28

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-48070

MCU28

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88707-48030

MCU28

 1
Common parts
88688-48100
88718-2D140
88718-2D150
88718-2J090
90105-06276
90119-06830
90179-06274
91511-J0625
91651-B0820
