MCU28R-BRANKQ (2003)

Toyota Kluger

Production Aug 2003 - May 2007
Engine 3MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308-0705)7S

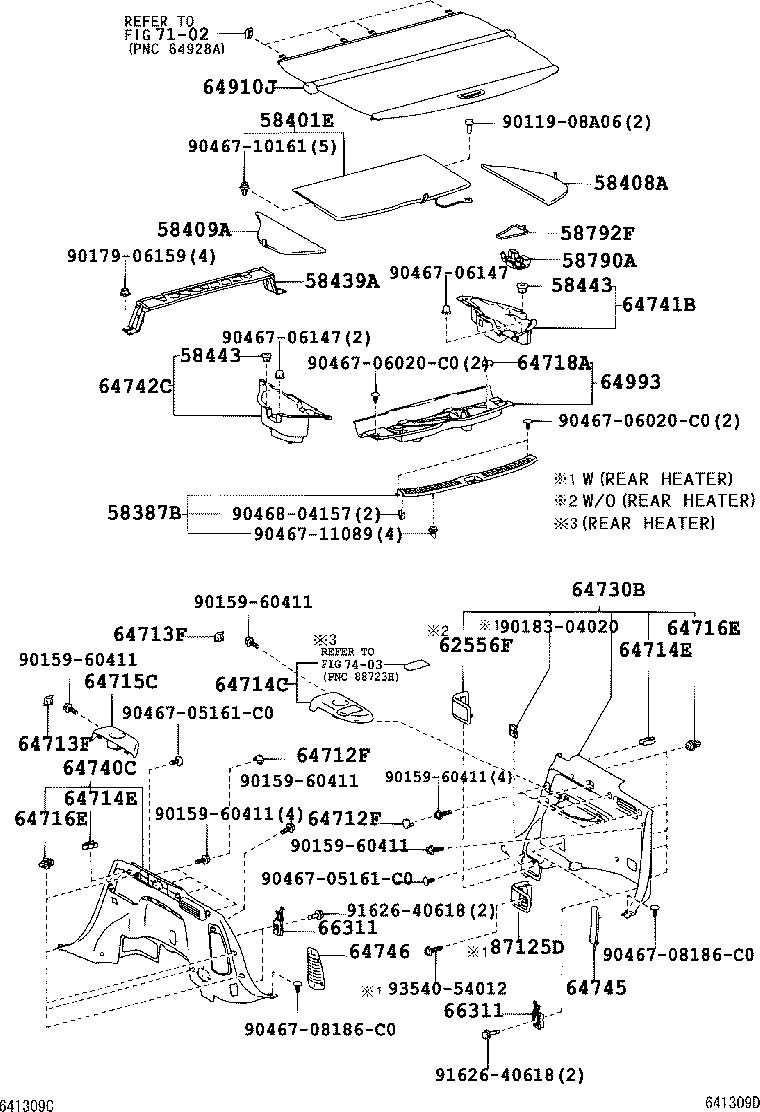

Click highlighted areas on diagram

diagram 58387B 58401E 58408A 58409A 58439A 58443 58443 58790A 58792F 62556F 64712F 64712F 64713F 64713F 64714C 64714E 64714E 64715C 64716E 64716E 64718A 64730B 64740C 64741B 64742C 64745 64746 64910J 64993 66311 66311 7102 7403 87125D 9011908A06 9015960411 9015960411 9015960411 9015960411 9015960411 9015960411 9017906159 9018304020 9046705161C0 9046705161C0 9046706020C0 9046706020C0 9046706147 9046706147 9046708186C0 9046708186C0 9046710161 9046711089 9046804157 9162640618 9162640618 9354054012
Part # Description Qty Price
58387B - PLATE, REAR FLOOR FINISH
58387-48040A0

MCU28

IVORY,TRIM0#

 1
58387-48040B0

MCU28

GRAY,TRIM1#

 1
58401E - BOARD SUB-ASSY, DECK
58410-48070A0

MCU28..7S

IVORY,TRIM0#

 1
58410-48070B0

MCU28..7S

LT.GRAY,TRIM1#

 1
58408A - BOARD SUB-ASSY, DECK, NO.2
58408-48060B0

MCU28

LT.GRAY,TRIM1#

 1
58408-48060A0

MCU28

IVORY,TRIM0#

 1
58409A - BOARD SUB-ASSY, DECK, NO.3
58409-48060A0

MCU28

IVORY,TRIM0#

 1
58409-48060B0

MCU28

LT.GRAY,TRIM1#

 1
58439A - CHECK, DECK BOARD, NO.1
58439-48020

MCU28..7S

 1
58443 - CUSHION, DECK BOARD, NO.1
58443-33010

MCU28

 2
58443 - CUSHION, DECK BOARD, NO.1
58443-33010

MCU28

 2
58790A - CARRIER ASSY, JACK
58790-48020

MCU28

 1
58792F - SUPPORT, JACK CARRIER
58792-48010

MCU28

 1
62556F - CAP, REAR SEAT SIDE GARNISH
62556-48040

MCU28..7S

 1
64712F - COVER, DECK SIDE TRIM, FRONT RH
64712-48010A0

MCU28

IVORY,TRIM0#

 8
64712-48010B2

MCU28

GRAY,TRIM1#

 8
64712F - COVER, DECK SIDE TRIM, FRONT RH
64712-48010A0

MCU28

IVORY,TRIM0#

 8
64712-48010B2

MCU28

GRAY,TRIM1#

 8
64713F - COVER, DECK SIDE TRIM, FRONT LH
64713-48010B0

MCU28..7S

GRAY,TRIM1#

 2
64713-48010A0

MCU28..7S

IVORY,TRIM0#

 2
64713F - COVER, DECK SIDE TRIM, FRONT LH
64713-48010B0

MCU28..7S

GRAY,TRIM1#

 2
64713-48010A0

MCU28..7S

IVORY,TRIM0#

 2
64714C - COVER, DECK SIDE TRIM, RH
64714-48050B0

MCU28..7S

GRAY,TRIM1#

 1
64714-48050A0

MCU28..7S

IVORY,TRIM0#

 1
64714-48060A0

MCU28..7S

W(REAR HEATER),IVORY,TRIM0#

 1
64714-48060B0

MCU28..7S

W(REAR HEATER),GRAY,TRIM1#

 1
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-12080

MCU28

 2
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-12080

MCU28

 2
64715C - COVER, DECK SIDE TRIM, LH
64715-48050B0

MCU28..7S

GRAY,TRIM1#

 1
64715-48050A0

MCU28..7S

IVORY,TRIM0#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-10161

MCU28

 10
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-10161

MCU28

 10
64718A - COVER, DECK TRIM SERVICE HOLE
64718-48010

MCU28

 1
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-48050A0

MCU28..7S

IVORY,TRIM0#

 1
64730-48050B0

MCU28..7S

GRAY,TRIM1#

 1
64730-48060A0

MCU28..7S

W(REAR HEATER),IVORY,TRIM0#

 1
64730-48060B0

MCU28..7S

W(REAR HEATER),GRAY,TRIM1#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-48050B0

MCU28..7S

GRAY,TRIM1#

 1
64740-48050A0

MCU28..7S

IVORY,TRIM0#

 1
64741B - BOX, DECK SIDE TRIM, RH
64741-48040

MCU28

 1
64742C - BOX, DECK SIDE TRIM, LH
64742-48030

MCU28

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-48010B2

MCU28

GRAY,TRIM1#

 1
64745-48010A0

MCU28

IVORY,TRIM0#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-48010A0

MCU28

IVORY,TRIM0#

 1
64746-48010B2

MCU28

GRAY,TRIM1#

 1
64910J - COVER ASSY, TONNEAU
64910-48050A0

MCU28

IVORY,TRIM0#

 1
64910-48050B0

MCU28

GRAY,TRIM1#

 1
64993 - BOX, DECK FLOOR, REAR
64993-48020

MCU28

 1
66311 - HOOK, ROPE
66310-32010A0

MCU28

IVORY,TRIM0#

 4
66310-32010B3

MCU28

GRAY,TRIM1#

 4
66311 - HOOK, ROPE
66310-32010A0

MCU28

IVORY,TRIM0#

 4
66310-32010B3

MCU28

GRAY,TRIM1#

 4
87125D - GRILLE, HEATER AIR OUTLET
87125-48010A0

MCU28..7S

IVORY,TRIM0#

 1
87125-48010B0

MCU28..7S

GRAY,TRIM1#

 1
Common parts
90119-08A06
90159-60411
90179-06159
90183-04020
90467-05161C0
90467-06020C0
90467-06147
90467-08186C0
90467-10161
90467-11089
90468-04157
91626-40618
93540-54012
