MAXA10L-DHXNHC (2018)

Toyota Izoa

Production Jul 2018 - May 2021
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1807- )

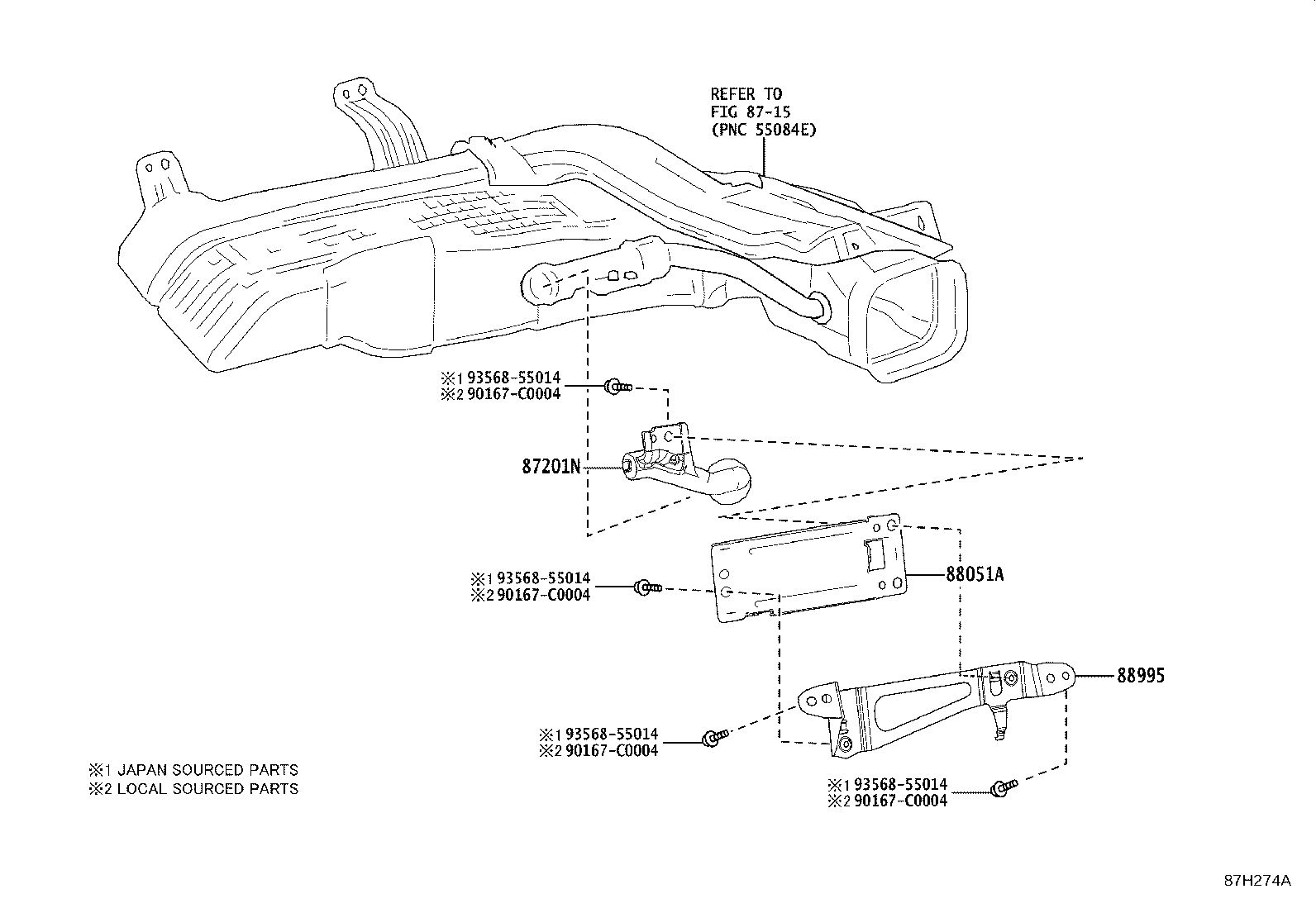

Click highlighted areas on diagram

diagram 8715 87201N 88051A 88995 90167C0004 90167C0004 90167C0004 90167C0004 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
87201N - DUCT SUB-ASSY, AIR
87202-F4030

MAXA10..N

LADY PACKAGE

 1
88051A - GENERATOR SUB-ASSY,ION
88051-0N010

MAXA10..N

LADY PACKAGE

 1
88995 - BRACKET,ION GENERATOR, NO.1
55479-F4030

MAXA10..N

LADY PACKAGE

 1
Common parts
90167-C0004
93568-55014
Linked diagrams
8715
