MAXA10L-DHXNHC (2018)
Toyota Izoa
Production
Jul 2018
-
May 2021
Engine
M20AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1807- )

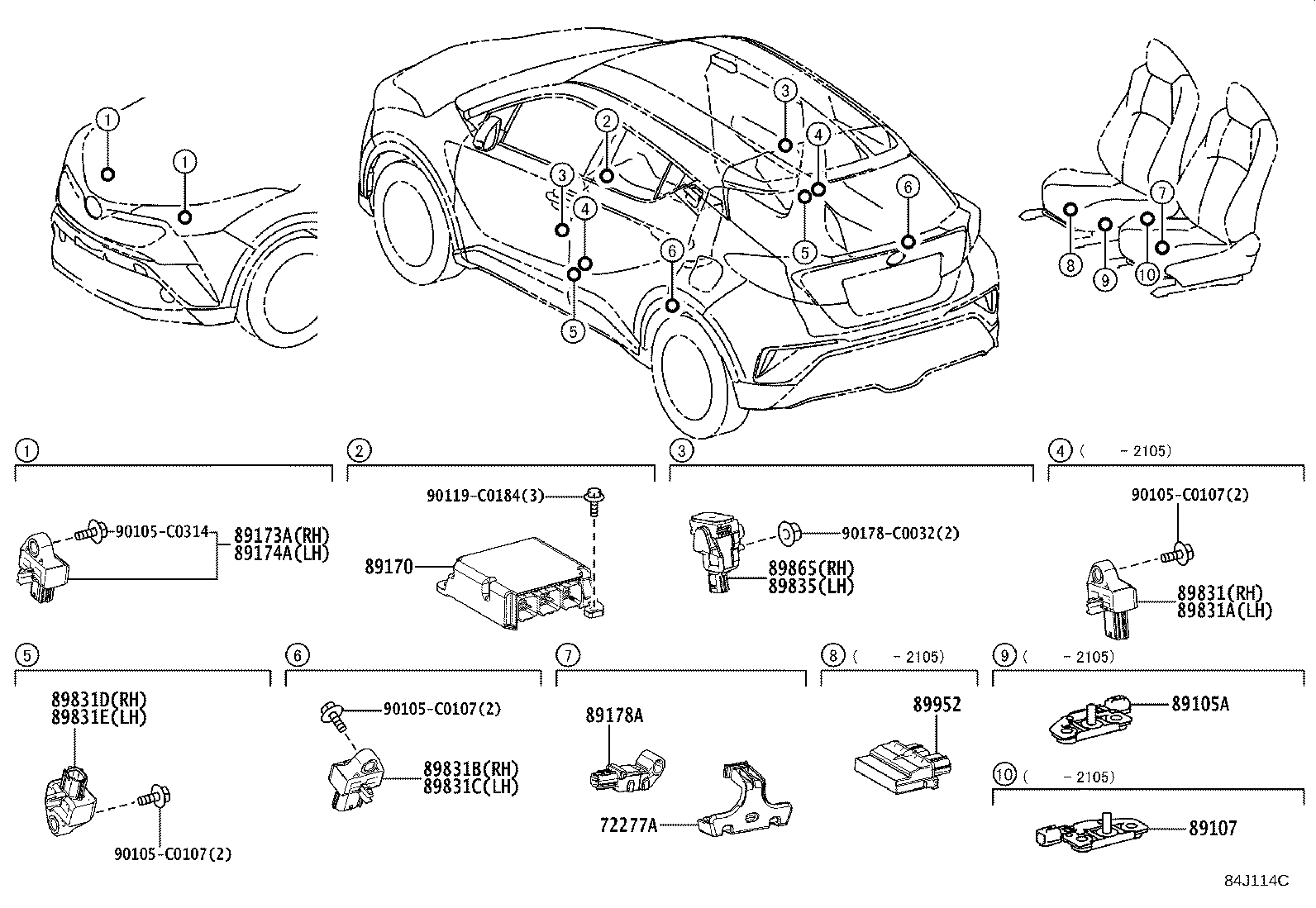

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR | ||||
| 72277-F4050 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72277-F4050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72277-F4050 |
MAXA10 |
1 | ||
| 89105A - SENSOR SUB-ASSY, WEIGHT DETECTOR, FRONT INNER | ||||
| 89105-47020 |
MAXA10..N LADY PACKAGE |
1 | ||
| 89105-47020 |
MAXA10 |
1 | ||
| 89105-47020 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 89107 - SENSOR SUB-ASSY, WEIGHT DETECTOR, REAR INNER | ||||
| 89107-47020 |
MAXA10..N LADY PACKAGE |
1 | ||
| 89107-47020 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 89107-47020 |
MAXA10 |
1 | ||
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-F4190 |
MAXA10 |
1 | ||
| 89170-F4510 |
MAXA10 |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-09C80 |
MAXA10 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-09C80 |
MAXA10 |
1 | ||
| 89178A - SENSOR, SEAT POSITION AIR BAG | ||||
| 89178-33050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 89178-33050 |
MAXA10..N LADY PACKAGE |
1 | ||
| 89178-33050 |
MAXA10..D,N |
1 | ||
| 89831 - SENSOR, SIDE AIR BAG, RH, NO.1 | ||||
| 89831-06150 |
MAXA10 |
1 | ||
| 89831A - SENSOR, SIDE AIR BAG, LH, NO.1 | ||||
| 89831-06150 |
MAXA10 |
1 | ||
| 89831B - SENSOR, SIDE AIR BAG, RH, NO.2 | ||||
| 89831-F4060 |
MAXA10 |
1 | ||
| 89831C - SENSOR, SIDE AIR BAG, LH, NO.2 | ||||
| 89831-F4060 |
MAXA10 |
1 | ||
| 89831D - SENSOR, FLOOR SIDE AIR BAG, RH | ||||
| 89831-06160 |
MAXA10 |
1 | ||
| 89831E - SENSOR, FLOOR SIDE AIR BAG, LH | ||||
| 89831-06160 |
MAXA10 |
1 | ||
| 89835 - SENSOR, DOOR SIDE AIR BAG, LH | ||||
| 8983A-F4020 |
MAXA10 |
1 | ||
| 89865 - SENSOR, DOOR SIDE AIR BAG, RH | ||||
| 8983A-F4020 |
MAXA10 |
1 | ||
| 89952 - COMPUTER, OCCUPANT DETECTION | ||||
| 89952-12030 |
MAXA10 |
1 | ||
| Common parts | ||||
| 90105-C0107 | ||||
| 90105-C0314 | ||||
| 90119-C0184 | ||||
| 90178-C0032 | ||||
