MAXA10L-DHXNHC (2018)
Toyota Izoa
Production
Jul 2018
-
May 2021
Engine
M20AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1807- )

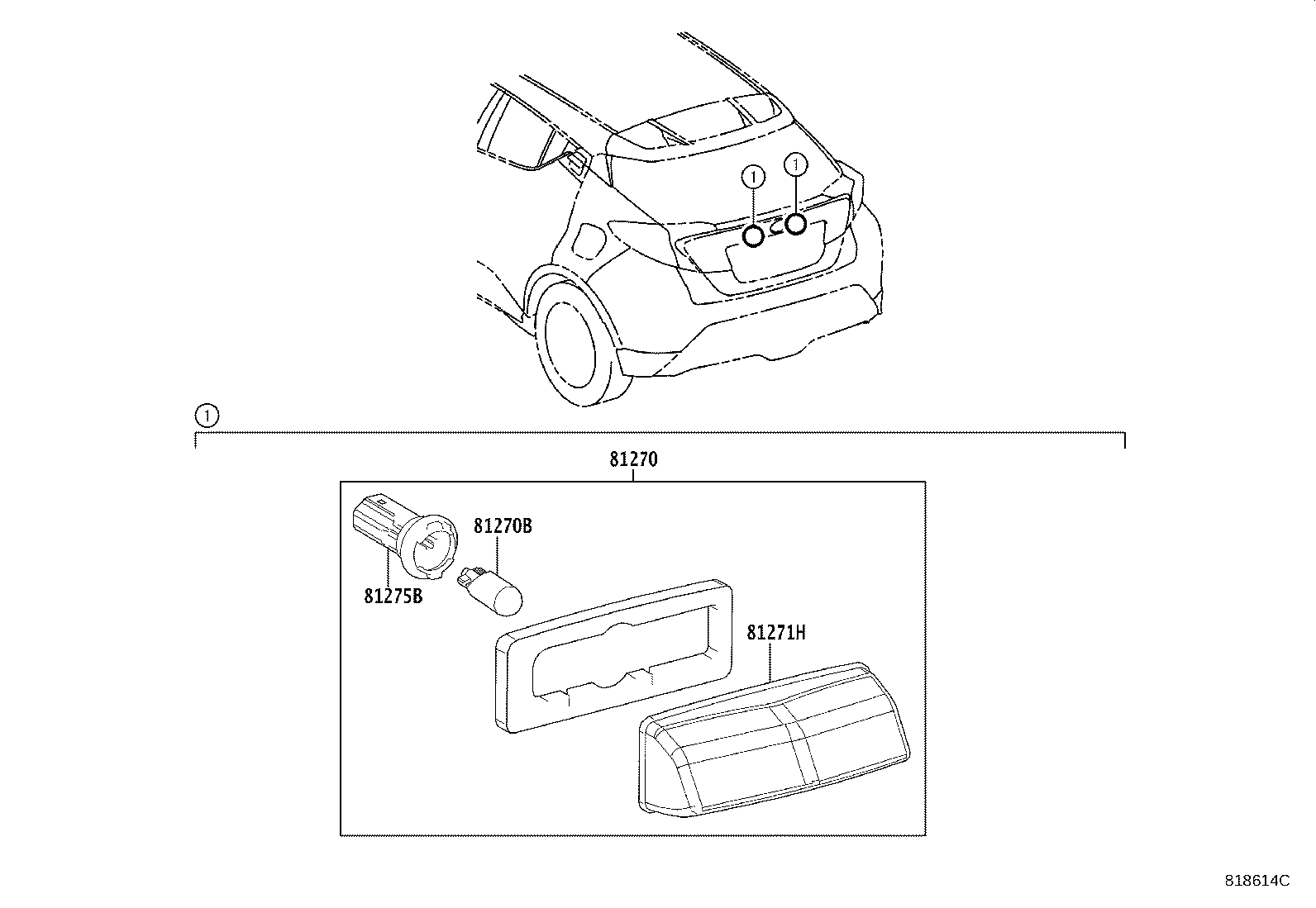

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-F4030 |
MAXA10 |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-CB001 |
MAXA10 12V 5W |
2 | ||
| 81271H - LENS & COVER, LICENSE PLATE LAMP | ||||
| 81271-0R040 |
MAXA10 |
2 | ||
| 81275B - SOCKET PLUG, LICENSE PLATE LAMP | ||||
| 81278-0R040 |
MAXA10 |
2 | ||
