MAXA10L-DHXNHC (2018)
Toyota Izoa
(1807-2105) ; (2105- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1807-2105)

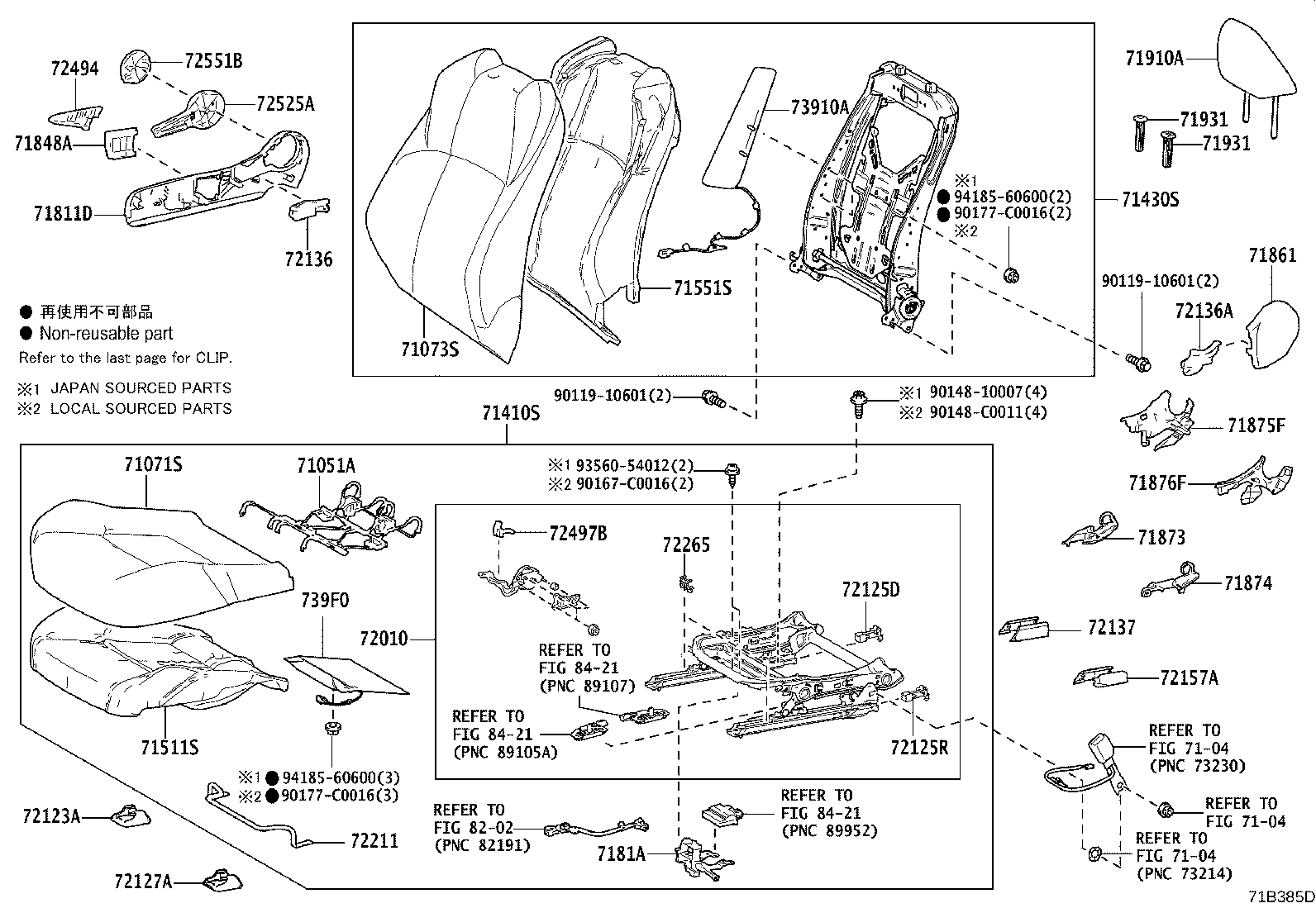

RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-06040 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71051-06040 |
MAXA10 |
1 | ||
| 71051-06040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-F4190C1 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71071-F4190C1 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71071-F4181B1 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71071-F4181B2 |
MAXA10..D,N DK.GRAY,TRIM2# |
1 | ||
| 71071-F4190C1 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71071-F4191C1 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71071-F4191C1 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71071-F4191C2 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71071-F4181B2 |
MAXA10..N SPORT PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71071-F4191C1 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71071-F4180B1 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71071-F4181B2 |
MAXA10..N LADY PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71071-F4192C2 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71071-YK050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71071-YK040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-F4191B1 |
MAXA10..N SPORT PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71073-F4201C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-F4200C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-F4200C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-F4191B1 |
MAXA10..N DK.GRAY,TRIM2# |
1 | ||
| 71073-F4191B1 |
MAXA10..N LADY PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71073-YK050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71073-F4201C2 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-F4192B1 |
MAXA10..N LADY PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71073-F4201C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-F4191B1 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71073-F4190B1 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71073-F4192B1 |
MAXA10..D,N DK.GRAY,TRIM2# |
1 | ||
| 71073-F4201C2 |
MAXA10..N BLACK,TRIM2# |
1 | ||
| 71073-F4202C2 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71073-F4200C2 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71073-YK040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71073-F4192B1 |
MAXA10..N SPORT PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-F4290C1 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71410-F4300C1 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71410-F4300C1 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71410-F4291C0 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71410-F4301C0 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71410-F4301C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71410-F4301C3 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71410-F4291C1 |
MAXA10..D,N BLACK,TRIM2# |
1 | ||
| 71410-F4300C1 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71410-YK040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71410-F4291C1 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71410-F4301C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71410-YK050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71410-F4291C1 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71410-F4302C0 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-F4250C2 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71430-F4240C1 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71430-F4251C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71430-F4250C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71430-F4251C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71430-F4251C0 |
MAXA10..N BLACK,TRIM2# |
1 | ||
| 71430-F4241C0 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71430-F4250C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71430-F4242C0 |
MAXA10..D,N BLACK,TRIM2# |
1 | ||
| 71430-F4251C0 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71430-F4241C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71430-YK040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71430-F4242C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71430-YK050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71430-F4252C0 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71430-F4241C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71430-F4241C0 |
MAXA10..N BLACK,TRIM2# |
1 | ||
| 71430-F4242C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-F4070 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71511-F4070 |
MAXA10 |
1 | ||
| 71511-F4070 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-F4080 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71551-F4080 |
MAXA10 |
1 | ||
| 71551-F4080 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-F4100C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71811-F4100C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71811-F4100C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-F4030 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 7181A-F4030 |
MAXA10 |
1 | ||
| 7181A-F4030 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47040C1 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71848-47040C1 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71848-47040C1 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-F4070C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71861-F4070C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71861-F4070C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-F4060C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71873-F4060C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71873-F4060C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-F4070C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71873-F4070C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71873-F4070C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-F4090C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71875-F4090C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71875-F4090C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-F4100C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71875-F4100C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71875-F4100C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-F4080C2 |
MAXA10..E,N BLACK,TRIM2# |
2 | ||
| 71910-F4071C2 |
MAXA10..D BLACK,TRIM2# |
2 | ||
| 71910-F4081C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-F4081C2 |
MAXA10..E,N BLACK,TRIM2# |
2 | ||
| 71910-F4080C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-F4081C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-F4080C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-F4071C4 |
MAXA10..N SPORT PACKAGE,BALCK,TRIM2# |
2 | ||
| 71910-YK060 |
MAXA10..N SPORT PACKAGE |
2 | ||
| 71910-YK050 |
MAXA10..N LADY PACKAGE |
2 | ||
| 71910-F4070C2 |
MAXA10..D BLACK,TRIM2# |
2 | ||
| 71910-F4071C4 |
MAXA10..N LADY PACKAGE,BALCK,TRIM2# |
2 | ||
| 71910-F4081C5 |
MAXA10..N PLUS PACKAGE,BALCK,TRIM2# |
2 | ||
| 71910-F4071C4 |
MAXA10..D,N BALCK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070C0 |
MAXA10..N W(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..N W/O(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..N W/O(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070C0 |
MAXA10..N W(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..N W/O(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..N W/O(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-F4081 |
MAXA10 |
1 | ||
| 72010-F4081 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72010-F4080 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72010-F4080 |
MAXA10 |
1 | ||
| 72010-F4081 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72010-F4080 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-F4030 |
MAXA10 |
1 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-F4010 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72125-F4010 |
MAXA10 |
1 | ||
| 72125-F4010 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-F4010 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72125-F4010 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72125-F4010 |
MAXA10 |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-F4030 |
MAXA10 |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-F4050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72136-F4050 |
MAXA10 |
1 | ||
| 72136-F4050 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72136A - SPACER, SEAT TRACK, LOWER NO.2 | ||||
| 72136-F4060 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72136-F4060 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72136-F4060 |
MAXA10 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-F4020 |
MAXA10 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-F4020 |
MAXA10 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06140 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72211-06140 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72211-06140 |
MAXA10 |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-F4010 |
MAXA10..N SPORT PACKAGE |
2 | ||
| 72265-F4010 |
MAXA10 |
2 | ||
| 72265-F4010 |
MAXA10..N LADY PACKAGE |
2 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-F4080C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 72494-F4080C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 72494-F4080C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72498-F4070 |
MAXA10 |
1 | ||
| 72498-F4070 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72498-F4070 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-F4090C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 72525-F4090C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 72525-F4090C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-F4080C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 72551-F4080C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 72551-F4080C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-F4051 |
MAXA10 |
1 | ||
| 739F0 - AIR BAG ASSY, FRONT SEAT CUSHION, RH | ||||
| 739F0-F4020 |
MAXA10 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90148-C0011 | ||||
| 90167-C0016 | ||||
| 90177-C0016 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8421 | ||||

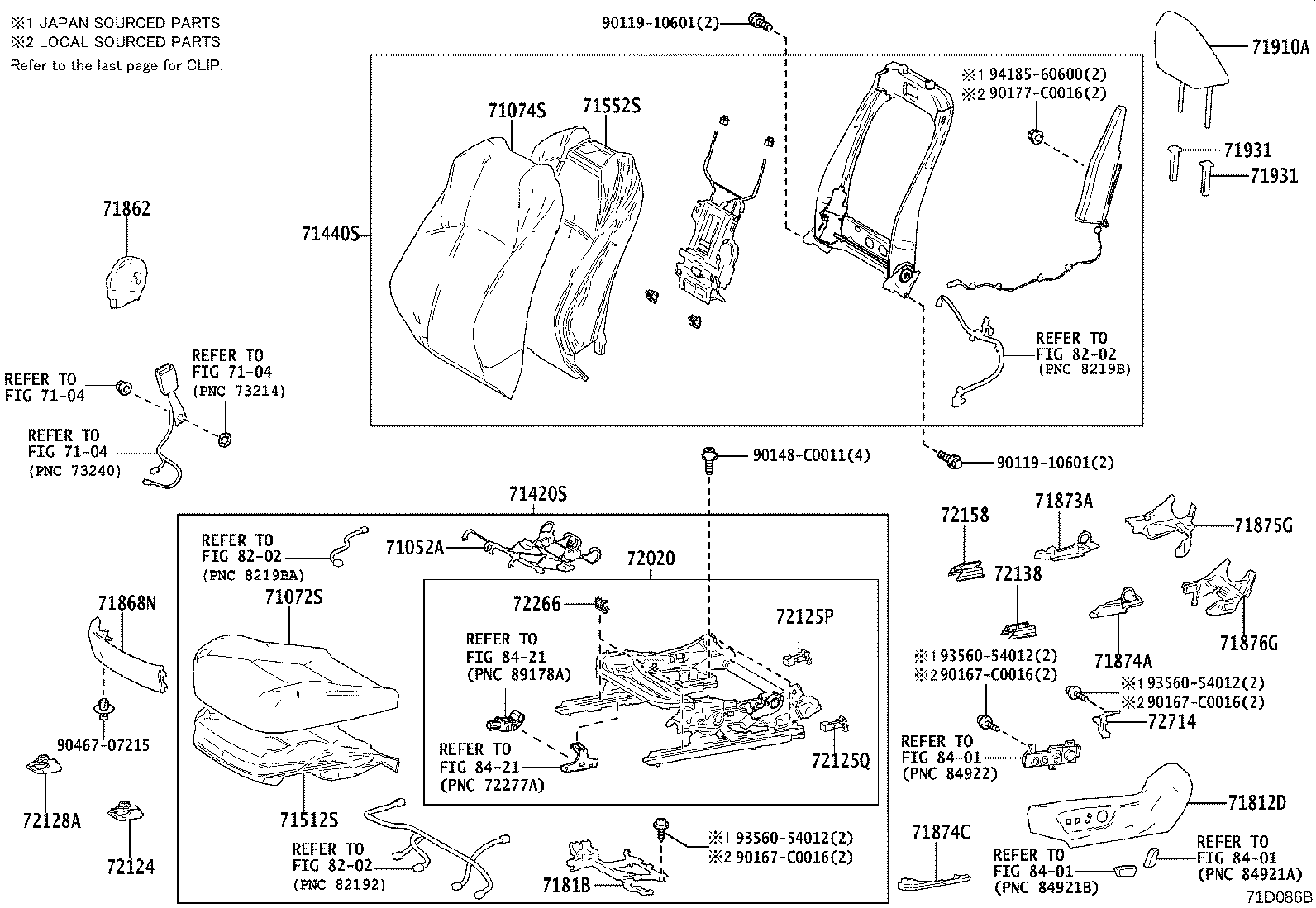

(1807-2105)
LH(MANUAL SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-06040 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71051-06040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71051-06040 |
MAXA10 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-F4140C2 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71072-F4140C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-F4131B4 |
MAXA10..D,N DK.GRAY,TRIM2# |
1 | ||
| 71072-F4141C2 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71072-F4141C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-YK040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71072-F4131B4 |
MAXA10..N SPORT PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71072-F4141C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-YK050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71072-F4140C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-F4142C5 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-F4131B2 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71072-F4141C5 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-F4130B2 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71072-F4131B4 |
MAXA10..N LADY PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-F4190B1 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71074-F4200C2 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71074-F4200C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F4200C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F4201C2 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F4201C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F4191B1 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71074-F4191B1 |
MAXA10..N LADY PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71074-F4201C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F4192B1 |
MAXA10..N SPORT PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71074-YK040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71074-F4192B1 |
MAXA10..N LADY PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71074-F4191B1 |
MAXA10..N DK.GRAY,TRIM2# |
1 | ||
| 71074-F4201C2 |
MAXA10..N BLACK,TRIM2# |
1 | ||
| 71074-F4202C2 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F4192B1 |
MAXA10..D,N DK.GRAY,TRIM2# |
1 | ||
| 71074-F4191B1 |
MAXA10..N SPORT PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71074-YK050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-F4350C1 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71420-F4350C1 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4351C0 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71420-F4350C1 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4351C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4351C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4340C1 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71420-F4351C4 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4341C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4341C2 |
MAXA10..D,N BLACK,TRIM2# |
1 | ||
| 71420-F4341C0 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71420-YK040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71420-YK050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71420-F4352C0 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4341C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-F4250C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4250C2 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71440-F4251C0 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71440-F4240C1 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71440-F4251C0 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4241C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4251C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4241C0 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71440-F4241C0 |
MAXA10..N BLACK,TRIM2# |
1 | ||
| 71440-F4250C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4241C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4251C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4242C0 |
MAXA10..D,N BLACK,TRIM2# |
1 | ||
| 71440-F4252C0 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4242C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-YK050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71440-F4242C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-YK040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-F4040 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71512-F4040 |
MAXA10..D,N |
1 | ||
| 71512-F4040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-F4080 |
MAXA10 |
1 | ||
| 71552-F4080 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71552-F4080 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-F4110C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71812-F4110C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71812-F4110C0 |
MAXA10..D,N BLACK,TRIM2# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-F4030 |
MAXA10..N LADY PACKAGE |
1 | ||
| 7181B-F4030 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 7181B-F4030 |
MAXA10..D,N |
1 | ||
| 71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71849-47010C1 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71849-47010C1 |
MAXA10..D,N BLACK,TRIM2# |
1 | ||
| 71849-47010C1 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-F4050C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71862-F4050C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71862-F4050C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-F4030C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71874-F4030C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71874-F4030C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-F4040C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71874-F4040C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71874-F4040C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-F4080C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71876-F4080C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71876-F4080C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-F4070C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71876-F4070C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71876-F4070C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-F4080C2 |
MAXA10..E,N BLACK,TRIM2# |
2 | ||
| 71910-F4071C2 |
MAXA10..D BLACK,TRIM2# |
2 | ||
| 71910-F4081C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-F4081C2 |
MAXA10..E,N BLACK,TRIM2# |
2 | ||
| 71910-F4080C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-F4081C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-F4080C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-F4071C4 |
MAXA10..N SPORT PACKAGE,BALCK,TRIM2# |
2 | ||
| 71910-YK060 |
MAXA10..N SPORT PACKAGE |
2 | ||
| 71910-YK050 |
MAXA10..N LADY PACKAGE |
2 | ||
| 71910-F4070C2 |
MAXA10..D BLACK,TRIM2# |
2 | ||
| 71910-F4071C4 |
MAXA10..N LADY PACKAGE,BALCK,TRIM2# |
2 | ||
| 71910-F4081C5 |
MAXA10..N PLUS PACKAGE,BALCK,TRIM2# |
2 | ||
| 71910-F4071C4 |
MAXA10..D,N BALCK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070C0 |
MAXA10..N W(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..N W/O(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..N W/O(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070C0 |
MAXA10..N W(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..N W/O(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..N W/O(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-F4080 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72020-F4080 |
MAXA10 |
1 | ||
| 72020-F4080 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72020-F4081 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72020-F4081 |
MAXA10..D,N |
1 | ||
| 72020-F4081 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-F4030 |
MAXA10 |
1 | ||
| 72125P - COVER, SEAT TRACK, UPPER REAR NO.3 | ||||
| 72125-F4010 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72125-F4010 |
MAXA10..D,N |
1 | ||
| 72125-F4010 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72125Q - COVER, SEAT TRACK, UPPER REAR NO.4 | ||||
| 72125-F4010 |
MAXA10..D,N |
1 | ||
| 72125-F4010 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72125-F4010 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-F4030 |
MAXA10 |
1 | ||
| 72136B - SPACER, SEAT TRACK, LOWER NO.3 | ||||
| 72136-F4070 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72136-F4070 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72136-F4070 |
MAXA10..D,N |
1 | ||
| 72136C - SPACER, SEAT TRACK, LOWER NO.4 | ||||
| 72136-F4080 |
MAXA10..D,N |
1 | ||
| 72136-F4080 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72136-F4080 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-F4020 |
MAXA10 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-F4020 |
MAXA10 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06140 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72211-06140 |
MAXA10..D,N |
1 | ||
| 72211-06140 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-F4010 |
MAXA10..N SPORT PACKAGE |
2 | ||
| 72265-F4010 |
MAXA10..N LADY PACKAGE |
2 | ||
| 72265-F4010 |
MAXA10..D,N |
2 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-F4050C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 72495-F4050C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 72495-F4050C0 |
MAXA10..D,N BLACK,TRIM2# |
1 | ||
| 72498A - COVER, VERTICAL ADJUSTER BRACKET, LH | ||||
| 72498-F4040C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 72498-F4040C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 72498-F4040C0 |
MAXA10..D,N BLACK,TRIM2# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-F4090C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 72526-F4090C0 |
MAXA10..D,N BLACK,TRIM2# |
1 | ||
| 72526-F4090C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-F4080C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 72551-F4080C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 72551-F4080C0 |
MAXA10..D,N BLACK,TRIM2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-F4051 |
MAXA10 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90148-C0011 | ||||
| 90167-C0016 | ||||
| 90177-C0016 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||

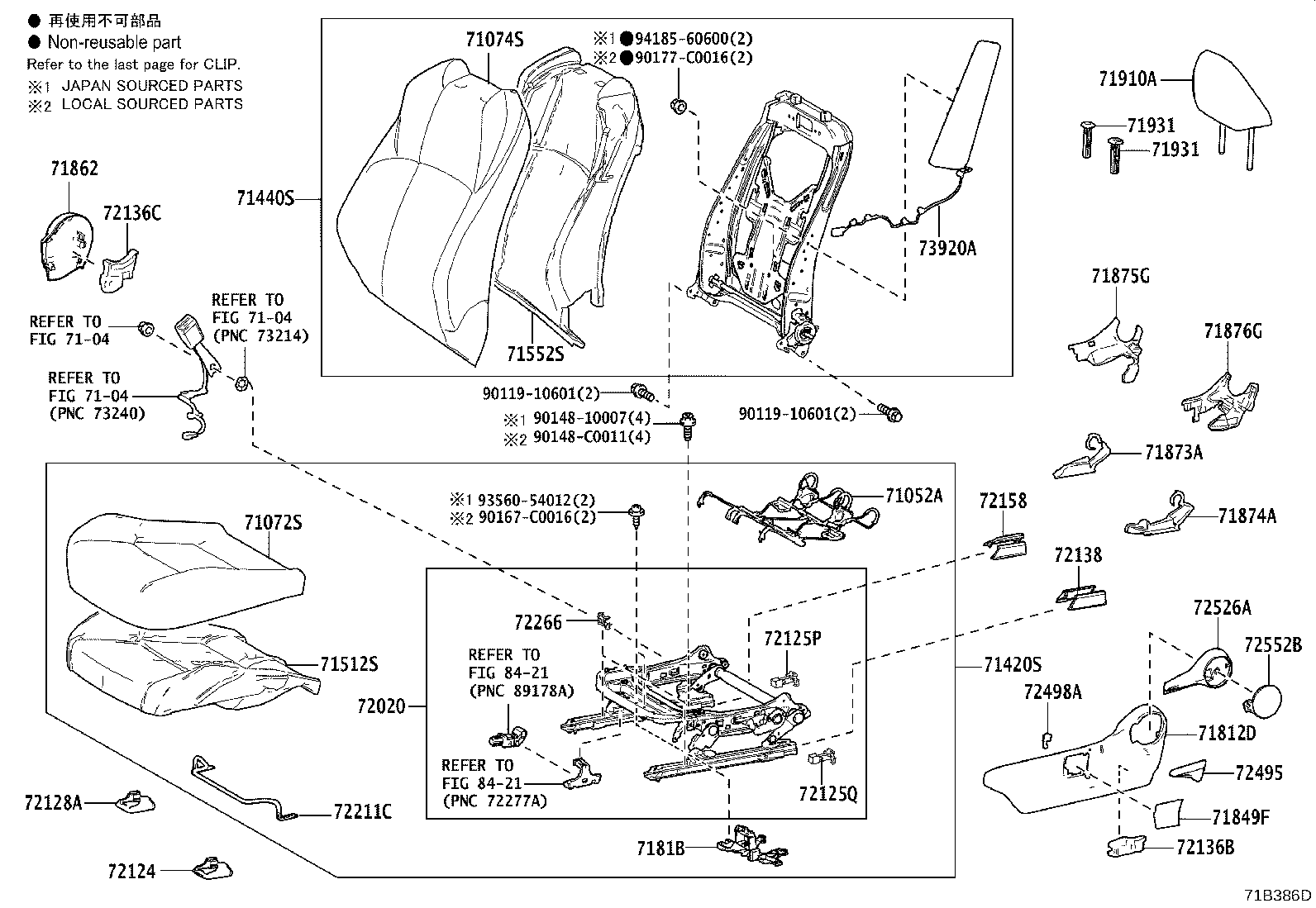

(2005-2105)
LH(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-06040 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71051-06040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71051-06040 |
MAXA10 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-F4140C2 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71072-F4140C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-F4131B4 |
MAXA10..D,N DK.GRAY,TRIM2# |
1 | ||
| 71072-F4141C2 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71072-F4141C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-YK040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71072-F4131B4 |
MAXA10..N SPORT PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71072-F4141C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-YK050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71072-F4140C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-F4142C5 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-F4131B2 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71072-F4141C5 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71072-F4130B2 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71072-F4131B4 |
MAXA10..N LADY PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-F4190B1 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71074-F4200C2 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71074-F4200C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F4200C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F4201C2 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F4201C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F4191B1 |
MAXA10..D DK.GRAY,TRIM2# |
1 | ||
| 71074-F4191B1 |
MAXA10..N LADY PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71074-F4201C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F4192B1 |
MAXA10..N SPORT PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71074-YK040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71074-F4192B1 |
MAXA10..N LADY PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71074-F4191B1 |
MAXA10..N DK.GRAY,TRIM2# |
1 | ||
| 71074-F4201C2 |
MAXA10..N BLACK,TRIM2# |
1 | ||
| 71074-F4202C2 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71074-F4192B1 |
MAXA10..D,N DK.GRAY,TRIM2# |
1 | ||
| 71074-F4191B1 |
MAXA10..N SPORT PACKAGE,DK.GRAY,TRIM2# |
1 | ||
| 71074-YK050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-F4350C1 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71420-F4350C1 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4351C0 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71420-F4350C1 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4351C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4351C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4340C1 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71420-F4351C4 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4341C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4341C2 |
MAXA10..D,N BLACK,TRIM2# |
1 | ||
| 71420-F4341C0 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71420-YK040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71420-YK050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71420-F4352C0 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71420-F4341C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-F4250C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4250C2 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71440-F4251C0 |
MAXA10..E,N BLACK,TRIM2# |
1 | ||
| 71440-F4240C1 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71440-F4251C0 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4241C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4251C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4241C0 |
MAXA10..D BLACK,TRIM2# |
1 | ||
| 71440-F4241C0 |
MAXA10..N BLACK,TRIM2# |
1 | ||
| 71440-F4250C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4241C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4251C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4242C0 |
MAXA10..D,N BLACK,TRIM2# |
1 | ||
| 71440-F4252C0 |
MAXA10..N PLUS PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-F4242C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-YK050 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71440-F4242C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71440-YK040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-F4040 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71512-F4040 |
MAXA10..D,N |
1 | ||
| 71512-F4040 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-F4080 |
MAXA10 |
1 | ||
| 71552-F4080 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 71552-F4080 |
MAXA10..N LADY PACKAGE |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-F4110C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71812-F4110C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71812-F4110C0 |
MAXA10..D,N BLACK,TRIM2# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-F4030 |
MAXA10..N LADY PACKAGE |
1 | ||
| 7181B-F4030 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 7181B-F4030 |
MAXA10..D,N |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-F4050C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71862-F4050C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71862-F4050C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-F4030C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71874-F4030C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71874-F4030C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-F4040C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71874-F4040C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71874-F4040C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-F4080C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71876-F4080C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71876-F4080C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-F4070C0 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
1 | ||
| 71876-F4070C0 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
1 | ||
| 71876-F4070C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-F4080C2 |
MAXA10..E,N BLACK,TRIM2# |
2 | ||
| 71910-F4071C2 |
MAXA10..D BLACK,TRIM2# |
2 | ||
| 71910-F4081C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-F4081C2 |
MAXA10..E,N BLACK,TRIM2# |
2 | ||
| 71910-F4080C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-F4081C2 |
MAXA10..N SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-F4080C2 |
MAXA10..N LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71910-F4071C4 |
MAXA10..N SPORT PACKAGE,BALCK,TRIM2# |
2 | ||
| 71910-YK060 |
MAXA10..N SPORT PACKAGE |
2 | ||
| 71910-YK050 |
MAXA10..N LADY PACKAGE |
2 | ||
| 71910-F4070C2 |
MAXA10..D BLACK,TRIM2# |
2 | ||
| 71910-F4071C4 |
MAXA10..N LADY PACKAGE,BALCK,TRIM2# |
2 | ||
| 71910-F4081C5 |
MAXA10..N PLUS PACKAGE,BALCK,TRIM2# |
2 | ||
| 71910-F4071C4 |
MAXA10..D,N BALCK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070C0 |
MAXA10..N W(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..N W/O(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..N W/O(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-06070C0 |
MAXA10..N W(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-06070C0 |
MAXA10..N W(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..N W/O(LOCK),SPORT PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10..N W/O(LOCK),LADY PACKAGE,BLACK,TRIM2# |
2 | ||
| 71931-06060C0 |
MAXA10 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-F4080 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72020-F4080 |
MAXA10 |
1 | ||
| 72020-F4080 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72020-F4081 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72020-F4081 |
MAXA10..D,N |
1 | ||
| 72020-F4081 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-F4030 |
MAXA10 |
1 | ||
| 72125P - COVER, SEAT TRACK, UPPER REAR NO.3 | ||||
| 72125-F4010 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72125-F4010 |
MAXA10..D,N |
1 | ||
| 72125-F4010 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72125Q - COVER, SEAT TRACK, UPPER REAR NO.4 | ||||
| 72125-F4010 |
MAXA10..D,N |
1 | ||
| 72125-F4010 |
MAXA10..N LADY PACKAGE |
1 | ||
| 72125-F4010 |
MAXA10..N SPORT PACKAGE |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-F4030 |
MAXA10 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-F4020 |
MAXA10 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-F4020 |
MAXA10 |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-F4010 |
MAXA10..N SPORT PACKAGE |
2 | ||
| 72265-F4010 |
MAXA10..N LADY PACKAGE |
2 | ||
| 72265-F4010 |
MAXA10..D,N |
2 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-C0011 | ||||
| 90167-C0016 | ||||
| 90177-C0016 | ||||
| 90467-07215 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
