MAXA10L-DHXNHC (2018)
Toyota Izoa
Production
Jul 2018
-
May 2021
Engine
M20AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1807- )MAXA10

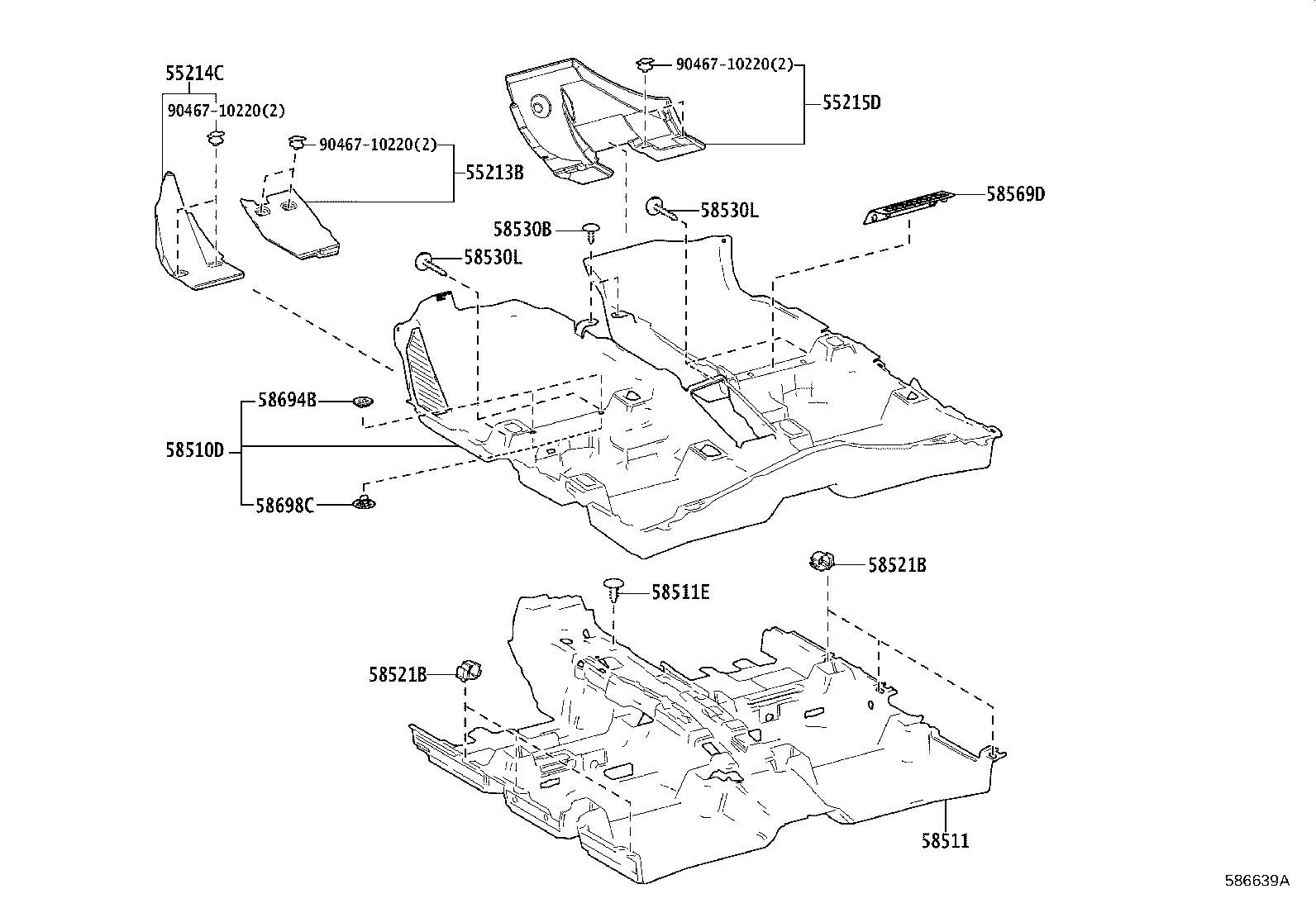

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55213B - PAD, DASH PANEL INSULATOR, NO.1 | ||||
| 55213-F4040 |
MAXA10 |
1 | ||
| 55214C - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-F4041 |
MAXA10 |
1 | ||
| 55214-F4040 |
MAXA10 |
1 | ||
| 55215D - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-F4040 |
MAXA10 |
1 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-F4110C1 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 58511 - MAT, FLOOR, FRONT | ||||
| 58511-F4060 |
MAXA10 |
1 | ||
| 58511-F4061 |
MAXA10 |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 90467-07042C0 |
MAXA10 BLACK,(J) |
1 | ||
| 90467-C0054C0 |
MAXA10 BLACK,(L) |
1 | ||
| 90467-07042C0 |
MAXA10 BLACK |
1 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-F4010 |
MAXA10 |
6 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-F4010 |
MAXA10 |
6 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-C0016C1 |
MAXA10 BLACK,TRIM2# |
2 | ||
| 58530L - CLIP, FLOOR CARPET, CENTER | ||||
| 64726-10020C2 |
MAXA10 BLACK,TRIM2# |
4 | ||
| 58530L - CLIP, FLOOR CARPET, CENTER | ||||
| 64726-10020C2 |
MAXA10 BLACK,TRIM2# |
4 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-F4010C0 |
MAXA10 BLACK,TRIM2# |
1 | ||
| 58694B - PLATE, MAT SET, UPPER | ||||
| 58694-78010 |
MAXA10 |
2 | ||
| 58698C - PLATE, MAT SET, LOWER | ||||
| 58698-78010 |
MAXA10 |
2 | ||
| Common parts | ||||
| 90467-10220 | ||||
