MAXA10L-DHXNHC (2021)
Toyota Izoa
Production
May 2021
-
Sep 9999
Engine
M20AFKS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2105- )D,N

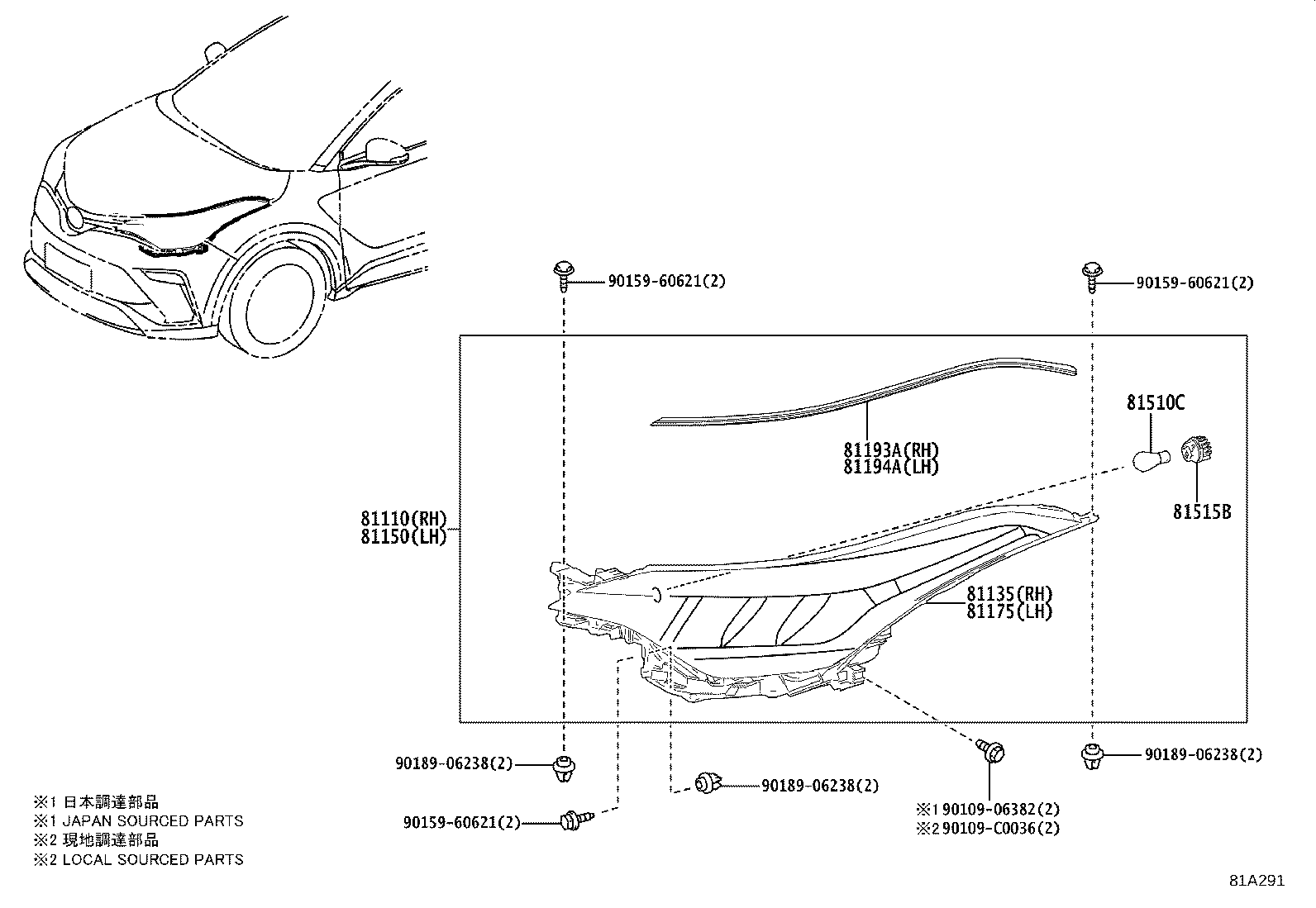

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-F4350 |
MAXA10..D |
1 | ||
| 81110-F4360 |
MAXA10,MAXH10..N |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81140-F4360 |
MAXA10,MAXH10..N |
1 | ||
| 81140-F4350 |
MAXA10..D |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-F4350 |
MAXA10..D |
1 | ||
| 81150-F4360 |
MAXA10,MAXH10..N |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81070-F4360 |
MAXA10,MAXH10..N |
1 | ||
| 81070-F4350 |
MAXA10..D |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81193-F4160 |
MAXA10,MAXH10 |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81194-F4160 |
MAXA10,MAXH10 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15028 |
MAXA10,MAXH10..D,N 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60069 |
MAXA10,MAXH10..D,N |
2 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90109-C0036 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
