MAXA10L-DHXGHC (2021)

Toyota Izoa

Production May 2021 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2105- )

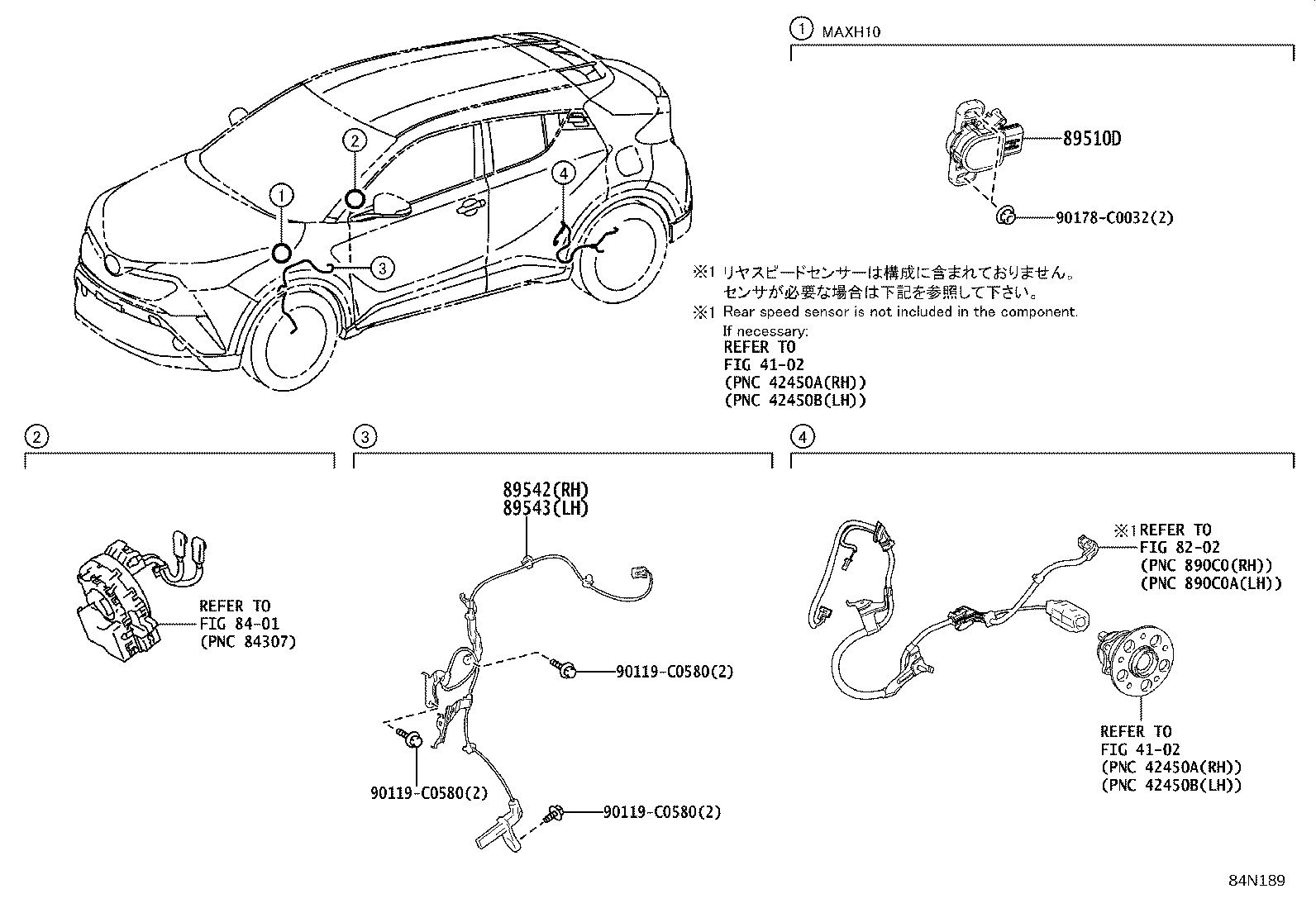

Click highlighted areas on diagram

diagram 4102 4102 8202 8401 89510D 89542 89543 90119C0580 90119C0580 90119C0580 90178C0032
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-F4030

MAXA10,MAXH10

 1
89543 - SENSOR, SPEED, FRONT LH
89543-F4030

MAXA10,MAXH10

 1
Common parts
90119-C0580
90178-C0032
Linked diagrams
4102
8202
8401
