MAXA10L-DHXGHC (2021)

Toyota Izoa

Production May 2021 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF10(2105- )

Click highlighted areas on diagram

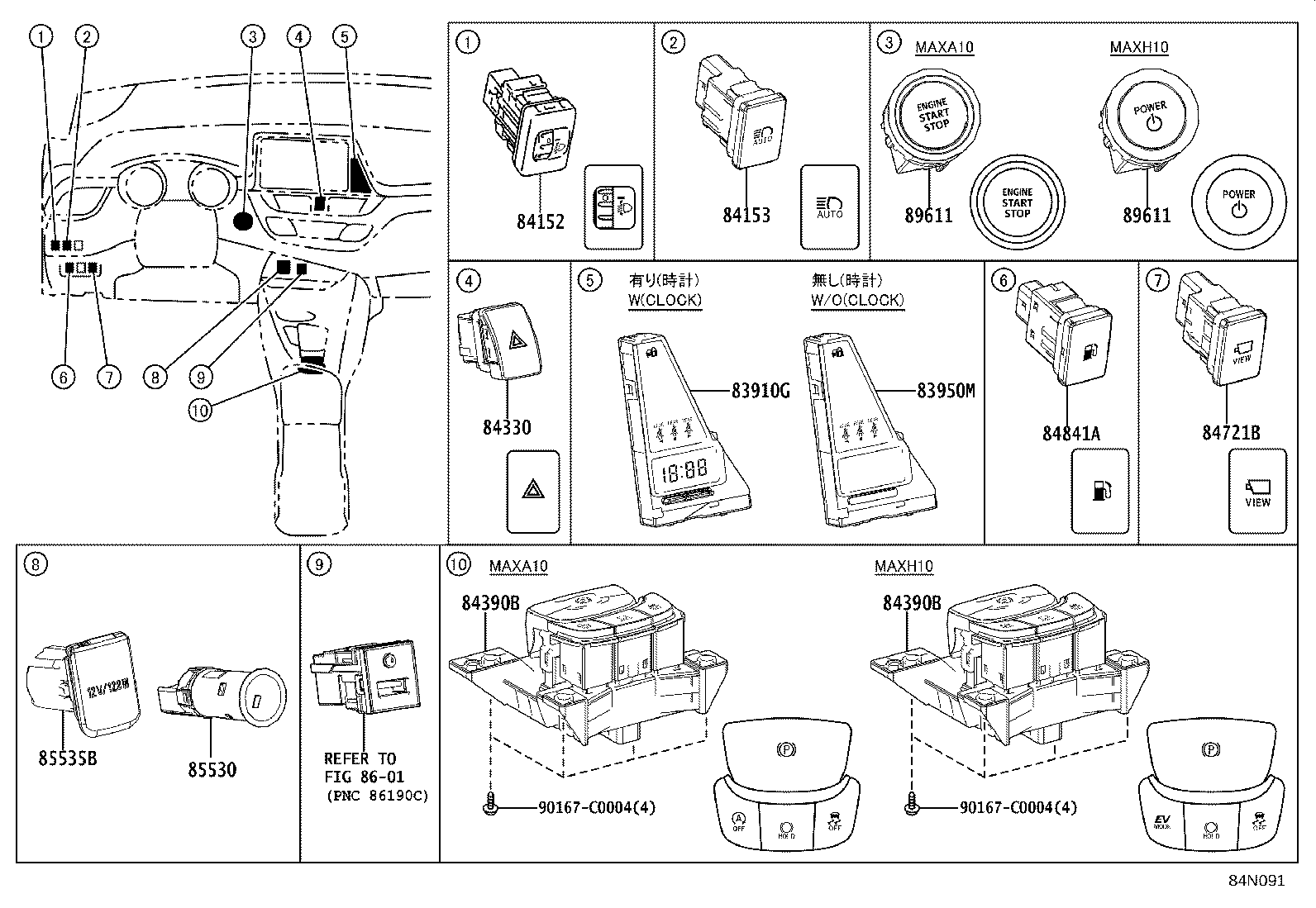

INSTRUMENT PANEL

diagram 83910G 83950M 84152 84153 84330 84390B 84390B 84721B 84841A 85530 85535B 8601 89611 89611 90167C0004 90167C0004
Part # Description Qty Price
83910G - CLOCK ASSY
83910-F4320

MAXA10..D

 1
83950M - LAMP ASSY, TELLTALE
83950-F4010

MAXA10,MAXH10..E,G,N

 1
84152 - SWITCH, HEADLAMP LEVELING
84152-02101

MAXA10,MAXH10

 1
84153 - SWITCH, AUTO HIGH BEAM
84153-F4030

MAXA10,MAXH10

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-F4010

MAXA10,MAXH10

 1
84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE
84390-F4140

MAXA10..G

 1
84390-F4130

MAXA10..D,N

 1
84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE
84390-F4140

MAXA10..G

 1
84390-F4130

MAXA10..D,N

 1
84841A - SWITCH, FUEL LID OPENER
84841-F4040

MAXA10,MAXH10

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-0E070

MAXA10,MAXH10

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-F4020

MAXA10,MAXH10

 1
89611 - SWITCH, PUSH START
89611-0R012

MAXA10..G,N

 1
89611 - SWITCH, PUSH START
89611-0R012

MAXA10..G,N

 1
Common parts
90167-C0004
Linked diagrams
8601
