MAXA10L-DHXGHC (2021)

Toyota Izoa

Production May 2021 - Sep 9999
Engine M20AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 9(2105- )MAXA10

Click highlighted areas on diagram

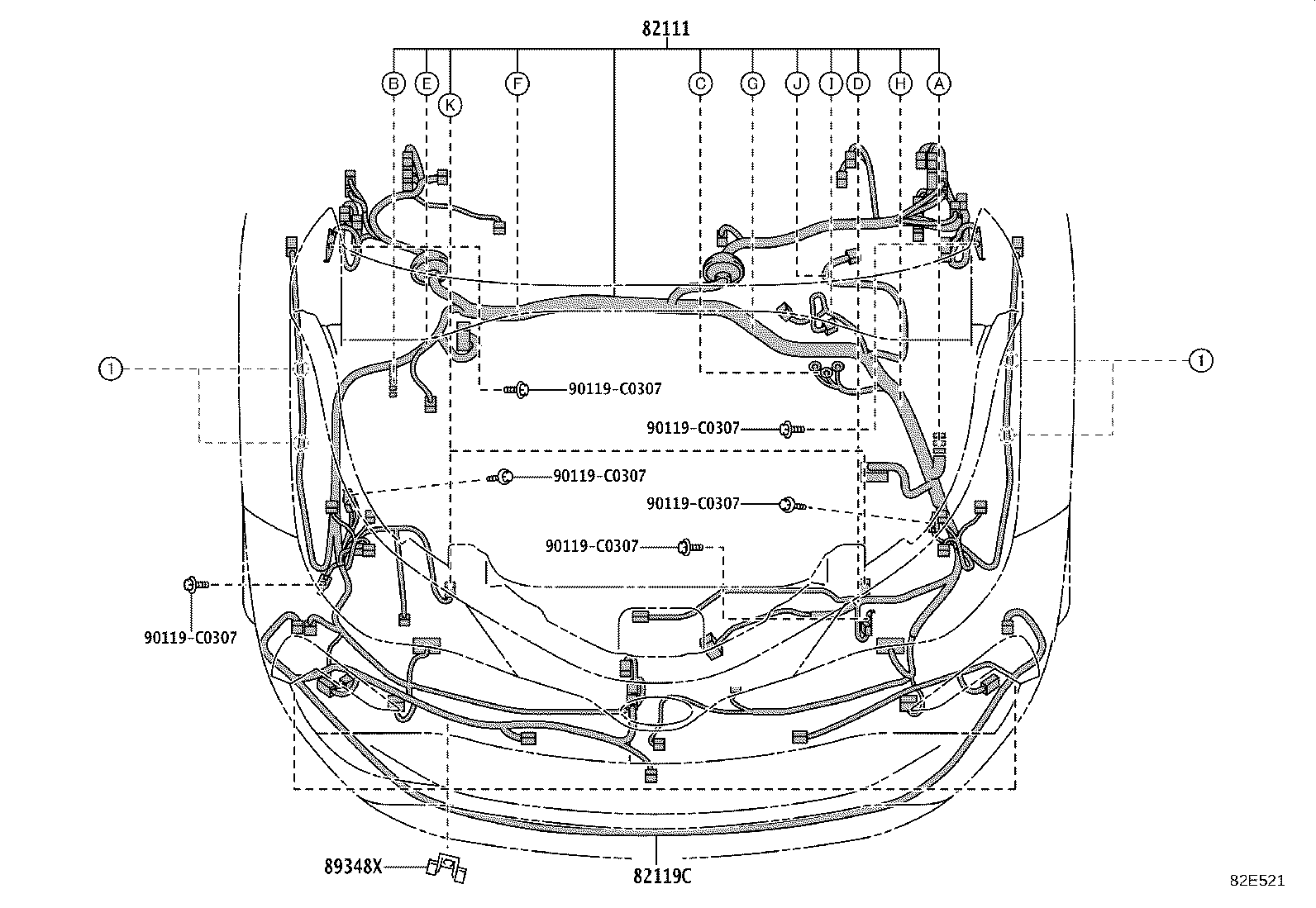

ENGINE ROOM 1/2

diagram 82111 82119C 89348X 90119C0307 90119C0307 90119C0307 90119C0307 90119C0307 90119C0307
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82115-F4300

MAXA10..G

 1
82111-F4K90

MAXA10..D

 1
82119C - WIRE, ENGINE ROOM, NO.5
82119-F4150

MAXA10,MAXH10..G

 1
82119-F4150

MAXA10..G

SPORT PACKAGE

 1
89348X - CLIP, ULTRASONIC SENSOR, FRONT
89348-50050

MAXA10..G

SPORT PACKAGE

 3
89348-50050

MAXA10,MAXH10..G

 3
Common parts
90119-C0307

ILLUST NO. 1 OF 9(2105- )MAXA10

Click highlighted areas on diagram

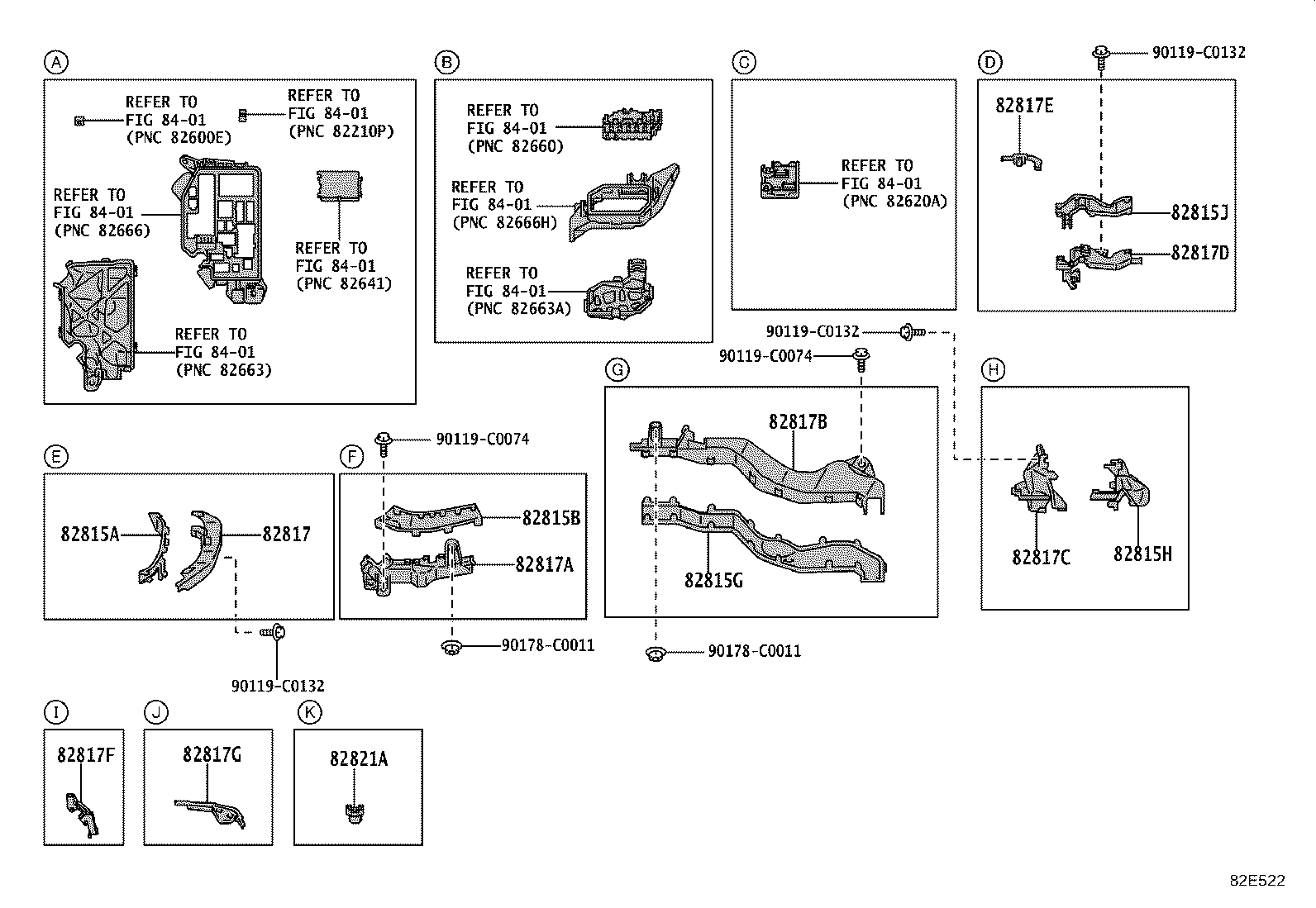

ENGINE ROOM 2/2

diagram 82815A 82815B 82815G 82815H 82815J 82817 82817A 82817B 82817C 82817D 82817E 82817F 82817G 82821A 8401 8401 8401 8401 8401 8401 8401 8401 90119C0074 90119C0074 90119C0132 90119C0132 90119C0132 90178C0011 90178C0011
Part # Description Qty Price
82815A - COVER, WIRING HARNESS PROTECTOR
82815-12L00

MAXA10

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-12L10

MAXA10

 1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-12L20

MAXA10

 1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-12L30

MAXA10

 1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-12D10

MAXA10

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-12Y70

MAXA10

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-12Y80

MAXA10

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-12Y90

MAXA10

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-12Z00

MAXA10

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-12V50

MAXA10

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-12Z10

MAXA10

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-12W30

MAXA10

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-F4520

MAXA10,MAXH10

 1
82821A - COVER, CONNECTOR
82821-30650

MAXA10,MAXH10

 2
Common parts
90119-C0074
90119-C0132
90178-C0011
