KPX10L-DHDNSC (2020)

Toyota Izoa

Production May 2020 - Sep 9999
Engine 4KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2005- )

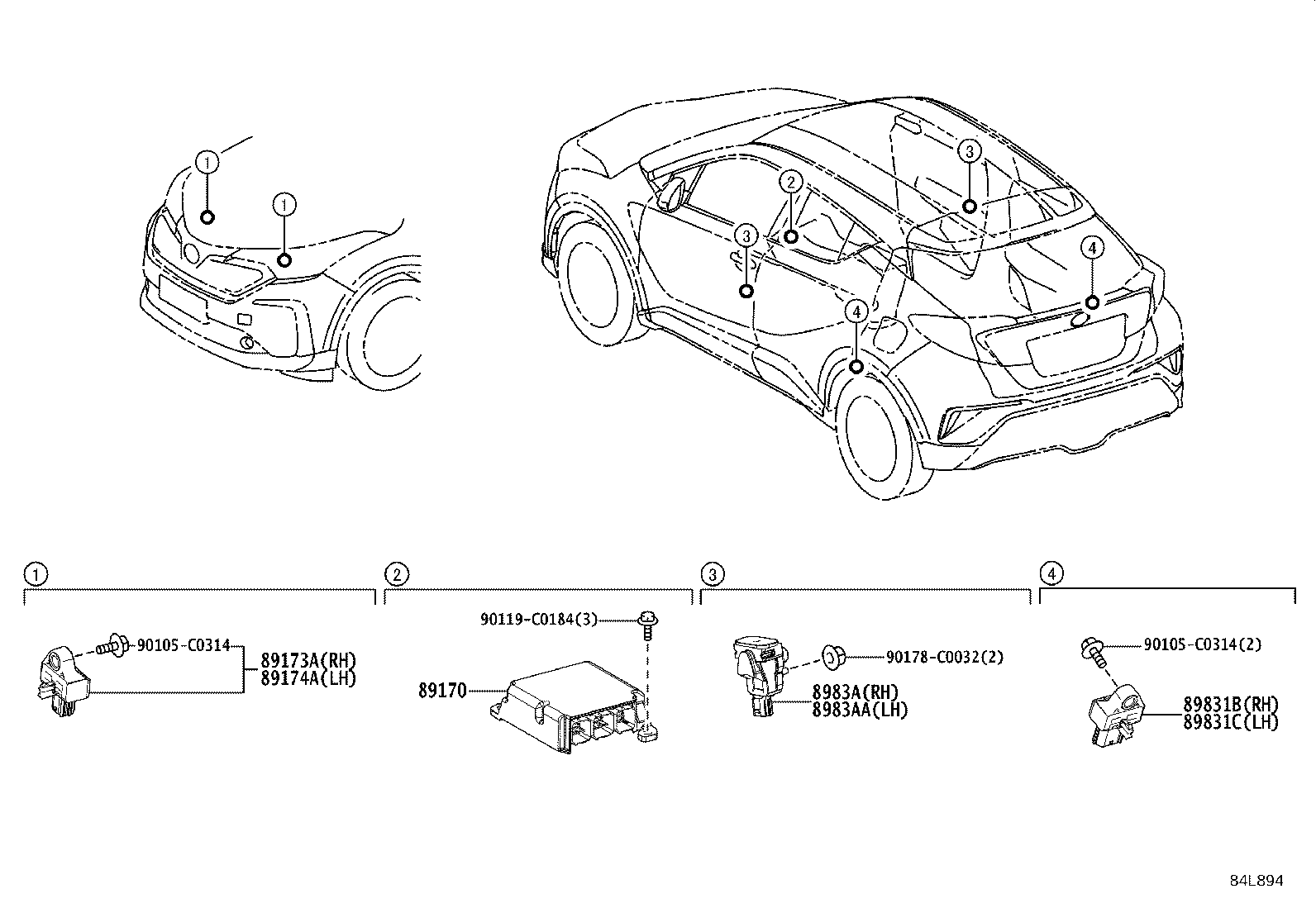

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89831B 89831C 8983A 8983AA 90105C0314 90105C0314 90119C0184 90178C0032
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-F4410

KPX10..D,N

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09C80

KPX10

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09C80

KPX10

 1
89831B - SENSOR, SIDE AIR BAG, RH, NO.2
89831-F4060

KPX10

 1
89831C - SENSOR, SIDE AIR BAG, LH, NO.2
89831-F4060

KPX10

 1
8983A - SENSOR, SIDE AIR BAG PRESSURE, RH
8983A-F4020

KPX10

 1
8983AA - SENSOR, SIDE AIR BAG PRESSURE, LH
8983A-F4020

KPX10

 1
Common parts
90105-C0314
90119-C0184
90178-C0032
