KPX10L-DHDNSC (2020)

Toyota Izoa

Production May 2020 - Sep 9999
Engine 4KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2005- )

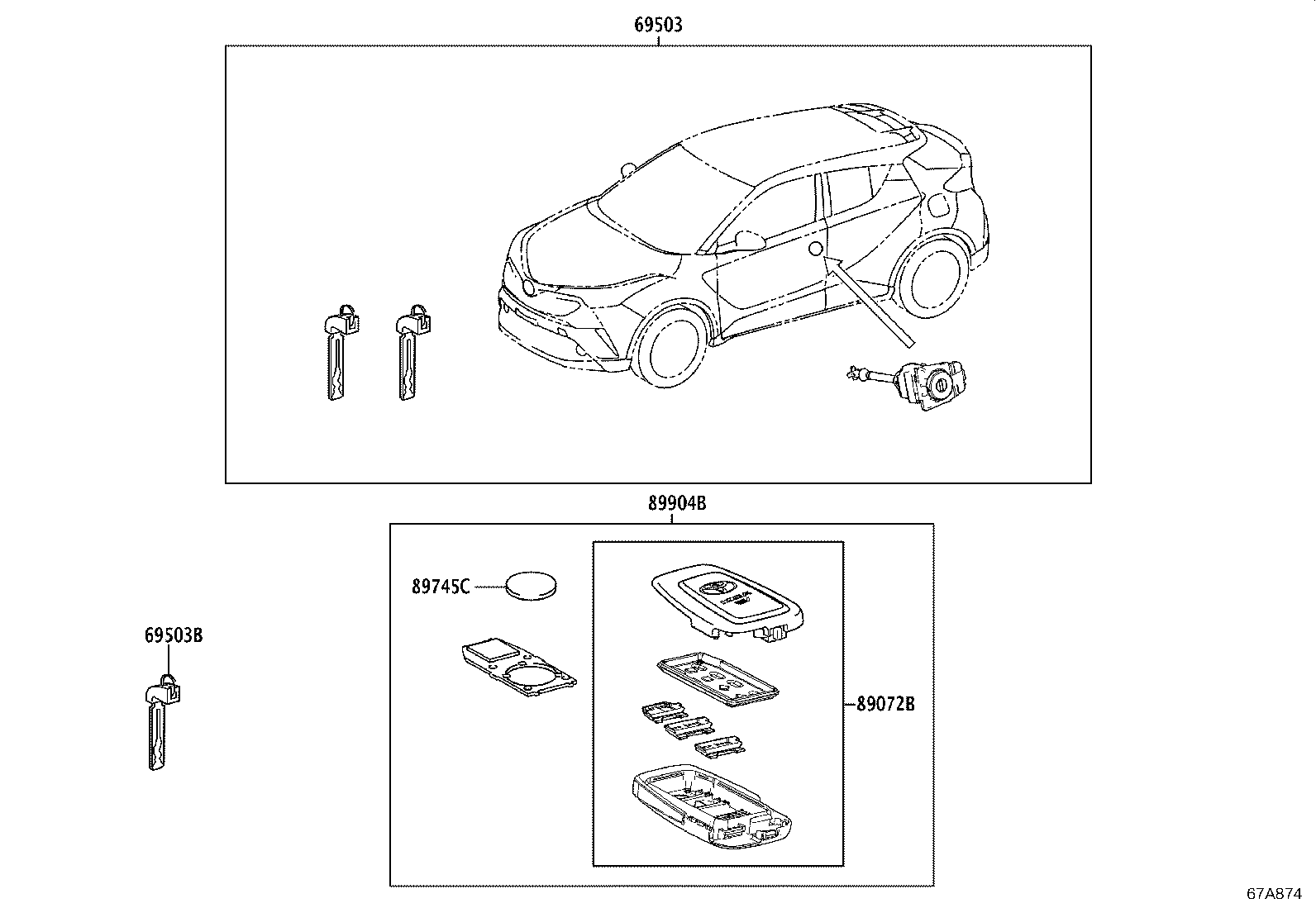

Click highlighted areas on diagram

diagram 69503 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-F4160

KPX10

 1
69503B - KEY, CUT
69515-F4060

KPX10

MASTER KEY,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-F4170

KPX10

 2
89745C - BATTERY, TRANSMITTER
89745-50020

KPX10

CR2032

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
8990H-F4010

KPX10

 1
