KPX10L-DHDNSC (2020)

Toyota Izoa

Production May 2020 - Sep 9999
Engine 4KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2005- )

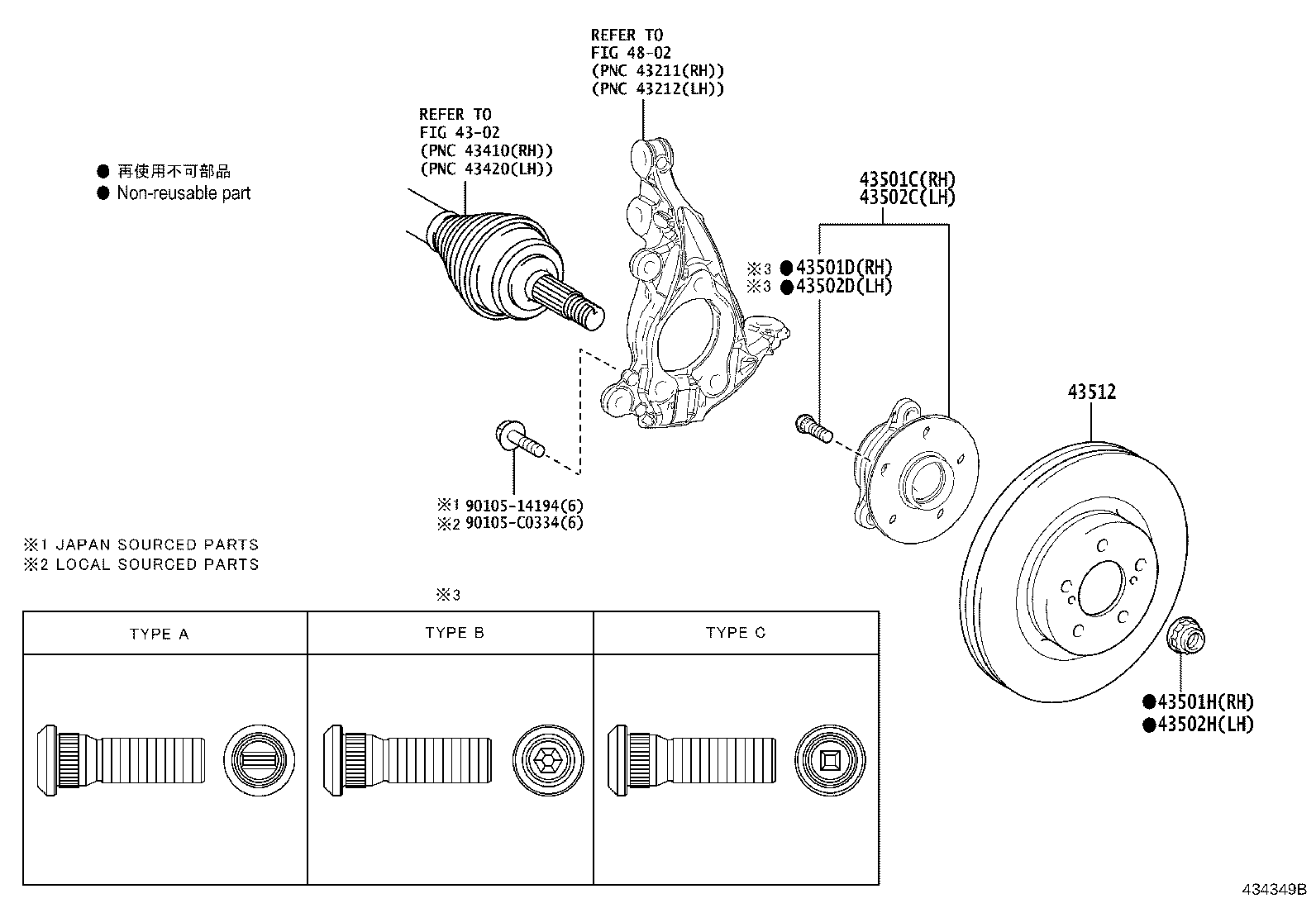

Click highlighted areas on diagram

diagram 4302 43501C 43501D 43501H 43502C 43502D 43502H 43512 4802 9010514194 90105C0334
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-F4060

KPX10

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02082

KPX10

TYPE C:REFER ILLUST.

 5
90942-02081

KPX10

TYPE B:REFER ILLUST.

 5
90942-02049

KPX10

TYPE A:REFER ILLUST.

 5
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90177-22001

KPX10

(J)

 1
90177-C0004

KPX10

(L)

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43550-F4060

KPX10

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02082

KPX10

TYPE C:REFER ILLUST.

 5
90942-02081

KPX10

TYPE B:REFER ILLUST.

 5
90942-02049

KPX10

TYPE A:REFER ILLUST.

 5
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90177-22001

KPX10

(J)

 1
90177-C0004

KPX10

(L)

 1
43512 - DISC, FRONT
43512-F4030

KPX10

 2
Common parts
90105-14194
90105-C0334
Linked diagrams
4302
4802
