KPX10L-DHDESC (2020)
Toyota Izoa
Production
May 2020
-
Sep 9999
Engine
4KM
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2005- )

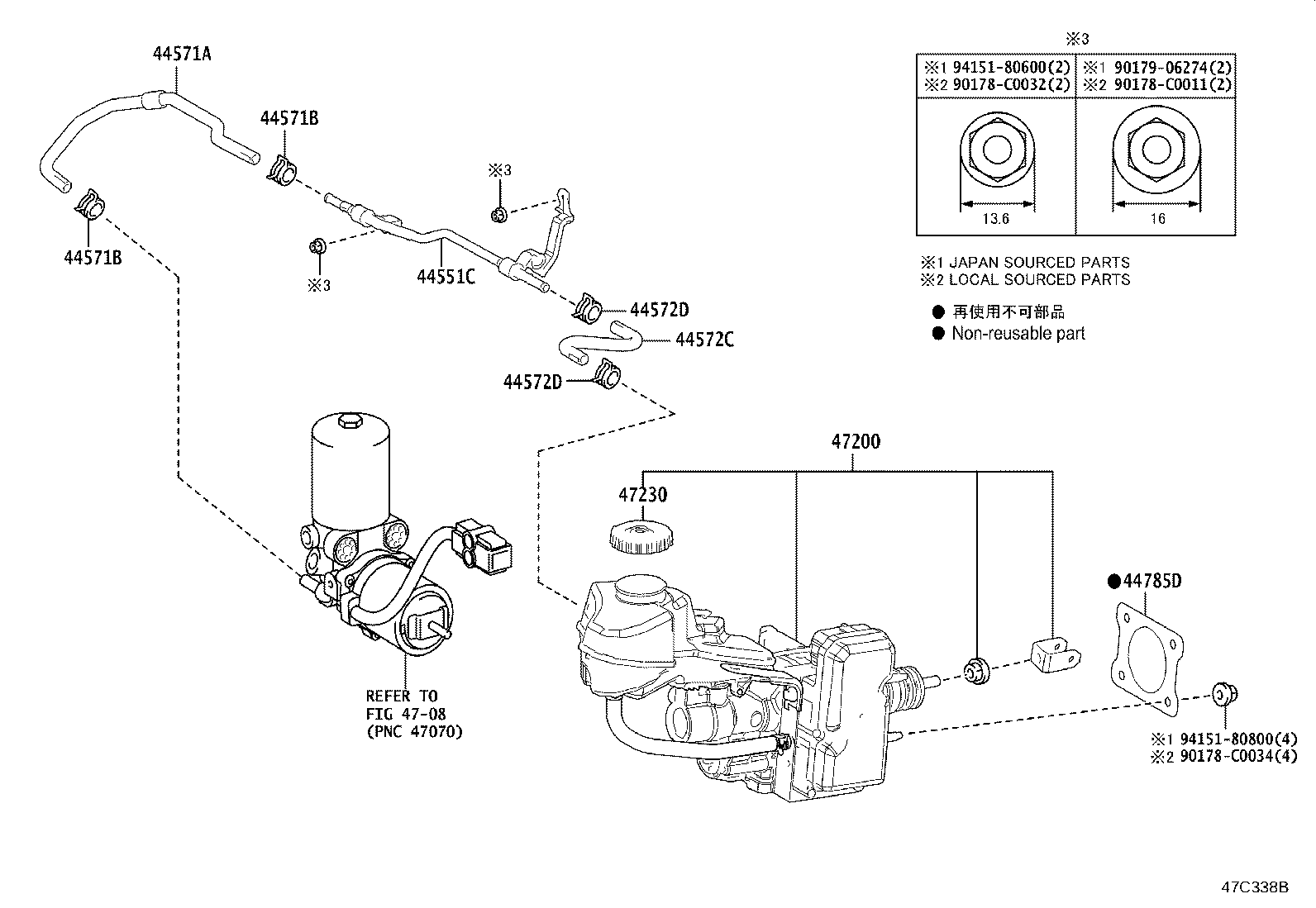

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-02090 |
KPX10 |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-02120 |
KPX10 |
1 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 96137-41501 |
KPX10 (J) |
2 | ||
| 90466-C0026 |
KPX10 (L) |
2 | ||
| 44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 96137-41501 |
KPX10 (J) |
2 | ||
| 90466-C0026 |
KPX10 (L) |
2 | ||
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-02090 |
KPX10 |
1 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
KPX10 (J) |
2 | ||
| 90466-C0026 |
KPX10 (L) |
2 | ||
| 44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 96137-41501 |
KPX10 (J) |
2 | ||
| 90466-C0026 |
KPX10 (L) |
2 | ||
| 44785D - GASKET, BRAKE MASTER CYLINDER | ||||
| 44785-02050 |
KPX10 |
1 | ||
| 47200 - CYLINDER ASSY, BRAKE MASTER | ||||
| 47050-F4010 |
KPX10 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
KPX10 |
1 | ||
| 47230-33330 |
KPX10 |
1 | ||
| Common parts | ||||
| 90178-C0011 | ||||
| 90178-C0032 | ||||
| 90178-C0034 | ||||
| 90179-06274 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4708 | ||||
