KPX10L-DHDDSC (2020)

Toyota Izoa

Production May 2020 - Sep 9999
Engine 4KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2005- )

Click highlighted areas on diagram

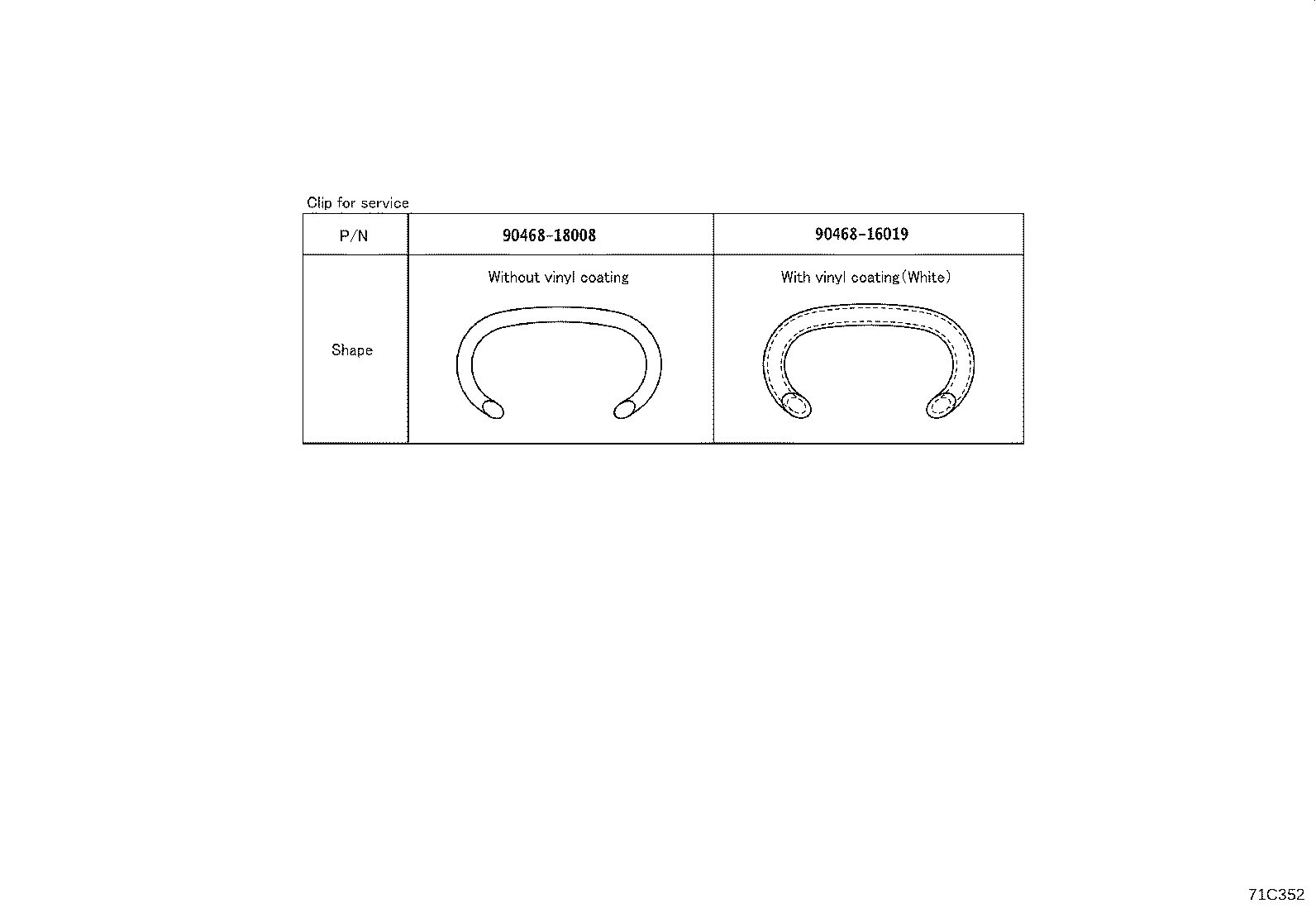

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008

ILLUST NO. 1 OF 2(2005- )

Click highlighted areas on diagram

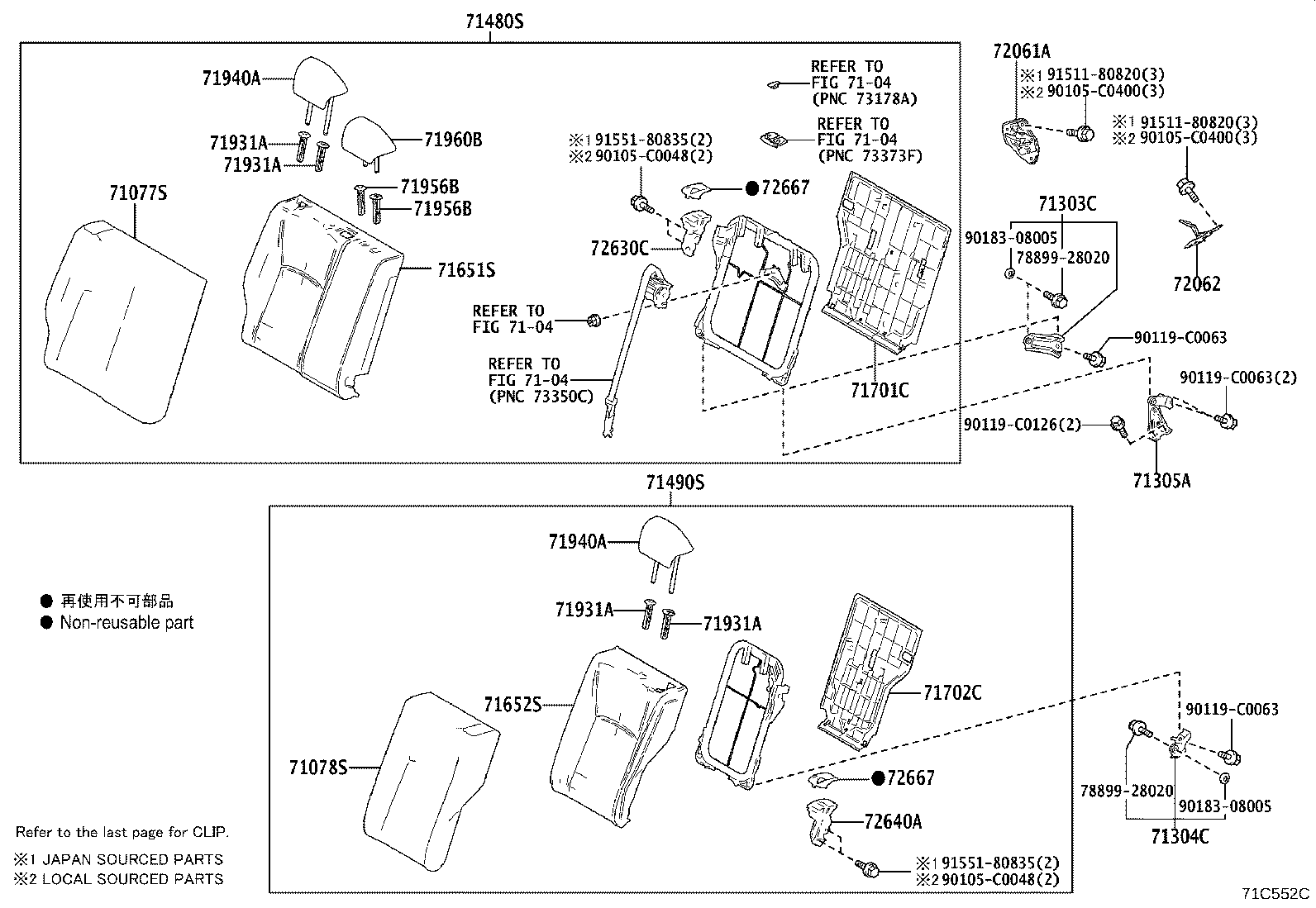

SEAT BACK

diagram 7104 7104 7104 7104 71077S 71078S 71303C 71304C 71305A 71480S 71490S 71651S 71652S 71701C 71702C 71931A 71931A 71931A 71931A 71940A 71940A 71956B 71956B 71960B 72061A 72062 72630C 72640A 72667 72667 7889928020 7889928020 90105C0048 90105C0048 90105C0400 90105C0400 90119C0063 90119C0063 90119C0063 90119C0126 9018308005 9018308005 9151180820 9151180820 9155180835 9155180835
Part # Description Qty Price
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-F4161C0

KPX10..D

DK.GRAY,TRIM2#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-F4121C0

KPX10..D

DK.GRAY,TRIM2#

 1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71303-F4030

KPX10

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71304-F4030

KPX10

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-F4030

KPX10

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-F4161C2

KPX10..D

BLACK,TRIM2#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-F4131C2

KPX10..D

BLACK,TRIM2#

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-F4050

KPX10

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-F4050

KPX10

 1
71701C - BOARD SUB-ASSY, REAR SEAT BACK, RH
71701-F4030

KPX10

 1
71702C - BOARD SUB-ASSY, REAR SEAT BACK, LH
71702-F4030

KPX10

 1
71931A - SUPPORT, REAR SEAT HEADREST
71931-06060C0

KPX10

W/O(LOCK),BLACK,TRIM2#

 2
71930-06070C0

KPX10

W(LOCK),BLACK,TRIM2#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-06060C0

KPX10

W/O(LOCK),BLACK,TRIM2#

 2
71930-06070C0

KPX10

W(LOCK),BLACK,TRIM2#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-06060C0

KPX10

W/O(LOCK),BLACK,TRIM2#

 2
71930-06070C0

KPX10

W(LOCK),BLACK,TRIM2#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-06060C0

KPX10

W/O(LOCK),BLACK,TRIM2#

 2
71930-06070C0

KPX10

W(LOCK),BLACK,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-F4091C1

KPX10..D

BLACK,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-F4091C1

KPX10..D

BLACK,TRIM2#

 2
71956B - SUPPORT, REAR SEAT HEADREST
71931-06060C0

KPX10

W/O(LOCK),BLACK,TRIM2#

 1
71930-06070C0

KPX10

W(LOCK),BLACK,TRIM2#

 1
71956B - SUPPORT, REAR SEAT HEADREST
71931-06060C0

KPX10

W/O(LOCK),BLACK,TRIM2#

 1
71930-06070C0

KPX10

W(LOCK),BLACK,TRIM2#

 1
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-F4081C1

KPX10..D

BLACK,TRIM2#

 1
72061A - BASE SUB-ASSY, REAR SEAT BACK LOCK, RH
72061-F4020

KPX10

 1
72062 - BASE SUB-ASSY, REAR SEAT BACK LOCK, LH
72062-F4020

KPX10

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-F4020C0

KPX10

BLACK,TRIM2#

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-F4020C0

KPX10

BLACK,TRIM2#

 1
72667 - BEZEL, REAR SEAT BACK LOCK, UPPER
72667-F4040C0

KPX10

BLACK,TRIM2#

 2
72667 - BEZEL, REAR SEAT BACK LOCK, UPPER
72667-F4040C0

KPX10

BLACK,TRIM2#

 2
Common parts
78899-28020
90105-C0048
90105-C0400
90119-C0063
90119-C0126
90183-08005
91511-80820
91551-80835
Linked diagrams
7104

ILLUST NO. 2 OF 2(2005- )

Click highlighted areas on diagram

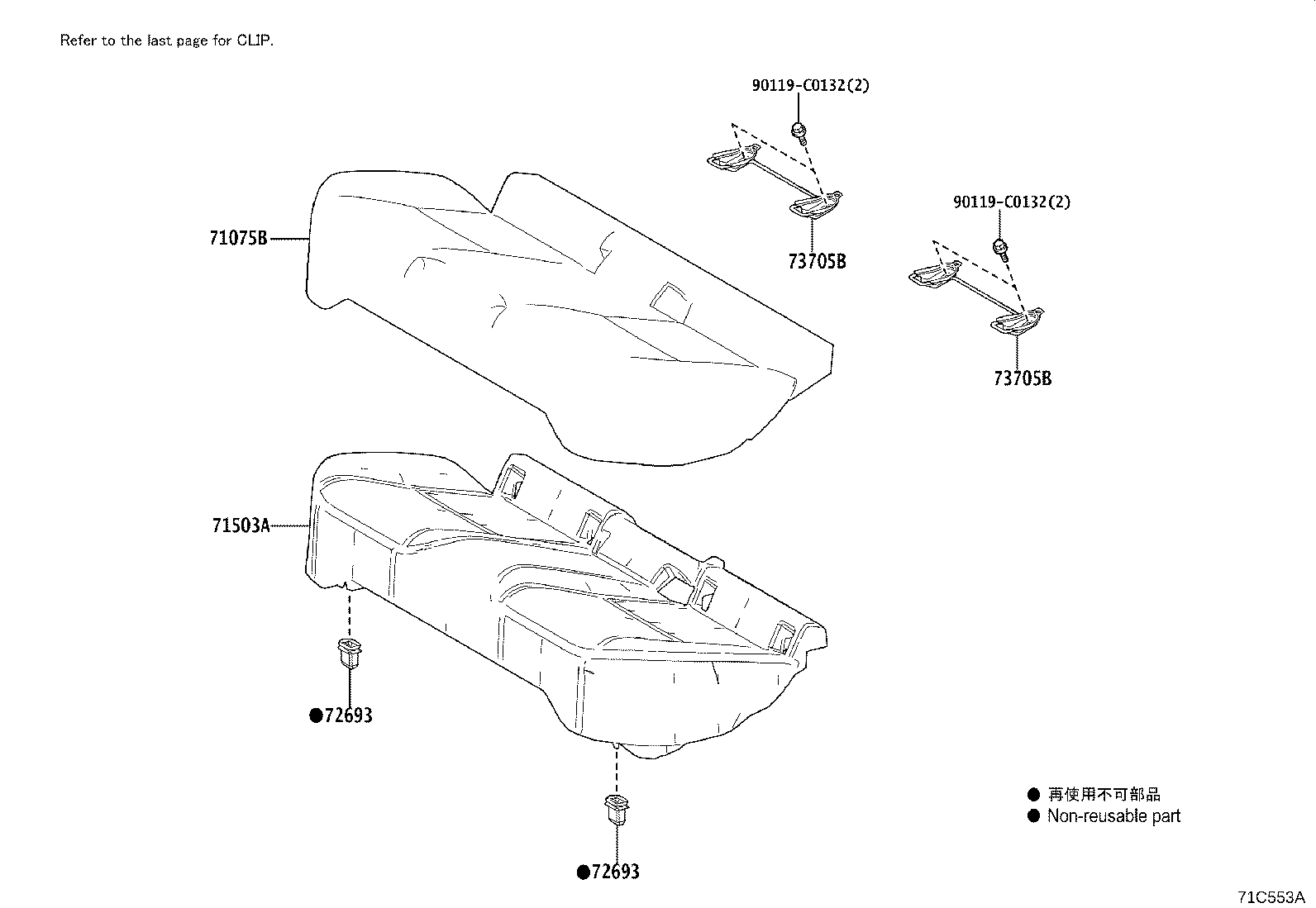

SEAT CUSHION

diagram 71075B 71503A 72693 72693 73705B 73705B 90119C0132 90119C0132
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-F4400C0

KPX10..D

DK.GRAY,TRIM2#

 1
71503A - PAD SUB-ASSY, REAR SEAT CUSHION
71503-F4130

KPX10

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

KPX10

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-12080

KPX10

 2
73705B - BRACKET SUB-ASSY, CROSS ANCHOR
73705-F4040

KPX10

 2
73705B - BRACKET SUB-ASSY, CROSS ANCHOR
73705-F4040

KPX10

 2
Common parts
90119-C0132
