KPX10L-DHDDSC (2020)

Toyota Izoa

Production May 2020 - Sep 9999
Engine 4KM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2005- )

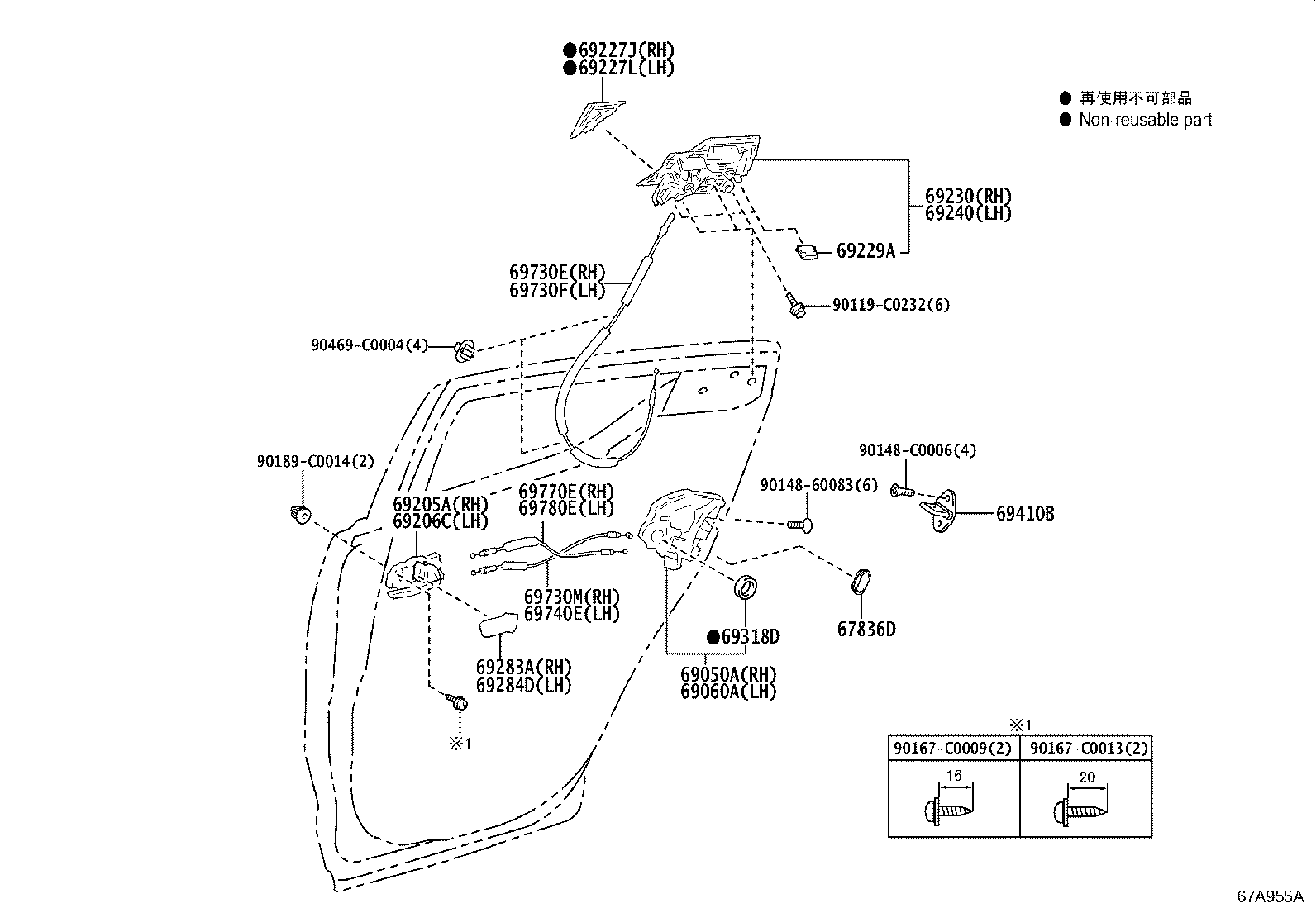

Click highlighted areas on diagram

diagram 67836D 69050A 69060A 69205A 69206C 69227J 69227L 69229A 69230 69240 69283A 69284D 69318D 69410B 69730E 69730F 69730M 69740E 69770E 69780E 90119C0232 9014860083 90148C0006 90167C0009 90167C0013 90189C0014 90469C0004
Part # Description Qty Price
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-02040

KPX10

 2
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-F4100

KPX10

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-F4100

KPX10

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-F4030C0

KPX10..D,N

BLACK,TRIM2#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-F4030C0

KPX10..D,N

BLACK,TRIM2#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-F4030

KPX10

BLACK

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69228-F4030

KPX10

BLACK

 1
69229A - CAP, DOOR OUTSIDE HANDLE, NO.3
69229-F4010

KPX10

 4
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-F4050J0

KPX10

BLUE ME.,2QG

 1
69230-F4050E0

KPX10

DK. BROWN M.M.,4U3

 1
69230-F4050D0

KPX10

RED MC.,2NE ,2PN

 1
69230-F4050A1

KPX10

PLATINUM WHITE PEARL MC.,089 ,2PU ,2WN

 1
69230-F4050A0

KPX10

WHITE PEARL CS.,070 ,2KR ,2TP ,2TS

 1
69230-F4050C0

KPX10

BLACK MC.,209 ,2ND ,2TA

 1
69230-F4050B0

KPX10

METAL STREAM ME,1K0 ,2UY

 1
69230-F4050J1

KPX10

NEBULA BLUE ME.,8X2

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-F4050E0

KPX10

DK. BROWN M.M.,4U3

 1
69240-F4050J1

KPX10

NEBULA BLUE ME.,8X2

 1
69240-F4050B0

KPX10

METAL STREAM ME,1K0 ,2UY

 1
69240-F4050J0

KPX10

BLUE ME.,2QG

 1
69240-F4050A0

KPX10

WHITE PEARL CS.,070 ,2KR ,2TP ,2TS

 1
69240-F4050C0

KPX10

BLACK MC.,209 ,2ND ,2TA

 1
69240-F4050D0

KPX10

RED MC.,2NE ,2PN

 1
69240-F4050A1

KPX10

PLATINUM WHITE PEARL MC.,089 ,2PU ,2WN

 1
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-0N030C1

KPX10..D,N

BLACK,TRIM2#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-0N030C1

KPX10..D,N

BLACK,TRIM2#

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

KPX10

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-0D020

KPX10

 2
69730E - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1
69730-F4070

KPX10

 1
69730F - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.2
69730-F4070

KPX10

 1
69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER
69730-F4060

KPX10

 1
69730-F4061

KPX10

 1
69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER
69730-F4061

KPX10

 1
69730-F4060

KPX10

 1
69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K
69770-F4040

KPX10

 1
69770-F4041

KPX10

 1
69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K
69770-F4040

KPX10

 1
69770-F4041

KPX10

 1
Common parts
90119-C0232
90148-60083
90148-C0006
90167-C0009
90167-C0013
90189-C0014
90469-C0004
