TGN141L-MDTMKV (2015)

Toyota Innova

Production Nov 2015 - Sep 2020
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )20E,24,27,27SR,28..GCC,GEN,LA,VN ; (2009- )27,28..GCC,LA

Click highlighted areas on diagram

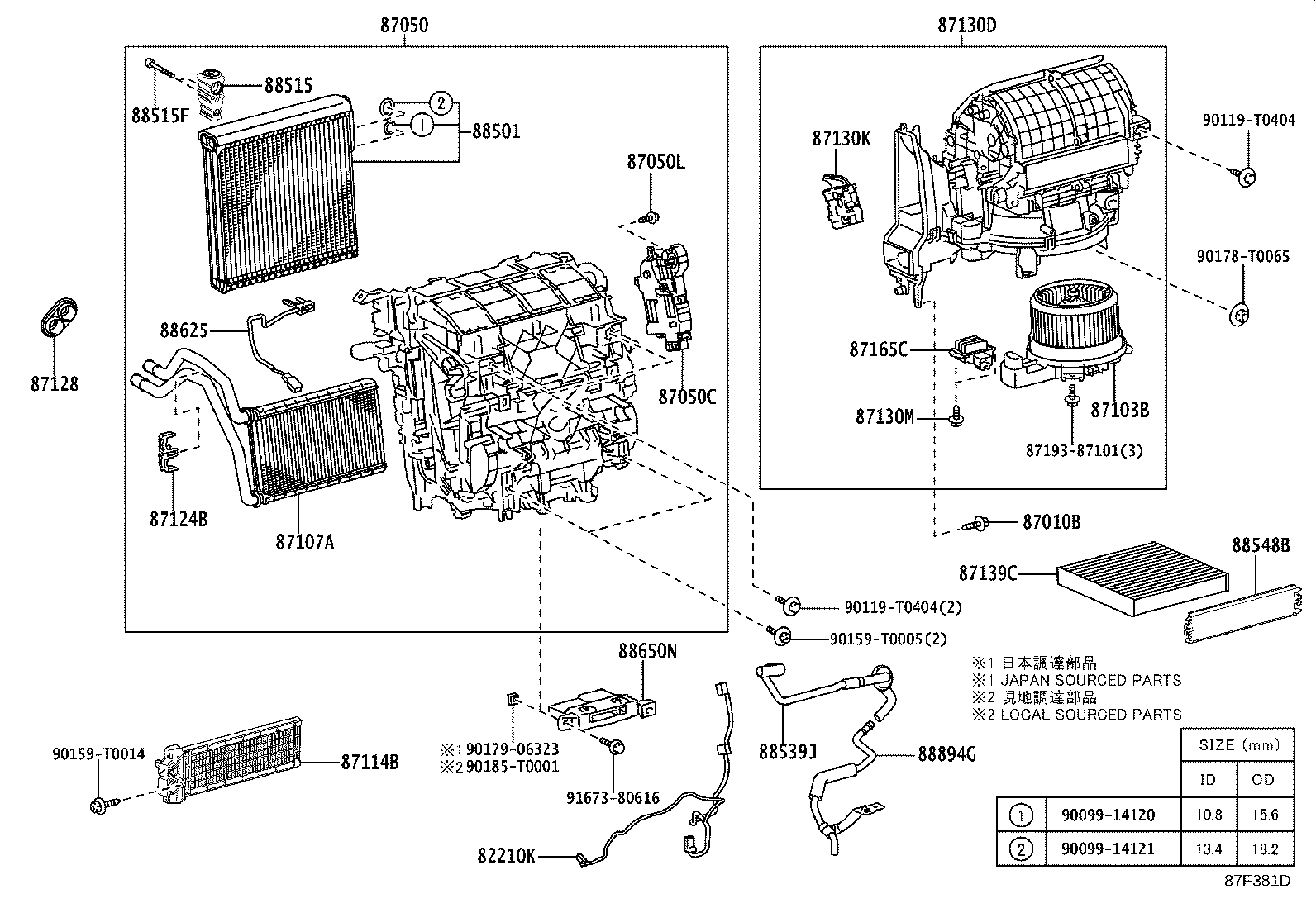

FRONT MANUAL AIR CONDITIONER

diagram 87010B 87050 87050L 87103B 87107A 87114B 87124B 87128 87130D 87130K 87138C 87139C 8715 8715 8719387101 88501 88515 88515F 88539J 88548B 88625 88650N 88894G 9009900968 9009900968 9009914120 9009914121 9011906951 9011906951 90119T0404 90119T0404 90159T0005 90159T0014 90178T0065 9017906323 90185T0001 9167380616
Part # Description Qty Price
87010B - SCREW(FOR AIR CONDITIONER UNIT)
90099-00968

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 2
90099-00968

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 2
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0KE50

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
87050-0KE50

GUN14#,TGN141..(24,27,28)..GCC

 1
87050-0KE60

GUN14#,TGN141..(24G,27G,28G,28V)..GCC

 1
87050L - SCREW(FOR AIR CONDITIONER RADIATOR)
90099-00968

GUN143..TH;GUN143,TGN141..6FC..(27,28)..GCC;GUN142,TGN14#..(20Q,20V,24Q,24V,27)..(IDN,LA)

 11
90099-00968

GUN14#,TGN140..IDNP..(20G,24V,28G,28V)..(GEN,PHL);GUN143,TGN141..6FC..(27G,27SRV,28G,28V)..(GCC,LA)

 13
90099-00968

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 11
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K440

GUN14#,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28,28G,28V)

 1
87103-0K440

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
87103-0K441

GUN14#,TGN14#..LHD..IDNP..(20G,24V,27,27G,27SRV,28,28G,28V)

 1
87103-0K441

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K130

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
87107-0K130

GUN142..SA,TH;GUN142,TGN141..LHD;GUN143,TGN140..IDNP..(20,20G,24,28,28G,28V)..(GCC,GEN,PHL,TH)

 1
87114B - COVER, HEATER
87114-0K060

GUN14#,TGN14#..IDNP

 1
87124B - CLAMP, HEATER
87124-06140

TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN142,TGN140..(20Q,20V,24Q,24V)..(GEN,IDN);GUN143,TGN140..IDNP..(20G,28G,28V)..(PHL,TH)

 1
87124-06140

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
87128 - GROMMET, HEATER
87128-0K150

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
87128-0K150

GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V)

 1
87130D - BLOWER ASSY
87130-0K660

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
87130-0K680

GUN14#,TGN14#..LHD..IDNP..(20G,24G,24V,27G,27SRV,28G,28V)

 1
87130-0K661

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
87130-0K681

GUN14#,TGN14#..LHD..IDNP..(20G,24V,27G,27SRV,28G,28V)

 1
87130-0K660

GUN14#,TGN141..LHD..(24,27,27SR,28)

 1
87130-0K661

GUN143,TGN141..27,28

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-0K240

GUN143,TGN141..6FC..(27G,27SRV,28G,28V)..(GCC,LA);GUN14#,TGN140..(IDNP,VNP)..(20G,20V,24V,28G,28V)..(GEN,PHL,VN)

 1
87106-0K220

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
87106-0K241

GUN14#,TGN14#..LHD..IDNP..(20G,24V,27G,27SRV,28G,28V)

 1
87106-0K220

TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL)

 1
87138C - RESISTOR, BLOWER
87138-0K350

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
87138-0K350

GUN143,TGN141..6FC..(27,28)..GCC;GUN143,TGN14#..IDNP..(20E,27,28E,N)..(LA,PHL)

 1
87139C - FILTER, CLEAN AIR
87139-0K040

GUN14#,TGN14#..GCC,GEN,LA,SA

POLLEN FILTER,OE PART

 1
87139-58010

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

DEODORANT FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K450

GUN14#,TGN14#..LHD..IDNP

 1
88501-0K450

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88515 - VALVE, COOLER EXPANSION
88515-0K580

GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA)

 1
88515-0K590

GUN143,TGN141..6FC..GCC

 1
88515-0K590

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 2
90099-04542

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 2
88539J - HOSE, DRAIN COOLER
88539-0K330

GUN14#,TGN14#..LHD..IDNP

 1
88548B - CASE, AIR FILTER
88548-0K090

GUN14#,TGN14#..IDNP

 1
88548-0K090

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88548-0K091

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88548-0K091

GUN14#,TGN14#..IDNP

 1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
88620-0K010

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0K420

TGN141..27..GCC

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

 1
88650-0K450

GUN14#,TGN141..(24G,27G,28G,28V)..GCC

 1
88650-0K420

TGN141..27..LA;GUN143,TGN141..6FC..(27,28)..GCC

 1
88894G - CONNECTOR, DRAIN HOSE
88894-0K040

GUN14#,TGN14#..LHD..IDNP

 1
Common parts
87193-87101
90099-00968
90099-14120
90099-14121
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0065
90179-06323
90185-T0001
91673-80616
