TGN141L-MDMSKF (2015)

Toyota Innova

Production Nov 2015 - Jul 2018
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )2TRFE

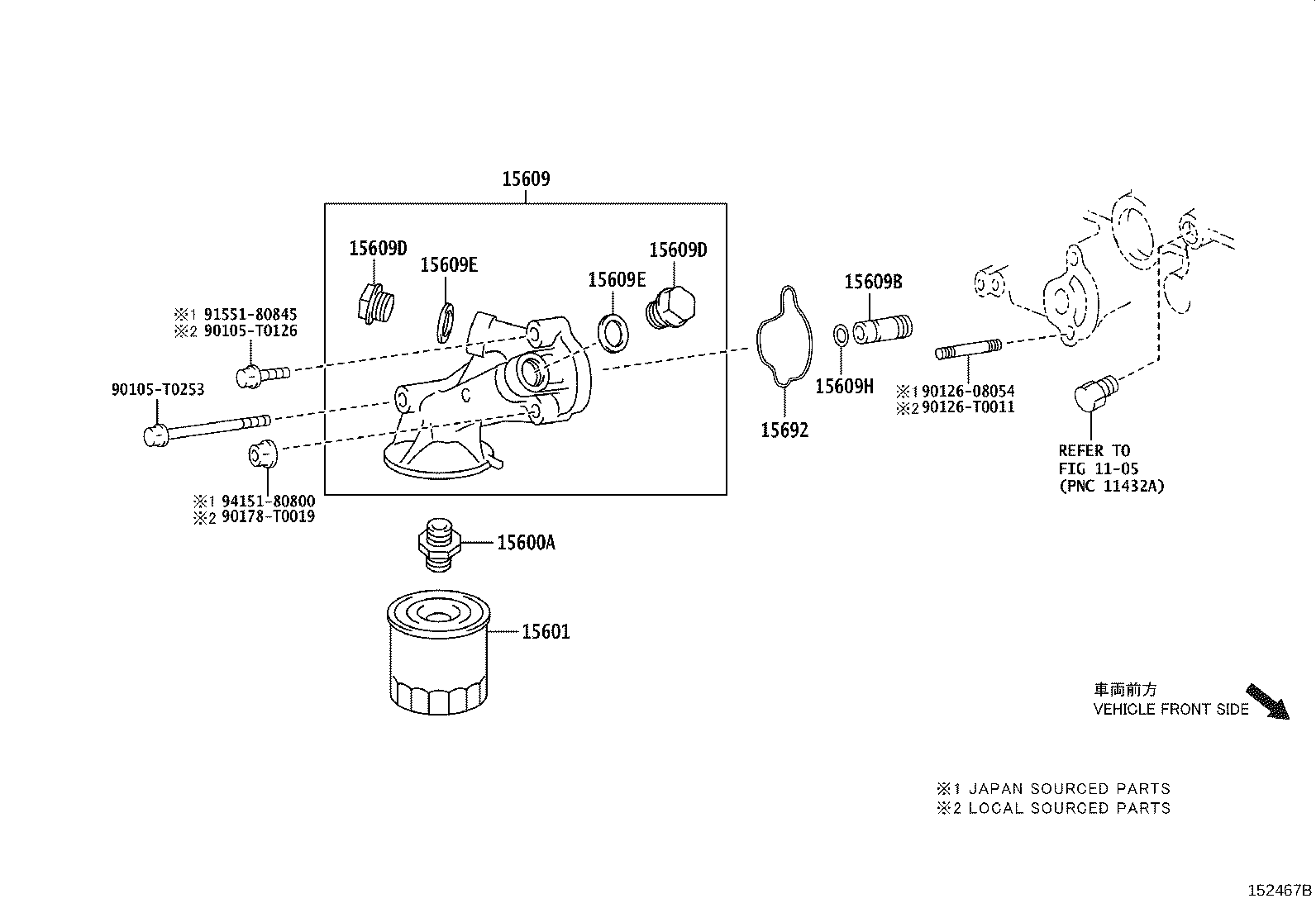

Click highlighted areas on diagram

diagram 1105 15600A 15601 15609 15609B 15609D 15609D 15609E 15609E 15609H 15692 90105T0126 90105T0253 9012608054 90126T0011 90178T0019 9155180845 9415180800
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-T0002

2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH)

 1
90404-T0002

2TRFE..TGN141..5F..GCC;1TRFE..TGN140..(MAP,PHLP)..5F;1TRFE..TGN140..PHLP..6FC..(20E,20G);1TRFE,2TRFE..TGN14#..(20,27SR)..(GEN,LA)

 1
15601 - FILTER SUB-ASSY, OIL
90915-TB001

2TRFE..TGN141..5F..GCC;1TRFE..TGN140..(MAP,PHLP)..5F;1TRFE..TGN140..PHLP..6FC..(20E,20G);1TRFE,2TRFE..TGN14#..(20,27SR)..(GEN,LA)

 1
90915-TB001

2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH)

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-0C090

2TRFE..TGN141..5F..GCC;2TRFE..TGN141..(27G,27SR,27V,27Z)..(IND,LA)

 1
15609-0C090

2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA

 1
15609B - UNION(FOR OIL FILTER BRACKET)
90404-T0003

2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA

MADE IN INDONESIA

 1
90404-T0003

2TRFE..TGN141..5F..GCC;2TRFE..TGN141..(27G,27SR,27V,27Z)..(IND,LA)

MADE IN INDONESIA

 1
90404-19017

2TRFE..TGN141..5F..GCC;2TRFE..TGN141..(27G,27SR,27V,27Z)..(IND,LA)

MADE IN JAPAN

 1
90404-19017

2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA

MADE IN JAPAN

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-T0010

2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA

 2
90341-T0010

2TRFE..TGN141..5F..GCC;2TRFE..TGN141..(27G,27SR,27V,27Z)..(IND,LA)

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-T0010

2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA

 2
90341-T0010

2TRFE..TGN141..5F..GCC;2TRFE..TGN141..(27G,27SR,27V,27Z)..(IND,LA)

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-T0009

2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA

 2
90430-T0009

2TRFE..TGN141..5F..GCC;2TRFE..TGN141..(27G,27SR,27V,27Z)..(IND,LA)

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-T0009

2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA

 2
90430-T0009

2TRFE..TGN141..5F..GCC;2TRFE..TGN141..(27G,27SR,27V,27Z)..(IND,LA)

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
90301-T0028

2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA

MADE IN THAILAND

 1
90301-17017

2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA

MADE IN JAPAN

 1
90301-17017

2TRFE..TGN141..5F..GCC;2TRFE..TGN141..(27G,27SR,27V,27Z)..(IND,LA)

MADE IN JAPAN

 1
90301-T0028

2TRFE..TGN141..5F..GCC;2TRFE..TGN141..(27G,27SR,27V,27Z)..(IND,LA)

MADE IN THAILAND

 1
15692 - GASKET, OIL FILTER BRACKET
15692-0C010

2TRFE..TGN141

 1
Common parts
90105-T0126
90105-T0253
90126-08054
90126-T0011
90178-T0019
91551-80845
94151-80800
Linked diagrams
1105
