TGN140R-MEMSKE (2016)

Toyota Innova

Production Nov 2016 - May 2019
Engine 1TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )1TRFE..MA

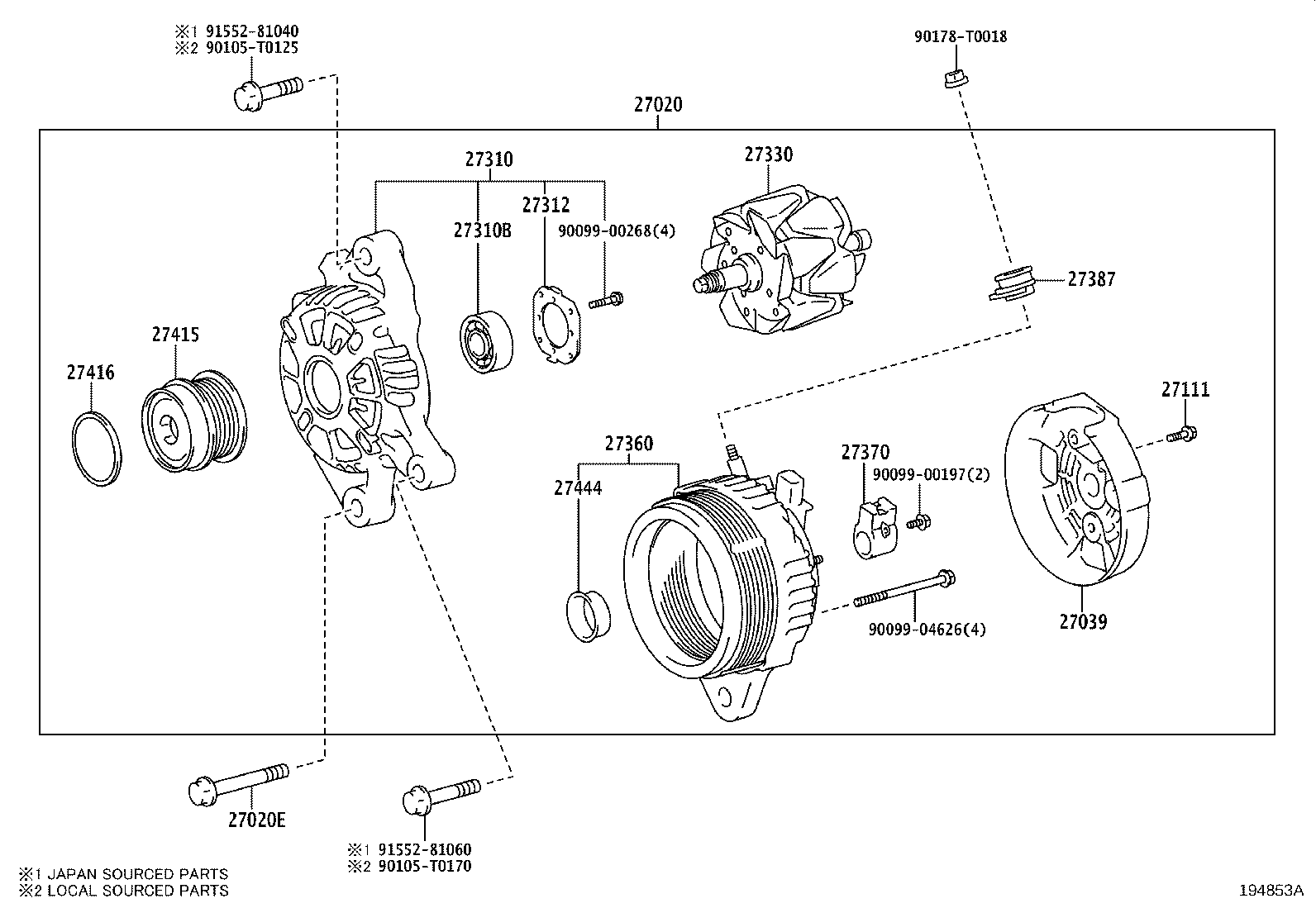

Click highlighted areas on diagram

12V 100A

diagram 27020 27020E 27039 27111 27310 27310B 27312 27330 27360 27370 27387 27415 27416 27444 9009900197 9009900268 9009904626 90105T0125 90105T0170 90178T0018 9155281040 9155281060
Part # Description Qty Price
27020E - BOLT(FOR ALTERNATOR)
90105-T0211

2TRFE..TGN141..5F..GCC;1TRFE..TGN140..(MAP,PHLP)..5F;1TRFE..TGN140..PHLP..6FC..(20E,20G);1TRFE,2TRFE..TGN14#..(20,27SR)..(GEN,LA)

(L)

 1
91552-81080

2TRFE..TGN141..5F..GCC;1TRFE..TGN140..(MAP,PHLP)..5F;1TRFE..TGN140..PHLP..6FC..(20E,20G);1TRFE,2TRFE..TGN14#..(20,27SR)..(GEN,LA)

(J)

 1
27039 - COVER, ALTERNATOR REAR END
27039-0V220

2GDFTV..GUN142..28V;1GDFTV..GUN143..GEN,IND;1TRFE..TGN140..(MAP,PHLP)..5F;1TRFE..TGN140..PHLP..6FC..(20E,20G);1GDFTV,2TRFE..GUN143,TGN141..5F..GCC;2GDFTV,2TRFE..GUN142,TGN141..(5F,6FC)..(24,24G,24V,24Z,27SR,G,N)..(IND,LA,SA)..(DCR,HTWC)

 1
27111 - BOLT, ALTERNATOR
90099-04627

1TRFE..TGN140..MA;2GDFTV..GUN142..(6F,6FC)..(IND,TH)..DCR

 3
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0C080

2TRFE..TGN141..27SR;2TRFE..TGN141..5F..GCC;1TRFE..TGN140..(MAP,PHLP)..5F;1TRFE..TGN140..PHLP..6FC..(20E,20G)

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10042

2GDFTV..GUN142..SA;2TRFE..TGN141..5F..GCC;2GDFTV,1TRFE,2TRFE..GUN142,TGN14#..(20E,20G,20V,27SR,28V)..(GCC,LA,MA)

 1
27312 - PLATE, RETAINER
27312-0C020

2GDFTV..GUN142..SA;1TRFE..TGN140..(MAP,PHLP)..5F;1TRFE..TGN140..PHLP..6FC..(20E,20G);2GDFTV,2TRFE..GUN142,TGN141..27SR,28V;1GDFTV..GUN143..PHLP..(28E,28G,28V,N);1GDFTV,2TRFE..GUN143,TGN141..5F..(GCC,GEN)

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0L140

2GDFTV..GUN142..SA;1TRFE..TGN140..(MAP,PHLP)..5F;1TRFE..TGN140..PHLP..6FC..(20E,20G);2GDFTV,2TRFE..GUN142,TGN141..27SR,28V;1GDFTV,2TRFE..GUN143,TGN141..5F..(GCC,GEN)

 1
27387 - INSULATOR, TERMINAL
27387-0C020

2GDFTV..GUN142..SA;1TRFE..TGN140..(MAP,PHLP)..5F;1TRFE..TGN140..PHLP..6FC..(20E,20G);2GDFTV,2TRFE..GUN142,TGN141..27SR,28V;1GDFTV..GUN143..PHLP..(28E,28G,28V,N);1GDFTV,2TRFE..GUN143,TGN141..5F..(GCC,GEN)

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W063

2TRFE..TGN141..27SR;2TRFE..TGN141..5F..GCC;1TRFE..TGN140..(MAP,PHLP)..5F;1TRFE..TGN140..PHLP..6FC..(20E,20G)

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

2TRFE..TGN141..5F..GCC;1TRFE..TGN140..(MAP,PHLP)..5F;1TRFE..TGN140..PHLP..6FC..(20E,20G);1TRFE,2TRFE..TGN14#..(20,27SR)..(GEN,LA)

 1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-0Y180

1TRFE..TGN140..(MAP,PHLP)..5F;1TRFE..TGN140..PHLP..6FC..(20E,20G);1TRFE,2TRFE..TGN14#..(20,27SR)..(GEN,LA);1GDFTV,2TRFE..GUN143,TGN141..5F..(GCC,GEN);2GDFTV..GUN142..(5F,6FC)..(GCC,IND,SA)..DCR;1GDFTV..GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
Common parts
90099-00197
90099-00268
90099-04626
90105-T0125
90105-T0170
90178-T0018
91552-81040
91552-81060
