TGN140R-MDTHKD (2020)

Toyota Innova

Production Sep 2020 - Sep 9999
Engine 1TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )TGN140..RHD..IDNP..20,20E,20G,20Q,20V

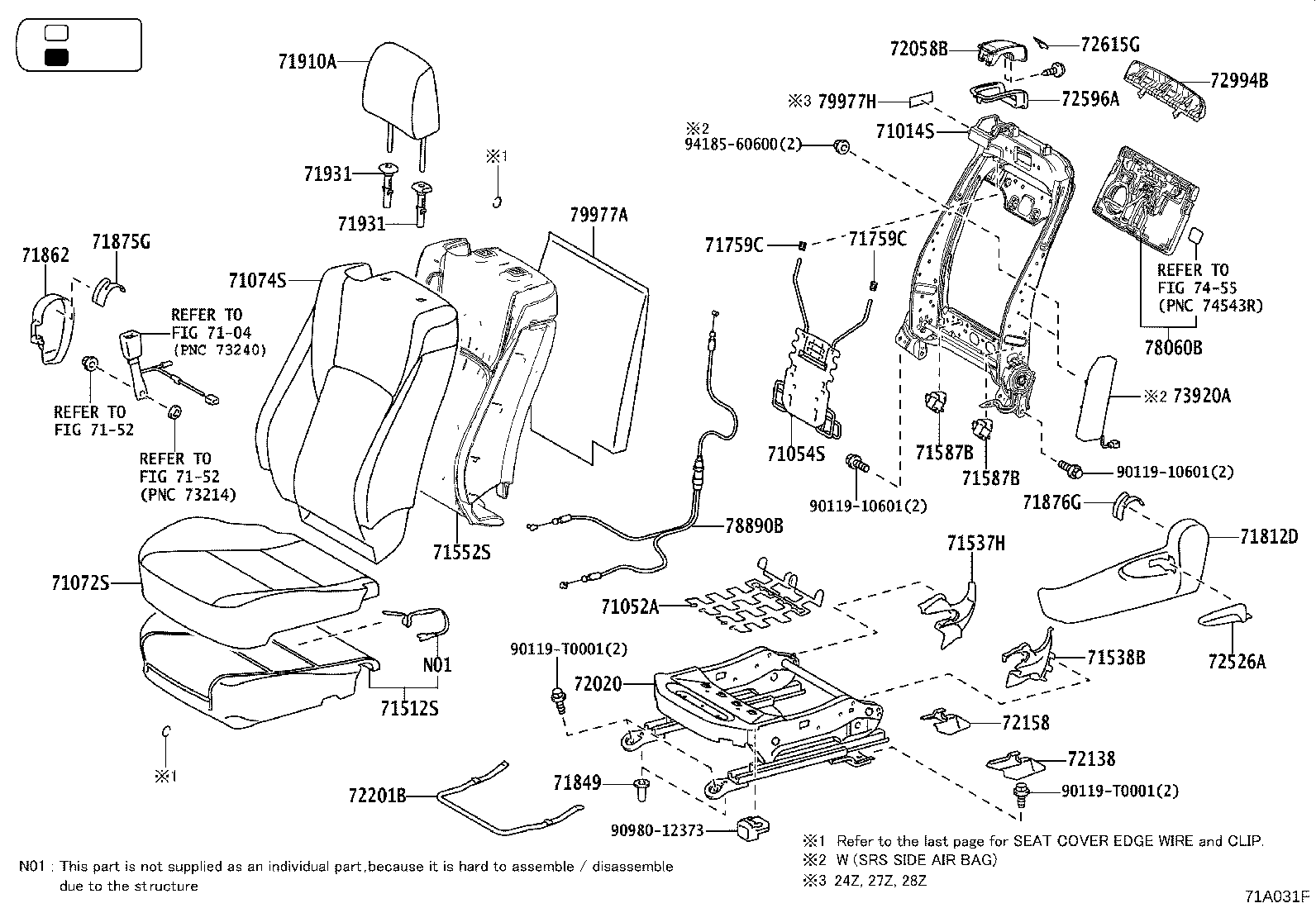

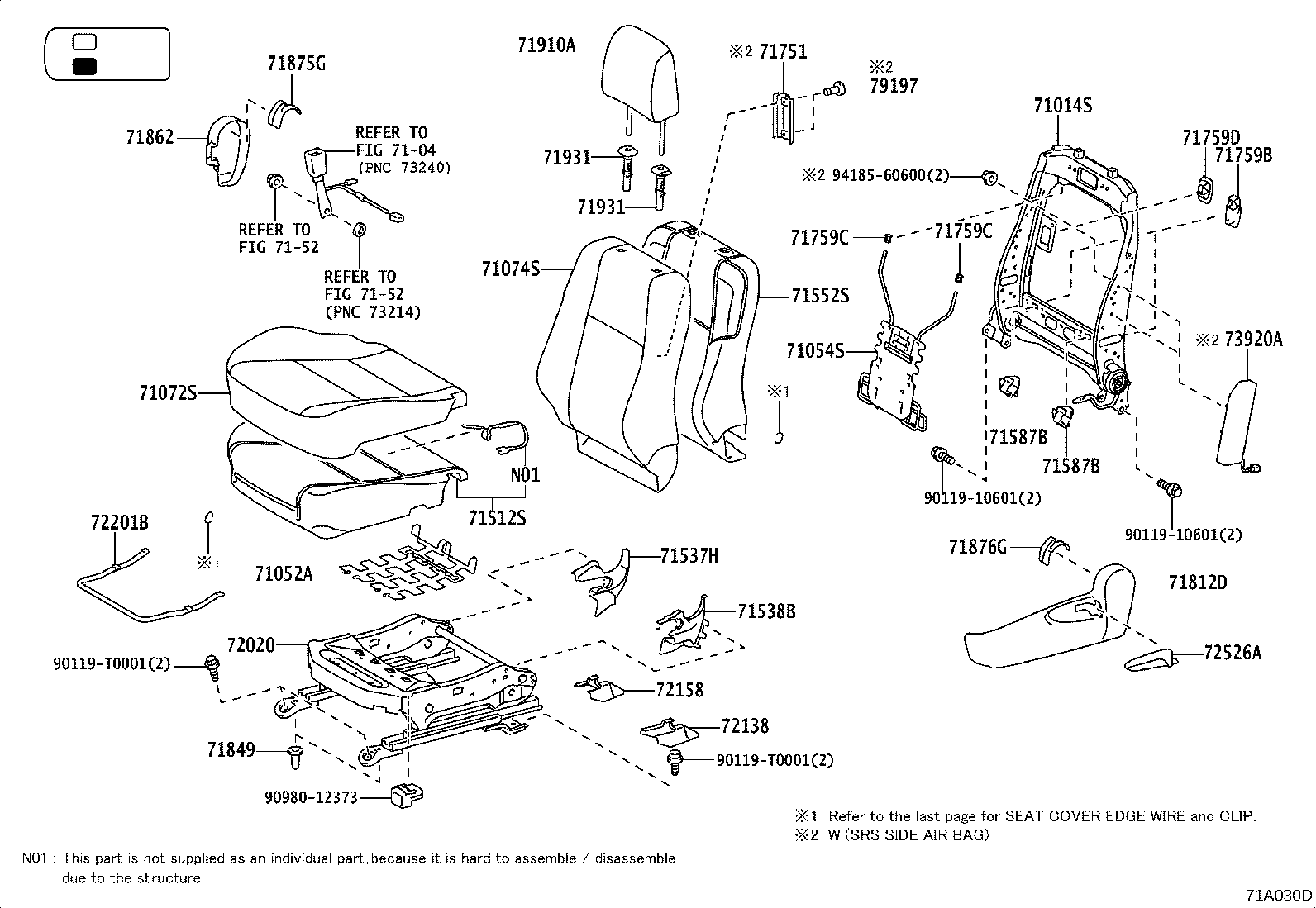

Click highlighted areas on diagram

DRIVER:W(POWER SEAT & TABLE)

diagram 71013S 71051A 71053S 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71587B 71587B 71751 71759C 71759C 71811D 71848A 71861 71867A 71873 71874 71875F 71876F 71910A 71931 71931 72010 72137 72157A 72993B 73910A 7455 78060A 79197 8202 8202 8401 8401 8401 8401 9011910601 9011910601 90119T0001 90119T0001 9016740044 9016740044 9016740044 9418560600
Part # Description Qty Price
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-0K250

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

 1
71013-0K250

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

 1
71013-0K270

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71013-0K270

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71013-0K260

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71013-0K260

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71013-0K260

GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71013-0K260

GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-0K050

GUN14#,TGN14#..IDNP

 1
71051-0K050

GUN14#,TGN14#..IDNP

 1
71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH
71053-0K010

GUN14#,TGN14#..IDNP

 1
71053-0K010

GUN14#,TGN14#..IDNP

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0KJ70C2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71071-0KJ70C2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71071-0KZ50C1

TGN140..TH

BLACK,TRIM2#

 1
71071-0KZ50C1

TGN140..TH

BLACK,TRIM2#

 1
71071-0KZ60E1

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN/BLACK,TRIM4#

 1
71071-0KZ60E1

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN/BLACK,TRIM4#

 1
71071-0KJ70E1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN/BLACK,TRIM4#

 1
71071-0KJ70E1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN/BLACK,TRIM4#

 1
71071-0KZ70C4

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

BLACK,TRIM2#

 1
71071-0KZ70C4

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

BLACK,TRIM2#

 1
71071-0KZ50E2

TGN140..TH

NOBLE BROWN/BLACK,TRIM4#

 1
71071-0KZ50E2

TGN140..TH

NOBLE BROWN/BLACK,TRIM4#

 1
71071-0KZ60C2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
71071-0KZ60C2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
71071-0KJ80C4

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71071-0KJ80C4

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71027-0K050C1

TGN140..TH;TGN141..5F..LA

BLACK,TRIM2#

 1
71027-0K050C1

TGN140..TH;TGN141..5F..LA

BLACK,TRIM2#

 1
71073-0KA60C2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71073-0KA60C2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71027-0K050E2

TGN140..TH

NOBLE BROWN,TRIM4#

 1
71027-0K050E2

TGN140..TH

NOBLE BROWN,TRIM4#

 1
71073-0KE31C7

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

BLACK,TRIM2#

 1
71073-0KE31C7

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

BLACK,TRIM2#

 1
71073-0KD40C2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
71073-0KD40C2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
71073-0KD40E2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN/BLACK,TRIM4#

 1
71073-0KD40E2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN/BLACK,TRIM4#

 1
71073-0KA60E2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN/BLACK,TRIM4#

 1
71073-0KA60E2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN/BLACK,TRIM4#

 1
71073-0KR90C2

GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL)

BLACK,TRIM2#

 1
71073-0KR90C2

GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL)

BLACK,TRIM2#

 1
71073-0KR81C6

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71073-0KR81C6

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0K350

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71511-0K350

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71511-0K030

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

 1
71511-0K030

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

 1
71511-0K040

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71511-0K040

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71511-0K350

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71511-0K350

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-0K040C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71537-0K040C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71537-0K040C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71537-0K040C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-0K020C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71538-0K020C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71538-0K020C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71538-0K020C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K070

TGN14#..IDNP..(20,G);GUN143..IDNP..28..PHL

 1
71551-0K070

TGN14#..IDNP..(20,G);GUN143..IDNP..28..PHL

 1
71551-0KB90

TGN140..TH;TGN141..5F..LA

 1
71551-0KB90

TGN140..TH;TGN141..5F..LA

 1
71551-0K070

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71551-0K070

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71551-0K060

GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL)

 1
71551-0K060

GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL)

 1
71551-0K080

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..IDNP..(20Q,28V)

 1
71551-0K080

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..IDNP..(20Q,28V)

 1
71551-0K070

GUN14#,TGN140..IDNP..(20Q,24V,28V)..(IDN,PHL)

SRS AIR BAG-WITH(*DRP)

 1
71551-0K070

GUN14#,TGN140..IDNP..(20Q,24V,28V)..(IDN,PHL)

SRS AIR BAG-WITH(*DRP)

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K010

GUN14#,TGN14#..IDNP

 4
71587-0K010

GUN14#,TGN14#..IDNP

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K010

GUN14#,TGN14#..IDNP

 4
71587-0K010

GUN14#,TGN14#..IDNP

 4
71751 - HANGER, SEAT COVER
71751-0K070

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;GUN142..(24G,24V,N)..(GEN,MA,TH);GUN14#,TGN141..24,24Z,27Z,28V,SRV;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN)

 2
71751-0K070

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;GUN142..(24G,24V,N)..(GEN,MA,TH);GUN14#,TGN141..24,24Z,27Z,28V,SRV;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN)

 2
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K010

GUN14#,TGN14#..IDNP

 4
71759-0K010

GUN14#,TGN14#..IDNP

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K010

GUN14#,TGN14#..IDNP

 4
71759-0K010

GUN14#,TGN14#..IDNP

 4
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K080C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71811-0K080C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71811-0K070C0

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#

 1
71811-0K070C0

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#

 1
71811-0K070C0

TGN140..TH

BLACK,TRIM2#,4#

 1
71811-0K070C0

TGN140..TH

BLACK,TRIM2#,4#

 1
71811-0K370C0

TGN141..6FC..(27,G);GUN143,TGN140..IDNP..(20,28)

BLACK,TRIM2#,4#

 1
71811-0K370C0

TGN141..6FC..(27,G);GUN143,TGN140..IDNP..(20,28)

BLACK,TRIM2#,4#

 1
71811-0K400C0

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71811-0K400C0

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71811-0K390C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
71811-0K390C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-0K010

GUN14#,TGN14#..IDNP

 2
71848-0K010

GUN14#,TGN14#..IDNP

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K080C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71861-0K080C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71861-0K080C0

GUN142,TGN140..(20E,20Q,24V)..(IDN,MA)

BLACK,TRIM2#

 1
71861-0K080C0

GUN142,TGN140..(20E,20Q,24V)..(IDN,MA)

BLACK,TRIM2#

 1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-0K010C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71867-0K010C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-0D370

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71873-0D370

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71873-0D370

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

 1
71873-0D370

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

 1
71873-0D370

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71873-0D370

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71873-0K020

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71873-0K020

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-0D390

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71874-0D390

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71874-0D390

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

 1
71874-0D390

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

 1
71874-0D390

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71874-0D390

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71874-0K020

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71874-0K020

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-0K180C0

TGN140..(20G,N)..(GEN,IDN,TH);GUN142,TGN140..LHD..IDNP..(20,24V);GUN14#,TGN141..IDNP..(20G,24G,27,28,28V,G,SRV)..(GCC,GEN,IDN,LA,PHL)

BLACK,TRIM2#,4#

 1
71875-0K180C0

TGN140..(20G,N)..(GEN,IDN,TH);GUN142,TGN140..LHD..IDNP..(20,24V);GUN14#,TGN141..IDNP..(20G,24G,27,28,28V,G,SRV)..(GCC,GEN,IDN,LA,PHL)

BLACK,TRIM2#,4#

 1
71875-0K190C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71875-0K190C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71875-0K180C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
71875-0K180C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
71875-0K180C0

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#

 1
71875-0K180C0

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-0K180C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
71876-0K180C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
71876-0K180C0

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#

 1
71876-0K180C0

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#

 1
71876-0K190C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71876-0K190C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71876-0K180C0

TGN140..(20G,N)..(GEN,IDN,TH);GUN142,TGN140..LHD..IDNP..(20,24V);GUN14#,TGN141..IDNP..(20G,24G,27,28,28V,G,SRV)..(GCC,GEN,IDN,LA,PHL)

BLACK,TRIM2#,4#

 1
71876-0K180C0

TGN140..(20G,N)..(GEN,IDN,TH);GUN142,TGN140..LHD..IDNP..(20,24V);GUN14#,TGN141..IDNP..(20G,24G,27,28,28V,G,SRV)..(GCC,GEN,IDN,LA,PHL)

BLACK,TRIM2#,4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K540C0

GUN14#,TGN140..IDNP..(20E,20G,24G,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 2
71910-0K540C0

GUN14#,TGN140..IDNP..(20E,20G,24G,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 2
71910-0K750C1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 2
71910-0K750C1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 2
71910-0K750E3

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN,TRIM4#

 2
71910-0K750E3

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN,TRIM4#

 2
71910-0K540C0

TGN140..TH;GUN14#,TGN141..(20G,27,28)..(GCC,GEN,LA)

BLACK,TRIM2#

 2
71910-0K540C0

TGN140..TH;GUN14#,TGN141..(20G,27,28)..(GCC,GEN,LA)

BLACK,TRIM2#

 2
71910-0K540E1

TGN140..TH;GUN142..20G

NOBLE BROWN,TRIM4#

 2
71910-0K540E1

TGN140..TH;GUN142..20G

NOBLE BROWN,TRIM4#

 2
71910-0K750E3

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN,TRIM4#

 2
71910-0K750E3

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN,TRIM4#

 2
71910-0K750C1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 2
71910-0K750C1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 2
71910-0K760C2

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 2
71910-0K760C2

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W/O(LOCK),BLACK,TRIM2#

 2
71931-0K040C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W(LOCK),BLACK,TRIM2#

 2
71931-0K040C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W/O(LOCK),BLACK,TRIM2#,4#

 2
71931-0K040C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W/O(LOCK),BLACK,TRIM2#,4#

 2
71930-0K050C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W(LOCK),BLACK,TRIM2#,4#

 2
71930-0K050C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W(LOCK),BLACK,TRIM2#,4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W/O(LOCK),BLACK,TRIM2#

 2
71931-0K040C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W(LOCK),BLACK,TRIM2#

 2
71931-0K040C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W/O(LOCK),BLACK,TRIM2#,4#

 2
71931-0K040C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W/O(LOCK),BLACK,TRIM2#,4#

 2
71930-0K050C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W(LOCK),BLACK,TRIM2#,4#

 2
71930-0K050C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W(LOCK),BLACK,TRIM2#,4#

 2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-0K020

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

 1
72010-0K020

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

 1
72010-0K020

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
72010-0K020

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
72010-0K020

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
72010-0K020

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
72010-0K030

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
72010-0K030

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-0K070C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
72137-0K070C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-0K050C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
72157-0K050C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
72993B - COVER, FRONT SEAT BACK, RH
72993-0K020D0

GUN14#..MA,TH;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA)

RED,TRIM2#

 1
72993-0K020D0

GUN14#..MA,TH;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA)

RED,TRIM2#

 1
72993-0K010C0

GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#

 1
72993-0K010C0

GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#

 1
72993-0K010C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
72993-0K010C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-0K050

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN);GUN14#,TGN141..6FC..(24G,24V,28V,N,SRV)..(GCC,GEN,LA,MA,PHL,TH)

 1
73910-0K050

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN);GUN14#,TGN141..6FC..(24G,24V,28V,N,SRV)..(GCC,GEN,LA,MA,PHL,TH)

 1
78060A - TABLE ASSY, FRONT SEAT BACK, RH
78060-0K010C0

GUN142..MA;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA)

BLACK,TRIM2#

 1
78060-0K010C0

GUN142..MA;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA)

BLACK,TRIM2#

 1
79197 - HOOK, SEAT BACK COVER
79197-0K010

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;GUN142..(24G,24V,N)..(GEN,MA,TH);GUN14#,TGN141..24,24Z,27Z,28V,SRV;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN)

 2
79197-0K010

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;GUN142..(24G,24V,N)..(GEN,MA,TH);GUN14#,TGN141..24,24Z,27Z,28V,SRV;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN)

 2
Common parts
90119-10601
90119-T0001
90167-40044
94185-60600
Linked diagrams
7152
7455
8202
8401

(1511- )RHD..IDNP..20,20E,20G,20Q,20V,24V,N..DCR,HTWC

Click highlighted areas on diagram

PASSENGER

diagram 71014S 7104 71052A 71054S 71072S 71074S 71512S 7152 7152 71537H 71538B 71552S 71587B 71587B 71751 71759B 71759C 71759C 71759D 71812D 71849 71862 71875G 71876G 71910A 71931 71931 72020 72138 72158 72201B 72526A 73920A 79197 9011910601 9011910601 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-0K120

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

 1
71014-0K120

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

 1
71014-0K150

GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71014-0K150

GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71014-0K150

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71014-0K150

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71014-0K160

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71014-0K160

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-0K050

GUN14#,TGN14#..IDNP

 1
71051-0K050

GUN14#,TGN14#..IDNP

 1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-0K010

GUN14#,TGN14#..IDNP

 1
71053-0K010

GUN14#,TGN14#..IDNP

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KF70C2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71072-0KF70C2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71072-0KD90C1

TGN140..IDNP..(20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,N)..(GEN,IDN,PHL)

BLACK,TRIM2#

 1
71072-0KD90C1

TGN140..IDNP..(20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,N)..(GEN,IDN,PHL)

BLACK,TRIM2#

 1
71072-0KF70E1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN/BLACK,TRIM4#

 1
71072-0KF70E1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN/BLACK,TRIM4#

 1
71072-0KT90E2

TGN140..TH

NOBLE BROWN/BLACK,TRIM4#

 1
71072-0KT90E2

TGN140..TH

NOBLE BROWN/BLACK,TRIM4#

 1
71072-0KT90C1

TGN140..TH

BLACK,TRIM2#

 1
71072-0KT90C1

TGN140..TH

BLACK,TRIM2#

 1
71072-0KW40E1

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN/BLACK,TRIM4#

 1
71072-0KW40E1

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN/BLACK,TRIM4#

 1
71072-0KW40C2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
71072-0KW40C2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
71072-0KF90C4

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71072-0KF90C4

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71072-0KW50C4

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

BLACK,TRIM2#

 1
71072-0KW50C4

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K170C2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
71074-0K170C2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
71074-0K170E2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN/BLACK,TRIM4#

 1
71074-0K170E2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN/BLACK,TRIM4#

 1
71074-0KD91C7

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

BLACK,TRIM2#

 1
71074-0KD91C7

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

BLACK,TRIM2#

 1
71074-0KD81C6

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71074-0KD81C6

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71074-0K160C2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71074-0K160C2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71074-0K160E2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN/BLACK,TRIM4#

 1
71074-0K160E2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN/BLACK,TRIM4#

 1
71074-0KN00C1

TGN140..TH;TGN141..5F..LA

BLACK,TRIM2#

 1
71074-0KN00C1

TGN140..TH;TGN141..5F..LA

BLACK,TRIM2#

 1
71074-0KJ40C2

GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL)

BLACK,TRIM2#

 1
71074-0KJ40C2

GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL)

BLACK,TRIM2#

 1
71074-0KN00E2

TGN140..TH

NOBLE BROWN,TRIM4#

 1
71074-0KN00E2

TGN140..TH

NOBLE BROWN,TRIM4#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-0K010

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

 1
71502-0K010

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

 1
71502-0K110

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71502-0K110

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-0K030C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71537-0K030C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71537-0K030C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71537-0K030C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-0K010C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71538-0K010C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71538-0K010C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71538-0K010C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K030

TGN14#..IDNP..(20,G);GUN143..IDNP..28..PHL

 1
71552-0K030

TGN14#..IDNP..(20,G);GUN143..IDNP..28..PHL

 1
71552-0K060

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71552-0K060

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71552-0K030

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71552-0K030

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71552-0K020

GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL)

 1
71552-0K020

GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL)

 1
71552-0K630

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71552-0K630

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71552-0K620

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP)

 1
71552-0K620

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP)

 1
71552-0KB00

TGN140..TH;TGN141..5F..LA

 1
71552-0KB00

TGN140..TH;TGN141..5F..LA

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K010

GUN14#,TGN14#..IDNP

 4
71587-0K010

GUN14#,TGN14#..IDNP

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K010

GUN14#,TGN14#..IDNP

 4
71587-0K010

GUN14#,TGN14#..IDNP

 4
71751 - HANGER, SEAT COVER
71751-0K070

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;GUN142..(24G,24V,N)..(GEN,MA,TH);GUN14#,TGN141..24,24Z,27Z,28V,SRV;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN)

 2
71751-0K070

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;GUN142..(24G,24V,N)..(GEN,MA,TH);GUN14#,TGN141..24,24Z,27Z,28V,SRV;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN)

 2
71759B - HOOK, FRONT SEAT BACK
71759-0K170

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

 4
71759-0K170

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K010

GUN14#,TGN14#..IDNP

 4
71759-0K010

GUN14#,TGN14#..IDNP

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K010

GUN14#,TGN14#..IDNP

 4
71759-0K010

GUN14#,TGN14#..IDNP

 4
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-0K070C0

TGN140..20E..VN;TGN140..RHD..IDNP..(20G,N);GUN14#,TGN141..(20G,24G,27,28)..(GCC,GEN,IDN,LA)

BLACK,TRIM2#,4#

 2
71759-0K070C0

TGN140..20E..VN;TGN140..RHD..IDNP..(20G,N);GUN14#,TGN141..(20G,24G,27,28)..(GCC,GEN,IDN,LA)

BLACK,TRIM2#,4#

 2
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0K050C0

GUN14#,TGN140..TH

BLACK,TRIM2#,4#

 1
71812-0K050C0

GUN14#,TGN140..TH

BLACK,TRIM2#,4#

 1
71812-0K050C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71812-0K050C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71812-0K340C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
71812-0K340C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
71812-0K340C0

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71812-0K340C0

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71812-0K350C0

TGN141..6FC..(27,G);GUN143,TGN140..IDNP..(20,28)

BLACK,TRIM2#,4#

 1
71812-0K350C0

TGN141..6FC..(27,G);GUN143,TGN140..IDNP..(20,28)

BLACK,TRIM2#,4#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-0K010

GUN14#,TGN14#..IDNP

 2
71848-0K010

GUN14#,TGN14#..IDNP

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0K070C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71862-0K070C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71862-0K070C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71862-0K070C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-0K180C0

GUN14#,TGN140..IDNP..(20E,20Q,24V,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71875-0K180C0

GUN14#,TGN140..IDNP..(20E,20Q,24V,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71875-0K180C0

TGN140..RHD..IDNP..(20G,N);GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN141..IDNP..(20G,24G,27,G,N)

BLACK,TRIM2#,4#

 1
71875-0K180C0

TGN140..RHD..IDNP..(20G,N);GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN141..IDNP..(20G,24G,27,G,N)

BLACK,TRIM2#,4#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-0K180C0

TGN140..RHD..IDNP..(20G,N);GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN141..IDNP..(20G,24G,27,G,N)

BLACK,TRIM2#,4#

 1
71876-0K180C0

TGN140..RHD..IDNP..(20G,N);GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN141..IDNP..(20G,24G,27,G,N)

BLACK,TRIM2#,4#

 1
71876-0K180C0

GUN14#,TGN140..IDNP..(20E,20Q,24V,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71876-0K180C0

GUN14#,TGN140..IDNP..(20E,20Q,24V,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K540C0

GUN14#,TGN140..IDNP..(20E,20G,24G,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 2
71910-0K540C0

GUN14#,TGN140..IDNP..(20E,20G,24G,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 2
71910-0K750C1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 2
71910-0K750C1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 2
71910-0K750E3

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN,TRIM4#

 2
71910-0K750E3

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN,TRIM4#

 2
71910-0K540C0

TGN140..TH;GUN14#,TGN141..(20G,27,28)..(GCC,GEN,LA)

BLACK,TRIM2#

 2
71910-0K540C0

TGN140..TH;GUN14#,TGN141..(20G,27,28)..(GCC,GEN,LA)

BLACK,TRIM2#

 2
71910-0K540E1

TGN140..TH;GUN142..20G

NOBLE BROWN,TRIM4#

 2
71910-0K540E1

TGN140..TH;GUN142..20G

NOBLE BROWN,TRIM4#

 2
71910-0K750E3

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN,TRIM4#

 2
71910-0K750E3

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN,TRIM4#

 2
71910-0K750C1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 2
71910-0K750C1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 2
71910-0K760C2

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 2
71910-0K760C2

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W/O(LOCK),BLACK,TRIM2#

 2
71931-0K040C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W(LOCK),BLACK,TRIM2#

 2
71931-0K040C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W/O(LOCK),BLACK,TRIM2#,4#

 2
71931-0K040C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W/O(LOCK),BLACK,TRIM2#,4#

 2
71930-0K050C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W(LOCK),BLACK,TRIM2#,4#

 2
71930-0K050C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W(LOCK),BLACK,TRIM2#,4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W/O(LOCK),BLACK,TRIM2#

 2
71931-0K040C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W(LOCK),BLACK,TRIM2#

 2
71931-0K040C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W/O(LOCK),BLACK,TRIM2#,4#

 2
71931-0K040C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W/O(LOCK),BLACK,TRIM2#,4#

 2
71930-0K050C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W(LOCK),BLACK,TRIM2#,4#

 2
71930-0K050C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W(LOCK),BLACK,TRIM2#,4#

 2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-0K010

TGN140..IDNP..(20G,N)..(IDN,PHL,TH);GUN14#..IDNP..(20G,24G,N)..(GEN,IDN,PHL)

 1
72020-0K010

TGN140..IDNP..(20G,N)..(IDN,PHL,TH);GUN14#..IDNP..(20G,24G,N)..(GEN,IDN,PHL)

 1
72020-0K010

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
72020-0K010

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
72020-0K250

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
72020-0K250

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
72020-0K010

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
72020-0K010

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-0K070C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
72137-0K070C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-0K050C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
72158-0K050C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0D210

GUN142..RHD..IDNP;GUN143,TGN14#..IDNP..(20,20E,20G,20Q,27,28,28E,28V,G,N)..(GCC,IDN,LA,PHL,TH)

 1
72211-0D210

GUN142..RHD..IDNP;GUN143,TGN14#..IDNP..(20,20E,20G,20Q,27,28,28E,28V,G,N)..(GCC,IDN,LA,PHL,TH)

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D300C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
72526-0D300C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
72526-0D300C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
72526-0D300C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-0K050

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN);GUN14#,TGN141..6FC..(24G,24V,28V,N,SRV)..(GCC,GEN,LA,MA,PHL,TH)

 1
73920-0K050

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN);GUN14#,TGN141..6FC..(24G,24V,28V,N,SRV)..(GCC,GEN,LA,MA,PHL,TH)

 1
79197 - HOOK, SEAT BACK COVER
79197-0K010

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;GUN142..(24G,24V,N)..(GEN,MA,TH);GUN14#,TGN141..24,24Z,27Z,28V,SRV;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN)

 2
79197-0K010

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;GUN142..(24G,24V,N)..(GEN,MA,TH);GUN14#,TGN141..24,24Z,27Z,28V,SRV;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN)

 2
Common parts
90119-10601
90119-T0001
90980-12373
94185-60600
Linked diagrams
7104
7152

(1511- )TGN140..RHD..IDNP..20,20E,20G,20Q,20V

Click highlighted areas on diagram

PASSENGER:W(WALK-IN SEAT & TABLE)

diagram 71014S 7104 71052A 71054S 71072S 71074S 71512S 7152 7152 71537H 71538B 71552S 71587B 71587B 71759C 71759C 71812D 71849 71862 71875G 71876G 71910A 71931 71931 72020 72058B 72138 72158 72201B 72526A 72596A 72615G 72994B 73920A 7455 78060B 78890B 79977A 79977H 9011910601 9011910601 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-0K120

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

 1
71014-0K120

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

 1
71014-0K150

GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71014-0K150

GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71014-0K150

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71014-0K150

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71014-0K160

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71014-0K160

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-0K050

GUN14#,TGN14#..IDNP

 1
71051-0K050

GUN14#,TGN14#..IDNP

 1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-0K010

GUN14#,TGN14#..IDNP

 1
71053-0K010

GUN14#,TGN14#..IDNP

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KF70C2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71072-0KF70C2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71072-0KD90C1

TGN140..IDNP..(20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,N)..(GEN,IDN,PHL)

BLACK,TRIM2#

 1
71072-0KD90C1

TGN140..IDNP..(20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,N)..(GEN,IDN,PHL)

BLACK,TRIM2#

 1
71072-0KF70E1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN/BLACK,TRIM4#

 1
71072-0KF70E1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN/BLACK,TRIM4#

 1
71072-0KT90E2

TGN140..TH

NOBLE BROWN/BLACK,TRIM4#

 1
71072-0KT90E2

TGN140..TH

NOBLE BROWN/BLACK,TRIM4#

 1
71072-0KT90C1

TGN140..TH

BLACK,TRIM2#

 1
71072-0KT90C1

TGN140..TH

BLACK,TRIM2#

 1
71072-0KW40E1

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN/BLACK,TRIM4#

 1
71072-0KW40E1

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN/BLACK,TRIM4#

 1
71072-0KW40C2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
71072-0KW40C2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
71072-0KF90C4

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71072-0KF90C4

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71072-0KW50C4

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

BLACK,TRIM2#

 1
71072-0KW50C4

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K170C2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
71074-0K170C2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
71074-0K170E2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN/BLACK,TRIM4#

 1
71074-0K170E2

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN/BLACK,TRIM4#

 1
71074-0KD91C7

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

BLACK,TRIM2#

 1
71074-0KD91C7

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

BLACK,TRIM2#

 1
71074-0KD81C6

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71074-0KD81C6

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71074-0K160C2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71074-0K160C2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71074-0K160E2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN/BLACK,TRIM4#

 1
71074-0K160E2

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN/BLACK,TRIM4#

 1
71074-0KN00C1

TGN140..TH;TGN141..5F..LA

BLACK,TRIM2#

 1
71074-0KN00C1

TGN140..TH;TGN141..5F..LA

BLACK,TRIM2#

 1
71074-0KJ40C2

GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL)

BLACK,TRIM2#

 1
71074-0KJ40C2

GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL)

BLACK,TRIM2#

 1
71074-0KN00E2

TGN140..TH

NOBLE BROWN,TRIM4#

 1
71074-0KN00E2

TGN140..TH

NOBLE BROWN,TRIM4#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-0K010

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

 1
71502-0K010

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

 1
71502-0K110

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71502-0K110

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-0K030C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71537-0K030C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71537-0K030C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71537-0K030C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-0K010C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71538-0K010C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71538-0K010C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71538-0K010C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K030

TGN14#..IDNP..(20,G);GUN143..IDNP..28..PHL

 1
71552-0K030

TGN14#..IDNP..(20,G);GUN143..IDNP..28..PHL

 1
71552-0K060

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71552-0K060

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
71552-0K030

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71552-0K030

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
71552-0K020

GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL)

 1
71552-0K020

GUN143,TGN141..6FC..(27,28);TGN140..IDNP..(20E,20G,N)..(IDN,PHL);GUN14#..IDNP..(20G,24G,28E,N)..(GEN,IDN,PHL)

 1
71552-0K630

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71552-0K630

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
71552-0K620

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP)

 1
71552-0K620

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP)

 1
71552-0KB00

TGN140..TH;TGN141..5F..LA

 1
71552-0KB00

TGN140..TH;TGN141..5F..LA

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K010

GUN14#,TGN14#..IDNP

 4
71587-0K010

GUN14#,TGN14#..IDNP

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K010

GUN14#,TGN14#..IDNP

 4
71587-0K010

GUN14#,TGN14#..IDNP

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K010

GUN14#,TGN14#..IDNP

 4
71759-0K010

GUN14#,TGN14#..IDNP

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K010

GUN14#,TGN14#..IDNP

 4
71759-0K010

GUN14#,TGN14#..IDNP

 4
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0K050C0

GUN14#,TGN140..TH

BLACK,TRIM2#,4#

 1
71812-0K050C0

GUN14#,TGN140..TH

BLACK,TRIM2#,4#

 1
71812-0K050C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71812-0K050C0

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 1
71812-0K340C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
71812-0K340C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
71812-0K340C0

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71812-0K340C0

GUN142,TGN140..(20Q,24V)..IDN

SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 1
71812-0K350C0

TGN141..6FC..(27,G);GUN143,TGN140..IDNP..(20,28)

BLACK,TRIM2#,4#

 1
71812-0K350C0

TGN141..6FC..(27,G);GUN143,TGN140..IDNP..(20,28)

BLACK,TRIM2#,4#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-0K010

GUN14#,TGN14#..IDNP

 2
71848-0K010

GUN14#,TGN14#..IDNP

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0K070C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71862-0K070C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71862-0K070C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71862-0K070C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-0K180C0

GUN14#,TGN140..IDNP..(20E,20Q,24V,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71875-0K180C0

GUN14#,TGN140..IDNP..(20E,20Q,24V,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71875-0K180C0

TGN140..RHD..IDNP..(20G,N);GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN141..IDNP..(20G,24G,27,G,N)

BLACK,TRIM2#,4#

 1
71875-0K180C0

TGN140..RHD..IDNP..(20G,N);GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN141..IDNP..(20G,24G,27,G,N)

BLACK,TRIM2#,4#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-0K180C0

TGN140..RHD..IDNP..(20G,N);GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN141..IDNP..(20G,24G,27,G,N)

BLACK,TRIM2#,4#

 1
71876-0K180C0

TGN140..RHD..IDNP..(20G,N);GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN141..IDNP..(20G,24G,27,G,N)

BLACK,TRIM2#,4#

 1
71876-0K180C0

GUN14#,TGN140..IDNP..(20E,20Q,24V,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71876-0K180C0

GUN14#,TGN140..IDNP..(20E,20Q,24V,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K540C0

GUN14#,TGN140..IDNP..(20E,20G,24G,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 2
71910-0K540C0

GUN14#,TGN140..IDNP..(20E,20G,24G,28E,N)..(IDN,PHL)

BLACK,TRIM2#

 2
71910-0K750C1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 2
71910-0K750C1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#

 2
71910-0K750E3

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN,TRIM4#

 2
71910-0K750E3

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),NOBLE BROWN,TRIM4#

 2
71910-0K540C0

TGN140..TH;GUN14#,TGN141..(20G,27,28)..(GCC,GEN,LA)

BLACK,TRIM2#

 2
71910-0K540C0

TGN140..TH;GUN14#,TGN141..(20G,27,28)..(GCC,GEN,LA)

BLACK,TRIM2#

 2
71910-0K540E1

TGN140..TH;GUN142..20G

NOBLE BROWN,TRIM4#

 2
71910-0K540E1

TGN140..TH;GUN142..20G

NOBLE BROWN,TRIM4#

 2
71910-0K750E3

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN,TRIM4#

 2
71910-0K750E3

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN,TRIM4#

 2
71910-0K750C1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 2
71910-0K750C1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 2
71910-0K760C2

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 2
71910-0K760C2

GUN142,TGN140..(20Q,24V)..IDN

BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W/O(LOCK),BLACK,TRIM2#

 2
71931-0K040C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W(LOCK),BLACK,TRIM2#

 2
71931-0K040C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W/O(LOCK),BLACK,TRIM2#,4#

 2
71931-0K040C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W/O(LOCK),BLACK,TRIM2#,4#

 2
71930-0K050C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W(LOCK),BLACK,TRIM2#,4#

 2
71930-0K050C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W(LOCK),BLACK,TRIM2#,4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W/O(LOCK),BLACK,TRIM2#

 2
71931-0K040C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

TGN140..PHLP..N;TGN140..PHLP..6FC..20E;GUN14#..(24G,28E,N)..(MA,PHL);GUN142,TGN140..(IDNP,MAP)..(20E,20Q,20V,24V,N)..(IDN,MA,PHL)

W(LOCK),BLACK,TRIM2#

 2
71931-0K040C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W/O(LOCK),BLACK,TRIM2#,4#

 2
71931-0K040C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W/O(LOCK),BLACK,TRIM2#,4#

 2
71930-0K050C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W(LOCK),BLACK,TRIM2#,4#

 2
71930-0K050C0

GUN142,TGN140..(20E,24V)..(GEN,VN);GUN14#,TGN14#..(20G,24G,27,28,28V,G,N,SRV)..(GCC,GEN,IDN,LA,TH)

W(LOCK),BLACK,TRIM2#,4#

 2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-0K010

TGN140..IDNP..(20G,N)..(IDN,PHL,TH);GUN14#..IDNP..(20G,24G,N)..(GEN,IDN,PHL)

 1
72020-0K010

TGN140..IDNP..(20G,N)..(IDN,PHL,TH);GUN14#..IDNP..(20G,24G,N)..(GEN,IDN,PHL)

 1
72020-0K010

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
72020-0K010

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

SEAT COVER MATERIAL-FULL HI(FOR MPV)

 1
72020-0K250

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
72020-0K250

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
72020-0K010

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
72020-0K010

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP)

 1
72058B - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
72058-0K040C0

GUN142..MA;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA)

BLACK,TRIM2#

 1
72058-0K040C0

GUN142..MA;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA)

BLACK,TRIM2#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-0K070C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
72137-0K070C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-0K050C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
72158-0K050C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0D210

GUN142..RHD..IDNP;GUN143,TGN14#..IDNP..(20,20E,20G,20Q,27,28,28E,28V,G,N)..(GCC,IDN,LA,PHL,TH)

 1
72211-0D210

GUN142..RHD..IDNP;GUN143,TGN14#..IDNP..(20,20E,20G,20Q,27,28,28E,28V,G,N)..(GCC,IDN,LA,PHL,TH)

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D300C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
72526-0D300C0

GUN14#,TGN140..RHD..IDNP..(20G,24G,28V,N)

BLACK,TRIM2#,4#

 1
72526-0D300C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
72526-0D300C0

GUN14#,TGN140..IDNP..(20Q,24V,N)..(IDN,PHL)

BLACK,TRIM2#

 1
72596A - BASE, RECLINING REMOTE CONTROL, LH
72596-0K010C0

GUN142..MA;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA)

BLACK,TRIM2#

 1
72596-0K010C0

GUN142..MA;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA)

BLACK,TRIM2#

 1
72615G - COVER, FRONT SEAT BACK LOCK STRIKER,NO.2
72615-0K080C0

GUN142..MA;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA)

BLACK,TRIM2#

 1
72615-0K080C0

GUN142..MA;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA)

BLACK,TRIM2#

 1
72994B - COVER, FRONT SEAT BACK, LH
72993-0K010C0

GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#

 1
72993-0K010C0

GUN143,TGN14#..(20Q,28V,SRV)..(IDN,LA,TH);GUN14#,TGN141..(24V,27,28,N)..(GCC,IDN,TH)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#,4#

 1
72993-0K010C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
72993-0K010C0

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#,4#

 1
72993-0K020D0

TGN140..GEN;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA);GUN14#,TGN141..(24G,24V,28V,N,SRV)..(GEN,LA,MA,TH)

RED,TRIM2#

 1
72993-0K020D0

TGN140..GEN;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA);GUN14#,TGN141..(24G,24V,28V,N,SRV)..(GEN,LA,MA,TH)

RED,TRIM2#

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-0K050

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN);GUN14#,TGN141..6FC..(24G,24V,28V,N,SRV)..(GCC,GEN,LA,MA,PHL,TH)

 1
73920-0K050

TGN140..GEN;TGN141..5F..LA;GUN142..24V..IDN;TGN140..(20E,20Q,20V,N)..(IDN,MA,TH,VN);GUN14#,TGN141..6FC..(24G,24V,28V,N,SRV)..(GCC,GEN,LA,MA,PHL,TH)

 1
78060B - TABLE ASSY, FRONT SEAT BACK, LH
78060-0K010C0

GUN142..MA;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA)

BLACK,TRIM2#

 1
78060-0K010C0

GUN142..MA;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA)

BLACK,TRIM2#

 1
78890B - CABLE ASSY, SUB-SEAT LOCK CONTROL
78890-0K030

TGN140..GEN;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA);GUN14#,TGN141..(24G,24V,28V,N,SRV)..(GEN,LA,MA,TH)

 1
78890-0K030

TGN140..GEN;GUN142,TGN140..(20Q,20V,24V)..(IDN,MA);GUN14#,TGN141..(24G,24V,28V,N,SRV)..(GEN,LA,MA,TH)

 1
79977H - FELT, FRONT SEAT BACK, LH
79977-0K080

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
79977-0K080

GUN142..RHD..IDNP..(24V,N);GUN143,TGN140..RHD..(20Q,28V)

 1
Common parts
90119-10601
90119-T0001
90980-12373
94185-60600
Linked diagrams
7104
7152
7455

(1511- )

Click highlighted areas on diagram

SEAT COVER EDGE WIRE & CLIP

diagram 7114930050 711910K010 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
71191-0K010
90468-16019
90468-18008

(1511- )

Click highlighted areas on diagram

REAR NO.2 SEAT(RH)

diagram 71216 71303B 71334A 71334A 71397C 71397C 71499 7152 7152 71691B 71691E 71692E 71693 71693A 71695A 71696E 71843A 71848G 71931C 71931C 71931C 71931C 71940E 71960D 72065A 72211B 72525D 72525E 72613B 72613B 72661C 72661C 72665C 72681C 72695B 727020K220 72927 79021 79023 79030B 79201B 79203A 79235D 79236A 79275C 79378A 79391 79393 82712 90105T0064 90105T0266 9011910886 9011910886 9011910886 90119T0472 90119T0472 90119T0472 9016740044 9016740044 9016740044 9016740044 9095001999
Part # Description Qty Price
71216 - FRAME, REAR SEAT CUSHION, REAR RH
79201-0K070

GUN14#,TGN14#..IDNP..(GCC,GEN,IDN,PHL,TH)

 1
71303B - HINGE SUB-ASSY, REAR NO.2 SEAT, RH
71303-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV)

 1
71334A - STOPPER, REAR SEAT LEG
71334-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV

 4
71334A - STOPPER, REAR SEAT LEG
71334-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV

 4
71397C - STOPPER, REAR SEAT
71397-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV

 4
71397C - STOPPER, REAR SEAT
71397-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV

 4
71499 - STOPPER, REAR SEAT BACK
71499-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV

 2
71691B - COVER, REAR SEAT LOCK, OUTER RH
71691-0K020C0

GUN142,TGN14#..GCC,GEN,IDN,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
71691E - COVER, REAR SEAT CUSHION HINGE, NO.1
71691-0K010C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

BLACK,TRIM2#,4#

 1
71692E - COVER, REAR SEAT CUSHION HINGE, NO.2
71692-0K090C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH
71693-0K030C0

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
71693A - COVER, REAR SEAT CUSHION HINGE, NO.3
71693-0K090C0

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
71843A - COVER, REAR SEAT RECLINING, NO.2 RH
71843-0K030C0

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
71848G - CAP, SEAT ADJUSTER COVER, NO.2
71848-0K030C0

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V)

BLACK,TRIM2#,4#

 1
71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST
71930-02370C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

W(LOCK)&W(BUTTON),BLACK,TRIM2#,4#

 3
71931-02130C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

W/O(LOCK),BLACK,TRIM2#,4#

 3
71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST
71930-02370C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

W(LOCK)&W(BUTTON),BLACK,TRIM2#,4#

 3
71931-02130C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

W/O(LOCK),BLACK,TRIM2#,4#

 3
71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST
71930-02370C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

W(LOCK)&W(BUTTON),BLACK,TRIM2#,4#

 3
71931-02130C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

W/O(LOCK),BLACK,TRIM2#,4#

 3
71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST
71930-02370C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

W(LOCK)&W(BUTTON),BLACK,TRIM2#,4#

 3
71931-02130C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

W/O(LOCK),BLACK,TRIM2#,4#

 3
71940E - HEADREST ASSY, NO.2 SEAT
71940-0K820C1

TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 2
71940-0K810C0

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

BLACK,TRIM2#

 2
71940-0K820E1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),HAZEL BROWN,TRIM40

 2
71940-0K810E0

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

HAZEL BROWN,TRIM40

 2
71940-0K820E4

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN,TRIM41

 2
71940-0KB30C2

TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH)

BLACK,TRIM2#

 2
71940-0K810E1

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

NOBLE BROWN,TRIM41

 2
71960D - HEADREST ASSY, REAR NO.2 SEAT, CENTER
71960-0K090C0

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

BLACK,TRIM2#

 1
71960-0K090E1

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

NOBLE BROWN,TRIM41

 1
71960-0K100E1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),HAZEL BROWN,TRIM40

 1
71960-0K100C1

TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
71960-0K100E4

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN,TRIM41

 1
71960-0K110C2

TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH)

BLACK,TRIM2#

 1
71960-0K090E0

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

HAZEL BROWN,TRIM40

 1
72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH
72065-0K070B0

TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V)

LT.GRAY,TRIM2#,4#

 1
72211B - HANDLE, SEAT TRACK ADJUSTING
72211-0K190C1

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH
72507-0K040C1

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V)

BLACK,TRIM2#,4#

 1
72525E - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH
72525-0K230C0

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
72613B - STRIKER, REAR SEAT LOCK
72613-0K030

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV)

 4
72613B - STRIKER, REAR SEAT LOCK
72613-0K030

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV)

 4
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-0K030C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

BLACK,TRIM2#,4#,NO.1:REFER ILLUST.

 2
72661-0K040C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

BLACK,TRIM2#,4#,NO.2:REFER ILLUST.

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-0K030C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

BLACK,TRIM2#,4#,NO.1:REFER ILLUST.

 2
72661-0K040C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

BLACK,TRIM2#,4#,NO.2:REFER ILLUST.

 2
72665C - COVER, REAR SEAT LOCK, RH
72665-0K310B0

TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V)

LT.GRAY,TRIM2#,4#

 1
72681C - HOOK, REAR SEAT BACK LOCK, LOWER
72681-0K050B0

TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V)

LT.GRAY,TRIM2#,4#,LH

 1
72681-0K030B0

TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V)

LT.GRAY,TRIM2#,4#,RH

 1
72695B - CABLE, REAR SEAT LOCK CONTROL, RH
72695-0K040

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV)

 1
72927 - COVER, REAR SEAT CUSHION UNDER, RH
71693-0K180C0

GUN142,TGN14#..GCC,GEN,IDN,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79021-0K571C6

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

BLACK,TRIM2#

 1
79021-0K571E8

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

NOBLE BROWN,TRIM4#

 1
79021-0K581C6

TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
79021-0K581E7

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN,TRIM4#

 1
79021-0K591C7

TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH)

BLACK,TRIM2#

 1
79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH
79023-0K401E7

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

NOBLE BROWN,TRIM4#

 1
79023-0K401C5

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

BLACK,TRIM2#

 1
79023-0K521E7

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN,TRIM4#

 1
79023-0K521C6

TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
79023-0K541C6

TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH)

BLACK,TRIM2#

 1
79030B - LEG ASSY, REAR NO.2 SEAT, RH
79030-0K020

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV)

 1
79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH
79201-0K040

GUN14#,TGN14#..IDNP..(GCC,GEN,IDN,PHL,TH)

 1
79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH
79203-0K030

GUN14#,TGN14#..IDNP

 1
79235D - PAD, NO.2 SEAT CUSHION, RH
79235-0K110

GUN14#,TGN14#..IDNP

 1
79236A - COVER, NO.2 SEAT LEG
79236-0K080C0

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
79275C - PAD, NO.2 SEAT BACK, RH
79275-0K040

GUN14#,TGN14#..IDNP

 1
79378A - COVER, NO.3 SEAT CUSHION HINGE, RH
79378-0K070C0

GUN142,TGN14#..GCC,GEN,IDN,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
79391 - SPRING, REAR SEAT CUSHION
79391-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV

 2
79393 - CUSHION, REAR NO.2 SEAT BACK
79393-0K070

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV)

 2
82712 - CLAMP, WIRING HARNESS
82711-0K150

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(20G,24G,24V,27,28,28E,28V,G,N)..(GCC,GEN,IDN,PHL,TH)

 6
Common parts
72702-0K220
90105-T0064
90105-T0266
90119-10886
90119-T0472
90167-40044
90950-01999
Linked diagrams
7152

(1511- )

Click highlighted areas on diagram

REAR NO.2 SEAT(LH)

diagram 71217 71304B 71334A 71334A 71397D 71397D 71499 7152 7152 71619A 71691K 71692B 71692H 71694 71695B 71696A 71844A 71849H 71931C 71931C 71940E 72066A 72211C 72526C 72526D 72613B 72613B 72661C 72661C 72666C 72681C 72695C 727020K220 72928 79022 79024 79040B 79202 79204A 79245C 79246B 79285 79378B 79391 79393 82712 90105T0064 90105T0266 9011910886 9011910886 9011910886 90119T0472 90119T0472 90119T0472 9016740044 9016740044 9016740044 9016740044 9095001999
Part # Description Qty Price
71217 - FRAME, REAR SEAT CUSHION, REAR LH
79202-0K070

GUN14#,TGN14#..IDNP..(GCC,GEN,IDN,PHL,TH)

 1
71304B - HINGE SUB-ASSY, REAR NO.2 SEAT, LH
71304-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV)

 1
71334A - STOPPER, REAR SEAT LEG
71334-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV

 4
71334A - STOPPER, REAR SEAT LEG
71334-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV

 4
71397D - STOPPER, REAR SEAT
71397-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV

 4
71397D - STOPPER, REAR SEAT
71397-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV

 4
71499 - STOPPER, REAR SEAT BACK
71499-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV

 2
71619A - COVER, REAR SEAT CUSHION HINGE, LOWER LH
71694-0K030C0

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
71691K - COVER, REAR SEAT CUSHION HINGE, NO.4
71691-0K090C0

TGN140..20E..VN;GUN143,TGN140..IDNP..(20,28,28V);GUN142,TGN14#..GCC,GEN,IDN,LA,TH

BLACK,TRIM2#,4#

 1
71692B - COVER, REAR SEAT LOCK, OUTER LH
71692-0K020C0

GUN142,TGN14#..GCC,GEN,IDN,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
71692H - COVER, REAR SEAT CUSHION HINGE, NO.3
71692-0K010C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

BLACK,TRIM2#,4#

 1
71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH
71694-0K090C0

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
71844A - COVER, REAR SEAT RECLINING, NO.2 LH
71844-0K030C0

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
71849H - CAP, REAR NO.2 SEAT ADJUSTER COVER, LH
71848-0K040C0

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V)

BLACK,TRIM2#,4#

 1
71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST
71930-02370C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

W(LOCK)&W(BUTTON),BLACK,TRIM2#,4#

 3
71931-02130C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

W/O(LOCK),BLACK,TRIM2#,4#

 3
71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST
71930-02370C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

W(LOCK)&W(BUTTON),BLACK,TRIM2#,4#

 3
71931-02130C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

W/O(LOCK),BLACK,TRIM2#,4#

 3
71940E - HEADREST ASSY, NO.2 SEAT
71940-0K820C1

TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 2
71940-0K810C0

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

BLACK,TRIM2#

 2
71940-0K820E1

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),HAZEL BROWN,TRIM40

 2
71940-0K810E0

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

HAZEL BROWN,TRIM40

 2
71940-0K820E4

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN,TRIM41

 2
71940-0KB30C2

TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH)

BLACK,TRIM2#

 2
71940-0K810E1

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

NOBLE BROWN,TRIM41

 2
72066A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH
72065-0K070B0

TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V)

LT.GRAY,TRIM2#,4#

 1
72211C - HANDLE, SEAT TRACK ADJUSTING
72211-0K190C1

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH
72507-0K040C1

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V)

BLACK,TRIM2#,4#

 1
72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH
72526-0K260C0

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
72613B - STRIKER, REAR SEAT LOCK
72613-0K030

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV)

 4
72613B - STRIKER, REAR SEAT LOCK
72613-0K030

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV)

 4
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-0K030C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

BLACK,TRIM2#,4#,NO.1:REFER ILLUST.

 2
72661-0K040C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

BLACK,TRIM2#,4#,NO.2:REFER ILLUST.

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-0K030C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

BLACK,TRIM2#,4#,NO.1:REFER ILLUST.

 2
72661-0K040C0

TGN140..20E..VN;TGN140..GEN,IDN,TH;GUN142..20G,24,24Z;GUN142..IDNP..(24G,24V,N);GUN143,TGN14#..(IDNP,INDP,PHLP)..(20,27,27Z,28,28V,G,SRV)

BLACK,TRIM2#,4#,NO.2:REFER ILLUST.

 2
72666C - COVER, REAR SEAT LOCK, NO.2 LH
72665-0K330B0

TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V)

LT.GRAY,TRIM2#,4#

 1
72681C - HOOK, REAR SEAT BACK LOCK, LOWER
72681-0K050B0

TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V)

LT.GRAY,TRIM2#,4#,LH

 1
72681-0K030B0

TGN140..20E..VN;GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..(IDNP,PHLP)..(20,28,28V)

LT.GRAY,TRIM2#,4#,RH

 1
72695C - CABLE, REAR SEAT LOCK CONTROL, LH
72695-0K040

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV)

 1
72928 - COVER, REAR SEAT CUSHION UNDER, LH
71694-0K180C0

GUN142,TGN14#..GCC,GEN,IDN,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79022-0K571E8

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

NOBLE BROWN,TRIM4#

 1
79022-0K571C6

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

BLACK,TRIM2#

 1
79022-0K581C6

TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
79022-0K581E7

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN,TRIM4#

 1
79022-0K591C7

TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH)

BLACK,TRIM2#

 1
79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH
79024-0K401E7

GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N)

NOBLE BROWN,TRIM4#

 1
79024-0K401C5

GUN143..28..GCC;TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL)

BLACK,TRIM2#

 1
79024-0K511C6

TGN141..SRV;GUN14#,TGN14#..(20Q,24V,27,28)..(GCC,IDN)

SEAT COVER MATERIAL-FULL HI(FOR MPV),BLACK,TRIM2#

 1
79024-0K511E7

GUN142,TGN140..(20Q,24V)..IDN

SEAT COVER MATERIAL-FULL HI(FOR MPV),NOBLE BROWN,TRIM4#

 1
79024-0K521C6

TGN140..20Q;TGN140..GEN;GUN14#,TGN141..(24V,28V,N,SRV)..(GEN,IDN,LA,TH)

BLACK,TRIM2#

 1
79040B - LEG ASSY, REAR NO.2 SEAT, LH
79040-0K020

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(IDNP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV)

 1
79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH
79202-0K040

GUN14#,TGN14#..IDNP..(GCC,GEN,IDN,PHL,TH)

 1
79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH
79204-0K020

GUN14#,TGN14#..IDNP

 1
79245C - PAD, NO.2 SEAT CUSHION, LH
79245-0K040

GUN14#,TGN14#..IDNP

 1
79246B - COVER, NO.2 SEAT LEG, B
79246-0K080C0

GUN142,TGN14#..GCC,GEN,IDN,LA,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
79285 - PAD, NO.2 SEAT BACK, LH
79285-0K030

GUN14#,TGN14#..IDNP

 1
79378B - COVER, NO.3 SEAT CUSHION HINGE, LH
79378-0K100C0

GUN142,TGN14#..GCC,GEN,IDN,TH;GUN143,TGN140..IDNP..(20,28,28V)

BLACK,TRIM2#,4#

 1
79391 - SPRING, REAR SEAT CUSHION
79391-0K010

TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV

 2
79393 - CUSHION, REAR NO.2 SEAT BACK
79393-0K070

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV)

 2
82712 - CLAMP, WIRING HARNESS
82711-0K150

TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;GUN14#,TGN141..(20G,24G,24V,27,28,28E,28V,G,N)..(GCC,GEN,IDN,PHL,TH)

 6
Common parts
72702-0K220
90105-T0064
90105-T0266
90119-10886
90119-T0472
90167-40044
90950-01999
Linked diagrams
7152
