TGN140R-MDMSKD (2015)
Toyota Innova

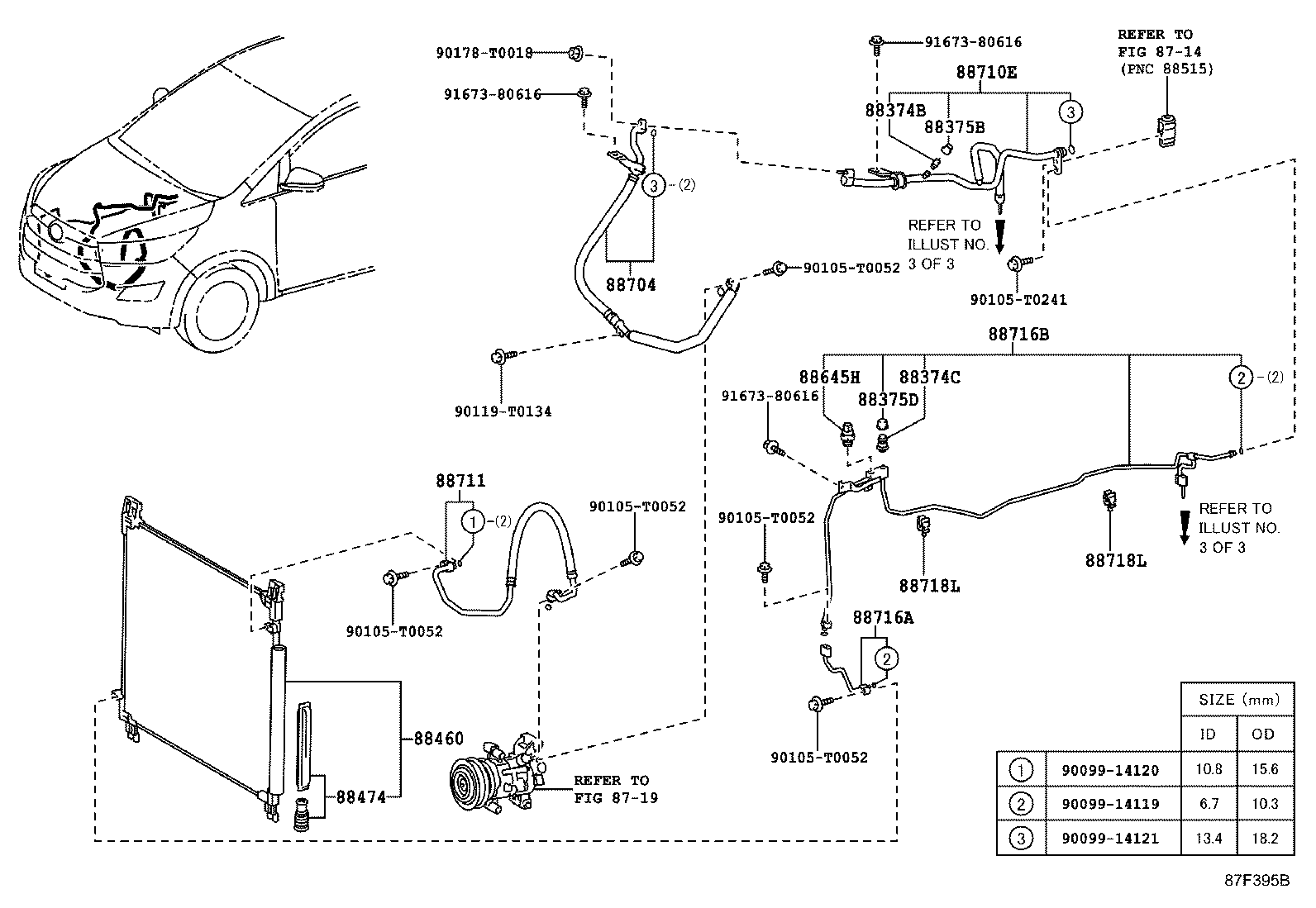

ILLUST NO. 2 OF 3(1511- )27,27SR,27SRV..LA ; (1511- )TGN140..RHD..GEN,IDN ; (1608- )TGN140.
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375-30290 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375-30280 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K310 |
GUN143..IDNP..(GEN,PHL,TH);GUN142,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA) |
1 | ||
| 88460-0K310 |
GUN143..IDNP..(GEN,PHL,TH);GUN142,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
TGN141..5F..27..LA;GUN143..IDNP..(PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 88474-12010 |
TGN141..5F..27..LA;GUN143..IDNP..(PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-0K050 |
GUN142,TGN140..IDN |
1 | ||
| 88645-0K050 |
GUN142,TGN140..IDN |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K710 |
TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88704-0K710 |
TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88707-0K650 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
1 | ||
| 88707-0K650 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0KC70 |
TGN14#..IDNP..(GEN,IDN,LA,PHL) |
1 | ||
| 88711-0KC70 |
TGN14#..IDNP..(GEN,IDN,LA,PHL) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0KQ90 |
GUN143..IDNP;GUN142,TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL,SA) |
1 | ||
| 88716-0KQ90 |
GUN143..IDNP;GUN142,TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL,SA) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-0KB70 |
TGN140..IDN |
1 | ||
| 88710-0KB70 |
TGN140..IDN |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KB60 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
2 | ||
| 88718-0KB60 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
2 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KB60 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
2 | ||
| 88718-0KB60 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
2 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 3(1709- )20V..MA ; (2009- )20E,20V..MA ; (2009- )TGN14#..IDNP..GEN,IDN,LA,P
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375-30290 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375-30280 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K310 |
GUN143..IDNP..(GEN,PHL,TH);GUN142,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA) |
1 | ||
| 88460-0K310 |
GUN143..IDNP..(GEN,PHL,TH);GUN142,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
TGN141..5F..27..LA;GUN143..IDNP..(PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 88474-12010 |
TGN141..5F..27..LA;GUN143..IDNP..(PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-0K050 |
GUN142,TGN140..IDN |
1 | ||
| 88645-0K050 |
GUN142,TGN140..IDN |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K710 |
TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88704-0K710 |
TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88707-0K650 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
1 | ||
| 88707-0K650 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0KC70 |
TGN14#..IDNP..(GEN,IDN,LA,PHL) |
1 | ||
| 88711-0KC70 |
TGN14#..IDNP..(GEN,IDN,LA,PHL) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0KQ90 |
GUN143..IDNP;GUN142,TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL,SA) |
1 | ||
| 88716-0KQ90 |
GUN143..IDNP;GUN142,TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL,SA) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-0KB70 |
TGN140..IDN |
1 | ||
| 88710-0KB70 |
TGN140..IDN |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KB60 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
2 | ||
| 88718-0KB60 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
2 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KB60 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
2 | ||
| 88718-0KB60 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
2 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 3(1511-1905)GUN142..IDN,SA ; (1604- )5F,6FC..24G,24V,24Z,28G,28Z,G..IND..DCR ; (1
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375-30290 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375-30280 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K310 |
GUN143..IDNP..(GEN,PHL,TH);GUN142,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA) |
1 | ||
| 88460-0K310 |
GUN143..IDNP..(GEN,PHL,TH);GUN142,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
TGN141..5F..27..LA;GUN143..IDNP..(PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 88474-12010 |
TGN141..5F..27..LA;GUN143..IDNP..(PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-0K050 |
GUN142,TGN140..IDN |
1 | ||
| 88645-0K050 |
GUN142,TGN140..IDN |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K710 |
TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88704-0K710 |
TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88707-0K650 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
1 | ||
| 88707-0K650 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0KC70 |
TGN14#..IDNP..(GEN,IDN,LA,PHL) |
1 | ||
| 88711-0KC70 |
TGN14#..IDNP..(GEN,IDN,LA,PHL) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0KQ90 |
GUN143..IDNP;GUN142,TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL,SA) |
1 | ||
| 88716-0KQ90 |
GUN143..IDNP;GUN142,TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL,SA) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-0KB70 |
TGN140..IDN |
1 | ||
| 88710-0KB70 |
TGN140..IDN |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KB60 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
2 | ||
| 88718-0KB60 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
2 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 3 OF 3(1511- )GUN142,TGN140..24,24G,24Q,24V,28V,N..GCC,IDN,PHL,SA..DCR,HTWC ; (2009-
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88706-0K440 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88706-0K440 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88706-0K440 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88706-0K440 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88706-0K440 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-0KY20 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88716-0KY20 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88716-0KY20 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88716-0KY20 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88716-0KY20 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88707-0KA30 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88707-0KA30 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88707-0KA30 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88707-0KA30 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88707-0KA30 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-0KT70 |
GUN14#,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 88717-0KT70 |
GUN14#,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 88717-0KT70 |
GUN14#,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 88717-0KT70 |
GUN14#,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 88717-0KT70 |
GUN14#,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0KK00 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KK00 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KK00 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KK00 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KK00 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K120 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K120 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K120 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K120 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K120 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0KJ30 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KJ30 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KJ30 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KJ30 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KJ30 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-0K100 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K100 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K100 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K100 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K100 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 90099-00313 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0148 | ||||
| 90105-T0324 | ||||
| 90178-T0053 | ||||
| 90179-06264 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 3 OF 3(1511- )GUN143..IDNP..5F..28E,28G,N..PHL ; (1511- )20E,20G,20Q,20V..IDN,MA,PH
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88706-0K440 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88706-0K440 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88706-0K440 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88706-0K440 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88706-0K440 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-0KY20 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88716-0KY20 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88716-0KY20 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88716-0KY20 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88716-0KY20 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88707-0KA30 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88707-0KA30 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88707-0KA30 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88707-0KA30 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88707-0KA30 |
GUN143,TGN14#..IDNP;GUN142..IDNP..(24,24G,24Q,24V) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-0KT70 |
GUN14#,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 88717-0KT70 |
GUN14#,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 88717-0KT70 |
GUN14#,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 88717-0KT70 |
GUN14#,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 88717-0KT70 |
GUN14#,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0KK00 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KK00 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KK00 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KK00 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KK00 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718-0K330 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K120 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K120 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K120 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K120 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K120 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0KJ30 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KJ30 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KJ30 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KJ30 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0KJ30 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-0K100 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K100 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K100 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K100 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88718-0K100 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 90099-00313 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0148 | ||||
| 90105-T0324 | ||||
| 90178-T0053 | ||||
| 90179-06264 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 3(1608-1707)6FC..24G,24V,28Z..IND,TH ; (1709-)6F,6FC..24V,24Z,28Z..IND ; (2010-
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K310 |
GUN143..IDNP..(GEN,PHL,TH);GUN142,TGN14#..IDNP..(GEN,IDN,LA,PHL,SA) |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
TGN141..5F..27..LA;GUN143..IDNP..(PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,N)..(GEN,IDN,PHL) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-0K050 |
GUN142,TGN140..IDN |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K710 |
TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88707-0K650 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0KC70 |
TGN14#..IDNP..(GEN,IDN,LA,PHL) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0KQ90 |
GUN143..IDNP;GUN142,TGN14#..IDNP..(GCC,GEN,IDN,LA,PHL,SA) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-0KB70 |
TGN140..IDN |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KB60 |
TGN14#..IDNP..(GEN,IDN,LA,PHL,TH) |
2 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
