TGN140R-MDMSKD (2015)

Toyota Innova

Production Nov 2015 - Sep 2020
Engine 1TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )5F..VN ; (1511- )20G,20V,27,27G,27SR,27SRV..GCC,LA,PHL,VN ; (2009-

Click highlighted areas on diagram

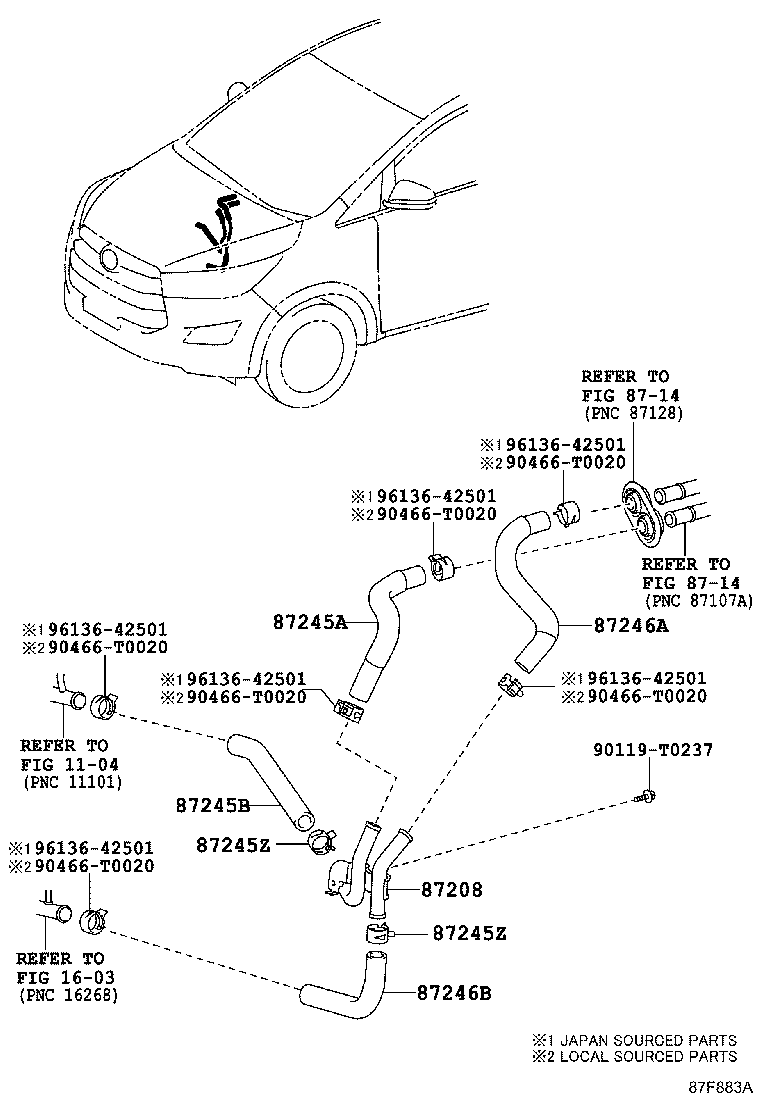

diagram 1104 1603 8714 8714 87208 87245A 87245B 87245Z 87245Z 87246A 87246B 90119T0237 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-0K260

TGN140..IDNP..(20,20Q,20V)

 1
87208-0K260

TGN140..IDNP..(20,20Q,20V)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-0KC80

TGN140..IDNP..(20,20Q,20V)

 1
87245-0KC80

TGN140..IDNP..(20,20Q,20V)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-0KF50

TGN140..IDNP..20G..PHL;TGN14#..IDNP..(20,20Q,20V,27,27G,27SR,27SRV)

 1
87245-0KF50

TGN140..IDNP..20G..PHL;TGN14#..IDNP..(20,20Q,20V,27,27G,27SR,27SRV)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-0K810

TGN140..IDNP..(20,20Q,20V)

 1
87245-0K810

TGN140..IDNP..(20,20Q,20V)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-0KF40

TGN140..IDNP..20G..PHL;TGN14#..IDNP..(20,20Q,20V,27,27G,27SR,27SRV)

 1
87245-0KF40

TGN140..IDNP..20G..PHL;TGN14#..IDNP..(20,20Q,20V,27,27G,27SR,27SRV)

 1
Common parts
90119-T0237
90466-T0020
Linked diagrams
1104
1603
8714

(1511- )GUN142..24G,24V,24Z,28V,G,N..GCC,IND; (2009- )GUN142..IDNP..24V,N ;

Click highlighted areas on diagram

diagram 1603 87124 8714 8714 87245A 87246A 90466T0020 90466T0020 90466T0020 90466T0020 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-0KC80

TGN140..IDNP..(20,20Q,20V)

 1
87245-0KC80

TGN140..IDNP..(20,20Q,20V)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-0K810

TGN140..IDNP..(20,20Q,20V)

 1
87245-0K810

TGN140..IDNP..(20,20Q,20V)

 1
Common parts
90466-T0020
96136-42501
Linked diagrams
1603
8714

(1607- )20G,20V..MA ; (1607- )TGN14#..RHD..IDNP,INDP..20,20E,20G,20Q,20V,27G,

Click highlighted areas on diagram

diagram 1104 1603 8714 8714 87208 87245A 87245B 87245Z 87245Z 87246A 87246B 90119T0237 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-0K260

TGN140..IDNP..(20,20Q,20V)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-0KC80

TGN140..IDNP..(20,20Q,20V)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-0KF50

TGN140..IDNP..20G..PHL;TGN14#..IDNP..(20,20Q,20V,27,27G,27SR,27SRV)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-0K810

TGN140..IDNP..(20,20Q,20V)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-0KF40

TGN140..IDNP..20G..PHL;TGN14#..IDNP..(20,20Q,20V,27,27G,27SR,27SRV)

 1
Common parts
90119-T0237
90466-T0020
96136-42501
Linked diagrams
1104
1603
8714
