TGN140R-MDMSKD (2015)
Toyota Innova
(1511-2005)6FC..20G..IDN ; (1511-2005)RHD..6FC..20,20E ; (1511-2005)RHD..5F..20E,20

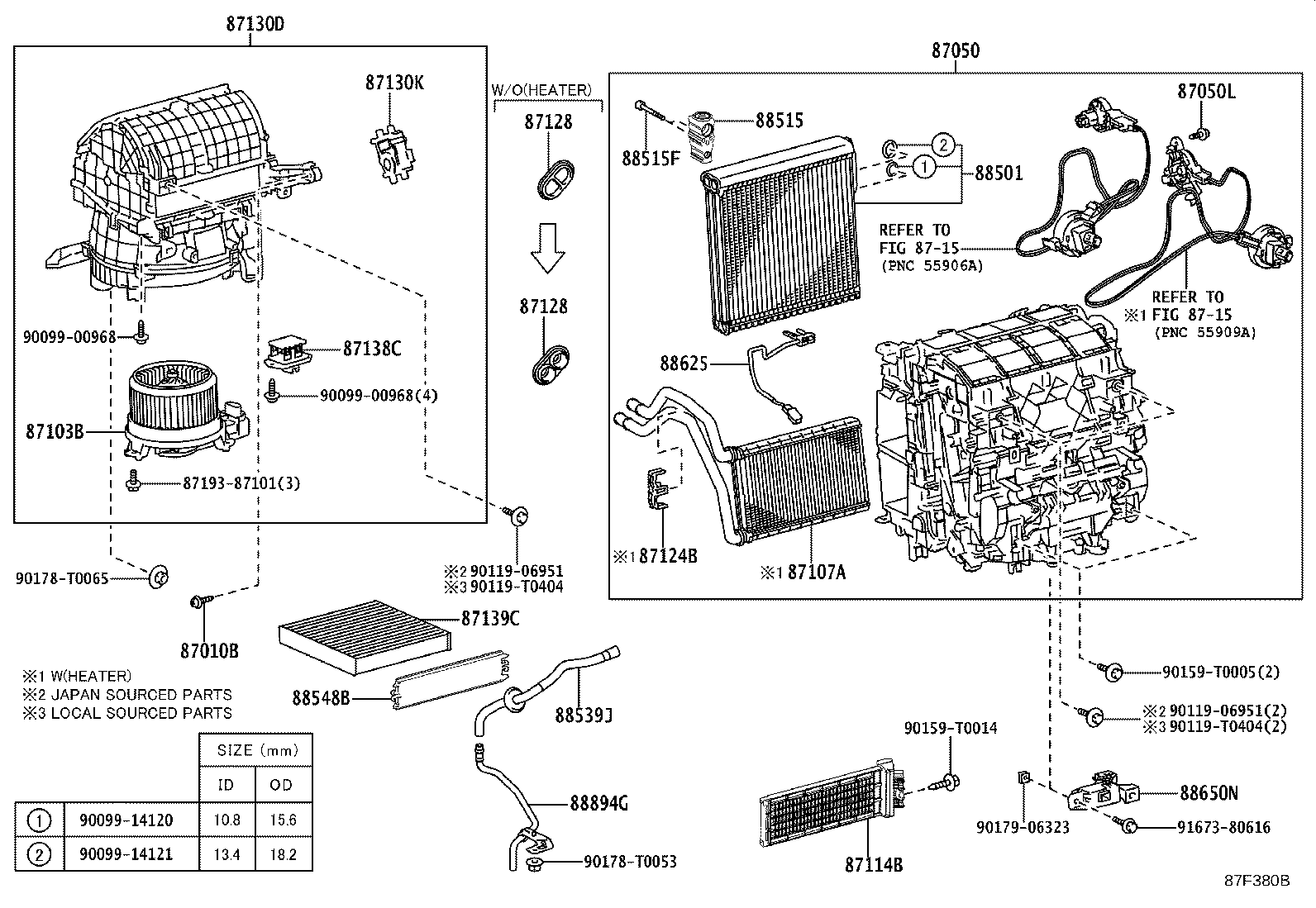

FRONT MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-00968 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-00968 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KJ80 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87050-0KJ80 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87050-0KJ80 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87050L - SCREW(FOR AIR CONDITIONER RADIATOR) | ||||
| 90099-00968 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
6 | ||
| 90099-00968 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
6 | ||
| 90099-00968 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
6 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K410 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87103-0K410 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87103-0K410 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87103-0K430 |
GUN142..24G..TH;GUN14#,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V,28G,28V) |
1 | ||
| 87103-0K430 |
GUN142..24G..TH;GUN14#,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V,28G,28V) |
1 | ||
| 87103-0K430 |
GUN142..24G..TH;GUN14#,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V,28G,28V) |
1 | ||
| 87103-0K411 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87103-0K411 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87103-0K411 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0K060 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87114-0K060 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87114-0K060 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0KA00 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87130-0KA00 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87130-0KA00 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87130-0KA01 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87130-0KA01 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87130-0KA01 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0K220 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 87106-0K220 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 87106-0K220 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K360 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87138-0K360 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87138-0K360 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) DEODORANT FILTER |
1 | ||
| 87139-58010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) DEODORANT FILTER |
1 | ||
| 87139-58010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) DEODORANT FILTER |
1 | ||
| 87139-0K030 |
GUN14#,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART |
1 | ||
| 87139-0K030 |
GUN14#,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART |
1 | ||
| 87139-0K030 |
GUN14#,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K460 |
GUN143,TGN140..RHD..IDNP;GUN142..RHD..(GEN,IDN,SA) |
1 | ||
| 88501-0K460 |
GUN143,TGN140..RHD..IDNP;GUN142..RHD..(GEN,IDN,SA) |
1 | ||
| 88501-0K460 |
GUN143,TGN140..RHD..IDNP;GUN142..RHD..(GEN,IDN,SA) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 88515-0K580 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 88515-0K580 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-04542 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-04542 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K340 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88539-0K340 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88539-0K340 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K090 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K090 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K090 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K091 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K091 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K091 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88620-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88620-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K410 |
TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL) |
1 | ||
| 88650-0K410 |
TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL) |
1 | ||
| 88650-0K410 |
TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL) |
1 | ||
| 88650-0K470 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 88650-0K470 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 88650-0K470 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K050 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88894-0K050 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88894-0K050 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(2005- )24G,G..IND ; (2005- )RHD..IDNP,INDP..20E,20G,24G,27G..DCR,HTWC ; (200
FRONT MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-00968 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-00968 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KJ80 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87050-0KJ80 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87050-0KJ80 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87050L - SCREW(FOR AIR CONDITIONER RADIATOR) | ||||
| 90099-00968 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
6 | ||
| 90099-00968 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
6 | ||
| 90099-00968 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
6 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K410 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87103-0K410 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87103-0K410 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87103-0K430 |
GUN142..24G..TH;GUN14#,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V,28G,28V) |
1 | ||
| 87103-0K430 |
GUN142..24G..TH;GUN14#,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V,28G,28V) |
1 | ||
| 87103-0K430 |
GUN142..24G..TH;GUN14#,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V,28G,28V) |
1 | ||
| 87103-0K411 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87103-0K411 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87103-0K411 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0K060 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87114-0K060 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87114-0K060 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0KA00 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87130-0KA00 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87130-0KA00 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87130-0KA01 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87130-0KA01 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87130-0KA01 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0K220 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 87106-0K220 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 87106-0K220 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K360 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87138-0K360 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87138-0K360 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) DEODORANT FILTER |
1 | ||
| 87139-58010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) DEODORANT FILTER |
1 | ||
| 87139-58010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) DEODORANT FILTER |
1 | ||
| 87139-0K030 |
GUN14#,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART |
1 | ||
| 87139-0K030 |
GUN14#,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART |
1 | ||
| 87139-0K030 |
GUN14#,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K460 |
GUN143,TGN140..RHD..IDNP;GUN142..RHD..(GEN,IDN,SA) |
1 | ||
| 88501-0K460 |
GUN143,TGN140..RHD..IDNP;GUN142..RHD..(GEN,IDN,SA) |
1 | ||
| 88501-0K460 |
GUN143,TGN140..RHD..IDNP;GUN142..RHD..(GEN,IDN,SA) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 88515-0K580 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 88515-0K580 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-04542 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-04542 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K340 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88539-0K340 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88539-0K340 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K090 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K090 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K090 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K091 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K091 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K091 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88620-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88620-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K410 |
TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL) |
1 | ||
| 88650-0K410 |
TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL) |
1 | ||
| 88650-0K410 |
TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL) |
1 | ||
| 88650-0K470 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 88650-0K470 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 88650-0K470 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K050 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88894-0K050 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88894-0K050 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
(1511-2005)20G,28G,28V..MA,TH ; (1511-2005)5F,6FC..20Q,20V,24,24Q,24V,24Z,27V,27Z,2
FRONT AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-00968 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-00968 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KJ80 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87050-0KJ80 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87050-0KJ80 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87050L - SCREW(FOR AIR CONDITIONER RADIATOR) | ||||
| 90099-00968 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
6 | ||
| 90099-00968 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
6 | ||
| 90099-00968 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
6 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K410 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87103-0K410 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87103-0K410 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87103-0K430 |
GUN142..24G..TH;GUN14#,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V,28G,28V) |
1 | ||
| 87103-0K430 |
GUN142..24G..TH;GUN14#,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V,28G,28V) |
1 | ||
| 87103-0K430 |
GUN142..24G..TH;GUN14#,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V,28G,28V) |
1 | ||
| 87103-0K411 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87103-0K411 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87103-0K411 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0K060 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87114-0K060 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87114-0K060 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0KA00 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87130-0KA00 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87130-0KA00 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87130-0KA01 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87130-0KA01 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87130-0KA01 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0K220 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 87106-0K220 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 87106-0K220 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) DEODORANT FILTER |
1 | ||
| 87139-58010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) DEODORANT FILTER |
1 | ||
| 87139-58010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) DEODORANT FILTER |
1 | ||
| 87139-0K030 |
GUN14#,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART |
1 | ||
| 87139-0K030 |
GUN14#,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART |
1 | ||
| 87139-0K030 |
GUN14#,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K460 |
GUN143,TGN140..RHD..IDNP;GUN142..RHD..(GEN,IDN,SA) |
1 | ||
| 88501-0K460 |
GUN143,TGN140..RHD..IDNP;GUN142..RHD..(GEN,IDN,SA) |
1 | ||
| 88501-0K460 |
GUN143,TGN140..RHD..IDNP;GUN142..RHD..(GEN,IDN,SA) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 88515-0K580 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 88515-0K580 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-04542 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-04542 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K340 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88539-0K340 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88539-0K340 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K090 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K090 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K090 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K091 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K091 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K091 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88620-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88620-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K410 |
TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL) |
1 | ||
| 88650-0K410 |
TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL) |
1 | ||
| 88650-0K410 |
TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL) |
1 | ||
| 88650-0K470 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 88650-0K470 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 88650-0K470 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K050 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88894-0K050 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88894-0K050 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||
(2005- )5F,6FC..20G,24V,24Z,27Z,28G,28V..IND,MA,TH ; (2009- )5F..27G ; (2009-
FRONT AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-00968 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-00968 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KJ80 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87050-0KJ80 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87050-0KJ80 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87050L - SCREW(FOR AIR CONDITIONER RADIATOR) | ||||
| 90099-00968 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
6 | ||
| 90099-00968 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
6 | ||
| 90099-00968 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20E,20G) |
6 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K410 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87103-0K410 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87103-0K410 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87103-0K430 |
GUN142..24G..TH;GUN14#,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V,28G,28V) |
1 | ||
| 87103-0K430 |
GUN142..24G..TH;GUN14#,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V,28G,28V) |
1 | ||
| 87103-0K430 |
GUN142..24G..TH;GUN14#,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V,28G,28V) |
1 | ||
| 87103-0K411 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87103-0K411 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87103-0K411 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-0K060 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87114-0K060 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87114-0K060 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K150 |
GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87128-0K140 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0KA00 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87130-0KA00 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87130-0KA00 |
GUN142..24G..IDN;TGN140..RHD..IDNP..(20E,20G) |
1 | ||
| 87130-0KA01 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87130-0KA01 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87130-0KA01 |
GUN142,TGN140..RHD..IDNP..(20E,20G,24G) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-0K220 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 87106-0K220 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 87106-0K220 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) DEODORANT FILTER |
1 | ||
| 87139-58010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) DEODORANT FILTER |
1 | ||
| 87139-58010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) DEODORANT FILTER |
1 | ||
| 87139-0K030 |
GUN14#,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART |
1 | ||
| 87139-0K030 |
GUN14#,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART |
1 | ||
| 87139-0K030 |
GUN14#,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K460 |
GUN143,TGN140..RHD..IDNP;GUN142..RHD..(GEN,IDN,SA) |
1 | ||
| 88501-0K460 |
GUN143,TGN140..RHD..IDNP;GUN142..RHD..(GEN,IDN,SA) |
1 | ||
| 88501-0K460 |
GUN143,TGN140..RHD..IDNP;GUN142..RHD..(GEN,IDN,SA) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K580 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 88515-0K580 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 88515-0K580 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-04542 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90099-04542 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K340 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88539-0K340 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88539-0K340 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K090 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K090 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K090 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K091 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K091 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88548-0K091 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88620-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88620-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K410 |
TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL) |
1 | ||
| 88650-0K410 |
TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL) |
1 | ||
| 88650-0K410 |
TGN140..RHD..(20E,20G);GUN14#,TGN140..(20E,24G,28E,N)..(IDN,PHL) |
1 | ||
| 88650-0K470 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 88650-0K470 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 88650-0K470 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K050 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88894-0K050 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 88894-0K050 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0053 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 90185-T0001 | ||||
| 91673-80616 | ||||
(1511- )28..GCC ; (1511- )6FC..20G..IDN ;(1511- )6FC..20E..PHL ; (1511-
REAR MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87138D - RESISTOR, BLOWER (REAR) | ||||
| 87138-0K090 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 87138-0K090 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 87138-0K090 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 87138-0K090 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 87138-0K290 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 87138-0K290 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 87138-0K290 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 87138-0K290 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06830 | ||||
| 90119-T0404 | ||||
| 90119-T0442 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1511- )TGN140..5F..20,20E,20G,N ; (1511-)GUN14#,TGN141..LHD..24,27,27SR,28E
REAR MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87138D - RESISTOR, BLOWER (REAR) | ||||
| 87138-0K090 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 87138-0K090 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 87138-0K090 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 87138-0K090 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 87138-0K290 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 87138-0K290 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 87138-0K290 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 87138-0K290 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06830 | ||||
| 90119-T0404 | ||||
| 90119-T0442 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1511- )20Q,20V,24,24Q,24V..IDN,MA,SA,VN..DCR,HTWC ; (1511- )GUN142,TGN14#..2
REAR AUTO COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06830 | ||||
| 90119-T0404 | ||||
| 90119-T0442 | ||||
(1511- )6FC..24G,28Z..IND,TH..DCR ; (1511-)GUN143..IDNP,PHLP..28E,28G,28V ;
REAR AUTO COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K190 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88501-0K440 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K260 |
GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN14#..IDNP..(20E,24G,27,28,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88515-0K640 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88539-0K450 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88710-0KG10 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88619-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K130 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 88899-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06830 | ||||
| 90119-T0404 | ||||
| 90119-T0442 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
