TGN140R-MDMSKD (2015)

Toyota Innova

Production Nov 2015 - Sep 2020
Engine 1TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

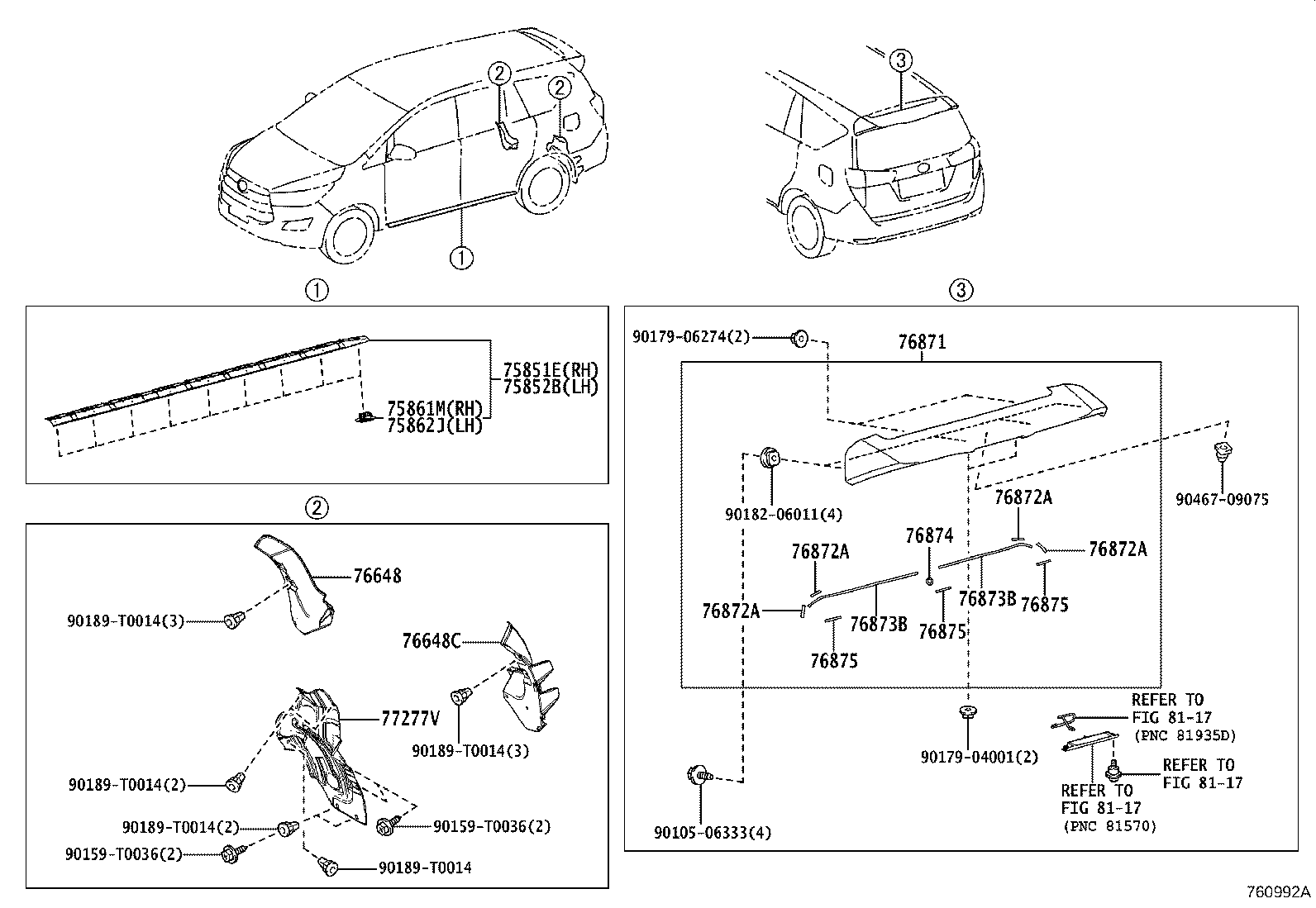

ILLUST NO. 1 OF 2(1511- )24V..GEN..DCR ; (1511- )RHD..IDNP..24V ; (1511- )GUN143,TGN14#..ID

Click highlighted areas on diagram

diagram 75851E 75852B 75861M 75862J 76648 76648C 76871 76872A 76872A 76872A 76872A 76873B 76873B 76874 76875 76875 76875 77277V 8117 8117 8117 9010506333 90159T0036 90159T0036 9017904001 9017906274 9018206011 90189T0014 90189T0014 90189T0014 90189T0014 90189T0014 9046709075
Part # Description Qty Price
75851E - MOULDING, BODY ROCKER PANEL, RH
75851-0K040

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
75852B - MOULDING, BODY ROCKER PANEL, LH
75852-0K040

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
75861M - RETAINER, ROCKER PANEL MOULDING, RH
76924-12030

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 9
75862J - RETAINER, ROCKER PANEL MOULDING, LH
76924-12030

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 9
76648 - SUPPORT, REAR BODY MUDGUARD, RH
76647-0K130

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
76648C - SUPPORT, REAR BODY MUDGUARD, LH
76648-0K130

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
76871 - SPOILER, REAR
76085-0K907

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-0K020

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 4
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-0K020

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 4
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-0K020

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 4
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-0K020

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 4
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-0K020

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 2
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-0K020

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-0K030

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-0K020

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 3
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-0K020

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 3
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-0K020

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 3
77277V - PROTECTOR, FUEL TANK FILLER PIPE, NO.1
77277-0K110

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
Common parts
90105-06333
90159-T0036
90179-04001
90179-06274
90182-06011
90189-T0014
90467-09075
Linked diagrams
8117

ILLUST NO. 2 OF 2(1611- )20Q,24Q ; (1704- )6F,6FC..24V,24Z..IND ; (1704- )5F,6FC..24V,27V,2

Click highlighted areas on diagram

FRONT SPOILER & REAR SIDE SPOILER

diagram 5252 5252 5252 5252 5252 5252 5252 5253 5253 5253 5253 52712D 52713B 52723B 52724D 52752A 52753A 75896D 75896G 75896H 75896J 75896K 75896L 75897B 75897D 75897F 75897G 76081A 76082 76083A 76087B 76088B 76859B 76869B 76873A 76874B 76877A 76897 76898 8115 8115 8115 8115 9015950270 9015950270 9015950270 9015950270 9015950270 9015950270
Part # Description Qty Price
Common parts
90159-50270
Linked diagrams
5252
5253
8115
