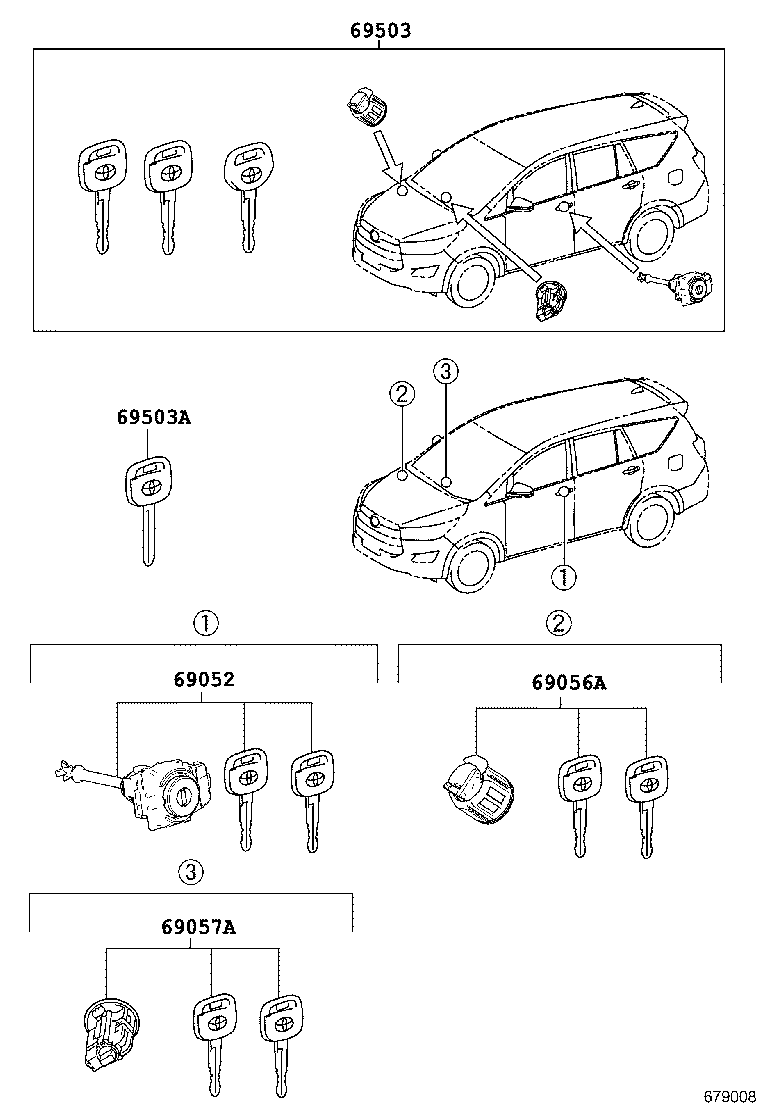

TGN140R-MDMSKD (2015)
Toyota Innova
(1511- )20Q,20V,24Q,24V,24Z,28V,28Z ; (1511-)TGN14#..20G,27V,27Z,G,SRV..GCC,
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-0K140 |
GUN14#..(24G,28G)..TH;GUN142..RHD..(24G,24V)..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G,20V) |
1 | ||
| 69051-0K140 |
GUN14#..(24G,28G)..TH;GUN142..RHD..(24G,24V)..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G,20V) |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0K130 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69052-0K130 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0K080 |
GUN142..24V..IDN;GUN14#,TGN14#..(20,20E,20G,20V,24,24G,27,27G,27SR,27SRV,28,28G)..(GCC,GEN,IDN,LA,SA,TH) |
1 | ||
| 69056-0K080 |
GUN142..24V..IDN;GUN14#,TGN14#..(20,20E,20G,20V,24,24G,27,27G,27SR,27SRV,28,28G)..(GCC,GEN,IDN,LA,SA,TH) |
1 | ||
| 69056-0K040 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69056-0K040 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 89704-0KJ30 |
GUN142,TGN140..(20G,24G)..IDN |
1 | ||
| 89704-0KJ30 |
GUN142,TGN140..(20G,24G)..IDN |
1 | ||
| 89704-0KP40 |
GUN142,TGN140..(20,20V,24V)..(GEN,IDN) |
1 | ||
| 89704-0KP40 |
GUN142,TGN140..(20,20V,24V)..(GEN,IDN) |
1 | ||
| 89704-0KP41 |
GUN142,TGN140..RHD..IDNP..(20,20V,24V) |
1 | ||
| 89704-0KP41 |
GUN142,TGN140..RHD..IDNP..(20,20V,24V) |
1 | ||
| 89704-0KJ31 |
GUN142,TGN140..RHD..IDNP..(20G,24G) |
1 | ||
| 89704-0KJ31 |
GUN142,TGN140..RHD..IDNP..(20G,24G) |
1 | ||
| 69005-0KG50 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69005-0KG50 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00199 |
GUN143,TGN140..IDNP..N MASTER KEY,W(*68) |
1 | ||
| 90999-00199 |
GUN143,TGN140..IDNP..N MASTER KEY,W(*68) |
1 | ||
| 69503B - KEY, CUT | ||||
| 69516-0K020 |
GUN142,TGN140..(20G,24G)..(GEN,IDN) SUB KEY,W(*68) |
1 | ||
| 69516-0K020 |
GUN142,TGN140..(20G,24G)..(GEN,IDN) SUB KEY,W(*68) |
1 | ||
(1511- )RHD
W/O(SMART ENTRY) & W(*WDL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-0K140 |
GUN14#..(24G,28G)..TH;GUN142..RHD..(24G,24V)..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G,20V) |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0K080 |
GUN142..24V..IDN;GUN14#,TGN14#..(20,20E,20G,20V,24,24G,27,27G,27SR,27SRV,28,28G)..(GCC,GEN,IDN,LA,SA,TH) |
1 | ||
| 69056-0K040 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0K200 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69057-0K310 |
GUN142,TGN140..(20G,24G)..(GEN,IDN) |
1 | ||
| 69057-0K260 |
GUN142..24V..IDN;GUN143,TGN140..(20,20E,20V,24,28,28G)..(GCC,GEN,IDN,TH);GUN142,TGN141..(24,24G,27,27G,27SR,27SRV)..(GCC,LA,SA,TH) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0K200 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69057-0K310 |
GUN142,TGN140..(20G,24G)..(GEN,IDN) |
1 | ||
| 69057-0K260 |
GUN142..24V..IDN;GUN143,TGN140..(20,20E,20V,24,28,28G)..(GCC,GEN,IDN,TH);GUN142,TGN141..(24,24G,27,27G,27SR,27SRV)..(GCC,LA,SA,TH) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0K200 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69057-0K310 |
GUN142,TGN140..(20G,24G)..(GEN,IDN) |
1 | ||
| 69057-0K260 |
GUN142..24V..IDN;GUN143,TGN140..(20,20E,20V,24,28,28G)..(GCC,GEN,IDN,TH);GUN142,TGN141..(24,24G,27,27G,27SR,27SRV)..(GCC,LA,SA,TH) |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 89704-0KJ30 |
GUN142,TGN140..(20G,24G)..IDN |
1 | ||
| 89704-0KP40 |
GUN142,TGN140..(20,20V,24V)..(GEN,IDN) |
1 | ||
| 89704-0KP41 |
GUN142,TGN140..RHD..IDNP..(20,20V,24V) |
1 | ||
| 89704-0KJ31 |
GUN142,TGN140..RHD..IDNP..(20G,24G) |
1 | ||
| 69005-0KG50 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69503B - KEY, CUT | ||||
| 69516-0K020 |
GUN142,TGN140..(20G,24G)..(GEN,IDN) SUB KEY,W(*68) |
1 | ||
| 89070E - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-0KB20 |
GUN142,TGN141..LHD;GUN142,TGN140..(20,20V,24V)..(GEN,IDN) |
1 | ||
| 89070-0KE41 |
GUN142,TGN140..RHD..IDNP..(20G,24G) |
1 | ||
| 89070-0KB21 |
GUN142,TGN140..RHD..IDNP..(20,20V,24V);GUN14#,TGN141..LHD..(24,24G,27,27G,27SR,27SRV,28,28G)..(GCC,GEN,LA) |
1 | ||
| 89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY) | ||||
| 89070-0KD20 |
GUN142,TGN141..LHD;GUN142,TGN140..(20,20V,24V)..(GEN,IDN) |
1 | ||
| 89070-0KF10 |
GUN142,TGN140..(20G,24G)..IDN |
1 | ||
| 89070-0KF11 |
GUN142,TGN140..RHD..IDNP..(20G,24G) |
1 | ||
| 89070-0KD21 |
GUN142,TGN140..RHD..IDNP..(20,20V,24V);GUN14#,TGN141..LHD..(24,24G,27,27G,27SR,27SRV,28,28G)..(GCC,GEN,LA) |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-0D060 |
GUN142..24V..IDN;TGN140..IDNP..20G..PHL;TGN140..RHD..IDNP..(20,20E,20G,20V);GUN14#,TGN141..IDNP..(24,24G,27,27G,27SR,27SRV,28,28G) CR1620 |
1 | ||
| 89751B - COVER, TRANSMITTER HOUSING | ||||
| 89751-0K200 |
TGN140..RHD..IDNP..(20,20E,20G,20V);GUN143,TGN140..IDNP..(20G,28G)..(PHL,TH);GUN142,TGN141..(24,24G,24V,27,27G,27SR,27SRV)..(GCC,IDN,LA) |
2 | ||
| 89751-0K201 |
GUN142..24V..IDN;GUN14#,TGN14#..IDNP..(20,20E,20G,20V,24,24G,27,27G,27SR,27SRV,28,28E,28G) |
2 | ||
| 89758 - PACKING, DOOR CONTROL TRANSMITTER | ||||
| 89758-0K010 |
GUN142..24V..IDN;TGN140..IDNP..20G..PHL;TGN140..RHD..IDNP..(20,20E,20G,20V);GUN14#,TGN141..IDNP..(24,24G,27,27G,27SR,27SRV,28,28G) |
2 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-0K160 |
GUN142..24V..IDN;GUN143,TGN140..(20,20E,20V,24,28,28G)..(GCC,GEN,IDN,TH);GUN142,TGN141..(24,24G,27,27G,27SR,27SRV)..(GCC,LA,SA,TH) CUT KEY |
1 | ||
(1604-2009)IDNP..N ; (1604-2102)PHLP..N ; (1711-)20..VN ; (2009- )N..PHL
W/O(SMART ENTRY & *WDL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-0K130 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-0K080 |
GUN142..24V..IDN;GUN14#,TGN14#..(20,20E,20G,20V,24,24G,27,27G,27SR,27SRV,28,28G)..(GCC,GEN,IDN,LA,SA,TH) |
1 | ||
| 69056-0K040 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-0K200 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69057-0K310 |
GUN142,TGN140..(20G,24G)..(GEN,IDN) |
1 | ||
| 69057-0K260 |
GUN142..24V..IDN;GUN143,TGN140..(20,20E,20V,24,28,28G)..(GCC,GEN,IDN,TH);GUN142,TGN141..(24,24G,27,27G,27SR,27SRV)..(GCC,LA,SA,TH) |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 89704-0KJ30 |
GUN142,TGN140..(20G,24G)..IDN |
1 | ||
| 89704-0KP40 |
GUN142,TGN140..(20,20V,24V)..(GEN,IDN) |
1 | ||
| 89704-0KP41 |
GUN142,TGN140..RHD..IDNP..(20,20V,24V) |
1 | ||
| 89704-0KJ31 |
GUN142,TGN140..RHD..IDNP..(20G,24G) |
1 | ||
| 69005-0KG50 |
GUN143,TGN140..IDNP..N |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00199 |
GUN143,TGN140..IDNP..N MASTER KEY,W(*68) |
1 | ||
