TGN140R-MDMSKD (2015)
Toyota Innova
(1511- )IDNP..24V..DCRL ; (1511- )TGN140..6FC..20,20E,N ; (1511- )TGN140..

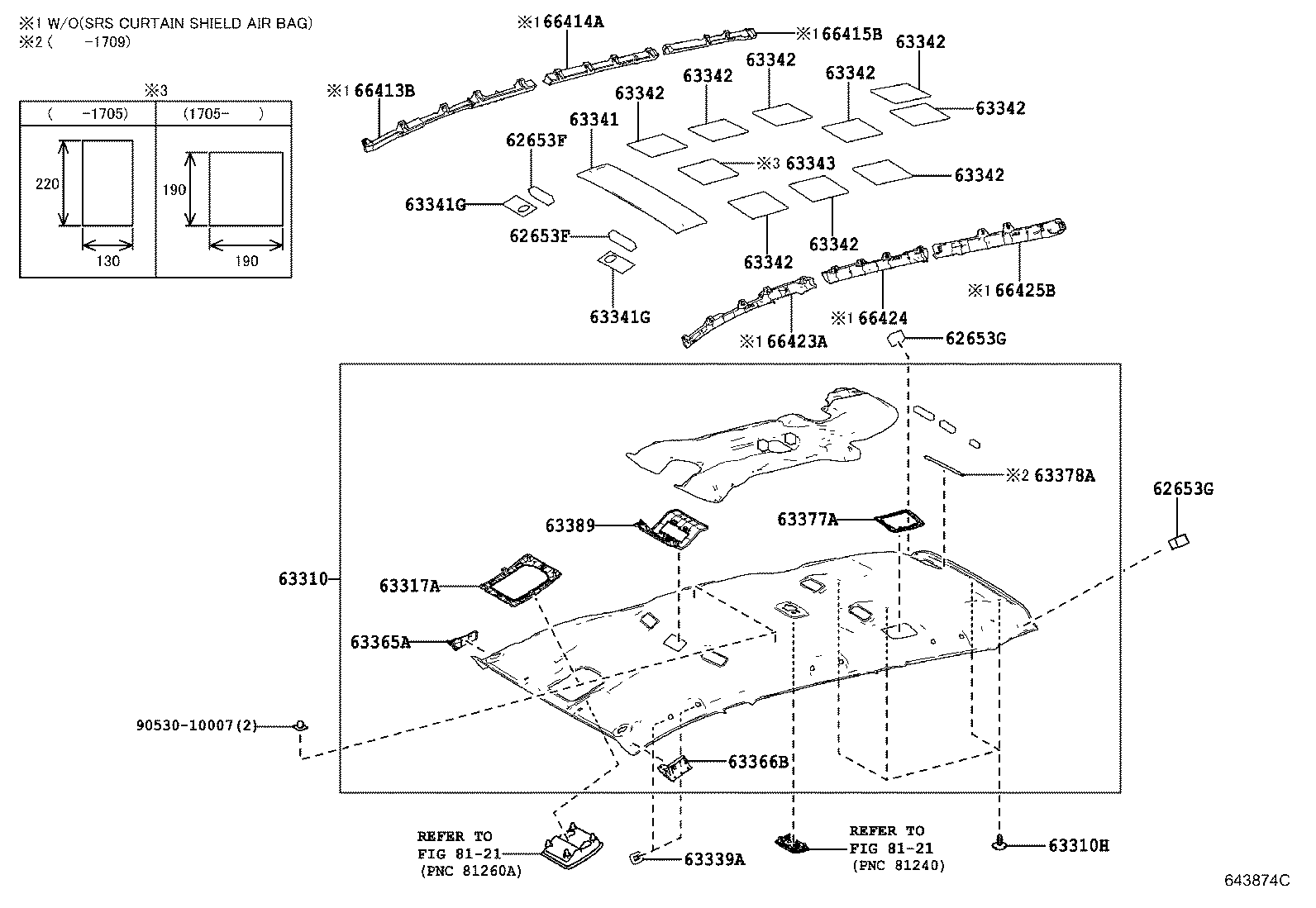

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62653F - PACKING (FOR ROOF HEADLINING) | ||||
| 62653-0K350 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653-0K350 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653F - PACKING (FOR ROOF HEADLINING) | ||||
| 62653-0K350 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653-0K350 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653G - PACKING,(FOR ROOF HEADLINING) | ||||
| 62653-0K360 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653-0K360 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653G - PACKING,(FOR ROOF HEADLINING) | ||||
| 62653-0K360 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653-0K360 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0KL70B0 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#,4# |
1 | ||
| 63310-0KL70B0 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#,4# |
1 | ||
| 63310-0K760B1 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN142,TGN141..(24G,27)..(GEN,IDN,LA) LT.GRAY,TRIM2#,4# |
1 | ||
| 63310-0K760B1 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN142,TGN141..(24G,27)..(GEN,IDN,LA) LT.GRAY,TRIM2#,4# |
1 | ||
| 63310-0KL70B0 |
TGN140..RHD..IDNP..(20E,20G);GUN142,TGN141..(24G,27)..(GEN,IDN,LA) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#,4# |
1 | ||
| 63310-0KL70B0 |
TGN140..RHD..IDNP..(20E,20G);GUN142,TGN141..(24G,27)..(GEN,IDN,LA) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#,4# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-T0004B0 |
TGN140..IDN,TH;GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(20G,28G,28V)..(PHL,TH) LT.GRAY,TRIM2#,4# |
4 | ||
| 90467-T0004B0 |
TGN140..IDN,TH;GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(20G,28G,28V)..(PHL,TH) LT.GRAY,TRIM2#,4# |
4 | ||
| 63317A - RETAINER, ROOF HEADLINING | ||||
| 63317-0K100 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 63317-0K100 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-0D100B1 |
TGN140..IDN,TH;GUN143,TGN141..6FC..(GCC,LA);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN140..IDNP..(20G,28G)..PHL;GUN142,TGN141..5F..(24Q,27)..(IDN,LA) LT.GRAY,TRIM2#,4# |
2 | ||
| 63339-0D100B1 |
TGN140..IDN,TH;GUN143,TGN141..6FC..(GCC,LA);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN140..IDNP..(20G,28G)..PHL;GUN142,TGN141..5F..(24Q,27)..(IDN,LA) LT.GRAY,TRIM2#,4# |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0K070 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63341-0K070 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63341-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63341-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0K060 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 63343-0K060 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63365A - PLATE, ROOF HEADLINING SET | ||||
| 63365-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63365-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63366B - PLATE, ROOF HEADLINING SET, LH | ||||
| 63366-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63366-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63377A - RETAINER, ROOF HEADLINING SUPPORT, NO.1 | ||||
| 63377-0K010 |
TGN141..5F..27..LA;GUN142..RHD..(GEN,IDN);GUN143,TGN141..6FC..(27,27G,27SRV,28,28G)..(GCC,LA);GUN143,TGN140..IDNP..(20E,20G,20V,28E,28G,N)..(IDN,PHL,TH) |
1 | ||
| 63377-0K010 |
TGN141..5F..27..LA;GUN142..RHD..(GEN,IDN);GUN143,TGN141..6FC..(27,27G,27SRV,28,28G)..(GCC,LA);GUN143,TGN140..IDNP..(20E,20G,20V,28E,28G,N)..(IDN,PHL,TH) |
1 | ||
| 63378A - RETAINER, ROOF HEADLINING SUPPORT, NO.2 | ||||
| 63378-0K010 |
TGN140..20G..MA;GUN14#,TGN14#..IDNP,PHLP,VNP |
1 | ||
| 63378-0K010 |
TGN140..20G..MA;GUN14#,TGN14#..IDNP,PHLP,VNP |
1 | ||
| 63389 - RETAINER, ROOF HEADLINING TRIM, CENTER | ||||
| 63389-0K010 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 63389-0K010 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0K060 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66413-0K060 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66413-0K060 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66413-0K060 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66413-0K060 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66413-0K060 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0K050 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66414-0K050 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66414-0K050 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66414-0K050 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66414-0K050 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66414-0K050 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0K100 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415-0K100 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415-0K100 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415-0K100 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415-0K100 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66415-0K100 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0K060 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66423-0K060 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66423-0K060 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66423-0K060 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66423-0K060 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66423-0K060 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0K210 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424-0K210 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424-0K210 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424-0K210 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424-0K210 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66424-0K210 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0K260 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66425-0K260 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66425-0K260 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66425-0K260 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66425-0K260 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66425-0K260 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| Common parts | ||||
| 90530-10007 | ||||
| Linked diagrams | ||||
| 8121 | ||||
(1511- )20,20Q,20V,28,28G,28V..IDN,MA,PHL,TH; (1511- )GUN142,TGN141..24G,24V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62653F - PACKING (FOR ROOF HEADLINING) | ||||
| 62653-0K350 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653-0K350 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653F - PACKING (FOR ROOF HEADLINING) | ||||
| 62653-0K350 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653-0K350 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653G - PACKING,(FOR ROOF HEADLINING) | ||||
| 62653-0K360 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653-0K360 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653G - PACKING,(FOR ROOF HEADLINING) | ||||
| 62653-0K360 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653-0K360 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0KL70B0 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#,4# |
1 | ||
| 63310-0KL70B0 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#,4# |
1 | ||
| 63310-0K760B1 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN142,TGN141..(24G,27)..(GEN,IDN,LA) LT.GRAY,TRIM2#,4# |
1 | ||
| 63310-0K760B1 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN142,TGN141..(24G,27)..(GEN,IDN,LA) LT.GRAY,TRIM2#,4# |
1 | ||
| 63310-0KL70B0 |
TGN140..RHD..IDNP..(20E,20G);GUN142,TGN141..(24G,27)..(GEN,IDN,LA) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#,4# |
1 | ||
| 63310-0KL70B0 |
TGN140..RHD..IDNP..(20E,20G);GUN142,TGN141..(24G,27)..(GEN,IDN,LA) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#,4# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-T0004B0 |
TGN140..IDN,TH;GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(20G,28G,28V)..(PHL,TH) LT.GRAY,TRIM2#,4# |
4 | ||
| 90467-T0004B0 |
TGN140..IDN,TH;GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(20G,28G,28V)..(PHL,TH) LT.GRAY,TRIM2#,4# |
4 | ||
| 63317A - RETAINER, ROOF HEADLINING | ||||
| 63317-0K100 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 63317-0K100 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-0D100B1 |
TGN140..IDN,TH;GUN143,TGN141..6FC..(GCC,LA);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN140..IDNP..(20G,28G)..PHL;GUN142,TGN141..5F..(24Q,27)..(IDN,LA) LT.GRAY,TRIM2#,4# |
2 | ||
| 63339-0D100B1 |
TGN140..IDN,TH;GUN143,TGN141..6FC..(GCC,LA);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN140..IDNP..(20G,28G)..PHL;GUN142,TGN141..5F..(24Q,27)..(IDN,LA) LT.GRAY,TRIM2#,4# |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0K070 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63341-0K070 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63341-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63341-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0K060 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 63343-0K060 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63365A - PLATE, ROOF HEADLINING SET | ||||
| 63365-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63365-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63366B - PLATE, ROOF HEADLINING SET, LH | ||||
| 63366-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63366-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63377A - RETAINER, ROOF HEADLINING SUPPORT, NO.1 | ||||
| 63377-0K010 |
TGN141..5F..27..LA;GUN142..RHD..(GEN,IDN);GUN143,TGN141..6FC..(27,27G,27SRV,28,28G)..(GCC,LA);GUN143,TGN140..IDNP..(20E,20G,20V,28E,28G,N)..(IDN,PHL,TH) |
1 | ||
| 63377-0K010 |
TGN141..5F..27..LA;GUN142..RHD..(GEN,IDN);GUN143,TGN141..6FC..(27,27G,27SRV,28,28G)..(GCC,LA);GUN143,TGN140..IDNP..(20E,20G,20V,28E,28G,N)..(IDN,PHL,TH) |
1 | ||
| 63378A - RETAINER, ROOF HEADLINING SUPPORT, NO.2 | ||||
| 63378-0K010 |
TGN140..20G..MA;GUN14#,TGN14#..IDNP,PHLP,VNP |
1 | ||
| 63378-0K010 |
TGN140..20G..MA;GUN14#,TGN14#..IDNP,PHLP,VNP |
1 | ||
| 63389 - RETAINER, ROOF HEADLINING TRIM, CENTER | ||||
| 63389-0K010 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 63389-0K010 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0K060 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66413-0K060 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66413-0K060 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66413-0K060 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66413-0K060 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66413-0K060 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0K050 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66414-0K050 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66414-0K050 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66414-0K050 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66414-0K050 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66414-0K050 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0K100 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415-0K100 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415-0K100 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415-0K100 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415-0K100 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66415-0K100 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0K060 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66423-0K060 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66423-0K060 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66423-0K060 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66423-0K060 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66423-0K060 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0K210 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424-0K210 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424-0K210 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424-0K210 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424-0K210 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66424-0K210 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0K260 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66425-0K260 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66425-0K260 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66425-0K260 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66425-0K260 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66425-0K260 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| Common parts | ||||
| 90530-10007 | ||||
| Linked diagrams | ||||
| 8121 | ||||
(1511- )TGN140..20G..GEN,MA,PHL,VN ; (1511-)GUN142..24,24Q,24V..GEN,IDN,SA ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62653F - PACKING (FOR ROOF HEADLINING) | ||||
| 62653-0K350 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653-0K350 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653F - PACKING (FOR ROOF HEADLINING) | ||||
| 62653-0K350 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653-0K350 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653G - PACKING,(FOR ROOF HEADLINING) | ||||
| 62653-0K360 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653-0K360 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653G - PACKING,(FOR ROOF HEADLINING) | ||||
| 62653-0K360 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 62653-0K360 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-0KL70B0 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#,4# |
1 | ||
| 63310-0KL70B0 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#,4# |
1 | ||
| 63310-0K760B1 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN142,TGN141..(24G,27)..(GEN,IDN,LA) LT.GRAY,TRIM2#,4# |
1 | ||
| 63310-0K760B1 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN142,TGN141..(24G,27)..(GEN,IDN,LA) LT.GRAY,TRIM2#,4# |
1 | ||
| 63310-0KL70B0 |
TGN140..RHD..IDNP..(20E,20G);GUN142,TGN141..(24G,27)..(GEN,IDN,LA) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#,4# |
1 | ||
| 63310-0KL70B0 |
TGN140..RHD..IDNP..(20E,20G);GUN142,TGN141..(24G,27)..(GEN,IDN,LA) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD),LT. GRAY,TRIM2#,4# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-T0004B0 |
TGN140..IDN,TH;GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(20G,28G,28V)..(PHL,TH) LT.GRAY,TRIM2#,4# |
4 | ||
| 90467-T0004B0 |
TGN140..IDN,TH;GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(20G,28G,28V)..(PHL,TH) LT.GRAY,TRIM2#,4# |
4 | ||
| 63317A - RETAINER, ROOF HEADLINING | ||||
| 63317-0K100 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 63317-0K100 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-0D100B1 |
TGN140..IDN,TH;GUN143,TGN141..6FC..(GCC,LA);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN140..IDNP..(20G,28G)..PHL;GUN142,TGN141..5F..(24Q,27)..(IDN,LA) LT.GRAY,TRIM2#,4# |
2 | ||
| 63339-0D100B1 |
TGN140..IDN,TH;GUN143,TGN141..6FC..(GCC,LA);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN140..IDNP..(20G,28G)..PHL;GUN142,TGN141..5F..(24Q,27)..(IDN,LA) LT.GRAY,TRIM2#,4# |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-0K070 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63341-0K070 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63341-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63341-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
9 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-0K060 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 63343-0K060 |
GUN14#,TGN14#..IDNP,VNP |
1 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63342-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63365A - PLATE, ROOF HEADLINING SET | ||||
| 63365-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63365-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63366B - PLATE, ROOF HEADLINING SET, LH | ||||
| 63366-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63366-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 63377A - RETAINER, ROOF HEADLINING SUPPORT, NO.1 | ||||
| 63377-0K010 |
TGN141..5F..27..LA;GUN142..RHD..(GEN,IDN);GUN143,TGN141..6FC..(27,27G,27SRV,28,28G)..(GCC,LA);GUN143,TGN140..IDNP..(20E,20G,20V,28E,28G,N)..(IDN,PHL,TH) |
1 | ||
| 63377-0K010 |
TGN141..5F..27..LA;GUN142..RHD..(GEN,IDN);GUN143,TGN141..6FC..(27,27G,27SRV,28,28G)..(GCC,LA);GUN143,TGN140..IDNP..(20E,20G,20V,28E,28G,N)..(IDN,PHL,TH) |
1 | ||
| 63378A - RETAINER, ROOF HEADLINING SUPPORT, NO.2 | ||||
| 63378-0K010 |
TGN140..20G..MA;GUN14#,TGN14#..IDNP,PHLP,VNP |
1 | ||
| 63378-0K010 |
TGN140..20G..MA;GUN14#,TGN14#..IDNP,PHLP,VNP |
1 | ||
| 63389 - RETAINER, ROOF HEADLINING TRIM, CENTER | ||||
| 63389-0K010 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 63389-0K010 |
TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL) |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-0K060 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66413-0K060 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66413-0K060 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66413-0K060 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66413-0K060 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66413-0K060 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-0K050 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66414-0K050 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66414-0K050 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66414-0K050 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66414-0K050 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66414-0K050 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-0K100 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415-0K100 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415-0K100 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415-0K100 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66415-0K100 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66415-0K100 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-0K060 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66423-0K060 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66423-0K060 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66423-0K060 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66423-0K060 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66423-0K060 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-0K210 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424-0K210 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424-0K210 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424-0K210 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66424-0K210 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66424-0K210 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-0K260 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66425-0K260 |
TGN14#..IDNP..(20,27SR) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66425-0K260 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66425-0K260 |
GUN142..5F..24Q;TGN140..(20,20E,20G)..VN;TGN140..IDNP..(IDN,PHL,TH);GUN142..RHD..(24G,24V)..(GEN,IDN);GUN143,TGN141..IDNP..(27,27SRV,28E,28G,N)..(LA,PHL) SRS AIR BAG-WITH(*DRP & SIDE & CURTAIN SHIELD) |
1 | ||
| 66425-0K260 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| 66425-0K260 |
TGN140..IDNP..(IDN,PHL,TH);GUN143,TGN141..6FC..(GCC,LA);GUN143..IDNP..(28E,28G,N)..PHL;GUN142..RHD..(24G,24V)..(GEN,IDN);GUN142,TGN141..5F..(24Q,27)..(IDN,LA) |
1 | ||
| Common parts | ||||
| 90530-10007 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
