TGN140R-MDMSKD (2015)
Toyota Innova

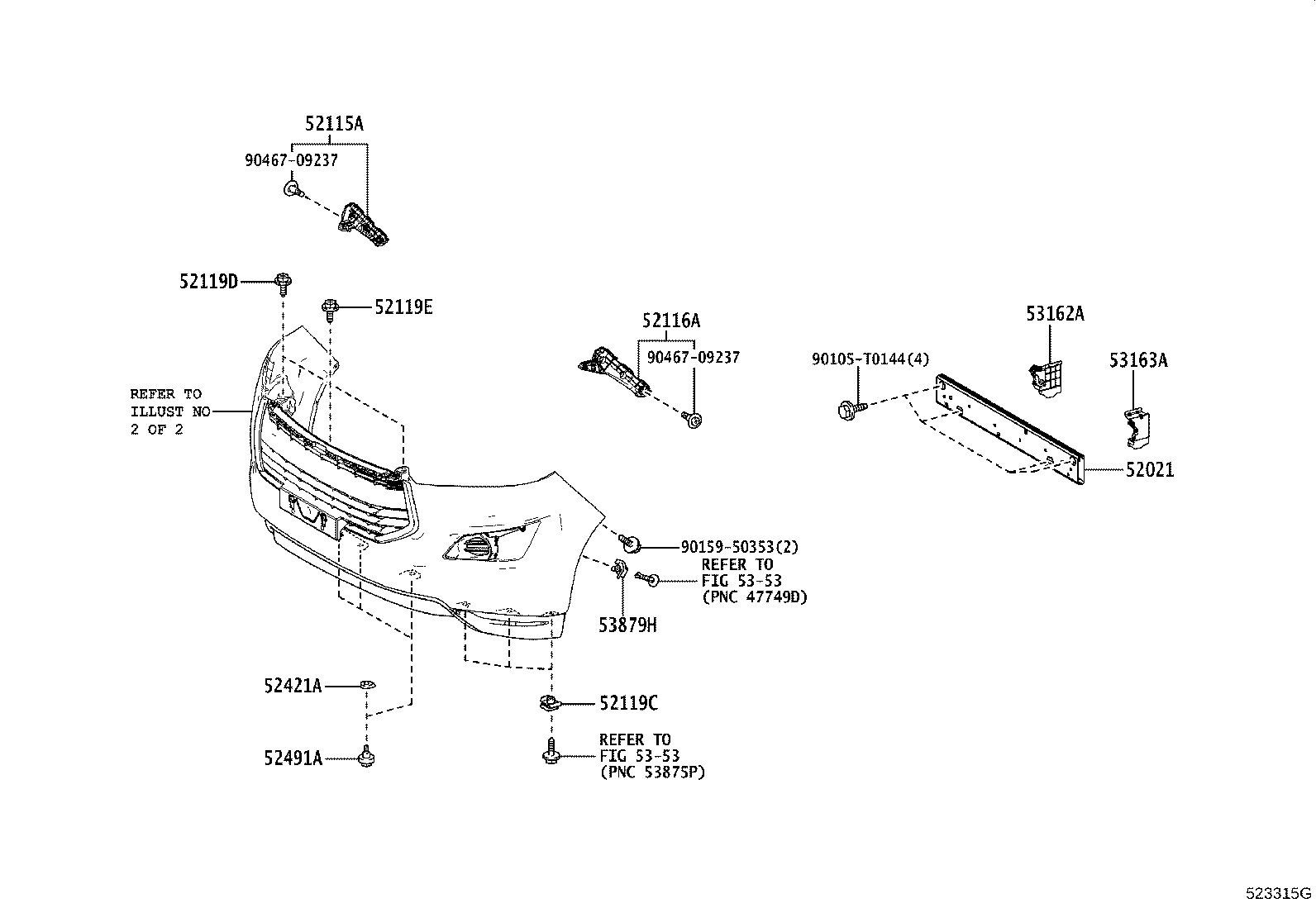

ILLUST NO. 1 OF 2(1511- )TGN140..20G..GEN ; (1511- )TGN140..IDN,MA,PHL,TH,VN ; (1511- )GUN1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-0K210 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-0K140 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05114 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
6 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-T0033 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) (L) |
2 | ||
| 90159-60431 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) (J) |
2 | ||
| 52119E - SCREW, NO.2 | ||||
| 90159-T0033 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) (L) |
1 | ||
| 90159-60431 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) (J) |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-60191 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
3 | ||
| 52491A - BOLT, BUMPER PAD | ||||
| 52491-60010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
3 | ||
| 53162A - DEFLECTOR, FRONT BUMPER STONE, RH | ||||
| 53162-KK020 |
GUN142..GEN,IDN;TGN141..6FC..GCC;GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53163A - DEFLECTOR, FRONT BUMPER STONE, LH | ||||
| 53163-KK020 |
GUN142..GEN,IDN;TGN141..6FC..GCC;GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-50020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| Common parts | ||||
| 90105-T0144 | ||||
| 90159-50353 | ||||
| 90467-09237 | ||||
| Linked diagrams | ||||
| 5353 | ||||
ILLUST NO. 2 OF 2(1511- )IDNP,MAP,PHLP,VNP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-0K140 |
GUN143..28V..GCC;GUN143..IDNP..(28E,28G,28V)..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V)..(GEN,IDN,PHL) PLATED |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-0K140 |
GUN143..28V..GCC;GUN143..IDNP..(28E,28G,28V)..(PHL,TH);GUN142,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V)..(GEN,IDN,PHL) PLATED |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0M965 |
GUN14#,TGN140..RHD..IDNP |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0K170 |
TGN141..5F..27..LA;GUN143,TGN141..6FC..(27,28);GUN143,TGN140..RHD..IDNP..(20E,20G,28G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL) |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GUN14#,TGN14# |
2 | ||
| 75392-0K010 |
TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GUN14#,TGN14# |
2 | ||
| 75392-0K010 |
TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GUN14#,TGN14# |
2 | ||
| 75392-0K010 |
TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
GUN14#,TGN14# |
2 | ||
| 75392-0K010 |
TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL,TH) |
2 | ||
| Common parts | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90189-T0019 | ||||
| Linked diagrams | ||||
| 7652 | ||||
