TGN140R-MDMSKD (2015)
Toyota Innova
(1511- )24,24G,24Q,24V,27,27G,27SR,27SRV..GCC,IDN,LA,SA,TH..DCR,HTWC ; (1708-

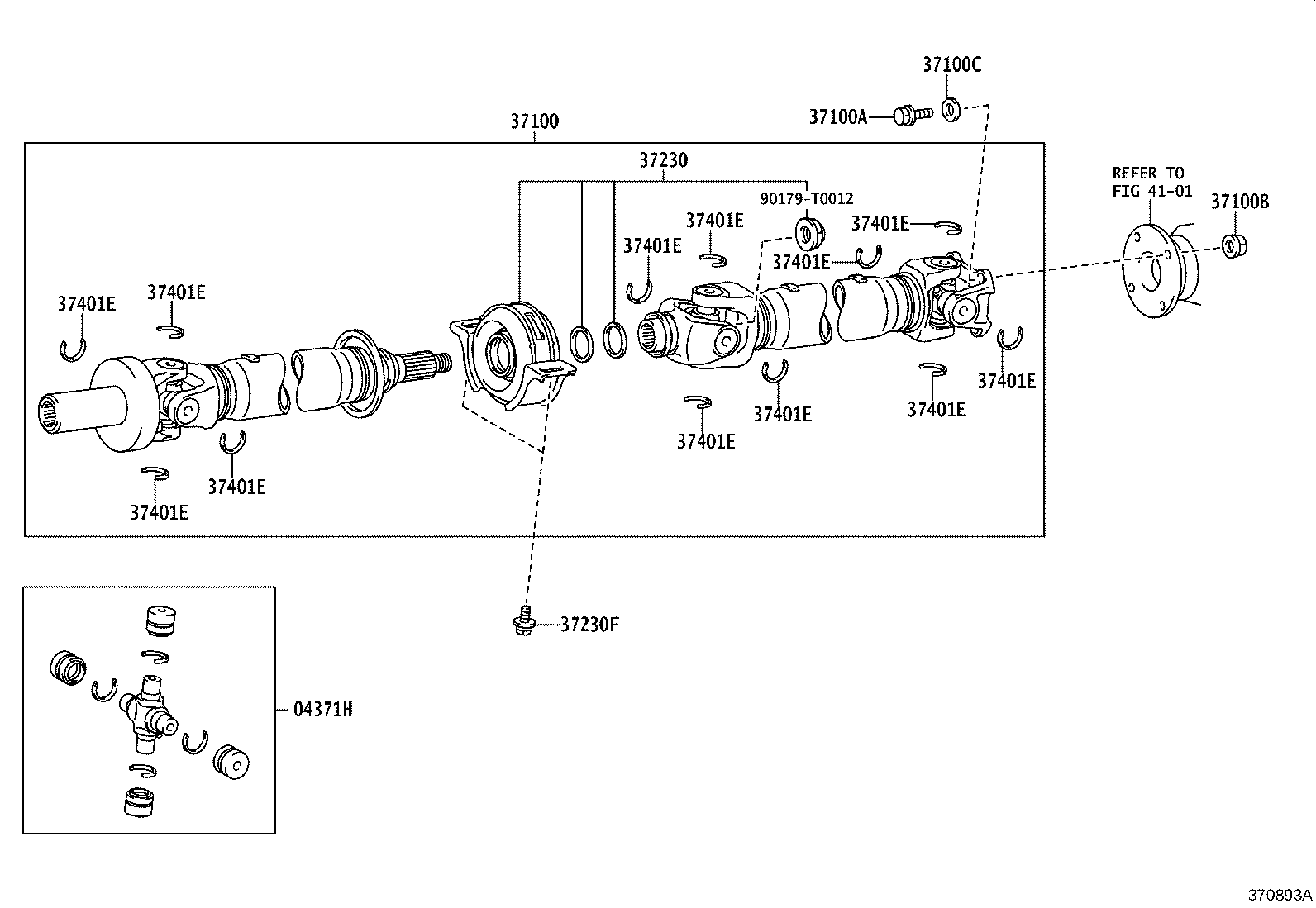

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
3 | ||
| 04371-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
3 | ||
| 04371-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-0KN10 |
TGN14#..IDNP..5F |
1 | ||
| 37100-0KN10 |
TGN14#..IDNP..5F |
1 | ||
| 37100-0KN10 |
TGN14#..IDNP..5F |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-T0084 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90105-T0084 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90105-T0084 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-T0024 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90178-T0024 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90178-T0024 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-T0003 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90201-T0003 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90201-T0003 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90178-T0024 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90178-T0024 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90178-T0024 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-T0003 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90201-T0003 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90201-T0003 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-09010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 37230-09010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 37230-09010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-T0148 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90119-T0148 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90119-T0148 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| Common parts | ||||
| 90179-20018 | ||||
| Linked diagrams | ||||
| 4101 | ||||
(1604- )20V..VN ; (1604- )MAP,PHLP,VNP..20E,20G,28E,28G,28V,N ; (2010- )20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
3 | ||
| 04371-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-0KN10 |
TGN14#..IDNP..5F |
1 | ||
| 37100-0KN10 |
TGN14#..IDNP..5F |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-T0084 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90105-T0084 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-T0024 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90178-T0024 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-T0003 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90201-T0003 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-09010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 37230-09010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-T0148 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90119-T0148 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| Common parts | ||||
| 90179-T0012 | ||||
| Linked diagrams | ||||
| 4101 | ||||
(1604- )5F,6FC..IND..DCR,HTWC ; (1709- )20V..MA ; (1711- )20..VN ; (2002-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
3 | ||
| 04371-0K110 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-0KN10 |
TGN14#..IDNP..5F |
1 | ||
| 37100-0KN10 |
TGN14#..IDNP..5F |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-T0084 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90105-T0084 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-T0024 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90178-T0024 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-T0003 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90201-T0003 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90178-T0024 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90178-T0024 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-T0003 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 90201-T0003 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
4 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-09010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 37230-09010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-T0148 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90119-T0148 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0009 |
GUN14#,TGN14#..IDNP T=2.23,MARK H |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0011 |
GUN14#,TGN14#..IDNP T=2.27,MARK K |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0015 |
GUN14#,TGN14#..IDNP T=2.35,MARK 4 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0017 |
GUN14#,TGN14#..IDNP T=2.39,MARK 6 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0018 |
GUN14#,TGN14#..IDNP T=2.41,MARK 7 |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0007 |
GUN14#,TGN14#..IDNP T=2.19,MARK F |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0010 |
GUN14#,TGN14#..IDNP T=2.25,MARK J |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0008 |
GUN14#,TGN14#..IDNP T=2.21,MARK G |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0025 |
GUN14#,TGN14#..IDNP T=2.55,MARK D |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0019 |
GUN14#,TGN14#..IDNP T=2.43,MARK 8 |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0020 |
GUN14#,TGN14#..IDNP T=2.45,MARK N |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0021 |
GUN14#,TGN14#..IDNP T=2.47,MARK 10 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0012 |
GUN14#,TGN14#..IDNP T=2.29,MARK 1 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0014 |
GUN14#,TGN14#..IDNP T=2.33,MARK 3 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0013 |
GUN14#,TGN14#..IDNP T=2.31,MARK 2 |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0026 |
GUN14#,TGN14#..IDNP T=2.57,MARK E |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0024 |
GUN14#,TGN14#..IDNP T=2.53,MARK C |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0022 |
GUN14#,TGN14#..IDNP T=2.49,MARK A |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0016 |
GUN14#,TGN14#..IDNP T=2.37,MARK 5 |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| 90520-T0023 |
GUN14#,TGN14#..IDNP T=2.51,MARK B |
1 | ||
| Common parts | ||||
| 90179-20018 | ||||
| Linked diagrams | ||||
| 4101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
