TGN140R-MDMSKD (2015)
Toyota Innova
(2002- )2GDFTV..24G,24V,24Z,G,N..IND ; (2009-)1GDFTV,2GDFTV..IDNP ; (2010-

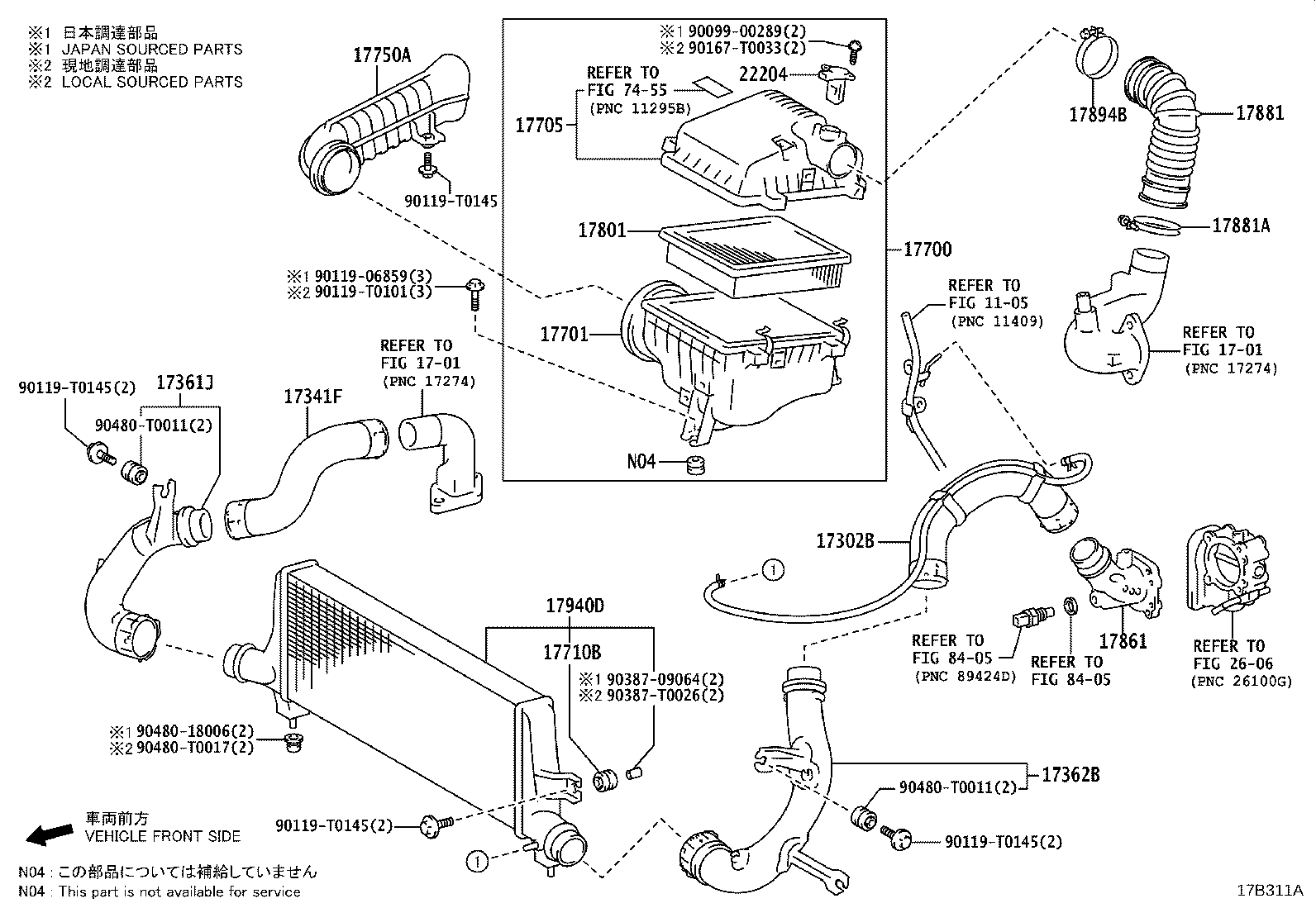

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0C220 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17700-0C220 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0C140 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17705-0C140 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-0L070 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17750-0L070 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0L050 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MARK 17801-0L050 |
1 | ||
| 17801-0L050 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MARK 17801-0L050 |
1 | ||
| 17801-0L040 |
1TRFE,2TRFE..TGN14# MARK 17801-0L040 |
1 | ||
| 17801-0L040 |
1TRFE,2TRFE..TGN14# MARK 17801-0L040 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-0C060 |
1TRFE..TGN140..IDN |
1 | ||
| 17861-0C060 |
1TRFE..TGN140..IDN |
1 | ||
| 17861-0C080 |
1TRFE..TGN140..IDN |
1 | ||
| 17861-0C080 |
1TRFE..TGN140..IDN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0C120 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17881-0C120 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0020 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 90460-T0020 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75040 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 22204-75040 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90119-T0101 | ||||
| 90119-T0145 | ||||
| 90167-T0033 | ||||
| 90387-09064 | ||||
| 90387-T0026 | ||||
| 90480-18006 | ||||
| 90480-T0011 | ||||
| 90480-T0017 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1701 | ||||
| 2606 | ||||
| 7455 | ||||
| 8405 | ||||
(1511- )1TRFE,2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0C220 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0C140 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17750A - INLET ASSY, AIR CLEANER | ||||
| 17750-0L070 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0L050 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MARK 17801-0L050 |
1 | ||
| 17801-0L040 |
1TRFE,2TRFE..TGN14# MARK 17801-0L040 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-0C060 |
1TRFE..TGN140..IDN |
1 | ||
| 17861-0C080 |
1TRFE..TGN140..IDN |
1 | ||
| 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) | ||||
| 96111-10750 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) (J) |
1 | ||
| 90460-T0010 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) (L) |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-0C100 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 90460-T0005 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0C120 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0020 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-0C080 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10460 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75040 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90105-T0066 | ||||
| 90119-06859 | ||||
| 90119-T0101 | ||||
| 90119-T0145 | ||||
| 90167-T0033 | ||||
| 90445-T0029 | ||||
| 90999-92002 | ||||
| 91551-80612 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1706 | ||||
| 1708 | ||||
| 2211 | ||||
| 7455 | ||||
| 8404 | ||||
