TGN140R-MDMSKD (2015)
Toyota Innova
(1511- )1TRFE..PHLP..20 ; (1511- )1TRFE..20G..GEN,IDN ; (1511- )1TRFE..IDN

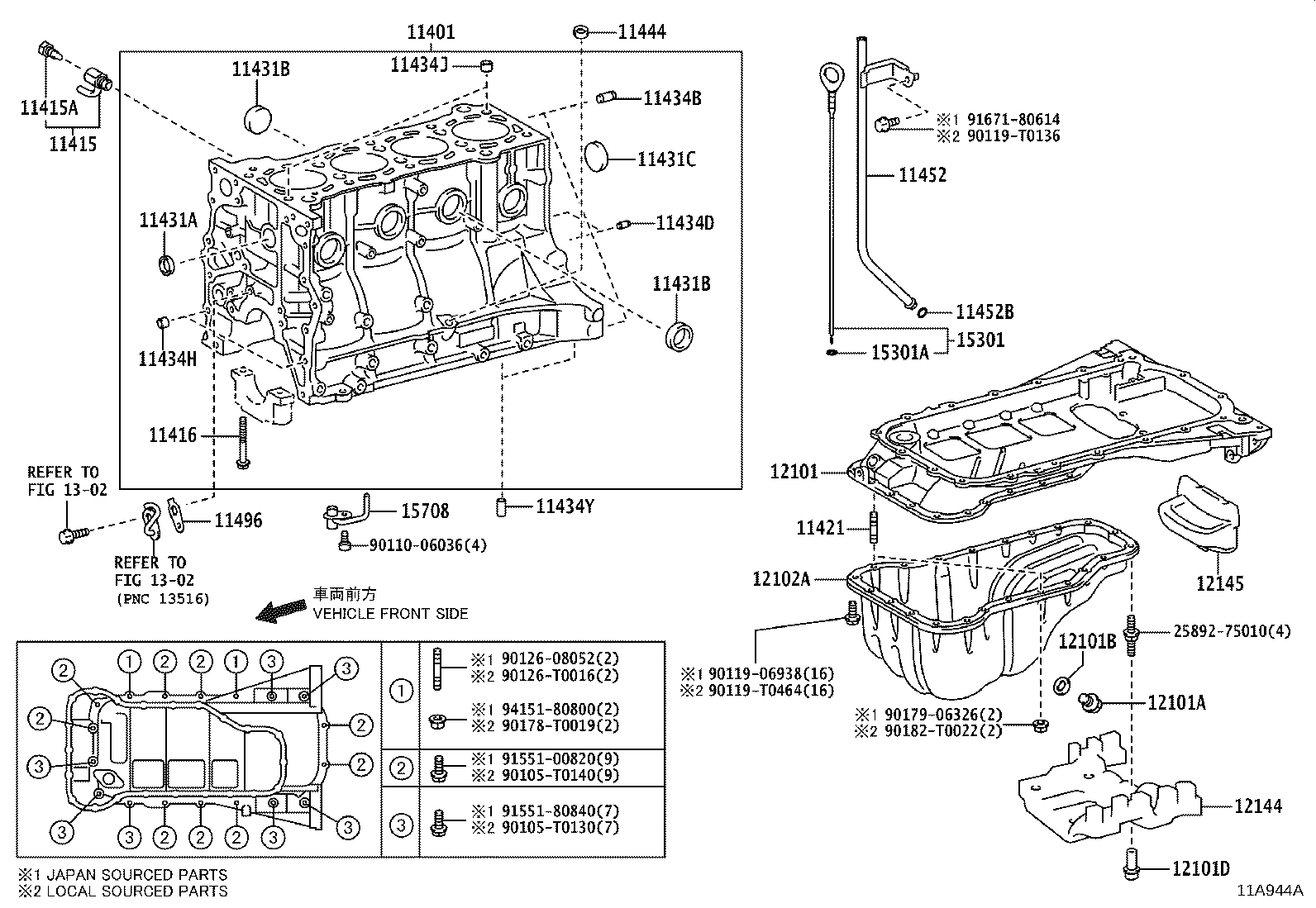

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-09402 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09129 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02179 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) JAPAN SOURCED PARTS |
10 | ||
| 90910-T2002 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) IDN SOURCED PARTS |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90126-06028 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-63000 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (J) |
1 | ||
| 90331-T0004 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (L) |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90331-T0005 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (L) |
8 | ||
| 96411-63500 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (J) |
8 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90331-T0005 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (L) |
8 | ||
| 96411-63500 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (J) |
8 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90331-T0007 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) (L) |
1 | ||
| 96411-64000 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) (J) |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-T0018 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) L=22,OD=10 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-T0017 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) L=14,OD=6 |
2 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90253-T0005 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-T0007 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90253-T0006 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 11444 - PLUG, HOLE | ||||
| 11444-75020 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-0C030 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN INDONESIA |
1 | ||
| 11409-0C050 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN THAILAND |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90301-T0081 |
1TRFE..TGN140..IDNP;2TRFE..TGN141..5F..LA;2TRFE..TGN141..IDNP..6FC MADE IN INDONESIA |
1 | ||
| 90301-T0025 |
1TRFE..TGN140..IDNP;2TRFE..TGN141..5F..LA;2TRFE..TGN141..IDNP..6FC MADE IN THAILAND |
1 | ||
| 90301-T0025 |
1TRFE,2TRFE..TGN14# |
1 | ||
| 11496 - GASKET, OIL HOLE COVER PLATE | ||||
| 11496-0C010 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) (L) |
1 | ||
| 11496-75011 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) (J) |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-0C030 |
1TRFE..TGN140..20G..IDN;1TRFE..TGN140..IDNP..(20E,N)..PHL MADE IN INDONESIA |
1 | ||
| 12101-0C040 |
1TRFE..TGN140..20G..IDN;1TRFE..TGN140..IDNP..(20E,N)..PHL MADE IN THAILAND |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1TRFE,2TRFE..TGN14# |
1 | ||
| 90341-12012 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 90341-12032 |
1TRFE,2TRFE..TGN14# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1TRFE,2TRFE..TGN14# |
1 | ||
| 90430-12031 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (J) |
1 | ||
| 90430-T0024 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (L) |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-0C020 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN THAILAND |
1 | ||
| 12102-0C010 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN INDONESIA |
1 | ||
| 12145 - SILENCER, OIL PAN COVER, NO.2 | ||||
| 12145-0C020 |
1TRFE,2TRFE..TGN14#..IDNP |
1 | ||
| 11354-0C010 |
1TRFE..TGN140..20G..IDN;1TRFE..TGN140..IDNP..(20E,N)..PHL PLANT TMP |
1 | ||
| 11354-0C020 |
1TRFE..TGN140..20G..IDN;1TRFE..TGN140..IDNP..(20E,N)..PHL PLANT TMMIN |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-0C020 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN THAILAND |
1 | ||
| 15301-0C030 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN INDONESIA |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 90301-T0018 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-75020 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN JAPAN |
4 | ||
| 15708-0C010 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN INDONESIA |
4 | ||
| Common parts | ||||
| 90105-T0130 | ||||
| 90105-T0140 | ||||
| 90110-06036 | ||||
| 90119-06938 | ||||
| 90119-T0136 | ||||
| 90119-T0464 | ||||
| 90126-08052 | ||||
| 90126-T0016 | ||||
| 90178-T0019 | ||||
| 90179-06326 | ||||
| 90182-T0022 | ||||
| 91551-00820 | ||||
| 91551-80840 | ||||
| 91671-80614 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1302 | ||||
(1511- )1TRFE..PHLP..20E,N ; (1511- )1TRFE..20G..MA,PHL,VN ; (1511- )1TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-09402 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09129 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02179 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) JAPAN SOURCED PARTS |
10 | ||
| 90910-T2002 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) IDN SOURCED PARTS |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90126-06028 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-63000 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (J) |
1 | ||
| 90331-T0004 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (L) |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90331-T0005 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (L) |
8 | ||
| 96411-63500 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (J) |
8 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90331-T0005 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (L) |
8 | ||
| 96411-63500 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (J) |
8 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 90331-T0007 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) (L) |
1 | ||
| 96411-64000 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) (J) |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-T0018 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) L=22,OD=10 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-T0017 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) L=14,OD=6 |
2 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90253-T0005 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-T0007 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90253-T0006 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 11444 - PLUG, HOLE | ||||
| 11444-75020 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-0C030 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN INDONESIA |
1 | ||
| 11409-0C050 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN THAILAND |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90301-T0081 |
1TRFE..TGN140..IDNP;2TRFE..TGN141..5F..LA;2TRFE..TGN141..IDNP..6FC MADE IN INDONESIA |
1 | ||
| 90301-T0025 |
1TRFE..TGN140..IDNP;2TRFE..TGN141..5F..LA;2TRFE..TGN141..IDNP..6FC MADE IN THAILAND |
1 | ||
| 90301-T0025 |
1TRFE,2TRFE..TGN14# |
1 | ||
| 11496 - GASKET, OIL HOLE COVER PLATE | ||||
| 11496-0C010 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) (L) |
1 | ||
| 11496-75011 |
1TRFE..TGN140..IDNP..(IDN,PHL,TH) (J) |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-0C030 |
1TRFE..TGN140..20G..IDN;1TRFE..TGN140..IDNP..(20E,N)..PHL MADE IN INDONESIA |
1 | ||
| 12101-0C040 |
1TRFE..TGN140..20G..IDN;1TRFE..TGN140..IDNP..(20E,N)..PHL MADE IN THAILAND |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1TRFE,2TRFE..TGN14# |
1 | ||
| 90341-12012 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 90341-12032 |
1TRFE,2TRFE..TGN14# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1TRFE,2TRFE..TGN14# |
1 | ||
| 90430-12031 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (J) |
1 | ||
| 90430-T0024 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) (L) |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-0C020 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN THAILAND |
1 | ||
| 12102-0C010 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN INDONESIA |
1 | ||
| 12145 - SILENCER, OIL PAN COVER, NO.2 | ||||
| 12145-0C020 |
1TRFE,2TRFE..TGN14#..IDNP |
1 | ||
| 11354-0C010 |
1TRFE..TGN140..20G..IDN;1TRFE..TGN140..IDNP..(20E,N)..PHL PLANT TMP |
1 | ||
| 11354-0C020 |
1TRFE..TGN140..20G..IDN;1TRFE..TGN140..IDNP..(20E,N)..PHL PLANT TMMIN |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-0C020 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN THAILAND |
1 | ||
| 15301-0C030 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN INDONESIA |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 90301-T0018 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-75020 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN JAPAN |
4 | ||
| 15708-0C010 |
2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA;1TRFE..TGN140..IDNP..(IDN,PHL,TH) MADE IN INDONESIA |
4 | ||
| Common parts | ||||
| 25892-75010 | ||||
| 90105-T0130 | ||||
| 90105-T0140 | ||||
| 90110-06036 | ||||
| 90119-06938 | ||||
| 90119-T0136 | ||||
| 90119-T0464 | ||||
| 90126-08052 | ||||
| 90126-T0016 | ||||
| 90178-T0019 | ||||
| 90179-06326 | ||||
| 90182-T0022 | ||||
| 91551-00820 | ||||
| 91551-80840 | ||||
| 91671-80614 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
