TGN140R-MDMHKD (2020)
Toyota Innova
(2009- )TGN14#..IDNP,INDP..20,20E,20G,20Q,27,27G,27Z,G,N,SRV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

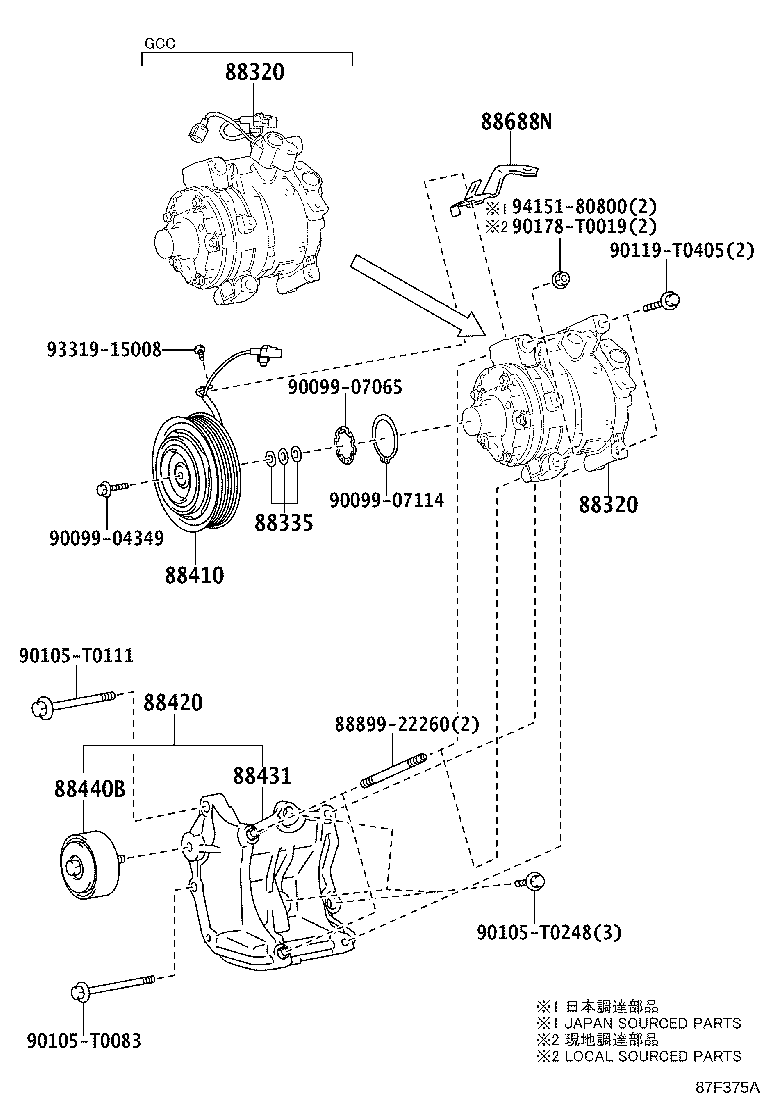

| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-0K540 |
GUN142..IDNP,MAP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN143..6FC..(28E,28V)..(PHL,TH);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,N,SRV)..(GEN,IDN,IND,LA,PHL,TH) |
1 | ||
| 88320-0K540 |
GUN142..IDNP,MAP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN143..6FC..(28E,28V)..(PHL,TH);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,N,SRV)..(GEN,IDN,IND,LA,PHL,TH) |
1 | ||
| 88320-0K540 |
GUN142..IDNP,MAP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN143..6FC..(28E,28V)..(PHL,TH);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,N,SRV)..(GEN,IDN,IND,LA,PHL,TH) |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-0K540 |
GUN142..IDNP,MAP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN143..6FC..(28E,28V)..(PHL,TH);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,N,SRV)..(GEN,IDN,IND,LA,PHL,TH) |
1 | ||
| 88320-0K540 |
GUN142..IDNP,MAP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN143..6FC..(28E,28V)..(PHL,TH);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,N,SRV)..(GEN,IDN,IND,LA,PHL,TH) |
1 | ||
| 88320-0K540 |
GUN142..IDNP,MAP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN143..6FC..(28E,28V)..(PHL,TH);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,N,SRV)..(GEN,IDN,IND,LA,PHL,TH) |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14020 |
TGN140..IDNP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN143..6FC..(28,28E,28V);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..20G,24,24G,24Z,27,27G,27Z,G,SRV |
1 | ||
| 88335-14020 |
TGN140..IDNP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN143..6FC..(28,28E,28V);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..20G,24,24G,24Z,27,27G,27Z,G,SRV |
1 | ||
| 88335-14020 |
TGN140..IDNP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN143..6FC..(28,28E,28V);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..20G,24,24G,24Z,27,27G,27Z,G,SRV |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-0K610 |
TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,N,SRV)..(GEN,IDN,IND,LA,PHL,TH) |
1 | ||
| 88410-0K610 |
TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,N,SRV)..(GEN,IDN,IND,LA,PHL,TH) |
1 | ||
| 88410-0K610 |
TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,N,SRV)..(GEN,IDN,IND,LA,PHL,TH) |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-0K240 |
TGN14#..IDNP |
1 | ||
| 88431-0K240 |
TGN14#..IDNP |
1 | ||
| 88431-0K240 |
TGN14#..IDNP |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-0K381 |
TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,G,N,SRV) |
1 | ||
| 88440-0K381 |
TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,G,N,SRV) |
1 | ||
| 88440-0K381 |
TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,G,N,SRV) |
1 | ||
| 88688N - BRACKET, COOLER | ||||
| 88688-0K280 |
TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,G,N,SRV) |
1 | ||
| 88688-0K280 |
TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,G,N,SRV) |
1 | ||
| 88688-0K280 |
TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,G,N,SRV) |
1 | ||
| Common parts | ||||
| 88899-22260 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-T0083 | ||||
| 90105-T0111 | ||||
| 90105-T0248 | ||||
| 90119-T0405 | ||||
| 90178-T0019 | ||||
| 93319-15008 | ||||
| 94151-80800 | ||||
