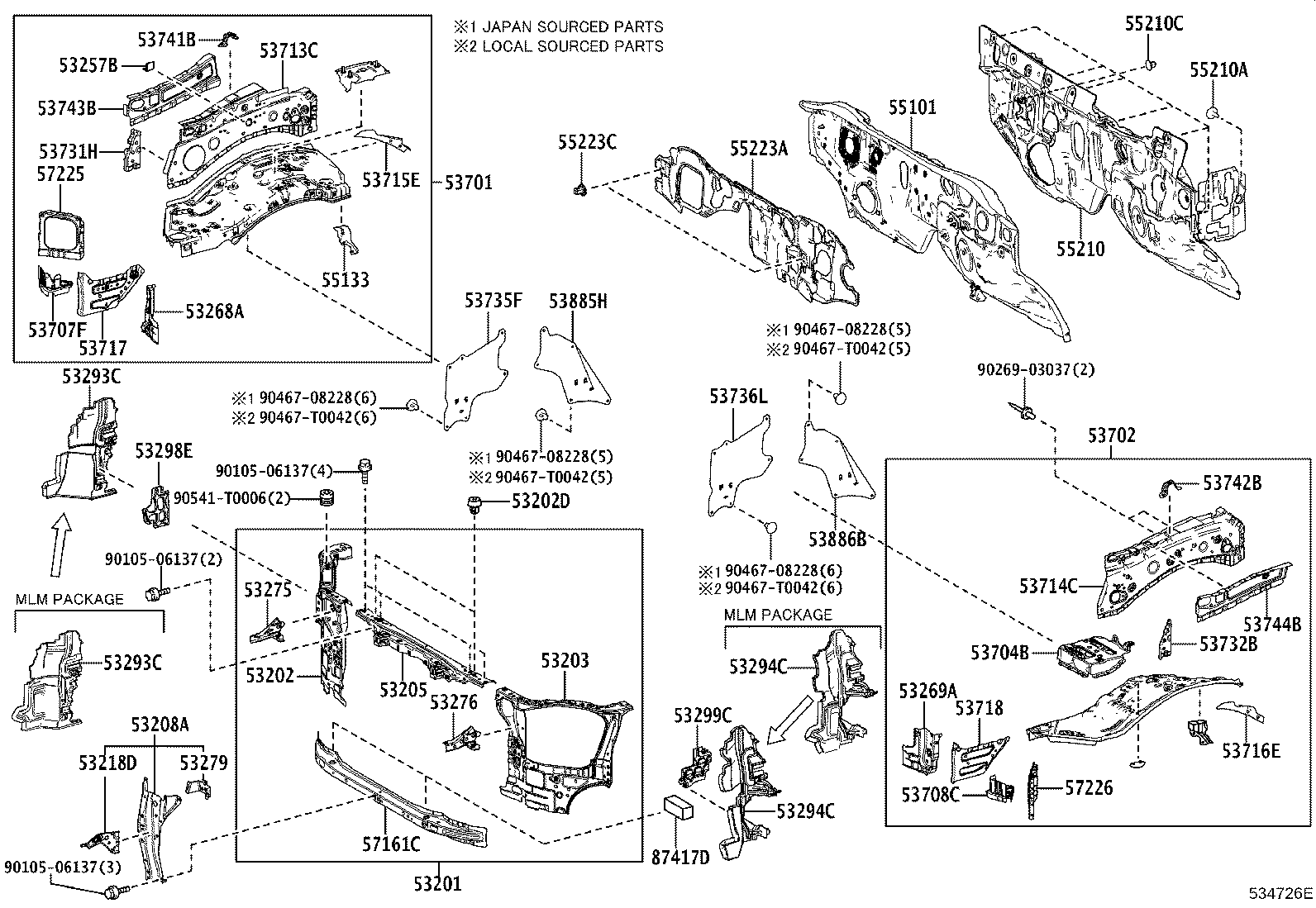

TGN140R-MDMHKD (2020)
Toyota Innova
(1511- )TGN140..RHD ; (1511- )5F..24V,N..IND..DCR ; (1511- )24,24G,24Z,27G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-KK040 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 53384-0K040 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
2 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-KK040 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 53218D - EXTENSION, HOOD LOCK BRACE | ||||
| 53218-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-35030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53275 - BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH | ||||
| 53275-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53276 - BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH | ||||
| 53276-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53279 - BRACKET, HOOD LOCK SUPPORT BRACE, UPPER | ||||
| 53279-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-KK010 |
GUN14#,TGN140..RHD..IDNP..(20Q,24V,28V) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53293-KK010 |
GUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53293-KK010 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53293-YP100 |
GUN14#..(24G,28V)..(MA,TH);GUN142,TGN140..(20Q,20V,24V)..(IDN,VN) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53293-YP100 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53293-YP100 |
TGN140..GEN,IDN;GUN142..GEN,IDN,MA;TGN140..(20E,20V)..VN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53293-KK010 |
TGN140..IDNP..(GEN,IDN,PHL);GUN14#..IDNP..(GEN,IDN,PHL,TH) |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-KK010 |
GUN14#,TGN140..RHD..IDNP..(20Q,24V,28V) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53293-KK010 |
GUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53293-KK010 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53293-YP100 |
GUN14#..(24G,28V)..(MA,TH);GUN142,TGN140..(20Q,20V,24V)..(IDN,VN) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53293-YP100 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53293-YP100 |
TGN140..GEN,IDN;GUN142..GEN,IDN,MA;TGN140..(20E,20V)..VN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53293-KK010 |
TGN140..IDNP..(GEN,IDN,PHL);GUN14#..IDNP..(GEN,IDN,PHL,TH) |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-KK010 |
GUN14#,TGN140..RHD..IDNP..(20Q,24V,28V) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53294-KK010 |
GUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53294-YP100 |
GUN14#..(24G,28V)..(MA,TH);GUN142,TGN140..(20Q,20V,24V)..(IDN,VN) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53294-YP100 |
TGN140..GEN,IDN;GUN142..GEN,IDN,MA;TGN140..(20E,20V)..VN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53294-YP100 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53294-KK010 |
TGN140..IDNP..(GEN,IDN,PHL);GUN14#..IDNP..(GEN,IDN,PHL,TH) |
1 | ||
| 53294-KK010 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-KK010 |
GUN14#,TGN140..RHD..IDNP..(20Q,24V,28V) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53294-KK010 |
GUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53294-YP100 |
GUN14#..(24G,28V)..(MA,TH);GUN142,TGN140..(20Q,20V,24V)..(IDN,VN) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53294-YP100 |
TGN140..GEN,IDN;GUN142..GEN,IDN,MA;TGN140..(20E,20V)..VN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53294-YP100 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53294-KK010 |
TGN140..IDNP..(GEN,IDN,PHL);GUN14#..IDNP..(GEN,IDN,PHL,TH) |
1 | ||
| 53294-KK010 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53298E - SEAL, RADIATOR SIDE, RH | ||||
| 53298-KK010 |
TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,G,N,SRV) |
1 | ||
| 53299C - SEAL, RADIATOR SIDE, LH | ||||
| 53299-KK010 |
TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);TGN14#..(IDNP,INDP)..(20,20E,20G,20Q,27,27G,27Z,G,N,SRV) |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-KK020 |
TGN140..(20E,20V)..MA;TGN14#..RHD..(IDNP,INDP)..(20G,20Q,27G,27Z,N) |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-KK020 |
TGN140..(20E,20V)..MA;GUN142..RHD..(IDNP,MAP);GUN143,TGN14#..RHD..(IDNP,INDP)..(20G,20Q,27G,27Z,28V,N) |
1 | ||
| 53704B - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH | ||||
| 53707-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53708C - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH | ||||
| 53708-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-0K030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-0K030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53731H - PATCH, FRONT FENDER APRON, RH | ||||
| 53731-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53732B - PATCH, FRONT FENDER APRON, LH | ||||
| 53732-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53735F - SEAL, FRONT FENDER APRON, UPPER RH | ||||
| 53735-KK030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53736L - SEAL, FRONT FENDER APRON, UPPER LH | ||||
| 53735-KK030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53741B - PLATE, FENDER APRON REINFORCE, RH | ||||
| 53741-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53742B - PLATE, FENDER APRON REINFORCE, LH | ||||
| 53742-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53743B - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53743-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53744B - REINFORCEMENT, FRONT FENDER APRON, FRONT LH | ||||
| 53744-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53885H - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53886B - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53885-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-KK010 |
TGN140..20E..VN;GUN143,TGN14#..5F..(27,28,28E,N) |
1 | ||
| 55101-KK030 |
GUN142..5F..24V..IDN;GUN142,TGN14#..MTM..(20G,20Q,24,24G,24Z,27G,G) |
1 | ||
| 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH | ||||
| 55133-0K010 |
TGN140..(20E,20V)..MA;TGN14#..RHD..(IDNP,INDP)..(20G,20Q,27G,27Z,N) |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-KK260 |
GUN14#..MA,TH;GUN142,TGN140..(20E,20Q,20V,24V)..(IDN,MA) |
1 | ||
| 55210-KK280 |
GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N) |
1 | ||
| 55210A - CLIP | ||||
| 90467-T0004A0 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV IVORY |
2 | ||
| 55210C - CLIP | ||||
| 90467-T0032 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
7 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-KK020 |
GUN14#..RHD..(IDNP,MAP);TGN140..RHD..(20E,20Q,20V,N) |
1 | ||
| 55223C - CLIP | ||||
| 90467-T0032 |
TGN140..LHD..IDNP..(20,20G);TGN14#..(20E,20Q,20V,N,SRV)..(IDN,LA,MA,TH,VN);GUN14#,TGN141..(IDNP,MAP)..(GCC,GEN,IDN,MA,PHL,TH) |
2 | ||
| 57161C - MEMBER, FRONT CROSS | ||||
| 57161-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 57225 - BRACE, FRONT MOUNTING BRACKET, RH | ||||
| 57225-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 57226 - BRACE, FRONT MOUNTING BRACKET, LH | ||||
| 57226-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90269-03037 | ||||
| 90467-08228 | ||||
| 90467-T0042 | ||||
| 90541-T0006 | ||||
(1511- )RHD..IDNP..20G,20Q,20V,24,28G,28V..DCR,HTWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-KK040 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 53201-KK040 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53202-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53202D - CUSHION, RADIATOR SUPPORT | ||||
| 53384-0K040 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
2 | ||
| 53384-0K040 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
2 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53203-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 53205-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-KK040 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 53208-KK040 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 53218D - EXTENSION, HOOD LOCK BRACE | ||||
| 53218-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53218-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-35030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53257-35030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53268-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53268-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53269-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53269-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53275 - BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH | ||||
| 53275-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53275-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53276 - BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH | ||||
| 53276-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53276-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53279 - BRACKET, HOOD LOCK SUPPORT BRACE, UPPER | ||||
| 53279-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53279-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-KK010 |
GUN14#,TGN140..RHD..IDNP..(20Q,24V,28V) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53293-KK010 |
GUN14#,TGN140..RHD..IDNP..(20Q,24V,28V) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53293-KK010 |
GUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53293-KK010 |
GUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53293-KK010 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53293-KK010 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53293-YP100 |
GUN14#..(24G,28V)..(MA,TH);GUN142,TGN140..(20Q,20V,24V)..(IDN,VN) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53293-YP100 |
GUN14#..(24G,28V)..(MA,TH);GUN142,TGN140..(20Q,20V,24V)..(IDN,VN) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53293-YP100 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53293-YP100 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53293-YP100 |
TGN140..GEN,IDN;GUN142..GEN,IDN,MA;TGN140..(20E,20V)..VN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53293-YP100 |
TGN140..GEN,IDN;GUN142..GEN,IDN,MA;TGN140..(20E,20V)..VN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53293-KK010 |
TGN140..IDNP..(GEN,IDN,PHL);GUN14#..IDNP..(GEN,IDN,PHL,TH) |
1 | ||
| 53293-KK010 |
TGN140..IDNP..(GEN,IDN,PHL);GUN14#..IDNP..(GEN,IDN,PHL,TH) |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-KK010 |
GUN14#,TGN140..RHD..IDNP..(20Q,24V,28V) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53293-KK010 |
GUN14#,TGN140..RHD..IDNP..(20Q,24V,28V) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53293-KK010 |
GUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53293-KK010 |
GUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53293-KK010 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53293-KK010 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53293-YP100 |
GUN14#..(24G,28V)..(MA,TH);GUN142,TGN140..(20Q,20V,24V)..(IDN,VN) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53293-YP100 |
GUN14#..(24G,28V)..(MA,TH);GUN142,TGN140..(20Q,20V,24V)..(IDN,VN) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53293-YP100 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53293-YP100 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53293-YP100 |
TGN140..GEN,IDN;GUN142..GEN,IDN,MA;TGN140..(20E,20V)..VN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53293-YP100 |
TGN140..GEN,IDN;GUN142..GEN,IDN,MA;TGN140..(20E,20V)..VN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53293-KK010 |
TGN140..IDNP..(GEN,IDN,PHL);GUN14#..IDNP..(GEN,IDN,PHL,TH) |
1 | ||
| 53293-KK010 |
TGN140..IDNP..(GEN,IDN,PHL);GUN14#..IDNP..(GEN,IDN,PHL,TH) |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-KK010 |
GUN14#,TGN140..RHD..IDNP..(20Q,24V,28V) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53294-KK010 |
GUN14#,TGN140..RHD..IDNP..(20Q,24V,28V) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53294-KK010 |
GUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53294-KK010 |
GUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53294-YP100 |
GUN14#..(24G,28V)..(MA,TH);GUN142,TGN140..(20Q,20V,24V)..(IDN,VN) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53294-YP100 |
GUN14#..(24G,28V)..(MA,TH);GUN142,TGN140..(20Q,20V,24V)..(IDN,VN) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53294-YP100 |
TGN140..GEN,IDN;GUN142..GEN,IDN,MA;TGN140..(20E,20V)..VN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53294-YP100 |
TGN140..GEN,IDN;GUN142..GEN,IDN,MA;TGN140..(20E,20V)..VN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53294-YP100 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53294-YP100 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53294-KK010 |
TGN140..IDNP..(GEN,IDN,PHL);GUN14#..IDNP..(GEN,IDN,PHL,TH) |
1 | ||
| 53294-KK010 |
TGN140..IDNP..(GEN,IDN,PHL);GUN14#..IDNP..(GEN,IDN,PHL,TH) |
1 | ||
| 53294-KK010 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53294-KK010 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-KK010 |
GUN14#,TGN140..RHD..IDNP..(20Q,24V,28V) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53294-KK010 |
GUN14#,TGN140..RHD..IDNP..(20Q,24V,28V) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53294-KK010 |
GUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53294-KK010 |
GUN142,TGN140..GEN,IDN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53294-YP100 |
GUN14#..(24G,28V)..(MA,TH);GUN142,TGN140..(20Q,20V,24V)..(IDN,VN) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53294-YP100 |
GUN14#..(24G,28V)..(MA,TH);GUN142,TGN140..(20Q,20V,24V)..(IDN,VN) MLM PACKAGE(TMMIN VENTURER) |
1 | ||
| 53294-YP100 |
TGN140..GEN,IDN;GUN142..GEN,IDN,MA;TGN140..(20E,20V)..VN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53294-YP100 |
TGN140..GEN,IDN;GUN142..GEN,IDN,MA;TGN140..(20E,20V)..VN;GUN143..IDNP..(PHL,TH) MLM PACKAGE |
1 | ||
| 53294-YP100 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53294-YP100 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53294-KK010 |
TGN140..IDNP..(GEN,IDN,PHL);GUN14#..IDNP..(GEN,IDN,PHL,TH) |
1 | ||
| 53294-KK010 |
TGN140..IDNP..(GEN,IDN,PHL);GUN14#..IDNP..(GEN,IDN,PHL,TH) |
1 | ||
| 53294-KK010 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53294-KK010 |
TGN140..IDN MLM LUXURY |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-KK020 |
TGN140..(20E,20V)..MA;TGN14#..RHD..(IDNP,INDP)..(20G,20Q,27G,27Z,N) |
1 | ||
| 53701-KK020 |
TGN140..(20E,20V)..MA;TGN14#..RHD..(IDNP,INDP)..(20G,20Q,27G,27Z,N) |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-KK020 |
TGN140..(20E,20V)..MA;GUN142..RHD..(IDNP,MAP);GUN143,TGN14#..RHD..(IDNP,INDP)..(20G,20Q,27G,27Z,28V,N) |
1 | ||
| 53702-KK020 |
TGN140..(20E,20V)..MA;GUN142..RHD..(IDNP,MAP);GUN143,TGN14#..RHD..(IDNP,INDP)..(20G,20Q,27G,27Z,28V,N) |
1 | ||
| 53704B - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53704-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH | ||||
| 53707-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53707-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53708C - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH | ||||
| 53708-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53708-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53713-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53714-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-0K030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53715-0K030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-0K030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53716-0K030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53717-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53718-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53731H - PATCH, FRONT FENDER APRON, RH | ||||
| 53731-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53731-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53732B - PATCH, FRONT FENDER APRON, LH | ||||
| 53732-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53732-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53735F - SEAL, FRONT FENDER APRON, UPPER RH | ||||
| 53735-KK030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53735-KK030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53736L - SEAL, FRONT FENDER APRON, UPPER LH | ||||
| 53735-KK030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53735-KK030 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53741B - PLATE, FENDER APRON REINFORCE, RH | ||||
| 53741-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53741-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53742B - PLATE, FENDER APRON REINFORCE, LH | ||||
| 53742-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53742-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53743B - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53743-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53743-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53744B - REINFORCEMENT, FRONT FENDER APRON, FRONT LH | ||||
| 53744-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53744-KK020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53885H - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53885-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53886B - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53885-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 53885-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-KK010 |
TGN140..20E..VN;GUN143,TGN14#..5F..(27,28,28E,N) |
1 | ||
| 55101-KK010 |
TGN140..20E..VN;GUN143,TGN14#..5F..(27,28,28E,N) |
1 | ||
| 55101-KK030 |
GUN142..5F..24V..IDN;GUN142,TGN14#..MTM..(20G,20Q,24,24G,24Z,27G,G) |
1 | ||
| 55101-KK030 |
GUN142..5F..24V..IDN;GUN142,TGN14#..MTM..(20G,20Q,24,24G,24Z,27G,G) |
1 | ||
| 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH | ||||
| 55133-0K010 |
TGN140..(20E,20V)..MA;TGN14#..RHD..(IDNP,INDP)..(20G,20Q,27G,27Z,N) |
1 | ||
| 55133-0K010 |
TGN140..(20E,20V)..MA;TGN14#..RHD..(IDNP,INDP)..(20G,20Q,27G,27Z,N) |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-KK260 |
GUN14#..MA,TH;GUN142,TGN140..(20E,20Q,20V,24V)..(IDN,MA) |
1 | ||
| 55210-KK260 |
GUN14#..MA,TH;GUN142,TGN140..(20E,20Q,20V,24V)..(IDN,MA) |
1 | ||
| 55210-KK280 |
GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N) |
1 | ||
| 55210-KK280 |
GUN142..IDNP..(20G,24G);TGN140..RHD..IDNP..(20G,N) |
1 | ||
| 55210A - CLIP | ||||
| 90467-T0004A0 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV IVORY |
2 | ||
| 90467-T0004A0 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV IVORY |
2 | ||
| 55210C - CLIP | ||||
| 90467-T0032 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
7 | ||
| 90467-T0032 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
7 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-KK020 |
GUN14#..RHD..(IDNP,MAP);TGN140..RHD..(20E,20Q,20V,N) |
1 | ||
| 55223-KK020 |
GUN14#..RHD..(IDNP,MAP);TGN140..RHD..(20E,20Q,20V,N) |
1 | ||
| 55223C - CLIP | ||||
| 90467-T0032 |
TGN140..LHD..IDNP..(20,20G);TGN14#..(20E,20Q,20V,N,SRV)..(IDN,LA,MA,TH,VN);GUN14#,TGN141..(IDNP,MAP)..(GCC,GEN,IDN,MA,PHL,TH) |
2 | ||
| 90467-T0032 |
TGN140..LHD..IDNP..(20,20G);TGN14#..(20E,20Q,20V,N,SRV)..(IDN,LA,MA,TH,VN);GUN14#,TGN141..(IDNP,MAP)..(GCC,GEN,IDN,MA,PHL,TH) |
2 | ||
| 57161C - MEMBER, FRONT CROSS | ||||
| 57161-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 57161-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 57225 - BRACE, FRONT MOUNTING BRACKET, RH | ||||
| 57225-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 57225-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 57226 - BRACE, FRONT MOUNTING BRACKET, LH | ||||
| 57226-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 57226-KK010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90269-03037 | ||||
| 90467-08228 | ||||
| 90467-T0042 | ||||
| 90541-T0006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
