TGN140L-MUTHKU (2016)
Toyota Innova

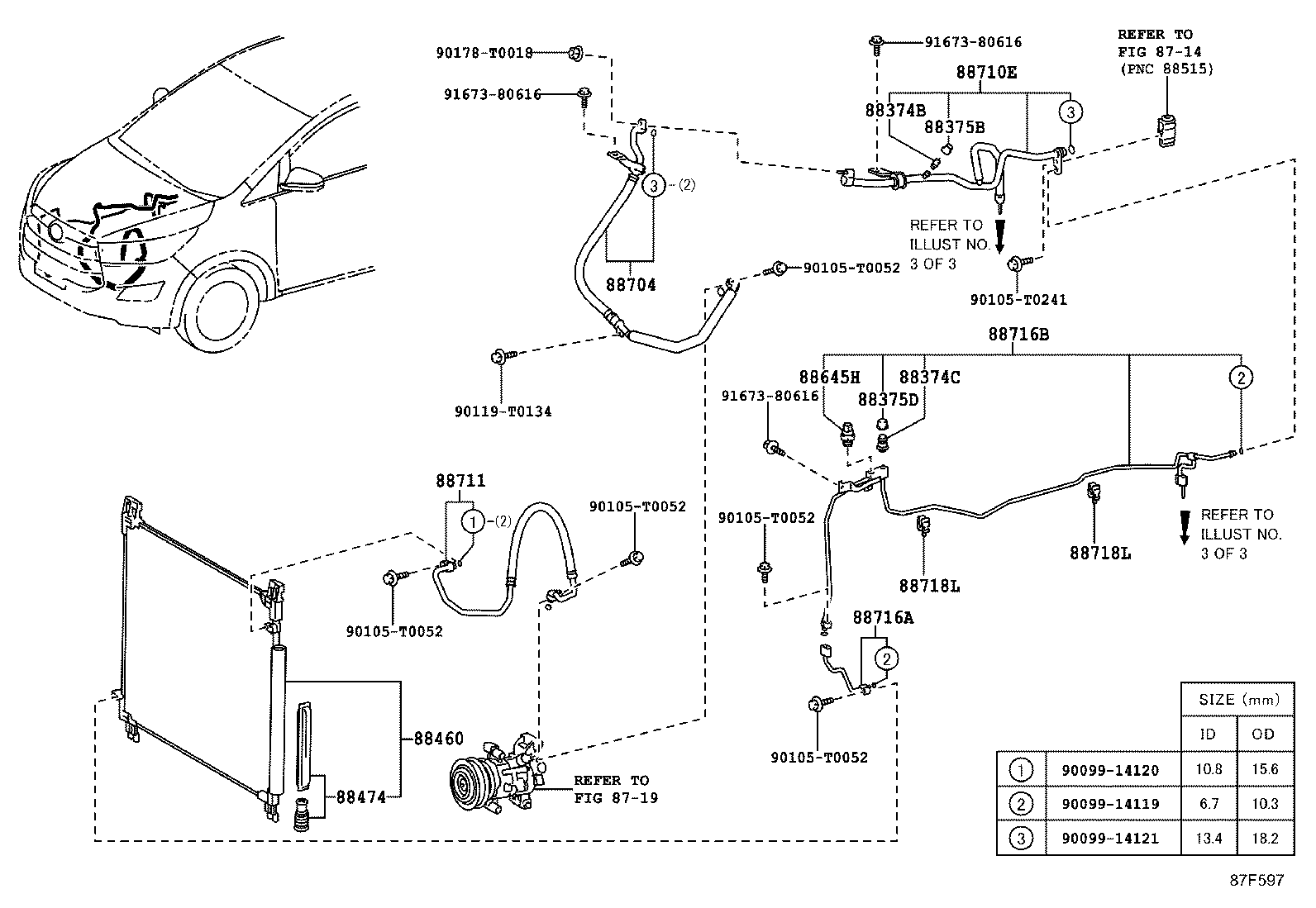

ILLUST NO. 2 OF 3(1511-1905)GUN142..IDN,SA ; (1604- )5F,6FC..24G,24V,24Z,28G,28Z,G..IND..DCR ; (1
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 88374-30010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 88374-30010 |
TGN140..VN |
1 | ||
| 88374-30010 |
TGN140..VN |
1 | ||
| 88374-30010 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88374-30010 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88374-30010 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88374-30010 |
TGN140..VN |
1 | ||
| 88374-30010 |
TGN140..VN |
1 | ||
| 88374-30010 |
TGN140..IDNP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN143..6FC..(28,28E,28V);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..20G,24,24G,24Z,27,27G,27Z,G,SRV |
1 | ||
| 88374-30010 |
TGN140..IDNP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN143..6FC..(28,28E,28V);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..20G,24,24G,24Z,27,27G,27Z,G,SRV |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
TGN140..VN |
1 | ||
| 88375-30290 |
TGN140..VN |
1 | ||
| 88375-30290 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 88375-30290 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 88375-30290 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88375-30290 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88375-30280 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88375-30280 |
TGN140..VN |
1 | ||
| 88375-30280 |
TGN140..VN |
1 | ||
| 88375-30280 |
TGN140..IDNP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN143..6FC..(28,28E,28V);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..20G,24,24G,24Z,27,27G,27Z,G,SRV |
1 | ||
| 88375-30280 |
TGN140..IDNP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN143..6FC..(28,28E,28V);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..20G,24,24G,24Z,27,27G,27Z,G,SRV |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K370 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88460-0K370 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88460-0K370 |
TGN140..VN |
1 | ||
| 88460-0K370 |
TGN140..VN |
1 | ||
| 88460-0K310 |
GUN142,TGN140..TH |
1 | ||
| 88460-0K310 |
GUN142,TGN140..TH |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88474-12020 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88474-12020 |
TGN140..VN |
1 | ||
| 88474-12020 |
TGN140..VN |
1 | ||
| 88474-12010 |
TGN140..TH |
1 | ||
| 88474-12010 |
TGN140..TH |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-0K030 |
TGN140..VN |
1 | ||
| 88645-0K030 |
TGN140..VN |
1 | ||
| 88645-0K030 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88645-0K030 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88645-0K030 |
GUN143..IDNP..5F;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#..6FC..(24V,28,28E,28V,N)..(GCC,GEN,PHL,TH);GUN142,TGN141..(20G,24,24G,24Z,27G,27Z,G)..(GEN,IND,MA) |
1 | ||
| 88645-0K030 |
GUN143..IDNP..5F;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#..6FC..(24V,28,28E,28V,N)..(GCC,GEN,PHL,TH);GUN142,TGN141..(20G,24,24G,24Z,27G,27Z,G)..(GEN,IND,MA) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0KG10 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88704-0KG10 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88704-0KG10 |
TGN140..VN |
1 | ||
| 88704-0KG10 |
TGN140..VN |
1 | ||
| 88704-0K710 |
TGN140..TH |
1 | ||
| 88704-0K710 |
TGN140..TH |
1 | ||
| 88704-0K710 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88704-0K710 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88707-0K650 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88707-0K650 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88707-0K690 |
TGN140..VN |
1 | ||
| 88707-0K690 |
TGN140..VN |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0KC50 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88711-0KC50 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88711-0KC50 |
TGN140..VN |
1 | ||
| 88711-0KC50 |
TGN140..VN |
1 | ||
| 88711-0KC70 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88711-0KC70 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88711-0KC70 |
TGN140..TH |
1 | ||
| 88711-0KC70 |
TGN140..TH |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0KQ80 |
TGN140..VN |
1 | ||
| 88716-0KQ80 |
TGN140..VN |
1 | ||
| 88716-0KQ80 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88716-0KQ80 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88716-0KQ90 |
GUN142,TGN140..TH |
1 | ||
| 88716-0KQ90 |
GUN142,TGN140..TH |
1 | ||
| 88716-0KQ90 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88716-0KQ90 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-0KA40 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88710-0KA40 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88710-0KE60 |
TGN140..VN |
1 | ||
| 88710-0KE60 |
TGN140..VN |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KF20 |
TGN140..VN |
2 | ||
| 88718-0KF20 |
TGN140..VN |
2 | ||
| 88718-0KB60 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
2 | ||
| 88718-0KB60 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
2 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

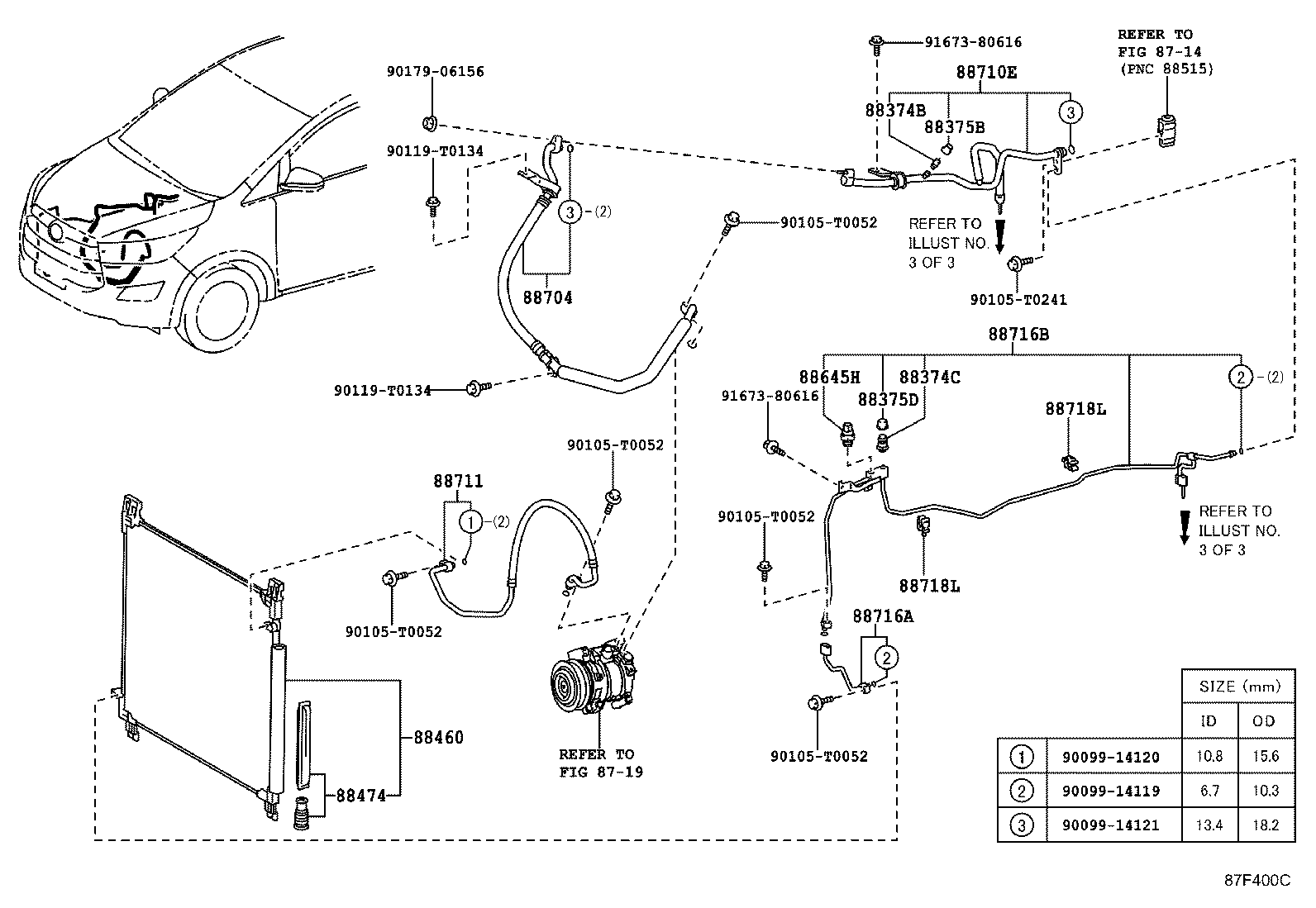

ILLUST NO. 2 OF 3(1511-1608)TGN140..TH
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 88374-30010 |
TGN140..VN |
1 | ||
| 88374-30010 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88374-30010 |
TGN140..VN |
1 | ||
| 88374-30010 |
TGN140..IDNP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN143..6FC..(28,28E,28V);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..20G,24,24G,24Z,27,27G,27Z,G,SRV |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
TGN140..VN |
1 | ||
| 88375-30290 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 88375-30290 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88375-30280 |
TGN140..VN |
1 | ||
| 88375-30280 |
TGN140..IDNP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN143..6FC..(28,28E,28V);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..20G,24,24G,24Z,27,27G,27Z,G,SRV |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K370 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88460-0K370 |
TGN140..VN |
1 | ||
| 88460-0K310 |
GUN142,TGN140..TH |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88474-12020 |
TGN140..VN |
1 | ||
| 88474-12010 |
TGN140..TH |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-0K030 |
TGN140..VN |
1 | ||
| 88645-0K030 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88645-0K030 |
GUN143..IDNP..5F;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#..6FC..(24V,28,28E,28V,N)..(GCC,GEN,PHL,TH);GUN142,TGN141..(20G,24,24G,24Z,27G,27Z,G)..(GEN,IND,MA) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0KG10 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88704-0KG10 |
TGN140..VN |
1 | ||
| 88704-0K710 |
TGN140..TH |
1 | ||
| 88704-0K710 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88707-0K650 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88707-0K690 |
TGN140..VN |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0KC50 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88711-0KC50 |
TGN140..VN |
1 | ||
| 88711-0KC70 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88711-0KC70 |
TGN140..TH |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0KQ80 |
TGN140..VN |
1 | ||
| 88716-0KQ80 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88716-0KQ90 |
GUN142,TGN140..TH |
1 | ||
| 88716-0KQ90 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-0KA40 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88710-0KE60 |
TGN140..VN |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KF20 |
TGN140..VN |
2 | ||
| 88718-0KB60 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
2 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KF20 |
TGN140..VN |
2 | ||
| 88718-0KB60 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
2 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90119-T0134 | ||||
| 90179-06156 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 3(1607- )VN ; (1607- )TGN141..IND ; (2010-)20E,20V,27G,27Z..IND,VN
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 88374-30010 |
TGN140..VN |
1 | ||
| 88374-30010 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88374-30010 |
TGN140..VN |
1 | ||
| 88374-30010 |
TGN140..IDNP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN143..6FC..(28,28E,28V);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..20G,24,24G,24Z,27,27G,27Z,G,SRV |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
TGN140..VN |
1 | ||
| 88375-30290 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 88375-30290 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88375-30280 |
TGN140..VN |
1 | ||
| 88375-30280 |
TGN140..IDNP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN143..6FC..(28,28E,28V);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..20G,24,24G,24Z,27,27G,27Z,G,SRV |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K370 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88460-0K370 |
TGN140..VN |
1 | ||
| 88460-0K310 |
GUN142,TGN140..TH |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88474-12020 |
TGN140..VN |
1 | ||
| 88474-12010 |
TGN140..TH |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-0K030 |
TGN140..VN |
1 | ||
| 88645-0K030 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88645-0K030 |
GUN143..IDNP..5F;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#..6FC..(24V,28,28E,28V,N)..(GCC,GEN,PHL,TH);GUN142,TGN141..(20G,24,24G,24Z,27G,27Z,G)..(GEN,IND,MA) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0KG10 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88704-0KG10 |
TGN140..VN |
1 | ||
| 88704-0K710 |
TGN140..TH |
1 | ||
| 88704-0K710 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88707-0K650 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88707-0K690 |
TGN140..VN |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0KC50 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88711-0KC50 |
TGN140..VN |
1 | ||
| 88711-0KC70 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88711-0KC70 |
TGN140..TH |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0KQ80 |
TGN140..VN |
1 | ||
| 88716-0KQ80 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88716-0KQ90 |
GUN142,TGN140..TH |
1 | ||
| 88716-0KQ90 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-0KA40 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88710-0KE60 |
TGN140..VN |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KF20 |
TGN140..VN |
2 | ||
| 88718-0KB60 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
2 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KF20 |
TGN140..VN |
2 | ||
| 88718-0KB60 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
2 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 3(1608-1707)6FC..24G,24V,28Z..IND,TH ; (1709-)6F,6FC..24V,24Z,28Z..IND ; (2010-
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 88374-30010 |
TGN140..VN |
1 | ||
| 88374-30010 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88374-30010 |
TGN140..VN |
1 | ||
| 88374-30010 |
TGN140..IDNP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN143..6FC..(28,28E,28V);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..20G,24,24G,24Z,27,27G,27Z,G,SRV |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
TGN140..VN |
1 | ||
| 88375-30290 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 88375-30290 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88375-30280 |
TGN140..VN |
1 | ||
| 88375-30280 |
TGN140..IDNP;GUN143..IDNP..5F;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN143..6FC..(28,28E,28V);TGN140..(20E,20V)..(MA,VN);GUN142,TGN141..20G,24,24G,24Z,27,27G,27Z,G,SRV |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K370 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88460-0K370 |
TGN140..VN |
1 | ||
| 88460-0K310 |
GUN142,TGN140..TH |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88474-12020 |
TGN140..VN |
1 | ||
| 88474-12010 |
TGN140..TH |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-0K030 |
TGN140..VN |
1 | ||
| 88645-0K030 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88645-0K030 |
GUN143..IDNP..5F;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#..6FC..(24V,28,28E,28V,N)..(GCC,GEN,PHL,TH);GUN142,TGN141..(20G,24,24G,24Z,27G,27Z,G)..(GEN,IND,MA) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0KG10 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88704-0KG10 |
TGN140..VN |
1 | ||
| 88704-0K710 |
TGN140..TH |
1 | ||
| 88704-0K710 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88707-0K650 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88707-0K690 |
TGN140..VN |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0KC50 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88711-0KC50 |
TGN140..VN |
1 | ||
| 88711-0KC70 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88711-0KC70 |
TGN140..TH |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0KQ80 |
TGN140..VN |
1 | ||
| 88716-0KQ80 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88716-0KQ90 |
GUN142,TGN140..TH |
1 | ||
| 88716-0KQ90 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88710-0KA40 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
1 | ||
| 88710-0KE60 |
TGN140..VN |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-0KF20 |
TGN140..VN |
2 | ||
| 88718-0KB60 |
TGN140..TH FRONT AIR CONDITIONER-MANUAL COOLER(DOP - DEALERSHIP INSTALL) |
2 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-T0052 | ||||
| 90105-T0241 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
