TGN140L-MUMLKU (2017)

Toyota Innova

Production Nov 2017 - Oct 2020
Engine 1TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

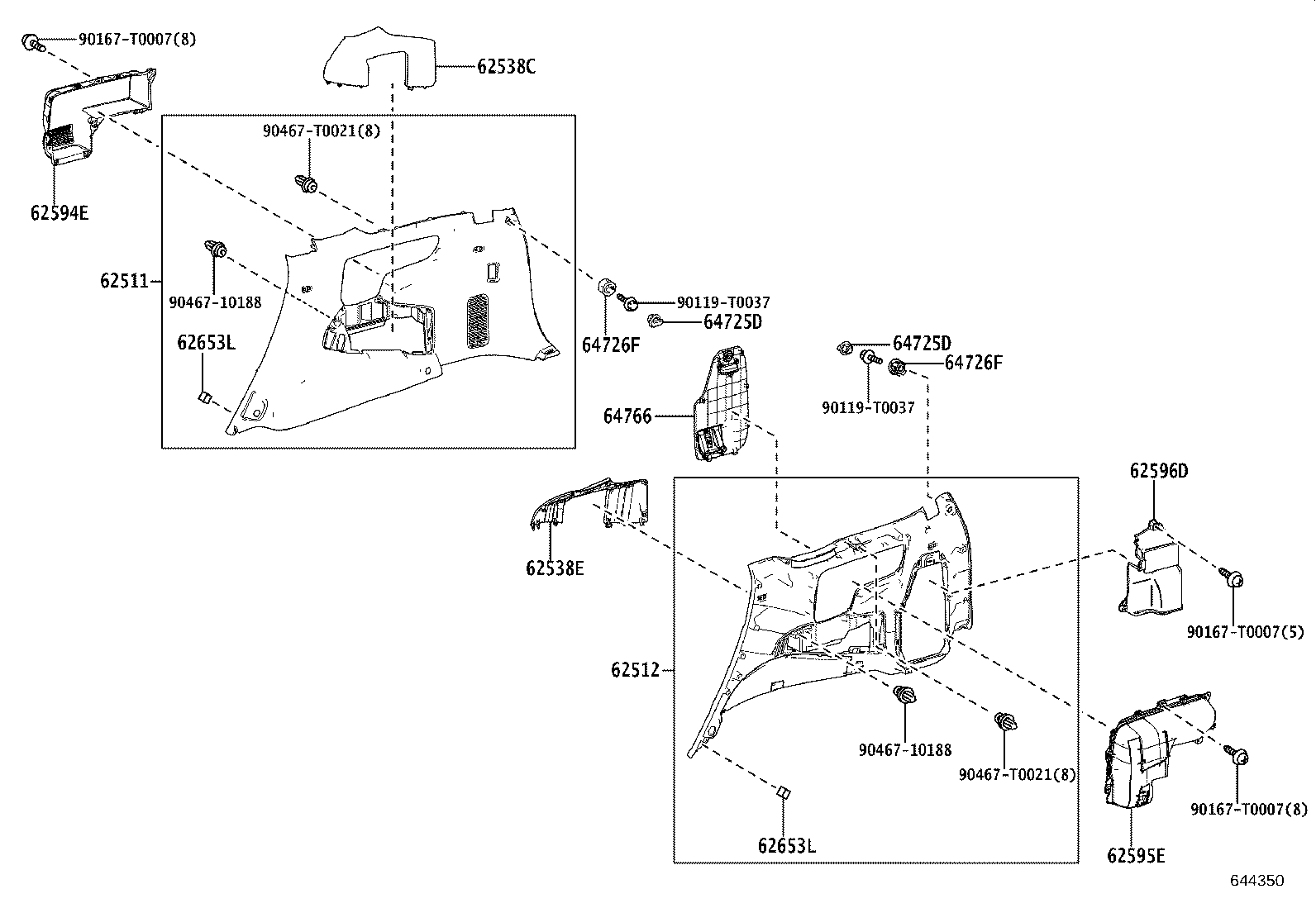

ILLUST NO. 2 OF 2(1802- )MA,VN

Click highlighted areas on diagram

DECK SIDE TRIM

diagram 62511 62512 62538C 62538E 62594E 62595E 62596D 62653L 62653L 64725D 64725D 64726F 64726F 64766 90119T0037 90119T0037 90167T0007 90167T0007 90167T0007 9046710188 9046710188 90467T0021 90467T0021
Part # Description Qty Price
62511 - BOARD, QUARTER INSIDE TRIM, RH
62510-0K440C0

TGN140..(20,20E,20G)..VN

BLACK,TRIM2#,4#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62520-0K440C0

TGN140..(20,20E,20G)..VN

BLACK,TRIM2#,4#

 1
62538C - COVER, QUARTER TRIM, HOLE
79937-0K010C0

TGN140..(20,20E,20G)..VN

BLACK,TRIM2#,4#

 1
62538E - COVER, QUARTER TRIM, HOLE
79937-0K020C0

TGN140..(20,20E,20G)..VN

BLACK,TRIM2#,4#

 1
62594E - POCKET, QUARTER TRIM, RH
62594-0K180C0

TGN140..(20,20E,20G)..VN

BLACK,TRIM2#,4#

 1
62595E - POCKET, QUARTER TRIM, LH
62595-0K140C0

TGN140..(20,20E,20G)..VN

BLACK,TRIM2#,4#

 1
62596D - TRAY, QUARTER TRIM POCKET
62596-0K010C0

TGN140..(20,20E,20G)..VN

BLACK,TRIM2#,4#

 1
62653L - PACKING (FOR QUARTER INSIDE TRIM BOARD)
62653-0KA00

TGN140..VN

 2
62653L - PACKING (FOR QUARTER INSIDE TRIM BOARD)
62653-0KA00

TGN140..VN

 2
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-0K020C0

TGN140..(20,20E,20G)..VN

BLACK,TRIM2#,4#

 2
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-0K020C0

TGN140..(20,20E,20G)..VN

BLACK,TRIM2#,4#

 2
64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2
64726-0K010C0

TGN140..(20,20E,20G)..VN

BLACK,TRIM2#,4#

 2
64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2
64726-0K010C0

TGN140..(20,20E,20G)..VN

BLACK,TRIM2#,4#

 2
64766 - COVER SUB-ASSY, QUARTER TRIM JACK
64766-0K150C0

TGN140..(20,20E,20G)..VN

BLACK,TRIM2#,4#

 1
Common parts
90119-T0037
90167-T0007
90467-10188
90467-T0021
