GUN143L-MDMSYM (2020)
Toyota Innova
(2009- )20,20Q,20V,24,24Z,28,28V..IDN,IND,MA,PHL,TH

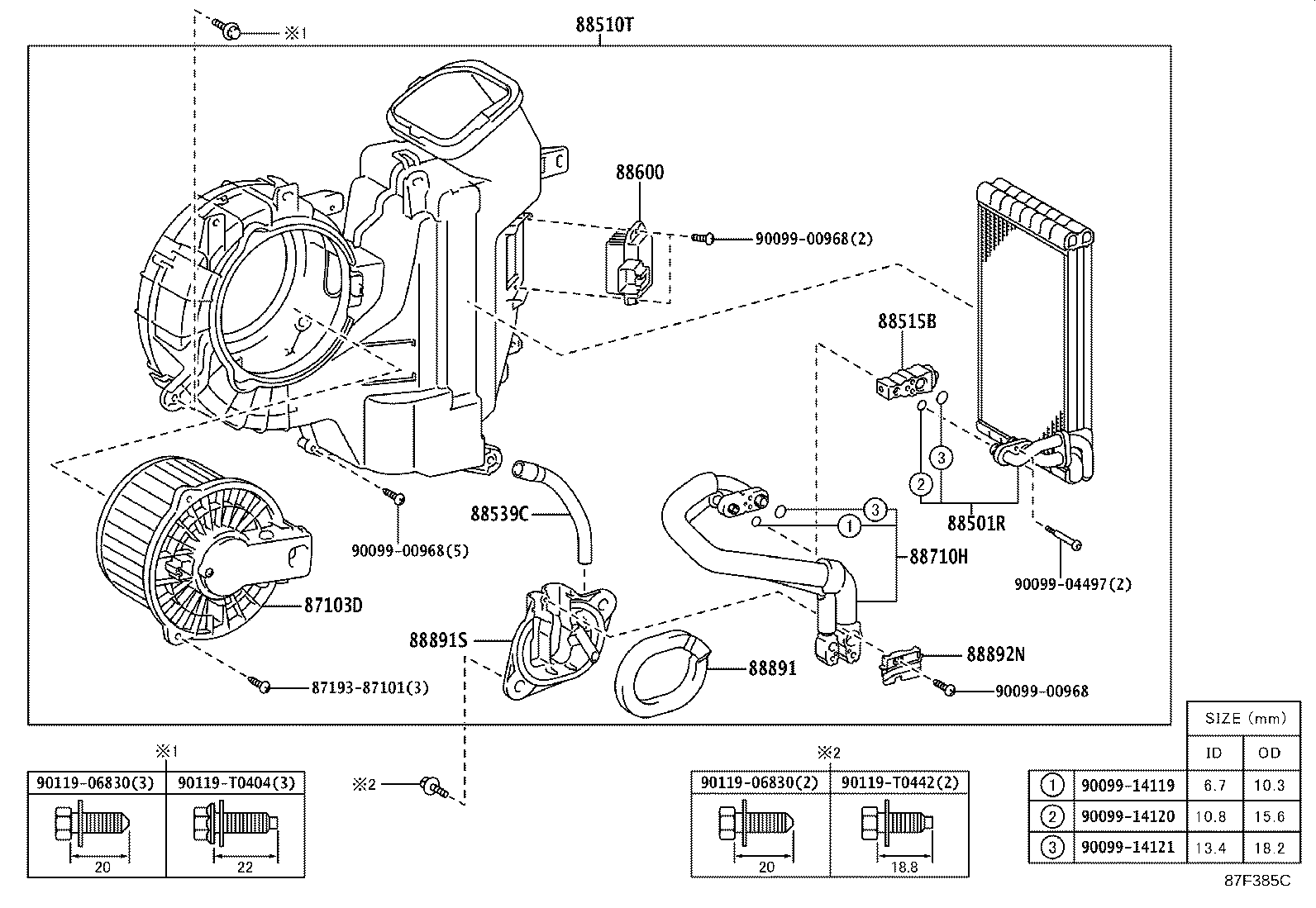

REAR AUTO COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-0K191 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 87103-0K191 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-0K440 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88501-0K440 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88501-0K440 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88501-0K440 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88500-0K281 |
TGN140..20V..VN;GUN142,TGN141..IDNP..(24V,G,N,SRV);GUN143,TGN140..(20G,28V)..(GCC,GEN);GUN143,TGN140..IDNP..(20,20Q,28,28V)..(IDN,PHL,TH) |
1 | ||
| 88500-0K281 |
TGN140..20V..VN;GUN142,TGN141..IDNP..(24V,G,N,SRV);GUN143,TGN140..(20G,28V)..(GCC,GEN);GUN143,TGN140..IDNP..(20,20Q,28,28V)..(IDN,PHL,TH) |
1 | ||
| 88500-0K281 |
TGN140..20V..VN;GUN142,TGN141..IDNP..(24V,G,N,SRV);GUN143,TGN140..(20G,28V)..(GCC,GEN);GUN143,TGN140..IDNP..(20,20Q,28,28V)..(IDN,PHL,TH) |
1 | ||
| 88500-0K281 |
TGN140..20V..VN;GUN142,TGN141..IDNP..(24V,G,N,SRV);GUN143,TGN140..(20G,28V)..(GCC,GEN);GUN143,TGN140..IDNP..(20,20Q,28,28V)..(IDN,PHL,TH) |
1 | ||
| 88500-0K261 |
GUN143,TGN140..(20E,28)..(GCC,VN);TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
GUN143,TGN140..(20E,28)..(GCC,VN);TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
GUN143,TGN140..(20E,28)..(GCC,VN);TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88500-0K261 |
GUN143,TGN140..(20E,28)..(GCC,VN);TGN140..IDNP..(20E,20G,N)..(IDN,PHL,TH);GUN14#,TGN141..IDNP..(20G,24G,27,28E,N)..(GCC,GEN,IDN,LA,PHL) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-0K640 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88515-0K640 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88515-0K640 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88515-0K640 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0K450 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88539-0K450 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88539-0K450 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88539-0K450 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88600 - CONTROL ASSY, AIR CONDITIONER | ||||
| 87165-0K010 |
TGN140..20V..VN;GUN142,TGN141..IDNP..(24V,G,N,SRV);GUN143,TGN140..(20G,28V)..(GCC,GEN);GUN143,TGN140..IDNP..(20,20Q,28,28V)..(IDN,PHL,TH) |
1 | ||
| 87165-0K010 |
TGN140..20V..VN;GUN142,TGN141..IDNP..(24V,G,N,SRV);GUN143,TGN140..(20G,28V)..(GCC,GEN);GUN143,TGN140..IDNP..(20,20Q,28,28V)..(IDN,PHL,TH) |
1 | ||
| 87165-0K010 |
TGN140..20V..VN;GUN142,TGN141..IDNP..(24V,G,N,SRV);GUN143,TGN140..(20G,28V)..(GCC,GEN);GUN143,TGN140..IDNP..(20,20Q,28,28V)..(IDN,PHL,TH) |
1 | ||
| 87165-0K010 |
TGN140..20V..VN;GUN142,TGN141..IDNP..(24V,G,N,SRV);GUN143,TGN140..(20G,28V)..(GCC,GEN);GUN143,TGN140..IDNP..(20,20Q,28,28V)..(IDN,PHL,TH) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0KG10 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88710-0KG10 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88710-0KG10 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88710-0KG10 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88891 - PACKING (FOR COOLER) | ||||
| 88619-0K130 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88619-0K130 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88619-0K130 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88619-0K130 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88899-0K130 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88899-0K130 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88899-0K130 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88899-0K130 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88899-0K140 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88899-0K140 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88899-0K140 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| 88899-0K140 |
GUN14#,TGN14#..IDNP;TGN140..(20E,20V)..VN |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06830 | ||||
| 90119-T0404 | ||||
| 90119-T0442 | ||||
