GUN143L-MDMSYM (2020)
Toyota Innova
(1511- )

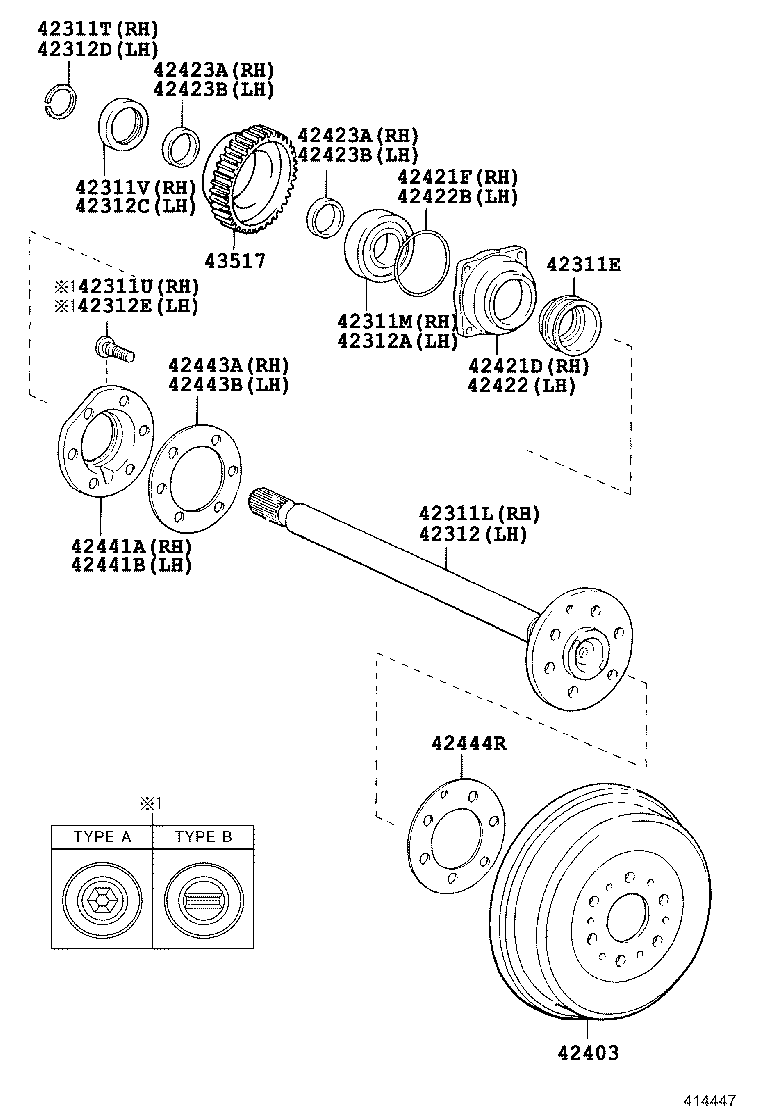

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-T0001 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-0K020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90363-T0050 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90520-T0036 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV TYPE A:REFER ILLUST. |
5 | ||
| 90942-02081 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV TYPE B:REFER ILLUST. |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-T0006 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-0K020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90363-T0050 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-T0006 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90520-T0036 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02081 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV TYPE B:REFER ILLUST. |
5 | ||
| 90942-02049 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV TYPE A:REFER ILLUST. |
5 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-0K190 |
TGN140..IDNP;TGN140..PHLP..(20,N);TGN140..PHLP..6FC..20E;TGN140..(20E,20V)..(MA,VN);GUN14#,TGN141..(IDNP,MAP,PHLP)..(20G,24G,24V,27,28,28E,28V,G,N,SRV) |
2 | ||
| 42421D - CASE, REAR AXLE BEARING, RH | ||||
| 42421-0K020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) | ||||
| 90301-T0016 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42422 - CASE, REAR AXLE BEARING, LH | ||||
| 42421-0K020 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) | ||||
| 90301-T0016 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-20010 |
TGN140..GEN;TGN140..20E..VN;TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E);GUN142..(20G,24,24G,24Z,G)..(GEN,IND,MA);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV;GUN142,TGN140..(IDNP,MAP)..(20,20E,20V,24V,N)..(GEN,MA,PHL,TH) |
2 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-20010 |
TGN140..GEN;TGN140..20E..VN;TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E);GUN142..(20G,24,24G,24Z,G)..(GEN,IND,MA);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV;GUN142,TGN140..(IDNP,MAP)..(20,20E,20V,24V,N)..(GEN,MA,PHL,TH) |
2 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-20010 |
TGN140..GEN;TGN140..20E..VN;TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E);GUN142..(20G,24,24G,24Z,G)..(GEN,IND,MA);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV;GUN142,TGN140..(IDNP,MAP)..(20,20E,20V,24V,N)..(GEN,MA,PHL,TH) |
2 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-20010 |
TGN140..GEN;TGN140..20E..VN;TGN140..(PHLP,VNP)..(20V,N);TGN140..PHLP..6FC..(20,20E);GUN142..(20G,24,24G,24Z,G)..(GEN,IND,MA);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV;GUN142,TGN140..(IDNP,MAP)..(20,20E,20V,24V,N)..(GEN,MA,PHL,TH) |
2 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-26010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-26010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH | ||||
| 42443-30010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH | ||||
| 42443-30010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
1 | ||
| 42444R - GASKET, BRAKE DRUM (FOR REAR AXLE) | ||||
| 42444-35070 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
2 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-35010 |
TGN140..IDNP;TGN140..PHLP..(20,N);GUN142..IDNP..(24V,N);TGN140..PHLP..6FC..20E;GUN142..20G,24,24G,24Z,G;TGN140..(20E,20V)..(MA,VN);GUN143,TGN141..27,27G,27Z,28,28E,28V,G,N,SRV |
2 | ||
