GUN143L-MDMMYV (2017)

Toyota Innova

Production Aug 2017 - Apr 2019
Engine 1GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1511-2009) ; (2009- )

Click highlighted areas on diagram

REAR HEATER CONTROL

diagram 6452 84010A 84660H 84661A 84732H
Part # Description Qty Price
84660H - SWITCH ASSY, COOLER CONTROL
84660-0K060B0

TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..20E;GUN143,TGN141..5F..(24,27,28)..(GCC,GEN);GUN142,TGN14#..(20,24,27SR)..(GCC,GEN,LA)

LT.GRAY,TRIM2#,4#

 1
84661A - KNOB, COOLER CONTROL SWITCH
84661-0K010B0

GUN143,TGN141..5F..(24,27,28)..(GCC,GEN);GUN142,TGN14#..(20,20E,24,27SR)..(GCC,GEN,LA,VN)

LT.GRAY,TRIM2#,4#

 1
84732H - SWITCH, HEATER BLOWER
84732-0K010

TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL)

 1
84732-0K010

GUN143..PHLP..(28E,N);TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..20E;GUN143,TGN141..5F..(24,27,28)..(GCC,GEN);GUN142,TGN14#..(20,24,27SR)..(GCC,GEN,LA)

 1
Linked diagrams
6452

(1511-2009) ; (2009- )

Click highlighted areas on diagram

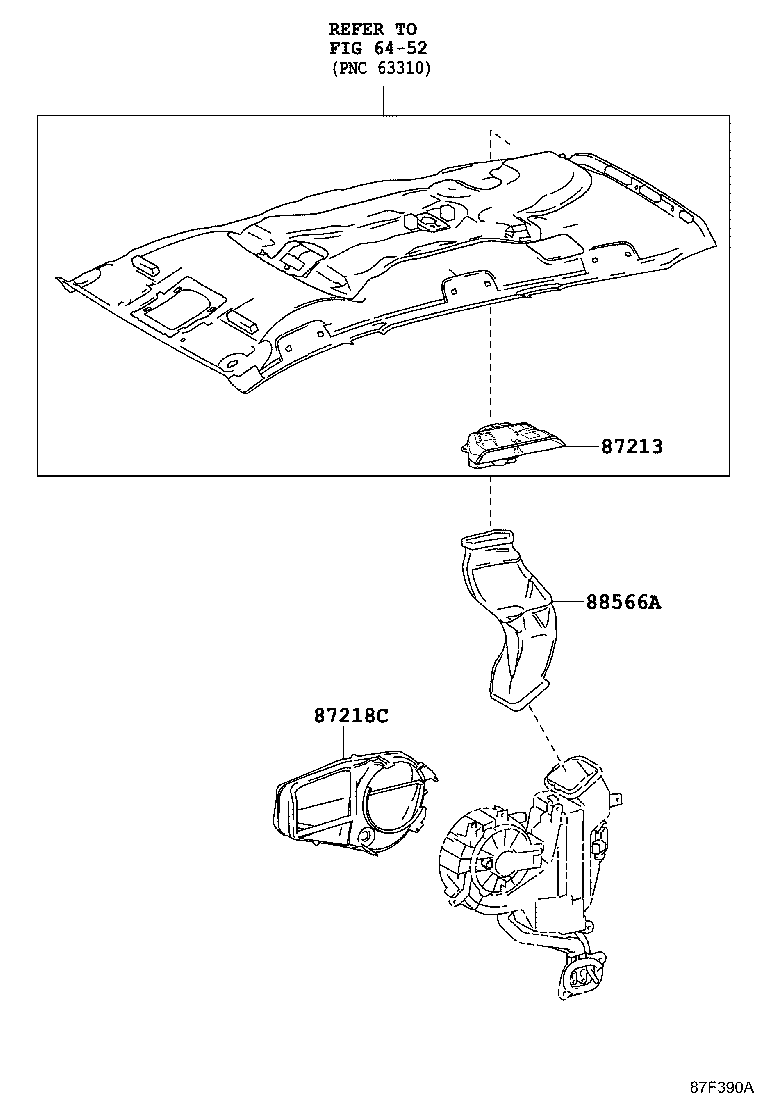

REAR AIR DUCT

diagram 6452 87213 87218C 88566A
Part # Description Qty Price
87218C - DUCT, AIR, REAR NO.6
88566-0K510

GUN143,TGN141..5F..GCC;GUN142,TGN140..(20G,20V,24,24G,24V,28V)..(GCC,SA,TH,VN)

 1
88566A - DUCT, COOLER AIR, NO.1
88566-0K520

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
88566-0K520

TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)

 1
Linked diagrams
6452

(1511-2009)LHD ; (2009- )LHD

Click highlighted areas on diagram

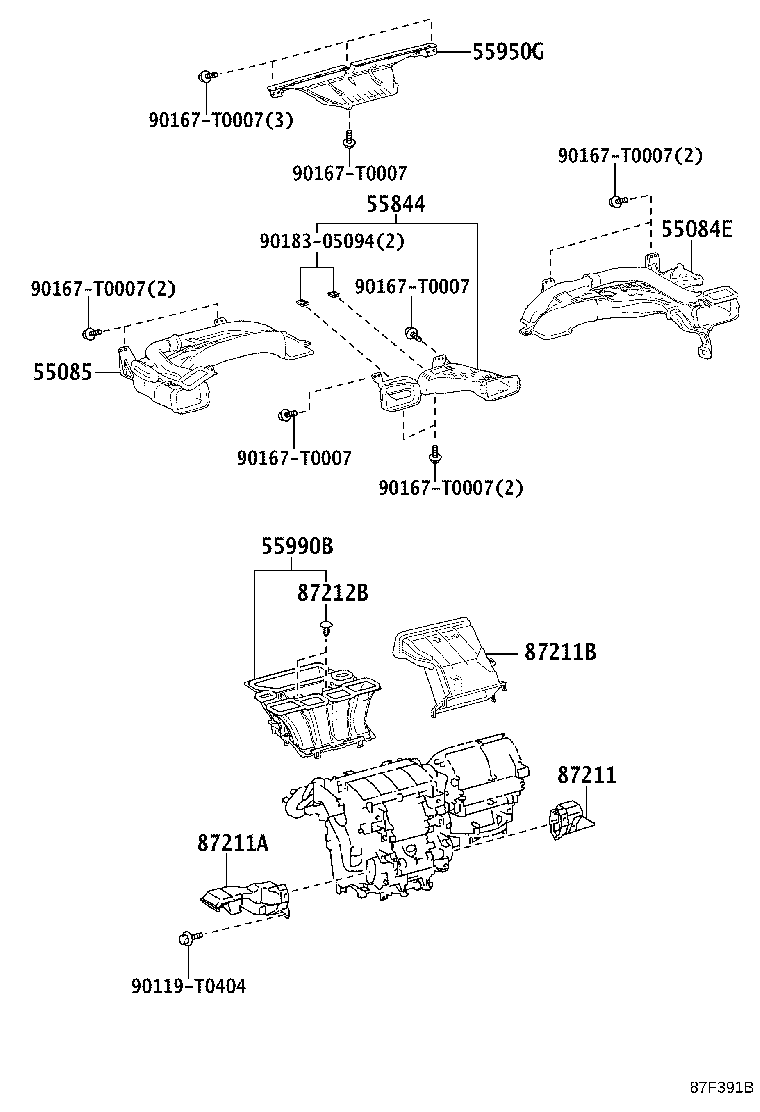

FRONT AIR DUCT

diagram 55084E 55085 55844 55950G 55990B 87211 87211A 87211B 87212B 90119T0404 90167T0007 90167T0007 90167T0007 90167T0007 90167T0007 90167T0007 90167T0007 9018305094
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55085-KK010

GUN143,TGN140..IDN,TH;GUN142..RHD..(GEN,IDN)

 1
55085-KK020

GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..LHD..(24,24G,27SR,28V);GUN143,TGN140..PHLP..(20E,20G,28E,28G,28V,N)

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55084-KK050

GUN143,TGN140..IDN,TH;GUN142..RHD..(GEN,IDN)

 1
55084-KK060

GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..LHD..(24,24G,27SR,28V);GUN143,TGN140..PHLP..(20E,20G,28E,28G,28V,N)

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55835-KK010

GUN143,TGN140..IDN,TH;GUN142..RHD..(GEN,IDN)

 1
55835-KK020

GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..LHD..(24,24G,27SR,28V);GUN143,TGN140..PHLP..(20E,20G,28E,28G,28V,N)

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-KK010

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
55950-KK010

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-KK010

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN14#..6FC..(GCC,LA,MA);GUN143,TGN140..(IDNP,VNP)..(IDN,PHL,TH,VN)

 1
55990-KK010

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
87211 - DUCT, AIR, NO.1
87211-0K660

GUN14#,TGN14#..LHD..IDNP

 1
87211A - DUCT, AIR, NO.2
87211-0K570

GUN14#,TGN14#..LHD..IDNP

 1
87211B - DUCT, AIR, NO.3
87211-0K530

GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN14#..(20,20E,20G,20V,24,24G,27SR,28V)..(GCC,LA,VN)

 1
87212B - CLIP, AIR DUCT
90467-0504522

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

BLACK

 2
90467-0504522

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

BLACK

 2
Common parts
90119-T0404
90167-T0007
90183-05094

(1511-2009)LHD ; (2009- )LHD

Click highlighted areas on diagram

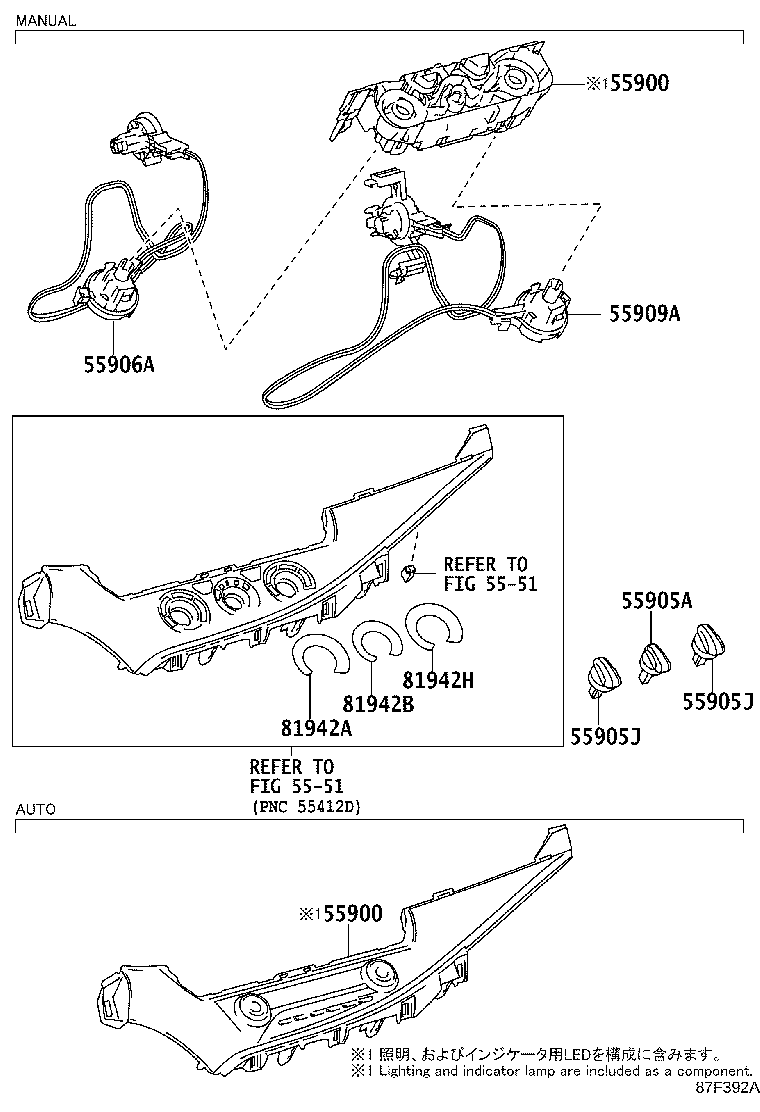

FRONT HEATER CONTROL

diagram 5551 5551 55900 55900 55905A 55905J 55905J 55906A 55909A 81942A 81942B 81942H
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-0K730

TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL)

 1
55900-0K711

GUN14#,TGN14#..LHD..(20G,20V,24G,27G,27SRV,28G,28V)

 1
55900-0K712

GUN143..5F..28G..GCC;GUN143,TGN140..PHLP..(20G,28G,28V)

 1
55900 - CONTROL ASSY, AIR CONDITIONER
55900-0K730

TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL)

 1
55900-0K711

GUN14#,TGN14#..LHD..(20G,20V,24G,27G,27SRV,28G,28V)

 1
55900-0K712

GUN143..5F..28G..GCC;GUN143,TGN140..PHLP..(20G,28G,28V)

 1
55905A - KNOB, HEATER CONTROL
55917-0K050

TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL)

 1
55905J - KNOB SUB-ASSY, CONTROL
55905-0K180

TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL)

 2
55905-0K300

GUN143,TGN141..5F..(24,27,28)..(GCC,GEN);GUN142,TGN14#..(20,20E,24,27SR)..(GCC,GEN,LA,VN)

 2
55905J - KNOB SUB-ASSY, CONTROL
55905-0K180

TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL)

 2
55905-0K300

GUN143,TGN141..5F..(24,27,28)..(GCC,GEN);GUN142,TGN14#..(20,20E,24,27SR)..(GCC,GEN,LA,VN)

 2
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0K060

TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL)

 1
55906-0K060

TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..20E;GUN143..(24,28G)..(GEN,IND);GUN143,TGN141..5F..(27,28)..GCC;GUN14#..(INDP,PHLP)..(24G,28E,G,N)..DCR;GUN142,TGN14#..(20,24,27SR)..(GCC,GEN,LA)

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K060

GUN143..(24,28G)..(GEN,IND);GUN143,TGN141..5F..(27,28)..GCC;GUN142,TGN140..(20,24)..(GCC,GEN);GUN142,TGN141..(24G,27G,27SR,G,N)..(IND,LA)

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81941-0K090

GUN143,TGN141..5F..(24,27,28)..(GCC,GEN);GUN142,TGN14#..(20,20E,24,27SR)..(GCC,LA,VN)

 1
81942B - SHEET, HEATER CONTROL NAME, NO.2
81942-0K550

TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL)

 1
81942-0K590

GUN143..(24,28G)..(GEN,IND);GUN143,TGN141..5F..(27,28)..GCC;GUN142,TGN140..(20,24)..(GCC,GEN);GUN142,TGN141..(24G,27G,27SR,G,N)..(IND,LA)

 1
81942H - SHEET, HEATER CONTROL NAME, NO.3
81943-0K150

GUN143,TGN141..5F..(24,27,28)..(GCC,GEN);GUN142,TGN14#..(20,20E,24,27SR)..(GCC,LA,VN)

 1
Linked diagrams
5551

(1511-2009)LHD ; (2009- )LHD

Click highlighted areas on diagram

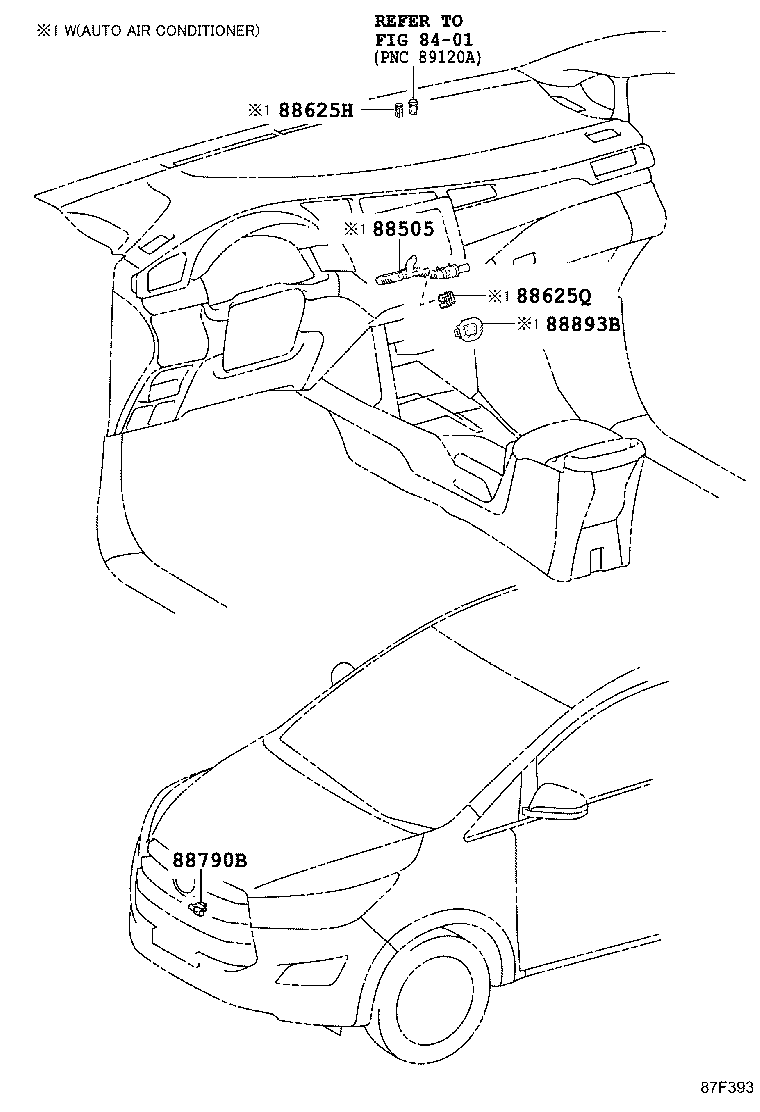

SENSOR

diagram 8401 88505 88625H 88625Q 88790B 88893B
Part # Description Qty Price
88505 - DUCT SUB-ASSY,AIR CONDITIONER
88505-0K730

GUN143,TGN141..5F..(27G,28G)..GCC;GUN142,TGN140..(20G,20V,24G,28V)..(GCC,VN)

 1
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-0K010

GUN142..SA;GUN142..(24G,24V,28V)..(GCC,TH);GUN143,TGN141..5F..(27G,28G)..GCC;GUN143,TGN140..PHLP..(20G,28G,28V)

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-0K020

GUN142..SA;GUN142..(24G,24V,28V)..(GCC,TH);GUN143,TGN141..5F..(27G,28G)..GCC;GUN143,TGN140..PHLP..(20G,28G,28V)

 1
88790B - THERMISTOR ASSY
88790-0K010

TGN141..6FC;TGN140..PHLP..5F;GUN143..6FC..GCC;TGN140..(MAP,PHLP)..6FC..20E;GUN143..IDNP..(28G,28V)..(PHL,TH);TGN141..5F..(27,27G,27V)..(IND,LA);TGN140..(IDNP,VNP)..(IDN,PHL,TH,VN);GUN14#..(24G,24Q,24V,28E,N)..(GEN,IDN,PHL)

 1
88790-0K010

TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN14#..5F..(GCC,GEN,MA);GUN143,TGN140..(INDP,PHLP)..(20G,28G,28V,28Z)

 1
88893B - CLAMP (FOR COOLER AIR HOSE)
88893-0K020

GUN143,TGN141..5F..(27G,28G)..GCC;GUN142,TGN140..(20G,20V,24G,28V)..(GCC,VN)

 1
Linked diagrams
8401
