Toyota Innova GUN143 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
INNOVA
GUN143L-MDMMYV (2017)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

GUN143L-MDMMYV (2017)

Toyota Innova

Production Aug 2017 - Apr 2019

Engine 1GDFTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1511- )20E,24,27,27SR,28..GCC,GEN,LA,VN ; (2009- )27,28..GCC,LA

Click highlighted areas on diagram

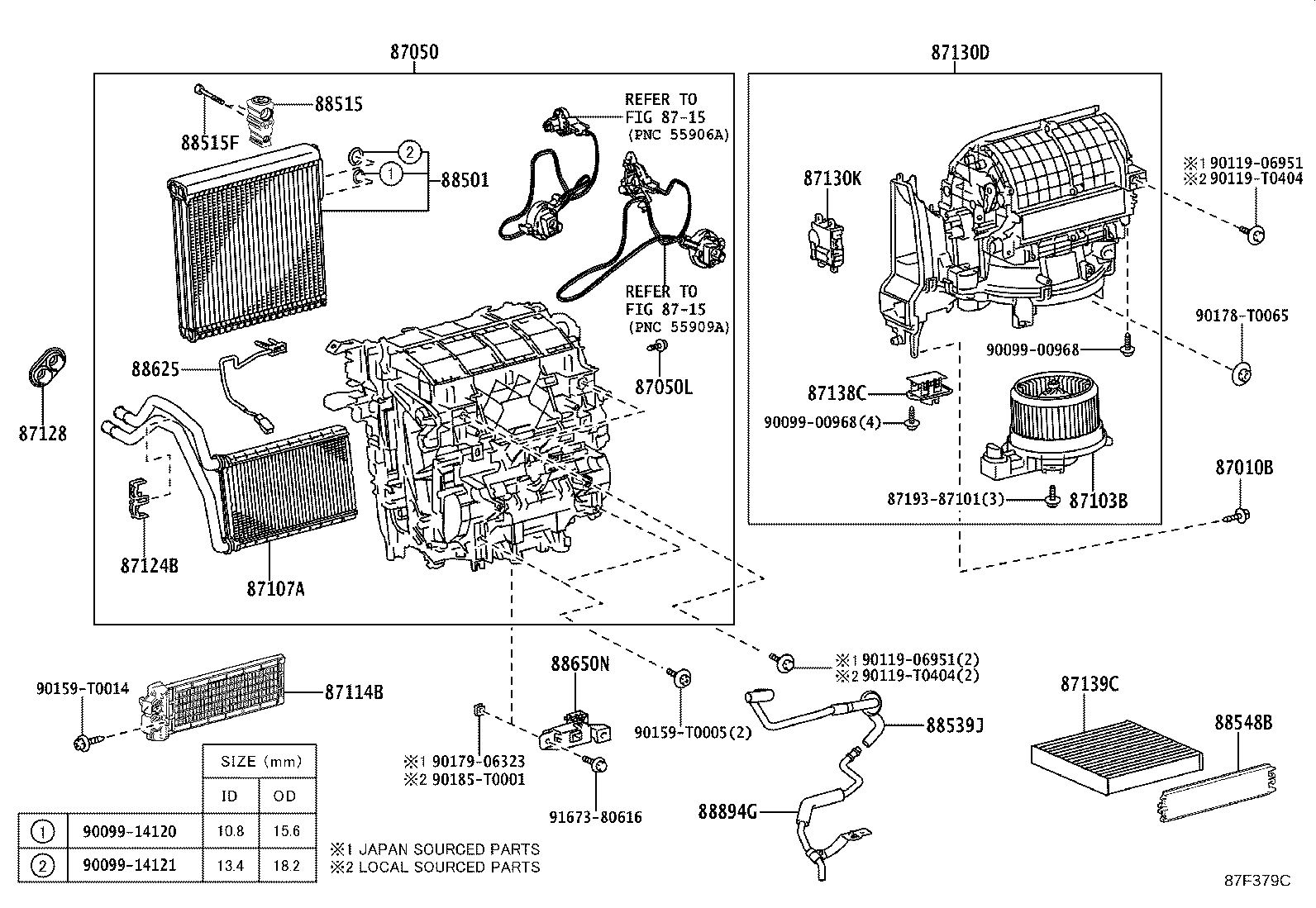

FRONT MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87010B - SCREW(FOR AIR CONDITIONER UNIT)
90099-00968	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	2
90099-00968	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	2
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0KE50	GUN14#,TGN141..(24,27,28)..GCC	11/2015 - 08/2020	1
87050-0KE60	GUN14#,TGN141..(24G,27G,28G,28V)..GCC	11/2015 - 08/2020	1
87050L - SCREW(FOR AIR CONDITIONER RADIATOR)
90099-00968	GUN142..(24G,28V)..GCC;GUN143,TGN141..5F..(27G,28G)..GCC;GUN143,TGN140..PHLP..(20G,28G,28V)	11/2015 - 12/2999	13
90099-00968	GUN143..24,28Z;GUN143,TGN141..5F..(27,28)..GCC;GUN142,TGN14#..(5F,6FC)..(20G,20V,24,24V,24Z,27SR)..(GCC,IND,LA,MA,SA)..(DCR,HTWC)	11/2015 - 12/2020	11
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K440	GUN14#,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28,28G,28V)	11/2015 - 06/2019	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K130	GUN142..SA,TH;GUN142,TGN141..LHD;GUN143,TGN140..IDNP..(20,20G,24,28,28G,28V)..(GCC,GEN,PHL,TH)	11/2015 - 08/2020	1
87114B - COVER, HEATER
87114-0K060	GUN14#,TGN14#..IDNP	11/2015 - 08/2020	1
87124B - CLAMP, HEATER
87124-06140	TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN140..(INDP,PHLP)..(20G,28G,28V,28Z)	11/2015 - 12/2999	1
87128 - GROMMET, HEATER
87128-0K150	GUN142..24G..TH;GUN143..IDNP..(24,28,28G,28V);GUN142,TGN140..RHD..IDNP..(20,20Q,20V,24,24Q,24V);GUN142,TGN14#..LHD..IDNP..(20G,24,24G,24V,27,27G,27SR,27SRV,28V)	11/2015 - 08/2020	1
87128-0K140	TGN140..RHD..IDNP..(20E,20G);GUN14#,TGN140..IDNP..(20E,24G,28E,N)..(GEN,IDN,PHL)	11/2015 - 08/2020	1
87130D - BLOWER ASSY
87130-0K680	GUN14#,TGN14#..LHD..IDNP..(20G,24G,24V,27G,27SRV,28G,28V)	11/2015 - 06/2019	1
87130-0K660	GUN14#,TGN141..LHD..(24,27,27SR,28)	11/2015 - 06/2019	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-0K220	TGN140..RHD..IDNP..(20E,20G);GUN143,TGN141..6FC..(27,28)..GCC;GUN14#,TGN14#..IDNP..(20E,24G,27,28E,N)..(GEN,IDN,LA,PHL)	11/2015 - 08/2020	1
87106-0K220	TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..20E;GUN143..(24,28G)..(GEN,IND);GUN143,TGN141..5F..(27,28)..GCC;GUN14#..(INDP,PHLP)..(24G,28E,G,N)..DCR;GUN142,TGN14#..(20,24,27SR)..(GCC,GEN,LA)	11/2015 - 12/2999	1
87106-0K240	GUN142..(24G,28V)..GCC;GUN143,TGN141..5F..(27G,28G)..GCC;GUN143,TGN140..PHLP..(20G,28G,28V)	11/2015 - 01/2021	1
87138C - RESISTOR, BLOWER
87138-0K350	GUN142,TGN141..LHD..(24,27SR);GUN143,TGN140..PHLP..(20E,28E,N);GUN143,TGN141..5F..(24,27,28)..(GCC,GEN)	11/2015 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-0K040	GUN14#,TGN14#..GCC,GEN,LA,SA POLLEN FILTER,OE PART	11/2015 - 08/2020	1
87139-58010	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) DEODORANT FILTER	11/2015 - 08/2020	1
87139-0K030	GUN14#,TGN140..IDNP..(IDN,PHL,TH) POLLEN FILTER,OE PART	11/2015 - 08/2020	1
87139-58010	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) DEODORANT FILTER	11/2015 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K450	GUN14#,TGN14#..LHD..IDNP	11/2015 - 08/2020	1
88515 - VALVE, COOLER EXPANSION
88515-0K580	GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA)	11/2015 - 08/2020	1
88515-0K590	GUN14#,TGN141..5F..GCC;GUN143..PHLP..5F..(28E,28G,N);GUN142..(6F,6FC)..(GCC,IND,TH)..DCR	11/2015 - 12/2999	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	2
90099-04542	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	2
88539J - HOSE, DRAIN COOLER
88539-0K330	GUN14#,TGN14#..LHD..IDNP	11/2015 - 08/2020	1
88548B - CASE, AIR FILTER
88548-0K090	GUN14#,TGN14#..IDNP	11/2015 - 12/2018	1
88625 - THERMISTOR, COOLER, NO.1
88620-0K010	TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN142..(5F,6FC)..(GCC,IND,SA)..DCR;GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)	11/2015 - 12/2999	1
88620-0K010	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-0K450	GUN14#,TGN141..(24G,27G,28G,28V)..GCC	11/2015 - 08/2020	1
88650-0K420	GUN143,TGN141..5F..(24,27,28)..(GCC,GEN);GUN142,TGN14#..(20,20E,24,27SR)..(GCC,GEN,LA,VN)	11/2015 - 09/2020	1
88894G - CONNECTOR, DRAIN HOSE
88894-0K040	GUN14#,TGN14#..LHD..IDNP	11/2015 - 08/2020	1
Common parts
87193-87101
90099-00968
90099-14120
90099-14121
90119-06951
90119-T0404
90159-T0005
90159-T0014
90178-T0065
90179-06323
90185-T0001
91673-80616
Linked diagrams
8715

(1511- )28..GCC ; (1511- )6FC..20G..IDN ;(1511- )6FC..20E..PHL ; (1511-

Click highlighted areas on diagram

REAR MANUAL COOLER

Part #	Description	Period	Qty
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-0K190	GUN14#,TGN14#..IDNP,VNP	11/2015 - 07/2019	1
87103-0K190	GUN14#,TGN14#..IDNP,VNP	11/2015 - 07/2019	1
87103-0K190	GUN14#,TGN14#..IDNP,VNP	11/2015 - 07/2019	1
87103-0K190	GUN14#,TGN14#..IDNP,VNP	11/2015 - 07/2019	1
87138D - RESISTOR, BLOWER (REAR)
87138-0K090	GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N)	11/2015 - 07/2019	1
87138-0K090	GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N)	11/2015 - 07/2019	1
87138-0K090	GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N)	11/2015 - 07/2019	1
87138-0K090	GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N)	11/2015 - 07/2019	1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-0K440	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88501-0K440	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88501-0K440	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88501-0K440	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88501-0K440	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88501-0K440	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88501-0K440	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88501-0K440	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88510T - UNIT ASSY, COOLING (REAR)
88500-0K260	GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N)	11/2015 - 07/2019	1
88500-0K260	GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N)	11/2015 - 07/2019	1
88500-0K260	GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N)	11/2015 - 07/2019	1
88500-0K260	GUN142..24G..(GEN,IDN);TGN140..RHD..IDNP..(20,20E,20G);GUN14#,TGN14#..LHD..(IDNP,VNP)..(20,20E,24,27,27SR,28,28E,N)	11/2015 - 07/2019	1
88500-0K280	GUN142..24G..TH;GUN143..IDNP..(28G,28V);GUN142,TGN140..(20Q,20V,24,24Q,24V)..(IDN,SA,TH,VN);GUN142,TGN14#..LHD..(IDNP,VNP)..(20G,24G,24V,27G,27SRV,28V)	11/2015 - 07/2019	1
88500-0K280	GUN142..24G..TH;GUN143..IDNP..(28G,28V);GUN142,TGN140..(20Q,20V,24,24Q,24V)..(IDN,SA,TH,VN);GUN142,TGN14#..LHD..(IDNP,VNP)..(20G,24G,24V,27G,27SRV,28V)	11/2015 - 07/2019	1
88500-0K280	GUN142..24G..TH;GUN143..IDNP..(28G,28V);GUN142,TGN140..(20Q,20V,24,24Q,24V)..(IDN,SA,TH,VN);GUN142,TGN14#..LHD..(IDNP,VNP)..(20G,24G,24V,27G,27SRV,28V)	11/2015 - 07/2019	1
88500-0K280	GUN142..24G..TH;GUN143..IDNP..(28G,28V);GUN142,TGN140..(20Q,20V,24,24Q,24V)..(IDN,SA,TH,VN);GUN142,TGN14#..LHD..(IDNP,VNP)..(20G,24G,24V,27G,27SRV,28V)	11/2015 - 07/2019	1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-0K640	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88515-0K640	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88515-0K640	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88515-0K640	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88515-0K640	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88515-0K640	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88515-0K640	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88515-0K640	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-0K450	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88539-0K450	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88539-0K450	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88539-0K450	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88539-0K450	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88539-0K450	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88539-0K450	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88539-0K450	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0KG10	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88710-0KG10	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88710-0KG10	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88710-0KG10	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88710-0KG10	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88710-0KG10	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88710-0KG10	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88710-0KG10	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88891 - PACKING (FOR COOLER)
88619-0K130	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88619-0K130	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88619-0K130	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88619-0K130	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88619-0K130	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88619-0K130	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88619-0K130	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88619-0K130	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88891S - COVER, COOLER, NO.1
88899-0K130	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88899-0K130	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88899-0K130	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88899-0K130	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88899-0K130	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88899-0K130	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88899-0K130	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88899-0K130	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88892N - COVER, COOLER, NO.2
88899-0K140	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88899-0K140	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88899-0K140	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88899-0K140	GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)	11/2015 - 08/2020	1
88899-0K140	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88899-0K140	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88899-0K140	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
88899-0K140	TGN140..GEN,VN;GUN143,TGN141..5F..(GCC,GEN);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)	11/2015 - 09/2020	1
Common parts
87193-87101
90099-00968
90099-04497
90099-14119
90099-14120
90099-14121
90119-06830
90119-T0404
90119-T0442
Linked diagrams
8401

GUN143L-MDMMYV (2017)

(1511- )20E,24,27,27SR,28..GCC,GEN,LA,VN ; (2009- )27,28..GCC,LA

(1511- )28..GCC ; (1511- )6FC..20G..IDN ;(1511- )6FC..20E..PHL ; (1511-
