GUN143L-MDMMYV (2017)

Toyota Innova

Production Aug 2017 - Apr 2019
Engine 1GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1511-2009) ; (2009- )

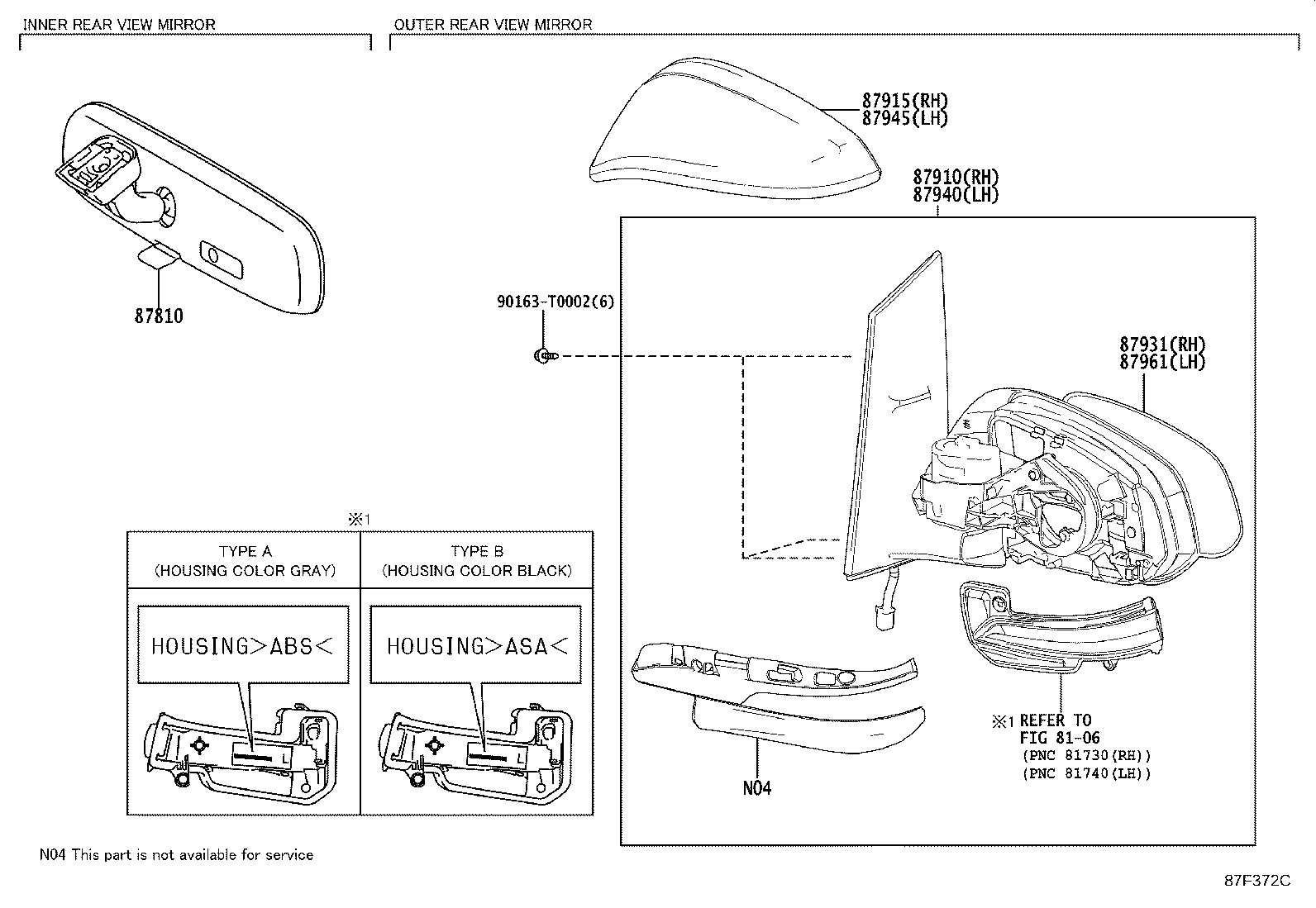

Click highlighted areas on diagram

diagram 8106 87810 87910 87915 87931 87940 87945 87961 90163T0002
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06041

TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN140..(20E,24G,24Q,24V)..(GEN,IDN,VN)

 1
87810-06041

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
87915 - COVER, OUTER MIRROR, RH
87915-0K924

GUN142..24V..IDN;GUN143..(28,28G)..(GCC,TH);GUN142,TGN14#..(20,20E,20G,20V,24,24G,27,27G)..(GCC,GEN,IDN,SA,TH)

 1
87931 - OUTER MIRROR, RH
87931-0KB80

GUN14#,TGN141..GCC

 1
87931-0K540

GUN142..GEN,IDN;GUN143,TGN140..IDN,TH

 1
87945 - COVER, OUTER MIRROR, LH
87945-0K924

GUN142..24V..IDN;GUN143..(28,28G)..(GCC,TH);GUN142,TGN14#..(20,20E,20G,20V,24,24G,27,27G)..(GCC,GEN,IDN,SA,TH)

 1
87961 - MIRROR OUTER, LH
87961-0K520

GUN142..GEN,IDN;GUN143,TGN140..IDN,TH

 1
87961-0KA40

GUN14#,TGN141..GCC

 1
Common parts
90163-T0002
Linked diagrams
8106
