GUN143L-MDMMYV (2017)

Toyota Innova

Production Aug 2017 - Apr 2019
Engine 1GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

Click highlighted areas on diagram

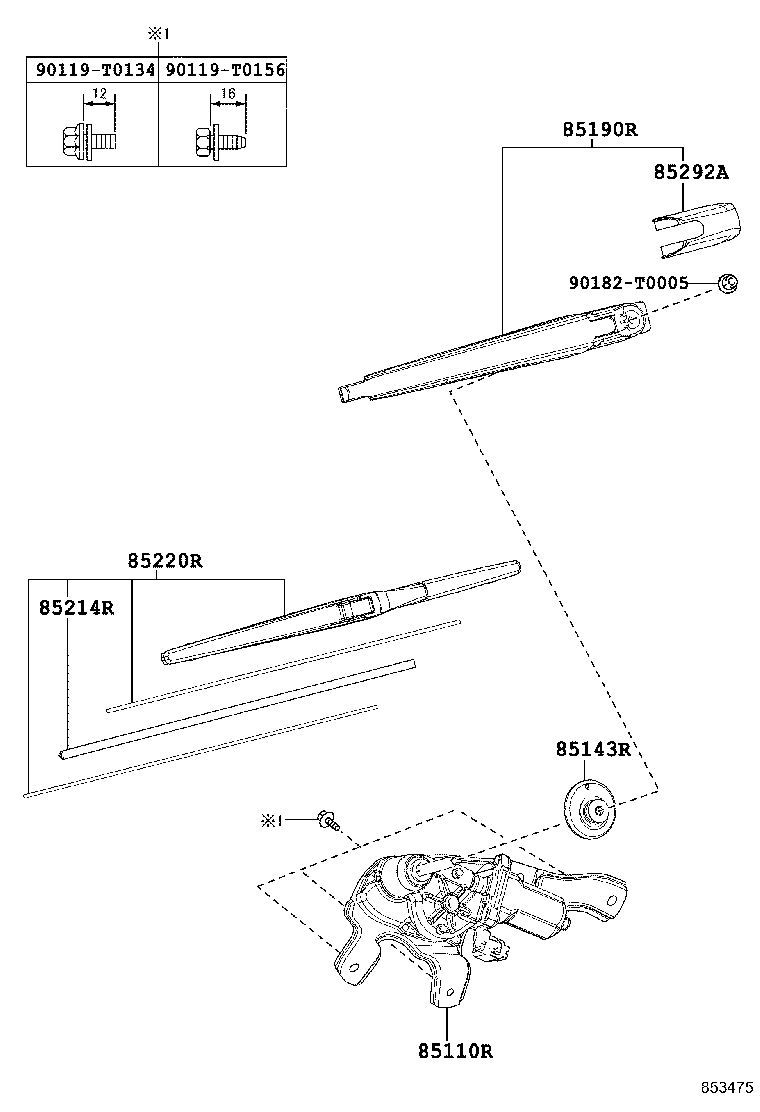

diagram 85110R 85143R 85190R 85214R 85220R 85292A 90119T0134 90119T0156 90182T0005
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-0K050

TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN140..(20E,24G,24Q,24V)..(GEN,IDN,VN)

 1
85130-0K050

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-0K030

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)

 1
85143-0K030

TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN140..(20E,24G,24Q,24V)..(GEN,IDN,VN)

 1
85190R - ARM ASSY, REAR WIPER
85241-0K040

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)

 1
85241-0K040

TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN140..(20E,24G,24Q,24V)..(GEN,IDN,VN)

 1
85214R - RUBBER, REAR WIPER
85214-42040

TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN140..(20E,24G,24Q,24V)..(GEN,IDN,VN)

 1
85214-42040

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
85220R - BLADE ASSY, REAR WIPER
85242-0K040

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)

 1
85242-0K040

TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN140..(20E,24G,24Q,24V)..(GEN,IDN,VN)

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-0K060

TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN140..(20E,24G,24Q,24V)..(GEN,IDN,VN)

 1
85292-0K060

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)

 1
Common parts
90119-T0134
90119-T0156
90182-T0005
