GUN143L-MDMMYV (2017)
Toyota Innova
(1511- )IDNP,MAP,PHLP,VNP..20E,20G,20Q,20V,24,24G,24Q,24V,27,27G,27SR,27SRV,28,2

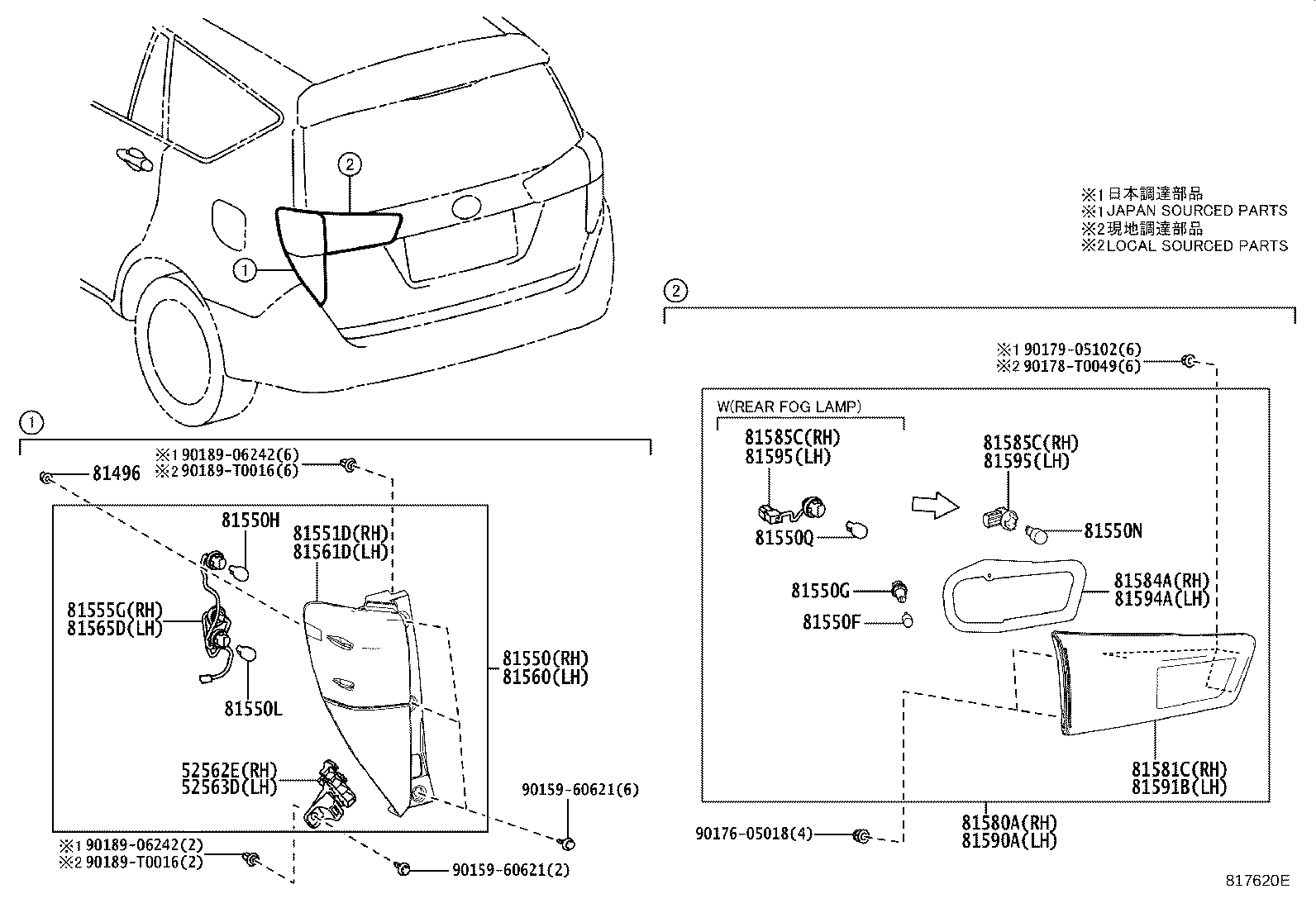

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52562E - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-0K070 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 52562-0K070 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 52562-0K070 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 52562-0K070 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 52563D - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 52563-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 52563-0K010 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 52563-0K010 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-0K240 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81550-0K240 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81550-0K240 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81550-0K240 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81550F - BULB, TAIL LAMP | ||||
| 90981-11067 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) 12V 5W |
2 | ||
| 90981-11067 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) 12V 5W |
2 | ||
| 90981-11067 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) 12V 5W |
2 | ||
| 90981-11067 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) 12V 5W |
2 | ||
| 81550G - SOCKET, TAIL LAMP | ||||
| 90075-60077 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90075-60077 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 90075-60077 |
GUN142..24G..(GCC,TH);GUN143,TGN141..5F..GCC;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN143,TGN140..(20,24,28Z)..(GEN,IND);GUN142,TGN141..(24,24V,24Z,27SR,28V)..(GCC,IND,LA,SA,TH)..(DCR,HTWC) |
2 | ||
| 90075-60077 |
GUN142..24G..(GCC,TH);GUN143,TGN141..5F..GCC;TGN140..(MAP,PHLP)..5F;TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN143,TGN140..(20,24,28Z)..(GEN,IND);GUN142,TGN141..(24,24V,24Z,27SR,28V)..(GCC,IND,LA,SA,TH)..(DCR,HTWC) |
2 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) 12V 21/5W |
2 | ||
| 90981-13044 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) 12V 21/5W |
2 | ||
| 90981-13044 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) 12V 21/5W |
2 | ||
| 90981-13044 |
TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N) 12V 21/5W |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) 12V 21W,AMBER |
2 | ||
| 90981-15011 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) 12V 21W,AMBER |
2 | ||
| 90981-15011 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) 12V 21W,AMBER |
2 | ||
| 90981-15011 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) 12V 21W,AMBER |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
GUN14#,TGN14#..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,27,27SRV,28E,28G,28V,N)..(GEN,IDN,LA,PHL) 12V 16W |
2 | ||
| 90981-11059 |
GUN14#,TGN14#..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,27,27SRV,28E,28G,28V,N)..(GEN,IDN,LA,PHL) 12V 16W |
2 | ||
| 90981-11059 |
TGN140..MA;GUN142..24G..TH;GUN143..5F..(GCC,GEN);GUN142..(24V,28V)..(GCC,TH) 12V 16W |
1 | ||
| 90981-11059 |
TGN140..MA;GUN142..24G..TH;GUN143..5F..(GCC,GEN);GUN142..(24V,28V)..(GCC,TH) 12V 16W |
1 | ||
| 81550Q - BULB, REAR FOG LAMP, NO.1 | ||||
| 90981-13043 |
TGN140..MA;GUN142..24G..TH;GUN143..5F..(GCC,GEN);GUN142..(24V,28V)..(GCC,TH) 12V 21W |
1 | ||
| 90981-13043 |
TGN140..MA;GUN142..24G..TH;GUN143..5F..(GCC,GEN);GUN142..(24V,28V)..(GCC,TH) 12V 21W |
1 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-0K240 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81551-0K240 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81551-0K240 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81551-0K240 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81555G - CORD, REAR COMBINATION LAMP, RH | ||||
| 81555-0K240 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81555-0K240 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81555-0K240 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81555-0K240 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-0K240 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81560-0K240 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81560-0K240 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81560-0K240 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-0K240 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81561-0K240 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81561-0K240 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81561-0K240 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81565D - CORD, REAR COMBINATION LAMP, LH | ||||
| 81555-0K240 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81555-0K240 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81555-0K240 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81555-0K240 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81580A - LAMP ASSY, REAR | ||||
| 81580-0K050 |
TGN140..20..GEN;GUN143,TGN141..5F..(GCC,GEN);GUN143,TGN140..PHLP..(20E,20G,28E,28G,28V,N);GUN142,TGN141..(24,24G,27SR,28V)..(GCC,LA,SA) |
1 | ||
| 81580-0K050 |
TGN140..20..GEN;GUN143,TGN141..5F..(GCC,GEN);GUN143,TGN140..PHLP..(20E,20G,28E,28G,28V,N);GUN142,TGN141..(24,24G,27SR,28V)..(GCC,LA,SA) |
1 | ||
| 81580-0K050 |
TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL) |
1 | ||
| 81580-0K050 |
TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL) |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-0K050 |
TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL) |
1 | ||
| 81581-0K050 |
TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL) |
1 | ||
| 81581-0K050 |
TGN140..20..GEN;GUN143,TGN141..5F..(GCC,GEN);GUN143,TGN140..PHLP..(20E,20G,28E,28G,28V,N);GUN142,TGN141..(24,24G,27SR,28V)..(GCC,LA,SA) |
1 | ||
| 81581-0K050 |
TGN140..20..GEN;GUN143,TGN141..5F..(GCC,GEN);GUN143,TGN140..PHLP..(20E,20G,28E,28G,28V,N);GUN142,TGN141..(24,24G,27SR,28V)..(GCC,LA,SA) |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-0K050 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81584-0K050 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81584-0K050 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81584-0K050 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81275-12501 |
TGN140..20..GEN;GUN143,TGN141..5F..(GCC,GEN);GUN143,TGN140..PHLP..(20E,20G,28E,28G,28V,N);GUN142,TGN141..(24,24G,27SR,28V)..(GCC,LA,SA) |
1 | ||
| 81275-12501 |
TGN140..20..GEN;GUN143,TGN141..5F..(GCC,GEN);GUN143,TGN140..PHLP..(20E,20G,28E,28G,28V,N);GUN142,TGN141..(24,24G,27SR,28V)..(GCC,LA,SA) |
1 | ||
| 81275-12501 |
TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL) |
1 | ||
| 81275-12501 |
TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL) |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81275-12501 |
TGN140..20..GEN;GUN143,TGN141..5F..(GCC,GEN);GUN143,TGN140..PHLP..(20E,20G,28E,28G,28V,N);GUN142,TGN141..(24,24G,27SR,28V)..(GCC,LA,SA) |
1 | ||
| 81275-12501 |
TGN140..20..GEN;GUN143,TGN141..5F..(GCC,GEN);GUN143,TGN140..PHLP..(20E,20G,28E,28G,28V,N);GUN142,TGN141..(24,24G,27SR,28V)..(GCC,LA,SA) |
1 | ||
| 81275-12501 |
TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL) |
1 | ||
| 81275-12501 |
TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN14#,TGN140..IDNP..(20E,20G,20Q,20V,24G,24Q,24V,28E,28G,28V,N)..(GEN,IDN,PHL) |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-0K050 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 81590-0K050 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-0K050 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 81591-0K050 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-0K050 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81594-0K050 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81594-0K050 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81594-0K050 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81275-12501 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81275-12501 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81275-12501 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81275-12501 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81275-12501 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81275-12501 |
TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH) |
1 | ||
| 81275-12501 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 81275-12501 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 90159-60621 | ||||
| 90176-05018 | ||||
| 90178-T0049 | ||||
| 90179-05102 | ||||
| 90189-06242 | ||||
| 90189-T0016 | ||||
