GUN143L-MDMMYV (2017)
Toyota Innova

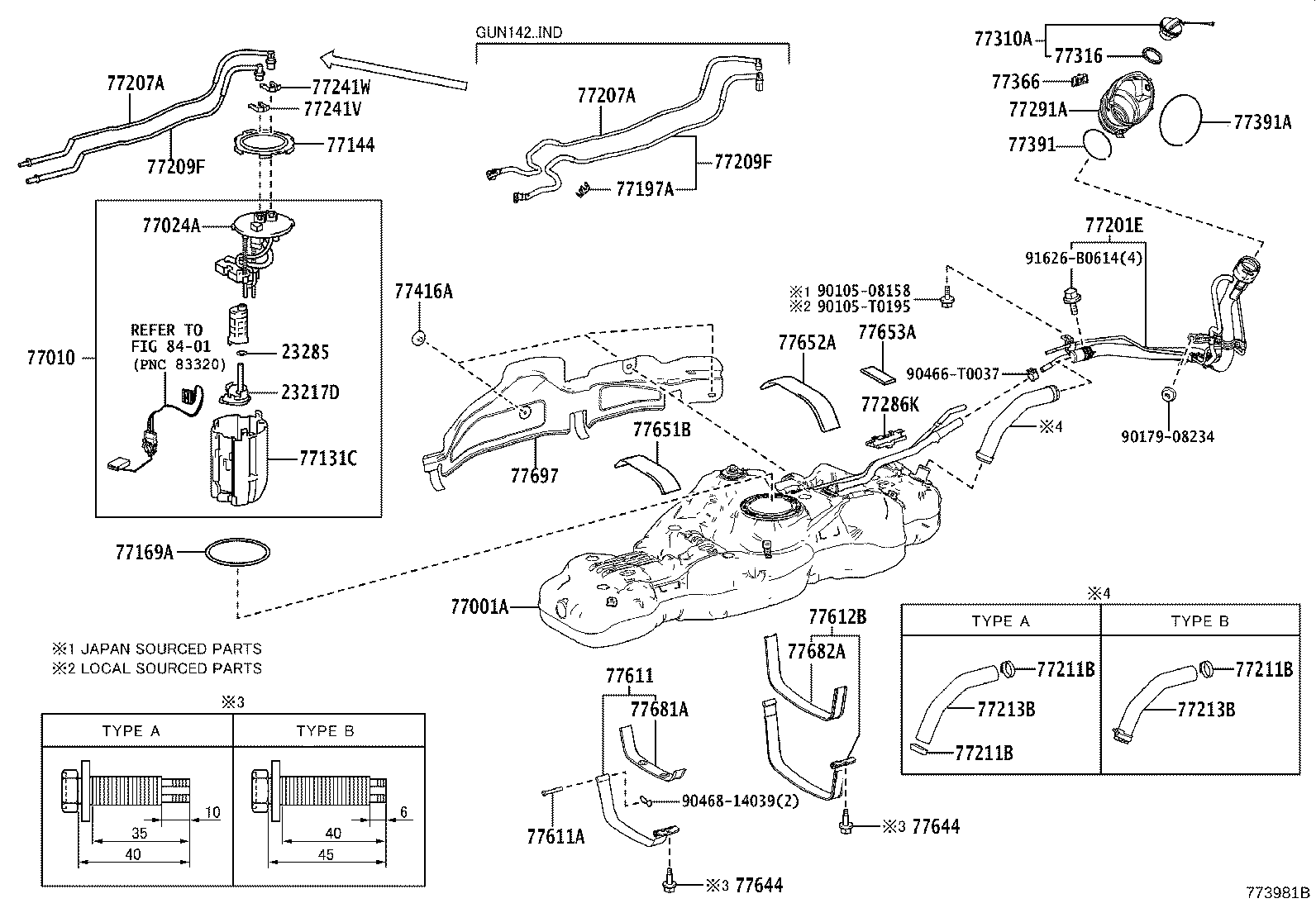

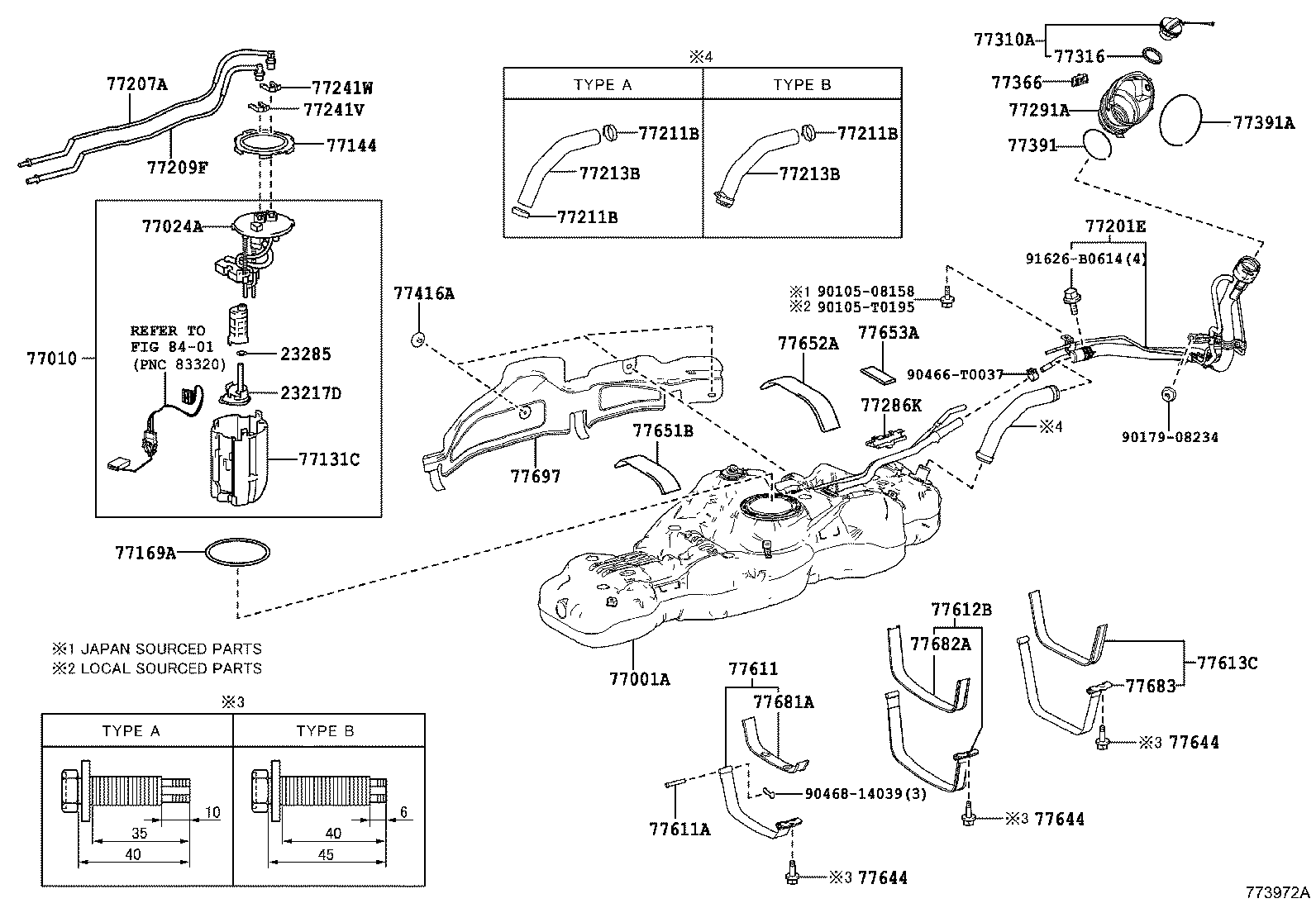

ILLUST NO. 1 OF 3(1511- )GUN14#..GCC,SA
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0L030 |
1GDFTV..GUN143..5F..(GCC,GEN) |
1 | ||
| 23285 - RING, O | ||||
| 90301-T0064 |
2GDFTV..GUN142..GEN,IDN;2TRFE..TGN141..5F..27..LA;1GDFTV,2TRFE..GUN143,TGN141..6FC..(GCC,LA);1GDFTV,1TRFE..GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 90301-T0064 |
1GDFTV,2TRFE..GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-0K370 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-0K190 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0K290 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-0K170 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K040 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77144-0K040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K040 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-KK040 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-0K110 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0K170 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 90460-46005 |
GUN142..GEN,IDN;GUN143..6FC..GCC;GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 90460-46005 |
GUN142..GEN,IDN;GUN143..6FC..GCC;GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 90460-46005 |
GUN142..GEN,IDN;GUN143..6FC..GCC;GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) TYPE A:REFER ILLUST. |
1 | ||
| 77213-KK020 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) TYPE A:REFER ILLUST. |
1 | ||
| 77213-KK051 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) TYPE B:REFER ILLUST. |
1 | ||
| 77213-KK051 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) TYPE B:REFER ILLUST. |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) TYPE A:REFER ILLUST. |
1 | ||
| 77213-KK020 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) TYPE A:REFER ILLUST. |
1 | ||
| 77213-KK051 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) TYPE B:REFER ILLUST. |
1 | ||
| 77213-KK051 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) TYPE B:REFER ILLUST. |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-0K020 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-0K010 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K180 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77286-0K180 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0K050 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77291-0K050 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0K020 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-0K020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77316-0K020 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77360-30080 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-0K010 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77391-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-0K170 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77391-0K170 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77416A - BOLT, FUEL TANK | ||||
| 77512-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
3 | ||
| 77512-0K010 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
3 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-KK020 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77601-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 77653-0K041 |
GUN143,TGN141..5F..(27,28,28G)..GCC |
3 | ||
| 77612B - BAND, FUEL TANK, NO.2 | ||||
| 77602-KK010 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77602-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77613C - BAND, FUEL TANK, NO.3 | ||||
| 77603-KK010 |
GUN143,TGN141..5F..(27,28,28G)..GCC |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GUN143,TGN141..5F..(27,28,28G)..GCC TYPE A:REFER ILLUST. |
3 | ||
| 90119-10983 |
GUN143,TGN141..5F..(27,28,28G)..GCC (J),TYPE B:REF ILL. |
3 | ||
| 90119-A0249 |
GUN143,TGN141..5F..(27,28,28G)..GCC (L),TYPE B:REF ILL. |
3 | ||
| 90119-10983 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) (J),TYPE B:REF ILL. |
2 | ||
| 77644-35030 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) TYPE A:REFER ILLUST. |
2 | ||
| 90119-A0249 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) (L),TYPE B:REF ILL. |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GUN143,TGN141..5F..(27,28,28G)..GCC TYPE A:REFER ILLUST. |
3 | ||
| 90119-10983 |
GUN143,TGN141..5F..(27,28,28G)..GCC (J),TYPE B:REF ILL. |
3 | ||
| 90119-A0249 |
GUN143,TGN141..5F..(27,28,28G)..GCC (L),TYPE B:REF ILL. |
3 | ||
| 90119-10983 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) (J),TYPE B:REF ILL. |
2 | ||
| 77644-35030 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) TYPE A:REFER ILLUST. |
2 | ||
| 90119-A0249 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) (L),TYPE B:REF ILL. |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GUN143,TGN141..5F..(27,28,28G)..GCC TYPE A:REFER ILLUST. |
3 | ||
| 90119-10983 |
GUN143,TGN141..5F..(27,28,28G)..GCC (J),TYPE B:REF ILL. |
3 | ||
| 90119-A0249 |
GUN143,TGN141..5F..(27,28,28G)..GCC (L),TYPE B:REF ILL. |
3 | ||
| 90119-10983 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) (J),TYPE B:REF ILL. |
2 | ||
| 77644-35030 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) TYPE A:REFER ILLUST. |
2 | ||
| 90119-A0249 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) (L),TYPE B:REF ILL. |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-0K050 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77651-0K050 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77654-0K060 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77654-0K060 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-0K060 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77653-0K060 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-KK010 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77681-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77682-KK010 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77683 - SEAT, FUEL TANK BAND, NO.3 | ||||
| 77683-KK020 |
GUN143,TGN141..5F..(27,28,28G)..GCC |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0K060 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77697-0K060 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90105-T0195 | ||||
| 90179-08234 | ||||
| 90466-T0037 | ||||
| 90468-14039 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1511- )GUN14#

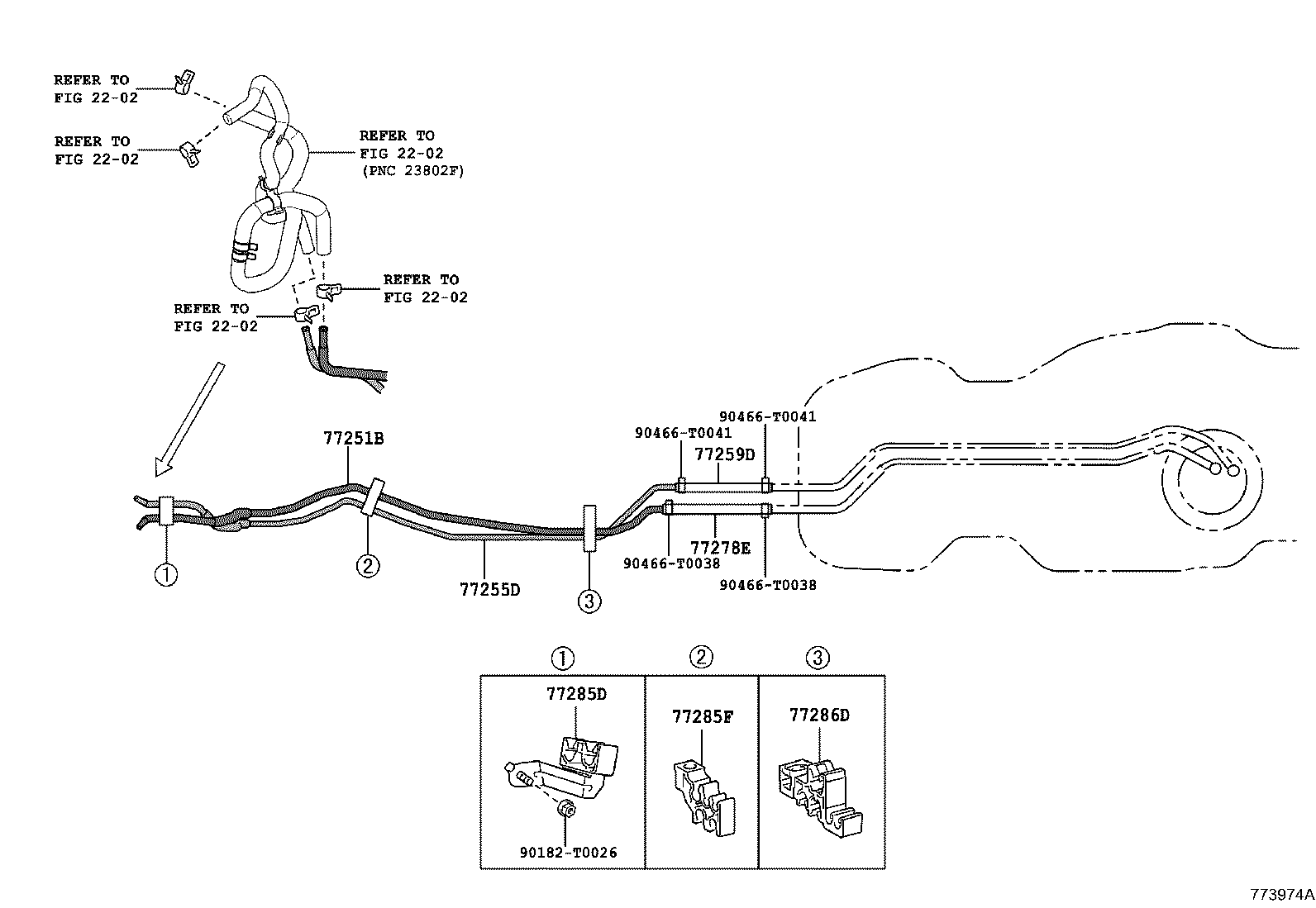

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-KK030 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-KK030 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 95338-08018 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95338-10020 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K160 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K230 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77285-0K230 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K170 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77286-0K170 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90182-T0026 | ||||
| 90466-T0038 | ||||
| 90466-T0041 | ||||
| Linked diagrams | ||||
| 2202 | ||||
ILLUST NO. 3 OF 3(1511- )

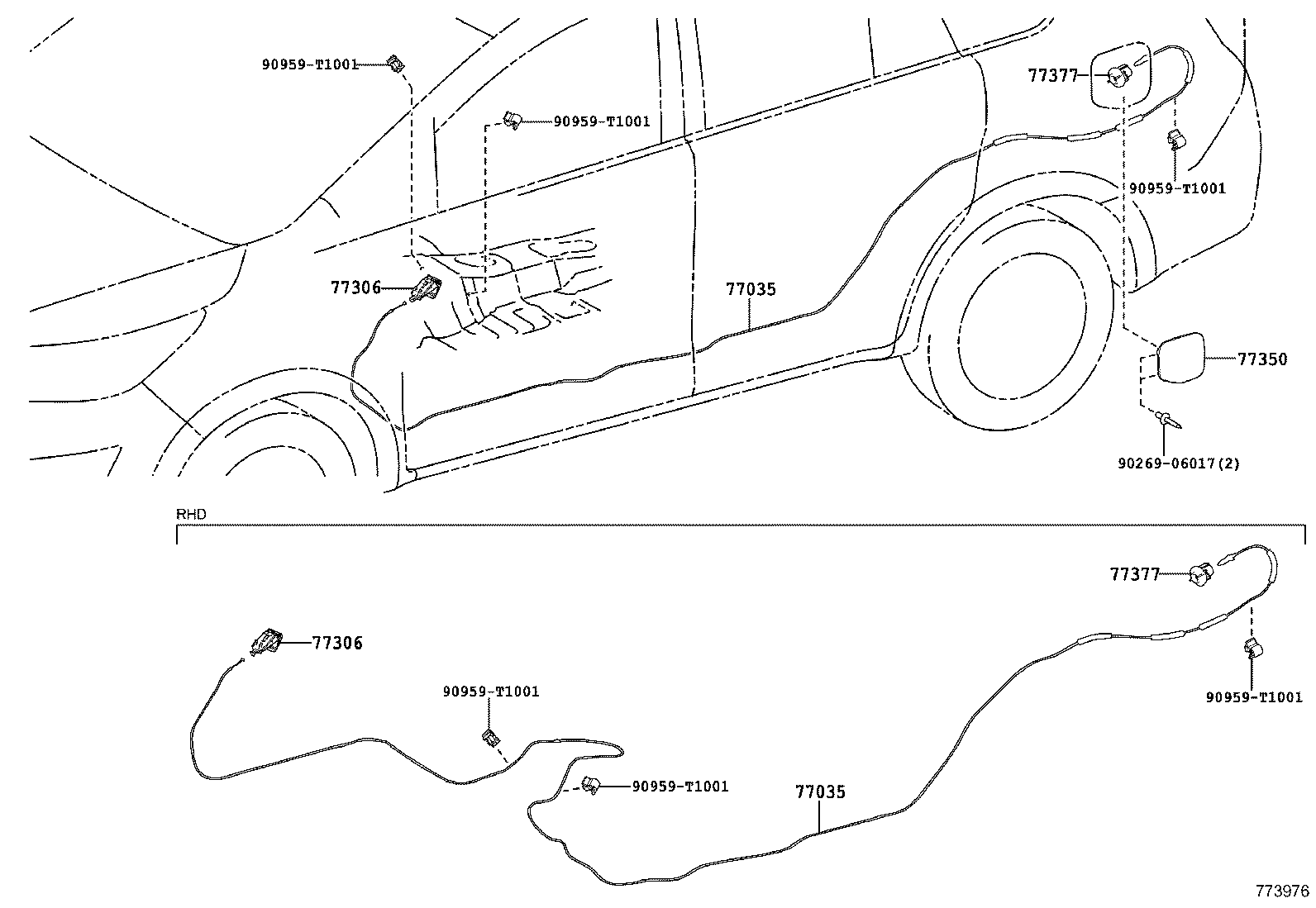

FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K380 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77035-0K370 |
GUN143,TGN140..IDN,TH;GUN142..RHD..(GEN,IDN) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K380 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77035-0K370 |
GUN143,TGN140..IDN,TH;GUN142..RHD..(GEN,IDN) |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K090 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77306-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K090 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77306-0K090 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0K060 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77350-0K060 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0K010 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77377-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0K010 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77377-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 90269-06017 | ||||
| 90959-T1001 | ||||
ILLUST NO. 1 OF 3(1511- )GUN14#..GEN,IDN,IND,MA,PHL,TH
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0L030 |
1GDFTV..GUN143..5F..(GCC,GEN) |
1 | ||
| 23285 - RING, O | ||||
| 90301-T0064 |
2GDFTV..GUN142..GEN,IDN;2TRFE..TGN141..5F..27..LA;1GDFTV,2TRFE..GUN143,TGN141..6FC..(GCC,LA);1GDFTV,1TRFE..GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 90301-T0064 |
1GDFTV,2TRFE..GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-0K370 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-0K190 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-0K290 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-0K170 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K040 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77144-0K040 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K040 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-KK040 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-0K110 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77207A - TUBE SUB-ASSY, FUEL RETURN | ||||
| 77204-0K110 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0K170 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0K170 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 90460-46005 |
GUN142..GEN,IDN;GUN143..6FC..GCC;GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 90460-46005 |
GUN142..GEN,IDN;GUN143..6FC..GCC;GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-46005 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 90460-46005 |
GUN142..GEN,IDN;GUN143..6FC..GCC;GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) TYPE A:REFER ILLUST. |
1 | ||
| 77213-KK020 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) TYPE A:REFER ILLUST. |
1 | ||
| 77213-KK051 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) TYPE B:REFER ILLUST. |
1 | ||
| 77213-KK051 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) TYPE B:REFER ILLUST. |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) TYPE A:REFER ILLUST. |
1 | ||
| 77213-KK020 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) TYPE A:REFER ILLUST. |
1 | ||
| 77213-KK051 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) TYPE B:REFER ILLUST. |
1 | ||
| 77213-KK051 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) TYPE B:REFER ILLUST. |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-0K020 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-0K010 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K180 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77286-0K180 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0K050 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77291-0K050 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-0K020 |
GUN143..5F..(GCC,GEN) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-0K020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77316-0K020 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77360-30080 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-0K010 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77391-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-0K170 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77391-0K170 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77416A - BOLT, FUEL TANK | ||||
| 77512-0K010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
3 | ||
| 77512-0K010 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
3 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-KK020 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77601-KK020 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K041 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) |
2 | ||
| 77653-0K041 |
GUN143,TGN141..5F..(27,28,28G)..GCC |
3 | ||
| 77612B - BAND, FUEL TANK, NO.2 | ||||
| 77602-KK010 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77602-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GUN143,TGN141..5F..(27,28,28G)..GCC TYPE A:REFER ILLUST. |
3 | ||
| 90119-10983 |
GUN143,TGN141..5F..(27,28,28G)..GCC (J),TYPE B:REF ILL. |
3 | ||
| 90119-A0249 |
GUN143,TGN141..5F..(27,28,28G)..GCC (L),TYPE B:REF ILL. |
3 | ||
| 90119-10983 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) (J),TYPE B:REF ILL. |
2 | ||
| 77644-35030 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) TYPE A:REFER ILLUST. |
2 | ||
| 90119-A0249 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) (L),TYPE B:REF ILL. |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
GUN143,TGN141..5F..(27,28,28G)..GCC TYPE A:REFER ILLUST. |
3 | ||
| 90119-10983 |
GUN143,TGN141..5F..(27,28,28G)..GCC (J),TYPE B:REF ILL. |
3 | ||
| 90119-A0249 |
GUN143,TGN141..5F..(27,28,28G)..GCC (L),TYPE B:REF ILL. |
3 | ||
| 90119-10983 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) (J),TYPE B:REF ILL. |
2 | ||
| 77644-35030 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) TYPE A:REFER ILLUST. |
2 | ||
| 90119-A0249 |
GUN142..GEN,IDN;GUN143,TGN140..IDNP..(IDN,PHL,TH) (L),TYPE B:REF ILL. |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-0K050 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77651-0K050 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77654-0K060 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77654-0K060 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-0K060 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77653-0K060 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-KK010 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77681-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-KK010 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77682-KK010 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0K060 |
GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH) |
1 | ||
| 77697-0K060 |
GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90105-T0195 | ||||
| 90179-08234 | ||||
| 90466-T0037 | ||||
| 90468-14039 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
