GUN143L-MDMMYV (2017)

Toyota Innova

Production Aug 2017 - Apr 2019
Engine 1GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )LHD

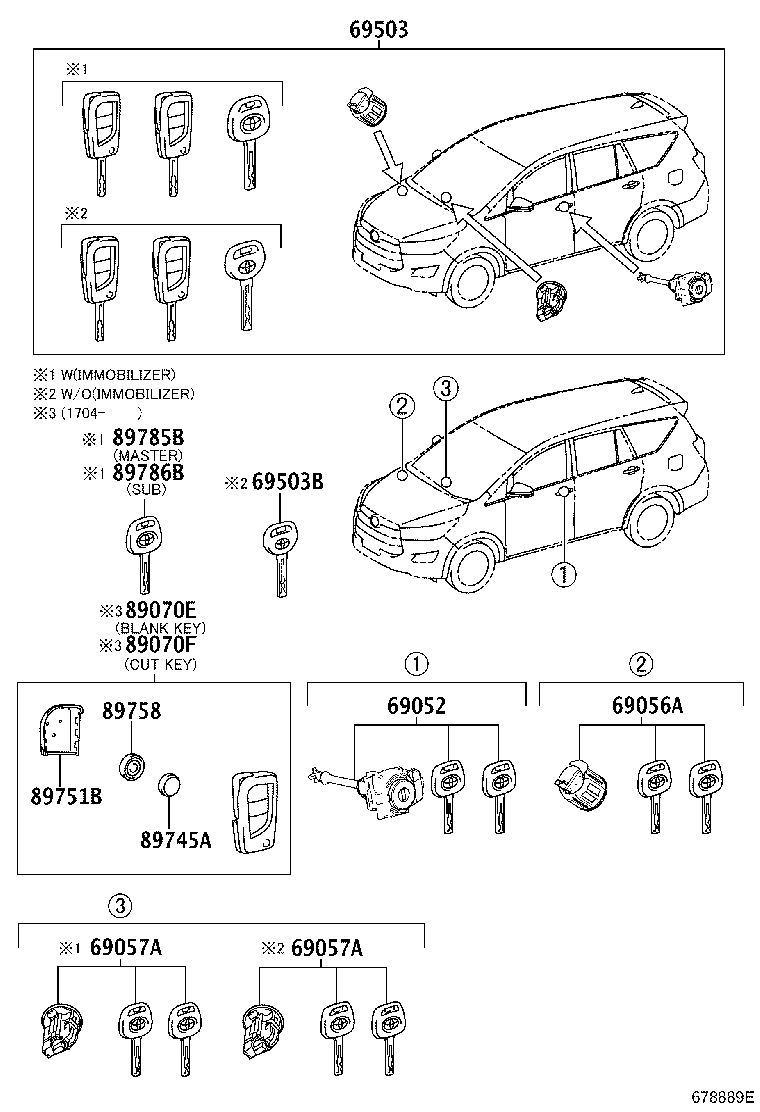

Click highlighted areas on diagram

W/O(SMART ENTRY) & W(*WDL)

diagram 69052 69056A 69057A 69057A 69503 69503B 89070E 89070F 89745A 89751B 89758 89785B 89786B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-0K100

GUN14#,TGN141..LHD..(24,24G,27,27G,27SR,27SRV,28,28G)..(GCC,GEN,LA)

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-0K080

GUN142..24V..IDN;GUN14#,TGN14#..(20,20E,20G,20V,24,24G,27,27G,27SR,27SRV,28,28G)..(GCC,GEN,IDN,LA,SA,TH)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0K260

GUN142..24V..IDN;GUN143,TGN140..(20,20E,20V,24,28,28G)..(GCC,GEN,IDN,TH);GUN142,TGN141..(24,24G,27,27G,27SR,27SRV)..(GCC,LA,SA,TH)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0K260

GUN142..24V..IDN;GUN143,TGN140..(20,20E,20V,24,28,28G)..(GCC,GEN,IDN,TH);GUN142,TGN141..(24,24G,27,27G,27SR,27SRV)..(GCC,LA,SA,TH)

 1
69503 - CYLINDER SET, LOCK
89704-0KG70

GUN143..(24,28,28G)..(GCC,GEN)

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-0KB20

GUN143..(24,28,28G)..(GCC,GEN)

 1
89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
89070-0KD20

GUN143..(24,28,28G)..(GCC,GEN)

 1
89745A - BATTERY, TRANSMITTER
89745-0D060

GUN142..24V..IDN;TGN140..IDNP..20G..PHL;TGN140..RHD..IDNP..(20,20E,20G,20V);GUN14#,TGN141..IDNP..(24,24G,27,27G,27SR,27SRV,28,28G)

CR1620

 1
89751B - COVER, TRANSMITTER HOUSING
89751-0K200

GUN142..(24,24G)..(SA,TH);GUN143..(24,28,28G)..(GCC,GEN)

 2
89758 - PACKING, DOOR CONTROL TRANSMITTER
89758-0K010

GUN142..24V..IDN;TGN140..IDNP..20G..PHL;TGN140..RHD..IDNP..(20,20E,20G,20V);GUN14#,TGN141..IDNP..(24,24G,27,27G,27SR,27SRV,28,28G)

 2
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-0K160

GUN142..24V..IDN;GUN143,TGN140..(20,20E,20V,24,28,28G)..(GCC,GEN,IDN,TH);GUN142,TGN141..(24,24G,27,27G,27SR,27SRV)..(GCC,LA,SA,TH)

CUT KEY

 1
