GUN143L-MDMMYV (2017)

Toyota Innova

Production Aug 2017 - Apr 2019
Engine 1GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )LHD

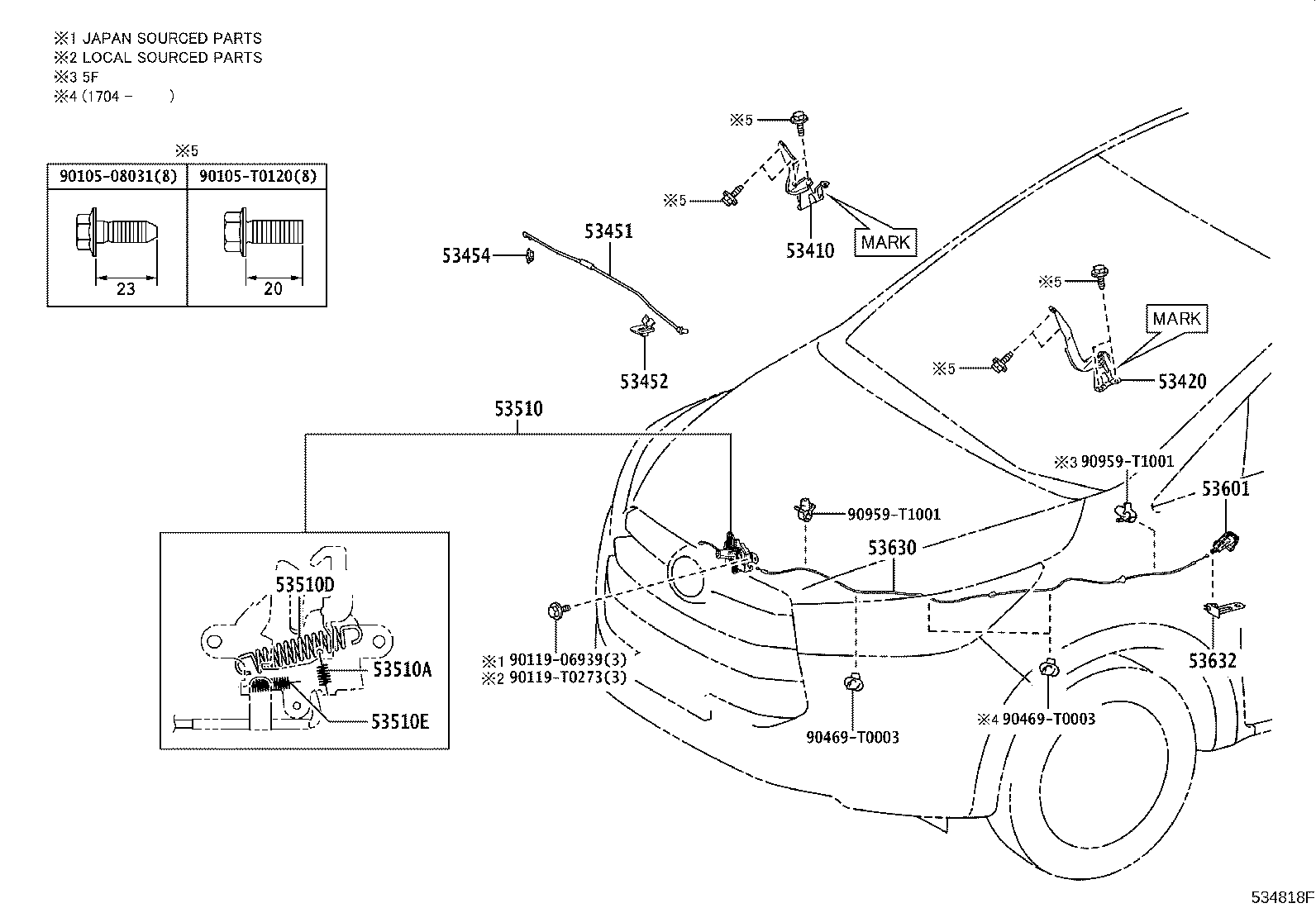

Click highlighted areas on diagram

diagram 53410 53420 53451 53452 53454 53510 53510A 53510D 53510E 53601 53630 53632 9010508031 90105T0120 9011906939 90119T0273 90469T0003 90469T0003 90959T1001 90959T1001
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-0K170

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

MARK -

 1
53410-0K170

GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)

MARK -

 1
53420 - HINGE ASSY, HOOD, LH
53420-0K170

GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)

MARK -

 1
53420-0K170

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

MARK -

 1
53451 - ROD, HOOD SUPPORT
53451-0K090

GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)

 1
53451-0K090

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
53452 - HOLDER, HOOD STAY
53452-0K020

GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)

 1
53452-0K020

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-52020

GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)

 1
53454-52020

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
53510 - LOCK ASSY, HOOD
53510-0KA00

GUN143,TGN141..5F..(27,28,28G)..GCC

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-T0004

GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)

WD=1.2,CW=8.5

 1
90506-T0004

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

WD=1.2,CW=8.5

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-18067

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

WD=1.8,CW=13

 1
90506-18067

GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)

WD=1.8,CW=13

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-T0005

GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)

WD=0.9,CW=21

 1
90506-T0005

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

WD=0.9,CW=21

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-0K100C0

GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)

BLACK,TRIM2#,4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-0K140

GUN14#,TGN14#..LHD..IDNP..5F

 1
53630-0K141

GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)

 1
53632 - HOLDER, HOOD LOCK CONTROL CABLE
53632-30010

GUN143,TGN141..5F..(24,27,28,28G)..(GCC,GEN)

 1
53632-30010

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
Common parts
90105-08031
90105-T0120
90119-06939
90119-T0273
90469-T0003
90959-T1001
