GUN143L-MDMMYV (2017)

Toyota Innova

Production Aug 2017 - Apr 2019
Engine 1GDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )

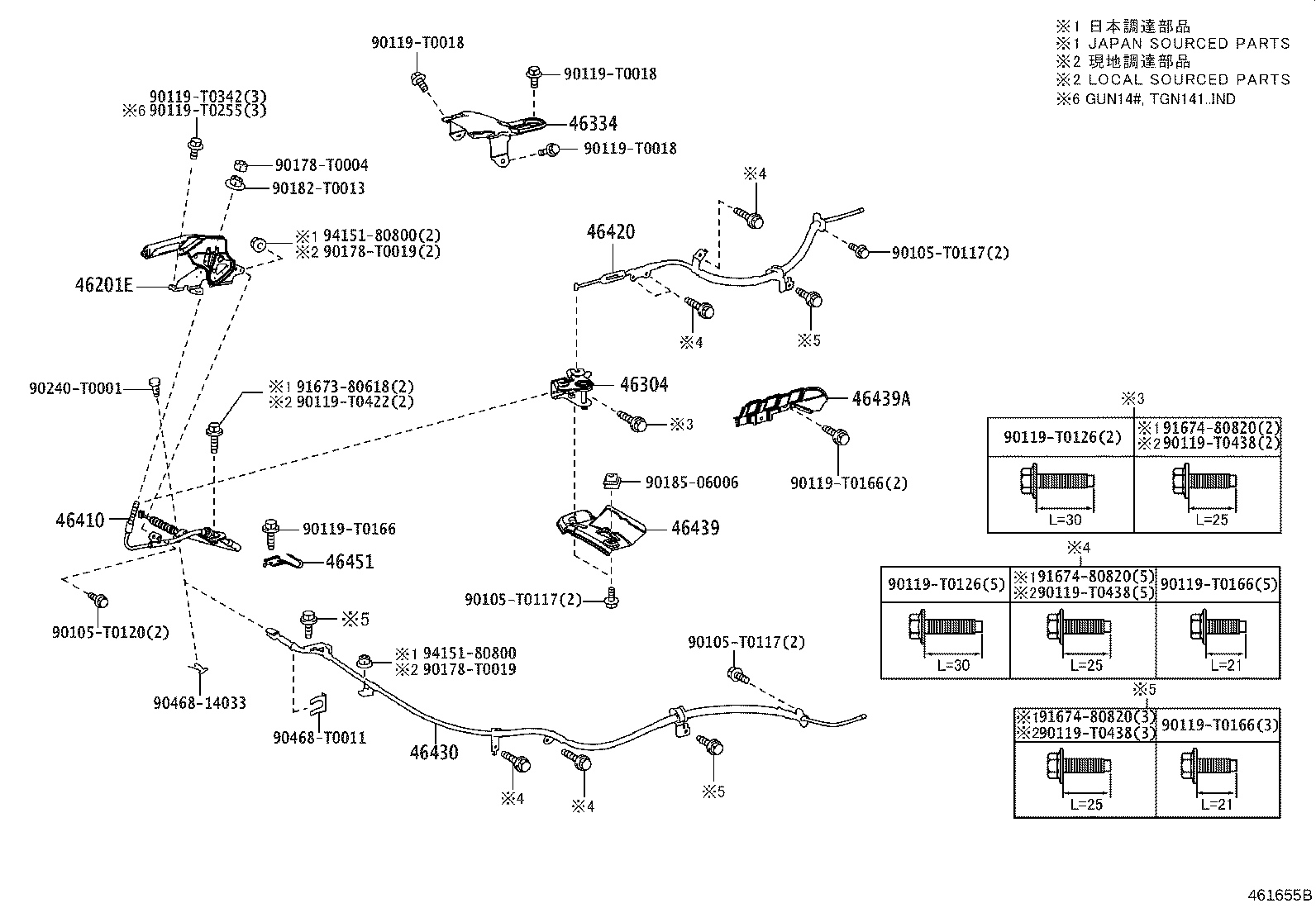

Click highlighted areas on diagram

diagram 46201E 46304 46334 46410 46420 46430 46439 46439A 46451 90105T0117 90105T0117 90105T0117 90105T0120 90119T0018 90119T0018 90119T0018 90119T0126 90119T0126 90119T0166 90119T0166 90119T0166 90119T0166 90119T0255 90119T0342 90119T0422 90119T0438 90119T0438 90119T0438 90178T0004 90178T0019 90178T0019 90182T0013 9018506006 90240T0001 9046814033 90468T0011 9167380618 9167480820 9167480820 9167480820 9415180800 9415180800
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-0K140C0

GUN143..24,28Z;GUN143,TGN141..5F..GCC;GUN143..PHLP..(28G,28V);TGN140..PHLP..(20E,20G,N);GUN142..(24G,24V)..(GCC,TH);GUN142,TGN14#..(20,24,24Z,27SR,28V)..(GCC,GEN,IND,LA,SA)..(DCR,HTWC)

BLACK,TRIM2#,4#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-0K060

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
46304-0K060

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
46334 - PROTECTOR, INTERMEDIATE LEVER
46334-0K010

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
46334-0K010

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-0K090

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)

 1
46410-0K090

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0K250

GUN143..5F..(GCC,GEN);GUN142..(GCC,SA,TH)..DCR;GUN143..PHLP..(28E,28G,28V,N)

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0K200

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
46430-0K200

TGN140..20..GEN;TGN140..(MAP,PHLP)..5F;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..PHLP..(28E,28G,28V,N);GUN142,TGN141..(24,24G,24V,27SR,28V)..(GCC,LA,SA,TH)

 1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-0K060

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
46439-0K060

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
46439A - INSULATOR, PARKING BRAKE CABLE HEAT, NO.2
46439-0K070

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
46439-0K070

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
46451 - BRACKET, CABLE SUPPORT
46451-0K050

GUN142..GEN,IDN;TGN141..5F..27..LA;GUN143,TGN141..6FC..(GCC,LA);GUN143,TGN140..IDNP..(IDN,PHL,TH)

 1
46451-0K050

TGN140..(MAP,PHLP)..5F;TGN14#..(20,27SR)..(GEN,LA);GUN142..(GCC,IND,SA,TH)..DCR;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z,N)

 1
Common parts
90105-T0117
90105-T0120
90119-T0018
90119-T0126
90119-T0166
90119-T0255
90119-T0342
90119-T0422
90119-T0438
90178-T0004
90178-T0019
90182-T0013
90185-06006
90240-T0001
90468-14033
90468-T0011
91673-80618
91674-80820
94151-80800
