GUN143L-MDMMYV (2017)
Toyota Innova

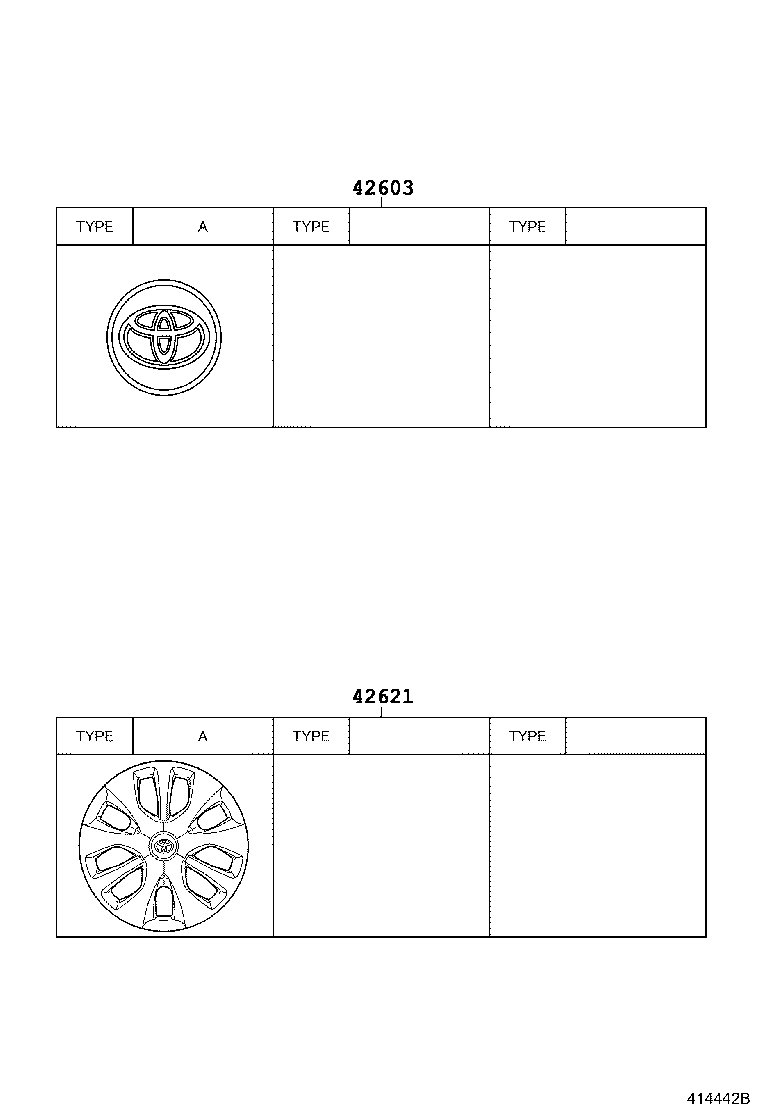

ILLUST NO. 4 OF 4(1511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-0K280 |
GUN142,TGN140..(20E,20G,20Q,20V,28V)..(GCC,IDN,MA,PHL,VN);GUN143,TGN140..(IDNP,INDP,PHLP)..(20,24,28,28E,28G,28V,28Z);GUN142,TGN141..(24,24G,24Q,24V,24Z,27G,27SR,27SRV,27V,27Z)..(GEN,IDN,IND,LA,SA,TH) *ALU,(L) |
4 | ||
| 42603-48140 |
GUN142,TGN140..(20E,20G,20Q,20V,28V)..(GCC,IDN,MA,PHL,VN);GUN143,TGN140..(IDNP,INDP,PHLP)..(20,24,28,28E,28G,28V,28Z);GUN142,TGN141..(24,24G,24Q,24V,24Z,27G,27SR,27SRV,27V,27Z)..(GEN,IDN,IND,LA,SA,TH) *ALU,(J) |
4 | ||
| 42603-0K290 |
TGN140..(MAP,PHLP)..5F..20E;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN14#..(INDP,PHLP)..(24G,24V,24Z,28E,28G,28V,28Z)..DCR *ALU,(L) |
4 | ||
| 42603-42130 |
TGN140..(MAP,PHLP)..5F..20E;GUN143,TGN141..5F..(GCC,GEN);TGN140..PHLP..6FC..(20E,20G);GUN14#..(INDP,PHLP)..(24G,24V,24Z,28E,28G,28V,28Z)..DCR *ALU,(J) |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-0K130 |
GUN142..28V;GUN142..5F..24G..IDN;GUN143,TGN140..GCC,GEN TIRE & DISC WHEEL-205/65R16 STEEL,TYPE A:REFER ILLUST. |
4 | ||

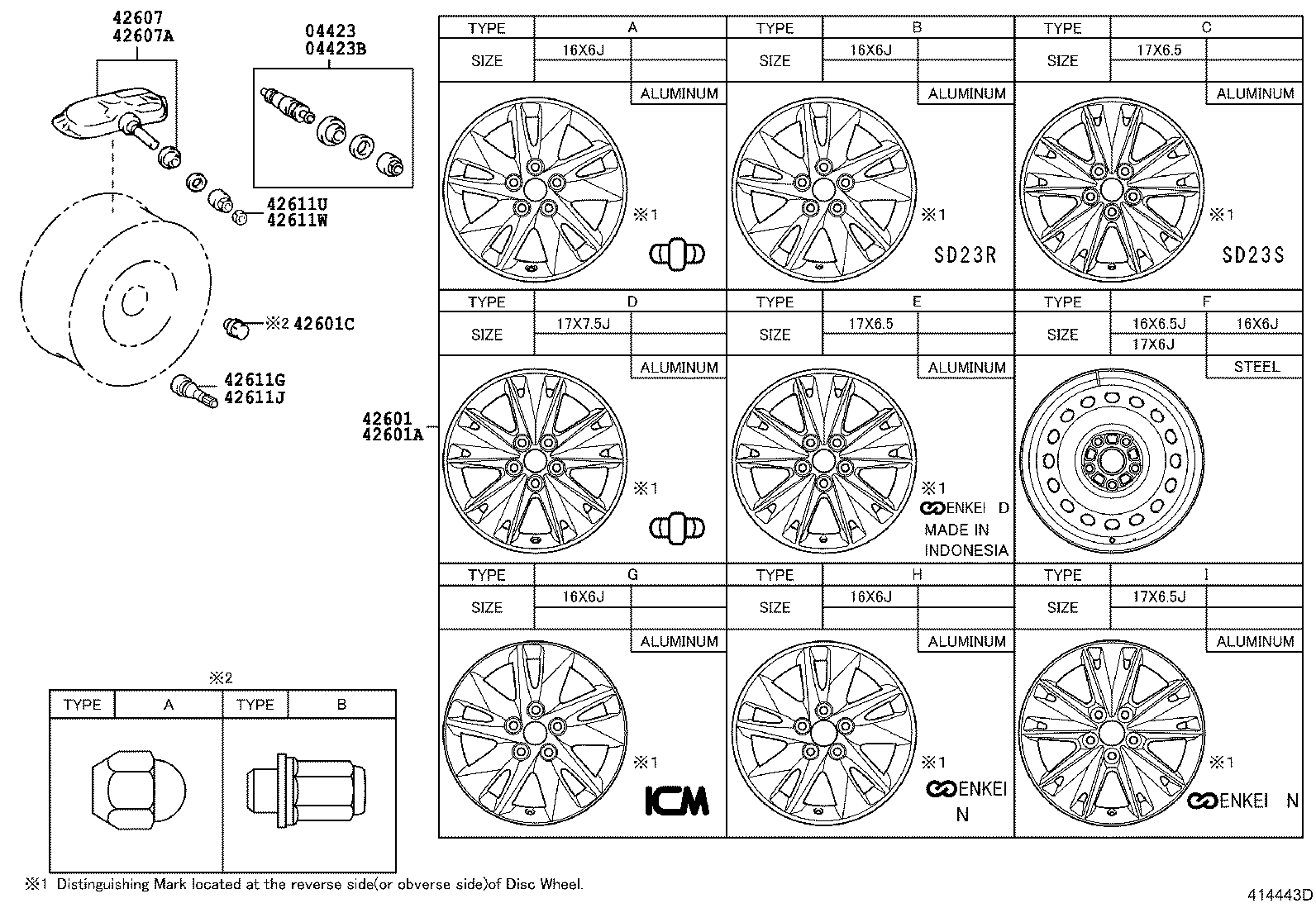

ILLUST NO. 1 OF 4(1511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-0KL20 |
GUN142..24G..TH;GUN142..RHD..(GEN,IDN,SA);GUN143..IDNP..(24,28,28E,28G);GUN14#,TGN141..(27SR,27SRV,28V)..(GCC,LA);TGN140..IDNP..(20,20E,20G,20Q,20V)..(GEN,IDN,PHL) 16X6J,#,TYPE B:REFER ILLUST. |
4 | ||
| 42611-0KM70 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE D:REFER ILLUST. |
4 | ||
| 42611-0KL30 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST. |
4 | ||
| 42611-0KM60 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST. |
4 | ||
| 42611-0KM50 |
GUN142..24G..TH;GUN142..RHD..(GEN,IDN,SA);GUN143..IDNP..(24,28,28E,28G);GUN14#,TGN141..(27SR,27SRV,28V)..(GCC,LA);TGN140..IDNP..(20,20E,20G,20Q,20V)..(GEN,IDN,PHL) 16X6J,#,TYPE A:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-0KL30 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0KM60 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-0KL20 |
GUN142..RHD..(GEN,IDN,SA);GUN14#,TGN141..(27SR,27SRV,28V)..(GCC,LA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,24,28,28E,28G)..(GCC,GEN,IDN,PHL) 16X6J,#,TYPE B:REFER ILLUST. |
1 | ||
| 42611-0KM50 |
GUN142..RHD..(GEN,IDN,SA);GUN14#,TGN141..(27SR,27SRV,28V)..(GCC,LA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,24,28,28E,28G)..(GCC,GEN,IDN,PHL) 16X6J,#,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0KM70 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE D:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01082 |
GUN142..28V;GUN142..5F..24G..IDN;GUN143,TGN140..GCC,GEN TIRE & DISC WHEEL-205/65R16 STEEL,TYPE A:REFER ILLUST. |
20 | ||
| 90942-T1005 |
GUN143..5F..(GCC,GEN);TGN140..(MAP,PHLP)..5F..20E;TGN140..PHLP..6FC..(20E,20G);GUN142,TGN140..(20,28V)..(GCC,GEN);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z);GUN142,TGN141..(24,24G,24V,24Z,27SR)..(IND,LA,SA,TH)..(DCR,HTWC) (L),T/P B:REF.ILLUST |
20 | ||
| 90942-01109 |
GUN143..5F..(GCC,GEN);TGN140..(MAP,PHLP)..5F..20E;TGN140..PHLP..6FC..(20E,20G);GUN142,TGN140..(20,28V)..(GCC,GEN);GUN143..(INDP,PHLP)..(28E,28G,28V,28Z);GUN142,TGN141..(24,24G,24V,24Z,27SR)..(IND,LA,SA,TH)..(DCR,HTWC) (J),T/P B:REF.ILLUST |
20 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
GUN143,TGN140..IDNP..(IDN,PHL,TH);GUN142,TGN141..(24G,24Q,24V,27,27SRV)..(GEN,IDN,LA) |
1 | ||
ILLUST NO. 2 OF 4(1511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-0KL20 |
GUN142..24G..TH;GUN142..RHD..(GEN,IDN,SA);GUN143..IDNP..(24,28,28E,28G);GUN14#,TGN141..(27SR,27SRV,28V)..(GCC,LA);TGN140..IDNP..(20,20E,20G,20Q,20V)..(GEN,IDN,PHL) 16X6J,#,TYPE B:REFER ILLUST. |
4 | ||
| 42611-0KM70 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE D:REFER ILLUST. |
4 | ||
| 42611-0KL30 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST. |
4 | ||
| 42611-0KM60 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST. |
4 | ||
| 42611-0KM50 |
GUN142..24G..TH;GUN142..RHD..(GEN,IDN,SA);GUN143..IDNP..(24,28,28E,28G);GUN14#,TGN141..(27SR,27SRV,28V)..(GCC,LA);TGN140..IDNP..(20,20E,20G,20Q,20V)..(GEN,IDN,PHL) 16X6J,#,TYPE A:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-0KL30 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0KM60 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-0KL20 |
GUN142..RHD..(GEN,IDN,SA);GUN14#,TGN141..(27SR,27SRV,28V)..(GCC,LA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,24,28,28E,28G)..(GCC,GEN,IDN,PHL) 16X6J,#,TYPE B:REFER ILLUST. |
1 | ||
| 42611-0KM50 |
GUN142..RHD..(GEN,IDN,SA);GUN14#,TGN141..(27SR,27SRV,28V)..(GCC,LA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,24,28,28E,28G)..(GCC,GEN,IDN,PHL) 16X6J,#,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0KM70 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE D:REFER ILLUST. |
1 | ||
ILLUST NO. 3 OF 4(1511- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-0KL20 |
GUN142..24G..TH;GUN142..RHD..(GEN,IDN,SA);GUN143..IDNP..(24,28,28E,28G);GUN14#,TGN141..(27SR,27SRV,28V)..(GCC,LA);TGN140..IDNP..(20,20E,20G,20Q,20V)..(GEN,IDN,PHL) 16X6J,#,TYPE B:REFER ILLUST. |
4 | ||
| 42611-0KM70 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE D:REFER ILLUST. |
4 | ||
| 42611-0KL30 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST. |
4 | ||
| 42611-0KM60 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST. |
4 | ||
| 42611-0KM50 |
GUN142..24G..TH;GUN142..RHD..(GEN,IDN,SA);GUN143..IDNP..(24,28,28E,28G);GUN14#,TGN141..(27SR,27SRV,28V)..(GCC,LA);TGN140..IDNP..(20,20E,20G,20Q,20V)..(GEN,IDN,PHL) 16X6J,#,TYPE A:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-0KL30 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0KM60 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-0KL20 |
GUN142..RHD..(GEN,IDN,SA);GUN14#,TGN141..(27SR,27SRV,28V)..(GCC,LA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,24,28,28E,28G)..(GCC,GEN,IDN,PHL) 16X6J,#,TYPE B:REFER ILLUST. |
1 | ||
| 42611-0KM50 |
GUN142..RHD..(GEN,IDN,SA);GUN14#,TGN141..(27SR,27SRV,28V)..(GCC,LA);GUN143,TGN140..IDNP..(20,20E,20G,20Q,20V,24,28,28E,28G)..(GCC,GEN,IDN,PHL) 16X6J,#,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0KM70 |
TGN140..6FC..20Q;GUN142..RHD..(24,24Q);GUN14#,TGN141..(24G,27G,27SRV,28G,28V)..(GCC,LA) 17X6.5J,#,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE D:REFER ILLUST. |
1 | ||
